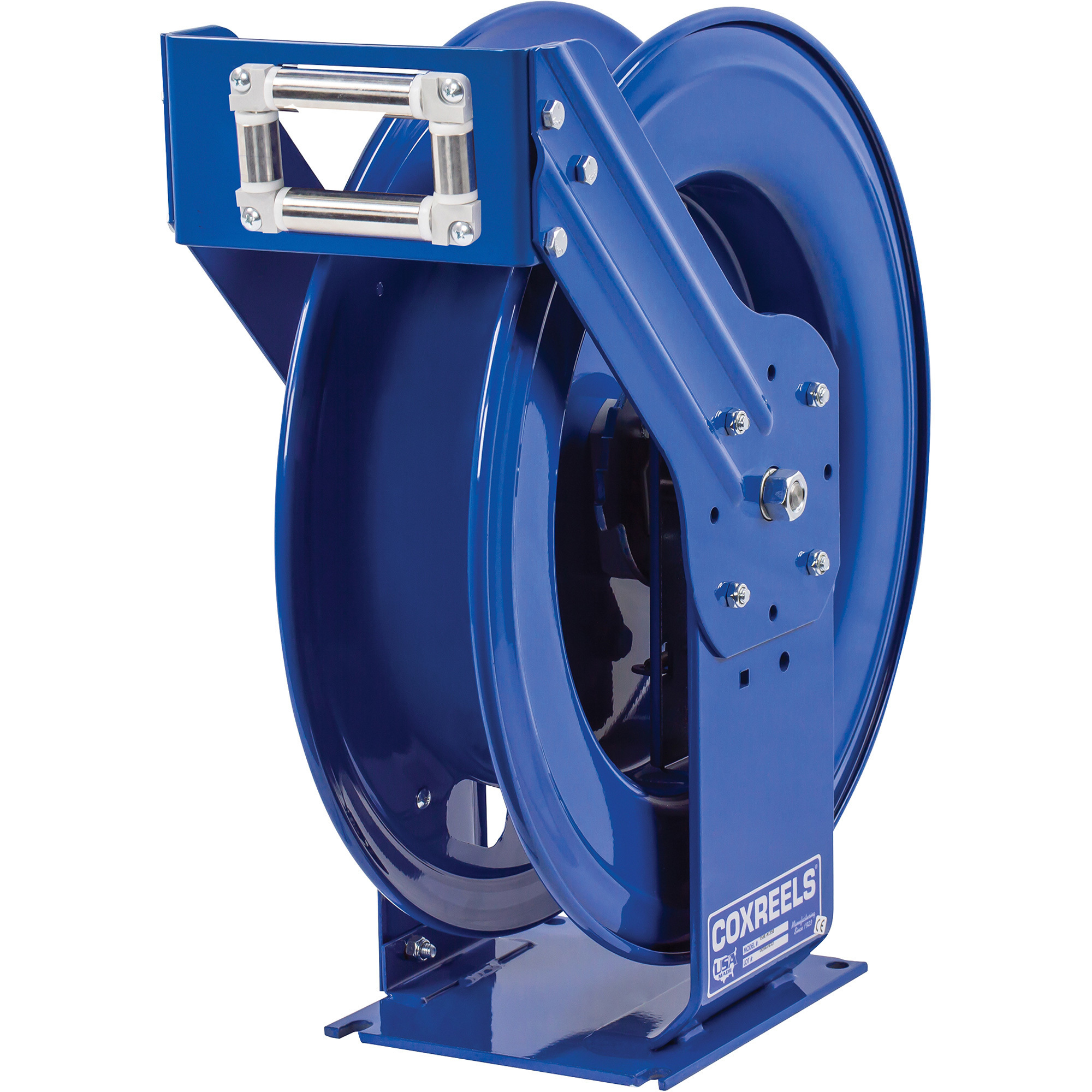

Coxreels Supreme Duty Spring Driven Fuel Hose Reel — 1in. x 50ft., Diesel Fuel, No Hose, Model# TSHL-N-650-BXN

Item# 129662
Coxreels Supreme Duty Spring Driven Fuel Hose Reel — 1in. x 50ft., Diesel Fuel, No Hose, Model# TSHL-N-650-BXN

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Coxreels Supreme Duty Spring Driven Fuel Hose Reel — 1in. x 50ft., Diesel Fuel, No Hose, Model# TSHL-N-650-BXN

Click or Tap image to Zoom

$703.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • SWIVEL - Machined from zinc plated steel 90? full-flow NPT swivel for fuel dispensing applications.
  • CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" STEEL BASE - Sturdy dual pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Exclusive Super Hub™ triple axle support system.
  • MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Coxreels Supreme Duty Spring Driven Fuel Hose Reel is a robust, high-quality solution designed for demanding fuel dispensing applications. This reel is engineered to handle up to 50 feet of 1-inch diameter fuel hose, providing ample reach and flexibility for a variety of fueling tasks. Constructed with heavy-duty materials, it ensures long-lasting durability and reliable performance even in the toughest environments. The spring-driven mechanism offers smooth and efficient retraction, minimizing hose wear and reducing labor time. Its compact design allows for easy installation in tight spaces, while the sturdy base provides stability during operation. Ideal for commercial and industrial settings, this fuel hose reel enhances productivity and safety by keeping hoses organized and readily accessible. Whether used in automotive, agricultural, or construction industries, the Coxreels Supreme Duty Spring Driven Fuel Hose Reel is the ultimate choice for efficient and dependable fuel management.

What's Included

    (1) Spring driven fuel hose reel

Features + Benefits

  • SWIVEL - Machined from zinc plated steel 90? full-flow NPT swivel for fuel dispensing applications.
  • CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" STEEL BASE - Sturdy dual pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Exclusive Super Hub™ triple axle support system.
  • MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and sturdy permanently lubricated precision bearings.

Key Specs

AttributeSpecification

item#

129662

Brand

Coxreels

Manufacturer's Warranty

2 year limited warranty

Ship Weight

77.0 LB
AttributeSpecification

Hose Length

50 ft

Max. PSI

300

Hose Included

No

Product Weight

-

Reviews

Questions & Answers

Questions

  1. What is the diameter of the inner wheel that the hose will coil to? I want the tightest coil to be at least 12 inches in diameter. The picture appears to show a very large inner diameter which would be great!

    1 answer

    1. The diameter of the inner wheel is 12.5".

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
