Coxreels Compact Power Cord Reel, 30-Ft., 16/3 Cord With Duplex GFCI Receptacle, Model# PC10-3016-F

Item# 152786

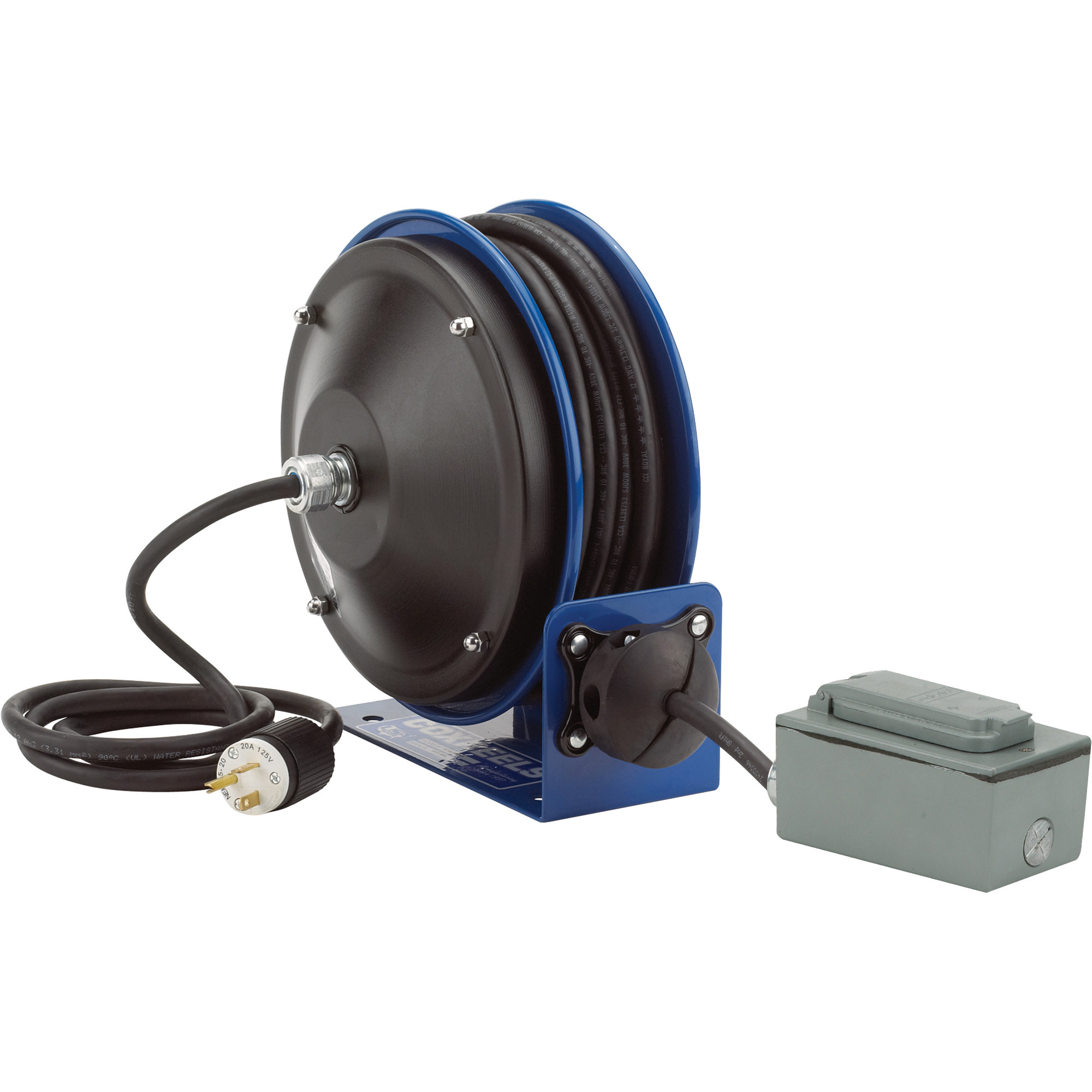

Coxreels Compact Power Cord Reel, 30-Ft., 16/3 Cord With Duplex GFCI Receptacle, Model# PC10-3016-F

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Coxreels Compact Power Cord Reel, 30-Ft., 16/3 Cord With Duplex GFCI Receptacle, Model# PC10-3016-F

Click or Tap image to Zoom

$469.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Professional grade heavy-duty steel construction
  • Durable CPC™ powder-coat finish
  • Rolled edges and ribbed discs for strength and safety
  • Includes 5-ft. pigtail with grounding plug
  • 3-conductor 115V 16-gauge cord with duplex GFCI metal industrial receptacle

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Coxreels PC10 compact spring-driven power cord reel is an ideal cord management solution for commercial or industrial applications where space is limited. Auto rewind wraps, stores and maintains electrical cord around heavy-duty steel reel. Equipped with a continuous radius grommet-style power cord guide and a C-PEP composite hub for high chemical resistance and extra strength at cold temperatures. U.S.A.

What's Included

    (1) 30-ft. cord reel with duplex GFCI receptacle

Downloads

Product Manual

Features + Benefits

  • Professional grade heavy-duty steel construction
  • Durable CPC™ powder-coat finish
  • Rolled edges and ribbed discs for strength and safety
  • Includes 5-ft. pigtail with grounding plug
  • 3-conductor 115V 16-gauge cord with duplex GFCI metal industrial receptacle
  • COMPONENT COVER - External, easily accesible, heavy gauge CPC™ powder coated steel components cover for fast and simple slip ring routine maintenance. No need to remove the reel from its mount.
  • RATCHET HUB - Non-corrosive, high strength CoxComposite™ ratchet hub with self lubricating bronze bearings secures hose at desired length.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 12GA STEEL BASE - Solid one piece, 12GA steel base and support post for maximum stability. Compact & lightweight spring driven hose reel.
  • GROMMET - CoxComposite™ grommet with continuous radius design that does not pinch or catch the hose during operation.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish,adjustable solid rubber cord stop, 5' lead cable and grounding plug, sturdy permanently lubricated precision bearings, and duplex G.F.C.I metal industrial receptacle

Key Specs

AttributeSpecification

item#

152786

Brand

Coxreels

Manufacturer's Warranty

2 year limited warranty

Ship Weight

16.0 LB

Length

30 ft

Cable Gauge

16/3

Plug Type

Other

Lead-in Cord Length

5 ft

Volts

115
AttributeSpecification

Auto Rewind

Yes

Amps

13

Mount Type

Wall

Outlets (qty.)

2

Color

Blue

Swivel

0 °

Swivels

No

UL Listed

Yes

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
