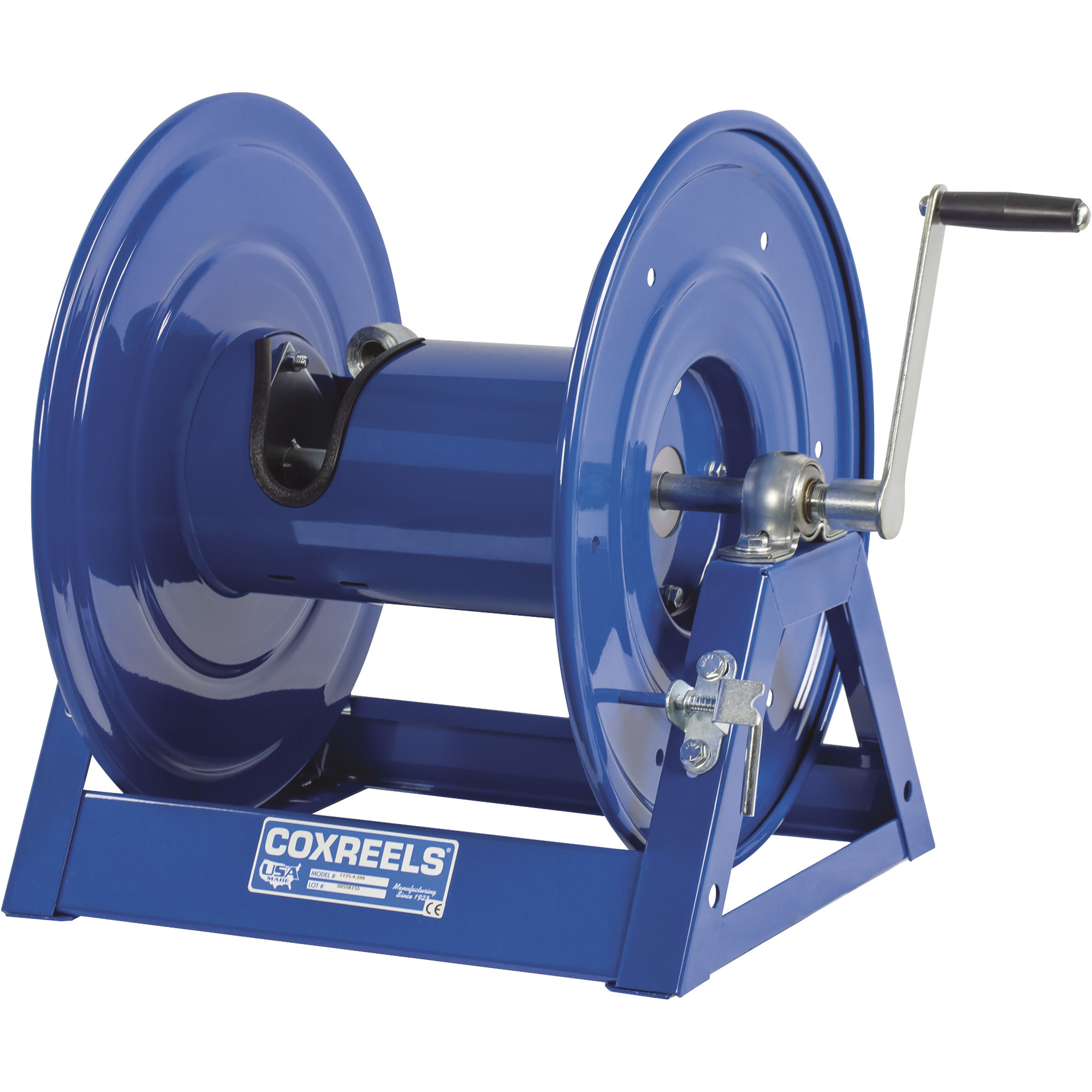

Coxreels 1125 Series Hand-Crank Hose Reel, Holds 3/4in. x 250ft. Hose, Max. 3000 PSI, Model# 1125-5-250

Item# 160124
"Coxreels 1125 Series Hand-Crank Hose Reel, Holds 3/4in. x 250ft. Hose, Max. 3000 PSI, Model# 1125-5-250"
Coxreels 1125 Series Hand-Crank Hose Reel, Holds 3/4in. x 250ft. Hose, Max. 3000 PSI, Model# 1125-5-250

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Coxreels 1125 Series Hand-Crank Hose Reel, Holds 3/4in. x 250ft. Hose, Max. 3000 PSI, Model# 1125-5-250

Click or Tap image to Zoom

$392.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Can be used as a stationary or mobile unit
  • Floor, ceiling, wall or truck mounted
  • Professional-grade heavy-duty steel construction
  • Durable proprietary CPC™ powder-coat process
  • Rolled edges and ribbed discs provide strength and safety

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Coxreels® 1125 Series "Competitor" hand crank hose reel has the features demanded by industry professionals. The industry-preferred design features a sturdy one-piece all welded "A" frame base, low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap. U.S.A.

What's Included

    (1) Hand crank hose reel

Downloads

Product Manual

Features + Benefits

  • Can be used as a stationary or mobile unit
  • Floor, ceiling, wall or truck mounted
  • Professional-grade heavy-duty steel construction
  • Durable proprietary CPC™ powder-coat process
  • Rolled edges and ribbed discs provide strength and safety
  • Nitrile seals
  • Solid steel crank with smooth round handle
  • Long-handled lock pin secures reel from rotation
  • Adjustable friction brake assembly to brake or lock the drum
  • Solid machined brass NPT swivel inlet
  • Reel weight: 59 lbs.

Key Specs

AttributeSpecification

item#

160124

Brand

Coxreels

Manufacturer's Warranty

2 year limited warranty

Ship Weight

59.0 LB

Hose Diameter

3/4 in
AttributeSpecification

Hose Length

250 ft

Max. PSI

3,000

Hose Material

PVC

Product Weight

lb

Dimensions L x W x H (in.)

17.63 x 42.25 x 18.75 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Does this include all the brass fittings ready to hook up

    1 answer

    1. The hose reel would include all fittings needed to hook it up.

      Helpful?

  2. Is it possible to increase the size of coupling coming thru the bearing to one inch in size

    1 answer

    1. The Coxreels 1125 Series Hand Crank Hose Reel is designed with a specific coupling size and bearing configuration. Modifying the coupling size to one inch would require significant alterations to the reel’s design, which could affect its performance and safety and would void warranty.

      Helpful?

  3. Are all of the fluid paths made of brass or stainless steel? I can't have any raw steel.....

    1 answer

    1. This reel has a brass swivel and then transitions to a carbon steel going in to the hose reel where the hose would attach.

      Helpful?

  4. What are the pipe thread connection sizes for the hoses

    1 answer

    1. This reel has 3/4" NPT (national pipe thread) hose connection fittings.

      Helpful?

  5. can this air hose reel be downsized to fit a 3/8 inch air hose

    1 answer

    1. It is possible to change the brass hose fitting to a smaller size such as a 3/8 inch. It comes with a a 3/4 inch fitting.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
