Concentric High Pressure Hydraulic Gear Pump, 0.517 Cu. In., Model# G1232C5A300N00

Item# 10567
"Concentric High Pressure Hydraulic Gear Pump, 0.517 Cu. In., Model# G1232C5A300N00"
Concentric High Pressure Hydraulic Gear Pump, 0.517 Cu. In., Model# G1232C5A300N00

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Concentric High Pressure Hydraulic Gear Pump, 0.517 Cu. In., Model# G1232C5A300N00

Click or Tap image to Zoom

$249.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not available - online only
  • Cubic Inch Size: .517
  • Flow at 1,800 RPM: 4.0 GPM
  • Flow at 3,600 RPM: 8.0 GPM
  • Maximum PSI Cont.: 1,200
  • Maximum PSI Intmt.: 2,000

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

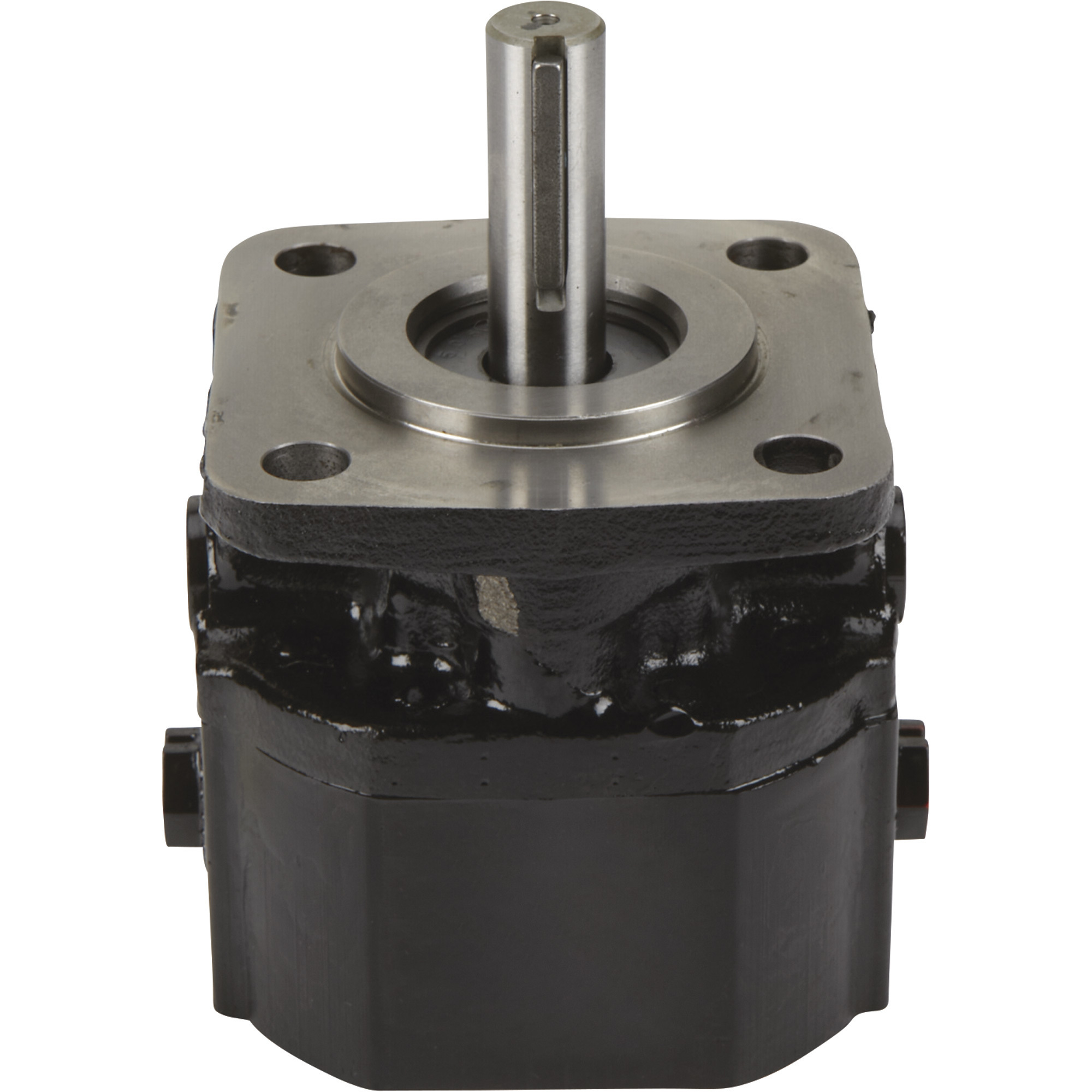

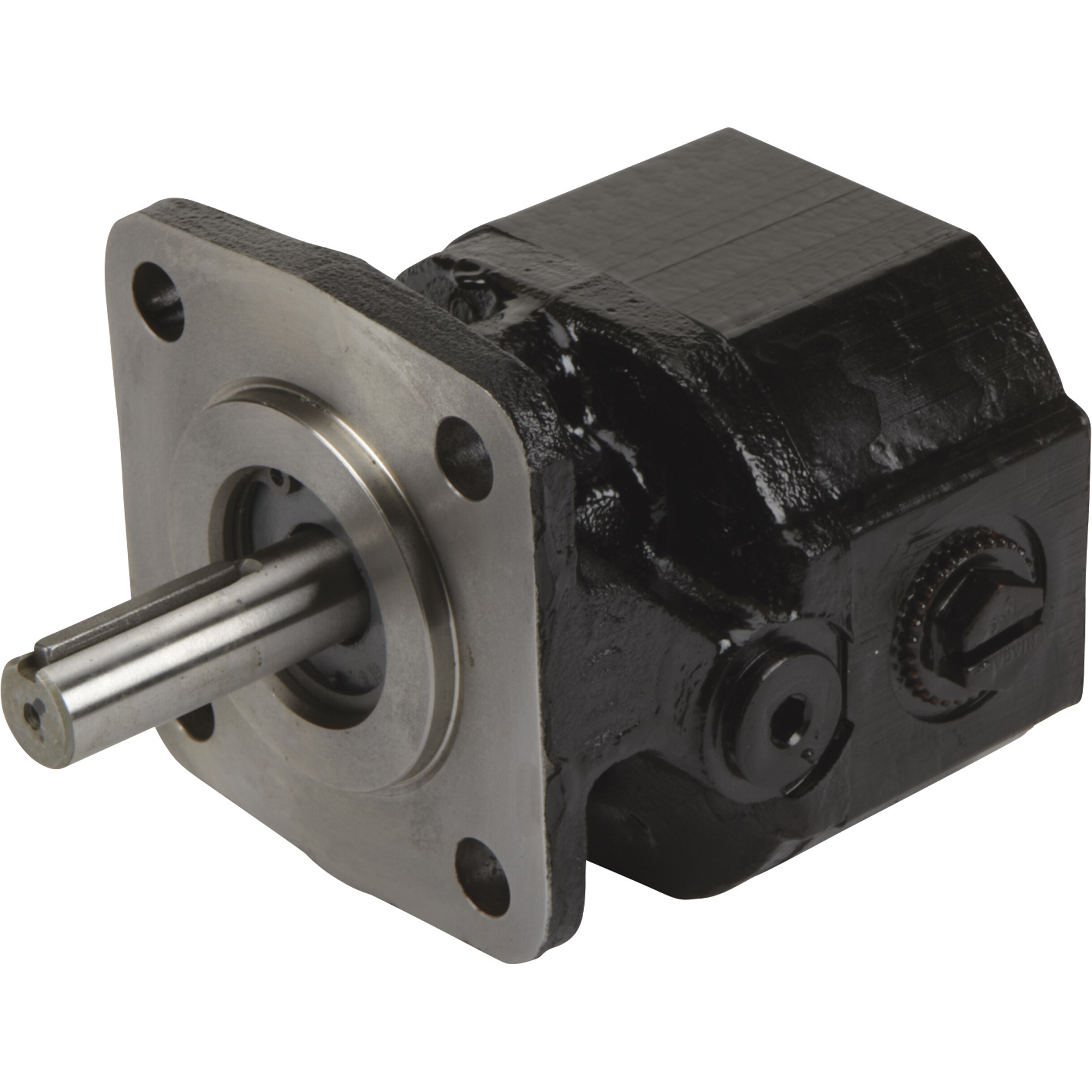

Use this Concentric High Pressure Hydraulic Gear Pump on mobile equipment, construction and agricultural equipment, machine tools, material handling and mining equipment, PTO pumps, refuse haulers, compaction and baling equipment. Standard 4-bolt mount. 1.78in. diameter pilot with 1/2in. x 1 1/2in. shaft, 1/8in. square key. Heavy-duty cast iron pump turns at 4,000 RPM max. in CW or CCW direction. Use as a fluid pump or fluid motor. Similar to Parker D Series, Webster YB Series, Rexroth S12, MTED Series. Flexible coupling or belt (pulley) drive. 90% efficient.

What's Included

    (1) Hydraulic gear pump

Downloads

Product Manual

Features + Benefits

  • Cubic Inch Size: .517
  • Flow at 1,800 RPM: 4.0 GPM
  • Flow at 3,600 RPM: 8.0 GPM
  • Maximum PSI Cont.: 1,200
  • Maximum PSI Intmt.: 2,000
  • O-Ring Port Size, SAE: 7/8in.-14

Key Specs

AttributeSpecification

item#

10567

Brand

Haldex

Manufacturer's Warranty

1 year limited warranty

Ship Weight

5.51 LB

Max. PSI

1,200
AttributeSpecification

Max. Flow Rate

8 GPM

Shaft Diameter

0.5 in

Pump Type

Gear

Material

Cast Iron

Thread Type

Other

Reviews

Questions & Answers

21 Reviews This action will navigate to reviews.

Questions

1–10 of 16 Questions
Sort by:

  1. question on inlet and outlet ports

    You said in another answer:

    "With the manufacturer tag on the pump facing upward and direct coupled to an engine with CCW rotation the left port would be the suction and the right port would be the discharge."

    Is that with the shaft facing me, or the shaft facing away from me?

    1. If looking at the shaft and rotating the correct direction. If you look at the gears rotating; the side where the gears are coming together is the discharge side.

      Helpful?

    2. For the correct connection based on the rotation the shaft facing should be facing you.

      Helpful?

  2. Are you saying since these are bi-directional there isn’t no proper inlet and discharge. If there is looking at shaft which is discharge?

    1 answer

    1. It depends on the rotation. Looking at the pump, shaft end, if the pump shaft rotates CW, the inlet is on the left, discharge will then be on the right. CCW is just the opposite.

      Helpful?

  3. how can I speed up the motor?

    1 answer

    1. The motor can be sped up with more input. The flow is only one way.

      Helpful?

  4. What is the outside diameter of the pilot lip around the shaft seal?

    1 answer

    1. The outside diameter of the lip around the shaft seal is 1.78".

      Helpful?

  5. Can you please tell me the minimum operational RPM's for this motor?

    1 answer

    1. This Concentric High Pressure Hydraulic Gear Pump does not have a set minimum operational RPM as it will vary based on the way the gear pump is used. As a general rule of thumb, the minimum RPM would be around 300 RPM.

      Helpful?

  6. what is the max rpm when used as a motor?

    1 answer

    1. The maximum RPM for this unit is 4000.

      Helpful?

  7. what is the tourque when used as a motor?

    1 answer

    1. When this unit is used as a motor the torque produced is about 296 in/lbs at 3600 psi.

      Helpful?

  8. Will this pump serve in place of a .589 dis. that a shop has recomended?

    I have an estimate for a system on my IH Cub Cadet that calls for a .589 displacement gear pump. I want to power a 48" three blade mower deck.

    1 answer

    1. This pump has a .517 displacement. If the estimate calls for a gear pump with a .589 displacement, this pump would not be recommended.

      Helpful?

  9. can i mount this with the shaft down?

    How am I supposed to know what port is the inlet and what port is the outlet side?

    1 answer

    1. The pump cannot be mounted in a vertical position. The fluid will not flow properly. With the manufacturer tag on the pump facing upward and direct coupled to an engine with CCW rotation the left port would be the suction and the right port would be the discharge.

      Helpful?

  10. what is the horse power requiremnt for this pump at 3600 rpm 8g/mini?

    1 answer

    1. A minimum of 6 horsepower is required to run this pump.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
