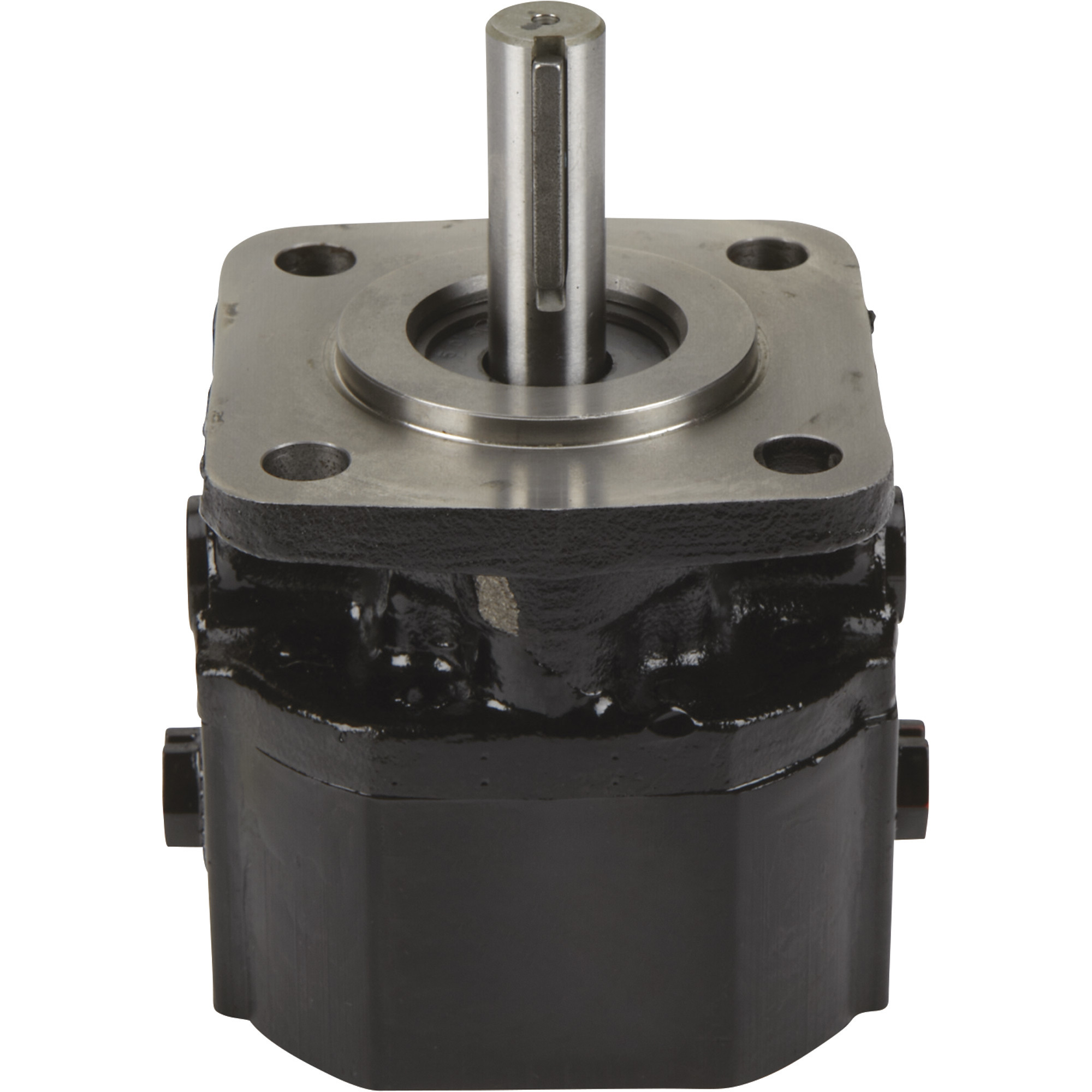

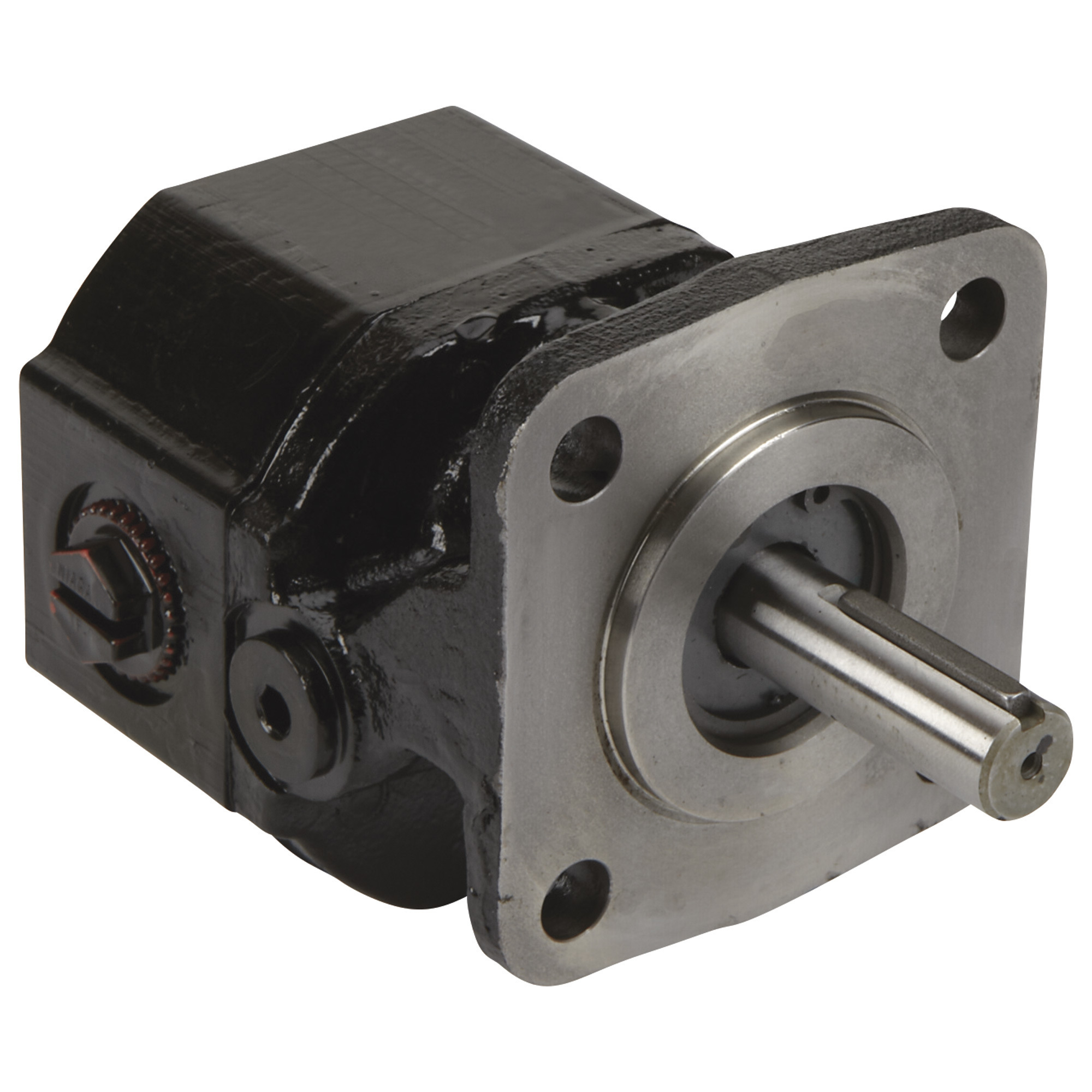

Concentric High Pressure Hydraulic Gear Pump, 0.194 Cu. In., Model# G1212C5A300N00

Item# 10564
"Concentric High Pressure Hydraulic Gear Pump, 0.194 Cu. In., Model# G1212C5A300N00"
Concentric High Pressure Hydraulic Gear Pump, 0.194 Cu. In., Model# G1212C5A300N00

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Concentric High Pressure Hydraulic Gear Pump, 0.194 Cu. In., Model# G1212C5A300N00

Click or Tap image to Zoom

$229.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not available - online only
  • Cubic Inch Size: .194
  • Flow at 1,800 RPM: 1.5 GPM
  • Flow at 3,600 RPM: 3.0 GPM
  • Maximum PSI Cont.: 3,000
  • Maximum PSI Intmt.: 4,000

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Use this Concentric High Pressure Hydraulic Gear Pump on mobile equipment, construction and agricultural equipment, machine tools, material handling and mining equipment, PTO pumps, refuse haulers, compaction and baling equipment. Standard 4-bolt mount. 1.78in. diameter pilot with 1/2in. x 1 1/2in. shaft, 1/8in. square key. Heavy duty cast iron pump turns at 4,000 RPM max. in CW or CCW direction. Use as a fluid pump or fluid motor. Similar to Parker D Series, Webster YB Series, Rexroth S12, MTED Series. Flexible coupling or belt (pulley) drive. 90% efficient.

What's Included

    (1) Hydraulic gear pump

Downloads

Product Manual

Features + Benefits

  • Cubic Inch Size: .194
  • Flow at 1,800 RPM: 1.5 GPM
  • Flow at 3,600 RPM: 3.0 GPM
  • Maximum PSI Cont.: 3,000
  • Maximum PSI Intmt.: 4,000
  • O-Ring Port Size, SAE: 3/4in.-16

Key Specs

AttributeSpecification

item#

10564

Brand

Haldex

Manufacturer's Warranty

1 year limited warranty

Ship Weight

4.64 LB

Max. PSI

3,000
AttributeSpecification

Max. Flow Rate

3 GPM

Shaft Diameter

0.5 in

Pump Type

Gear

Material

Cast Iron

Thread Type

Other

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Can you use this pump as a hydraulic motor

    1 answer

    1. To use as a hydraulic motor, with the manufacturer tag facing up and looking at the pump shaft end, you will install the high pressure line on the right port to make the shaft turn counter clockwise. To make the shaft turn clockwise, you will install the high pressure line on the left port.

      Helpful?

  2. Are the inlet and outlet ports 3/4 npt and if not witch pump has 3/4 npt ports

    1 answer

    1. The inlet and outlet ports are 3/4" with 16 threads per inch. NPT ports would be 14 threads per inch.
      At this time a pump with 3/4" NPT is unavailable.

      Helpful?

  3. What strength DC motor should be used with this?

    I'm wondering how to actually power the pump. What horse power DC motor should I be using with this pump? Should it be geared as well?

    1 answer

    1. Based on the torque required for the application, the DC motor should range from 3 to 5 HP and an operating RPM of up to 3600

      Helpful?

  4. Will this pump operate a hydraulic cylinders?

    1 answer

    1. This pump can be used to operate a hydraulic cylinder.

      Helpful?

  5. once I determine rotational direction for the pump how do I find the inlet and outlet on the pump?

    1 answer

    1. With the manufacturer tag facing up and direct coupled to engine with CCW shaft rotation. the left port is suction and the right port is high pressure discharge output.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
