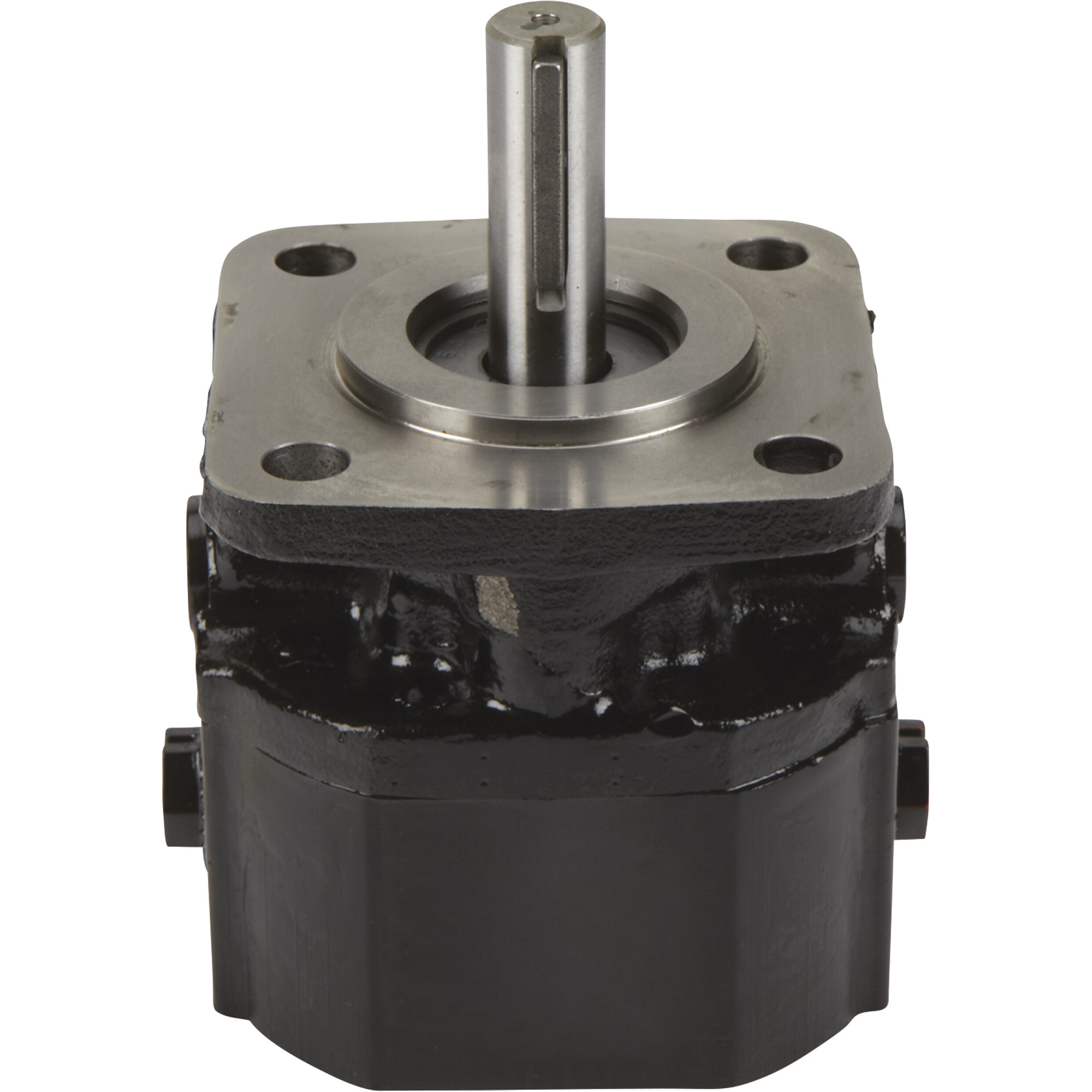

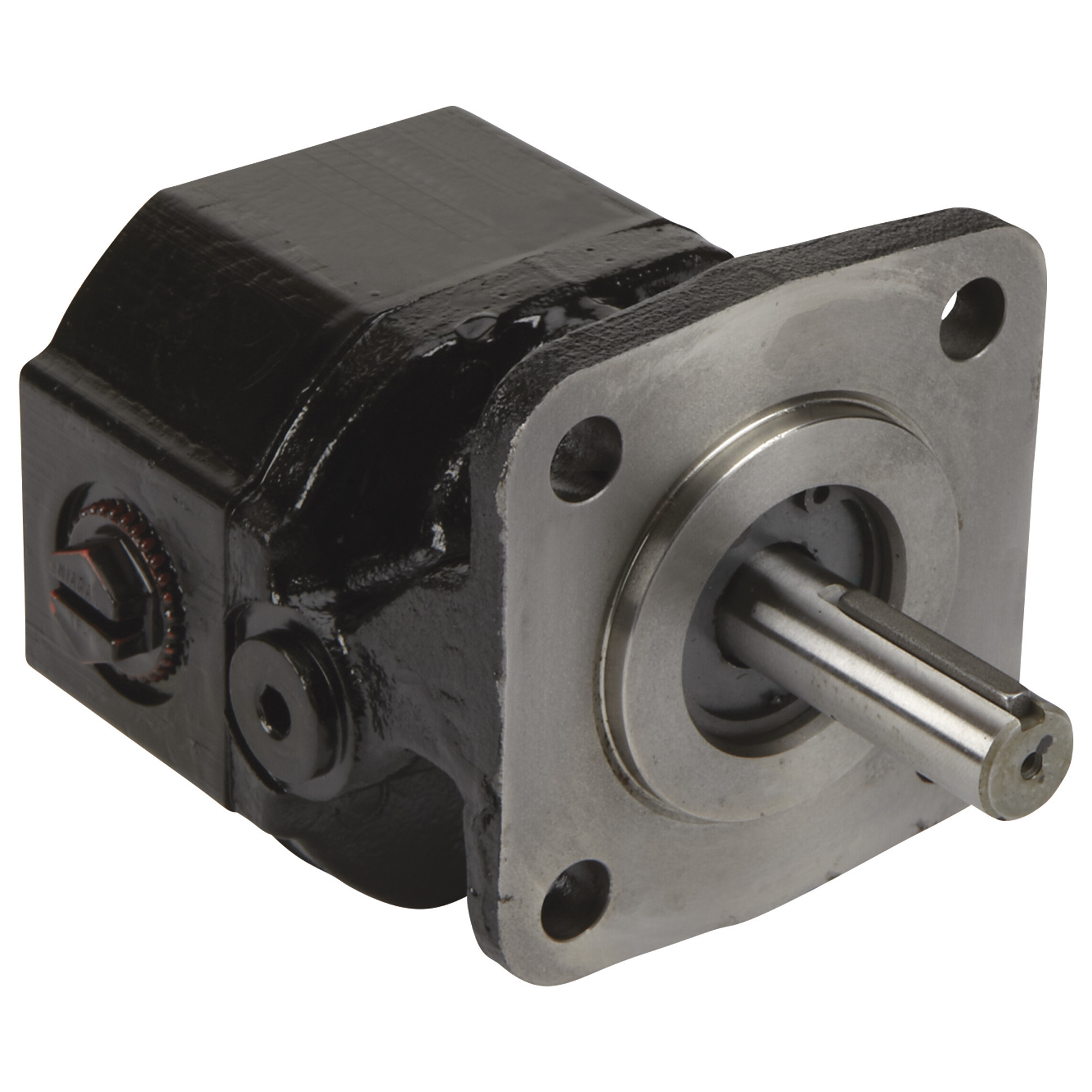

Concentric High Pressure Hydraulic Gear Pump, 0.129 Cu. In., Model# G1208C5A300N00

Item# 10563
"Concentric High Pressure Hydraulic Gear Pump, 0.129 Cu. In., Model# G1208C5A300N00"
Concentric High Pressure Hydraulic Gear Pump, 0.129 Cu. In., Model# G1208C5A300N00

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Concentric High Pressure Hydraulic Gear Pump, 0.129 Cu. In., Model# G1208C5A300N00

Click or Tap image to Zoom

$229.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not available - online only
  • Cubic Inch Size: 0.129
  • Flow at 1,800 RPM: 1.0 GPM
  • Flow at 3,600 RPM: 2.0 GPM
  • Maximum PSI Cont.: 3,000
  • Maximum PSI Intmt.: 4,000

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Use this Concentric High Pressure Hydraulic Gear Pump on mobile equipment, construction and agricultural equipment, machine tools, material handling and mining equipment, PTO pumps, refuse haulers, compaction and baling equipment. Standard 4-bolt mount. 1.78in. diameter pilot with 1/2in. x 1 1/2in. shaft, 1/8in. square key. Heavy duty cast iron pump turns at 4,000 RPM max. in CW or CCW direction. Use as a fluid pump or fluid motor. Similar to Parker D Series, Webster YB Series, Rexroth S12, MTED Series. Flexible coupling or belt (pulley) drive. 90% efficient.

What's Included

    (1) Hydraulic gear pump

Downloads

Product Manual

Features + Benefits

  • Cubic Inch Size: 0.129
  • Flow at 1,800 RPM: 1.0 GPM
  • Flow at 3,600 RPM: 2.0 GPM
  • Maximum PSI Cont.: 3,000
  • Maximum PSI Intmt.: 4,000
  • O-Ring Port Size, SAE: 3/4in.-16

Key Specs

AttributeSpecification

item#

10563

Brand

Haldex

Manufacturer's Warranty

1 year limited warranty

Ship Weight

4.6 LB

Max. PSI

3,000
AttributeSpecification

Max. Flow Rate

2 GPM

Shaft Diameter

0.5 in

Pump Type

Gear

Material

Cast Iron

Thread Type

Other

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. What is the maximum temperature this pump is rated for?

    1 answer

    1. The maximum operating temperature is 250 degrees F.

      Helpful?

  2. What size electric motor is best for this pump?

    1 answer

    1. This pump does not go by horsepower essentially. It will go by the rpm rating of 1800-3600 with a maximum of 4000 rpm. The formula to figure horsepower is: psi x gpm divided by 1714 = hp.

      Helpful?

  3. does it have threads on in and out port

    1 answer

    1. This Concentric/Haldex high pressure hydraulic gear pump has side porting with SAE straight thread ports.

      Helpful?

  4. does this pump have an internal pressure relief?

    1 answer

    1. This pump does not have an internal pressure relief.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Replacement Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
