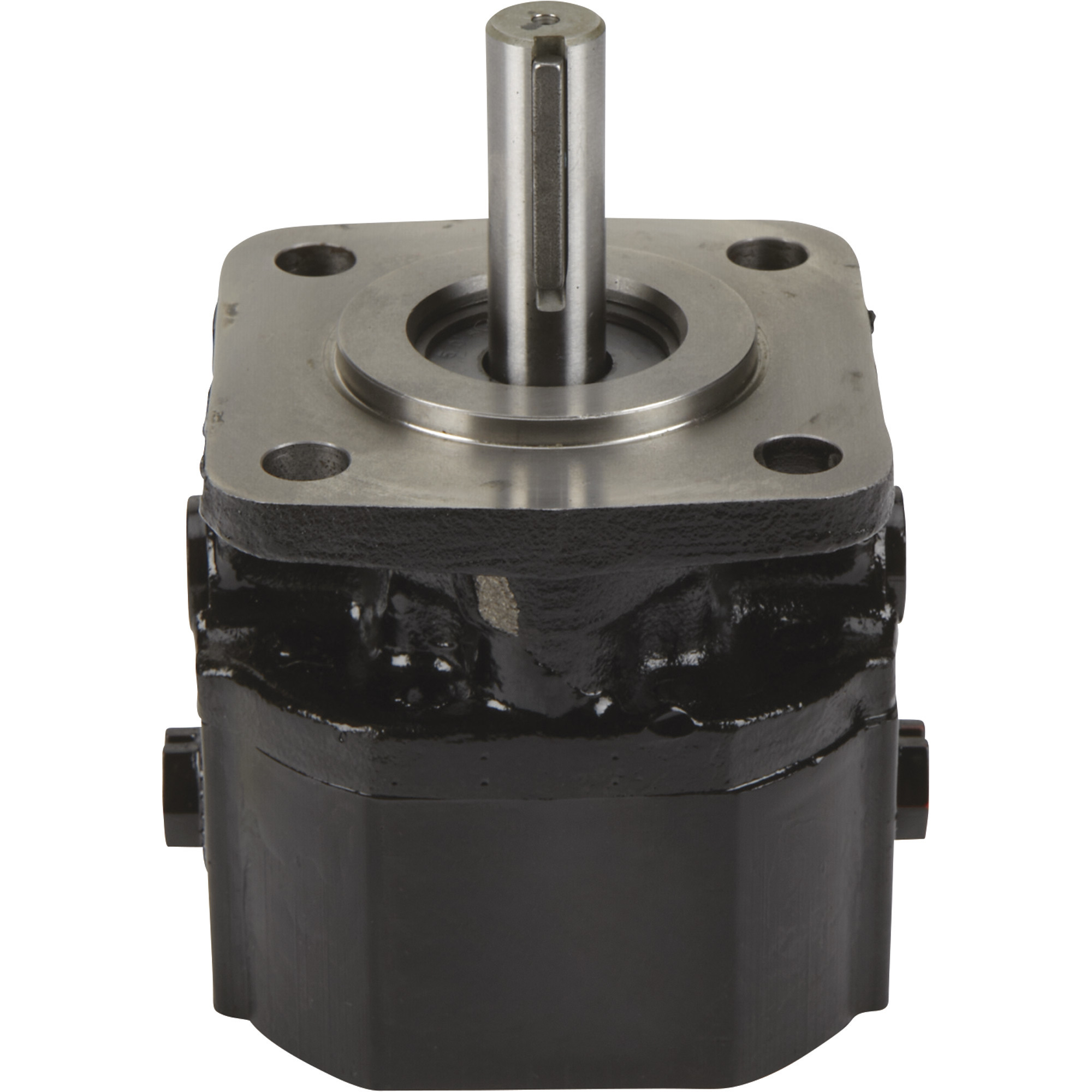

Concentric High Pressure Hydraulic Gear Pump, 0.065 Cu. In., Model# G1204C5A300N00

Item# 10561
"Concentric High Pressure Hydraulic Gear Pump, 0.065 Cu. In., Model# G1204C5A300N00"
Concentric High Pressure Hydraulic Gear Pump, 0.065 Cu. In., Model# G1204C5A300N00

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Concentric High Pressure Hydraulic Gear Pump, 0.065 Cu. In., Model# G1204C5A300N00

Click or Tap image to Zoom

$199.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • Cubic Inch Size: 0.065
  • Flow at 1,800 RPM: 0.33 GPM
  • Flow at 3,600 RPM: 1.0 GPM
  • Maximum PSI Cont.: 3,000
  • Maximum PSI Intmt.: 4,000

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Use this Concentric High Pressure Hydraulic Gear Pump on mobile equipment, construction and agricultural equipment, machine tools, material handling and mining equipment, PTO pumps, refuse haulers, compaction and baling equipment. Standard 4-bolt mount. 1.78in. diameter pilot with 1/2in. x 1 1/2in. shaft, 1/8in. square key. Heavy duty cast iron pump turns at 4,000 RPM max. in CW or CCW direction. Use as a fluid pump or fluid motor. Similar to Parker D Series, Webster YB Series, Rexroth S12, MTED Series. Flexible coupling or belt (pulley) drive. 90% efficient.

What's Included

    (1) Hydraulic gear pump

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Cubic Inch Size: 0.065
  • Flow at 1,800 RPM: 0.33 GPM
  • Flow at 3,600 RPM: 1.0 GPM
  • Maximum PSI Cont.: 3,000
  • Maximum PSI Intmt.: 4,000
  • O-Ring Port Size, SAE: 9/16in.-18

Key Specs

AttributeSpecification

item#

10561

Brand

Haldex

Manufacturer's Warranty

1 year limited warranty

Ship Weight

4.71 LB

Max. PSI

3,000
AttributeSpecification

Max. Flow Rate

1 GPM

Shaft Diameter

0.5 in

Pump Type

Gear

Material

Cast Iron

Thread Type

Other

Reviews

Questions & Answers

9 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. Can this be pulley driven?

    1 answer

    1. The pump can be used with a flexible coupling or belt pulley drive.

      Helpful?

  2. can I get a 7/8 shaft

    1 answer

    1. This pump is not available with a 7/8" shaft.

      Helpful?

  3. What viscosity range can this pump handle?

    1 answer

    1. The optimum operational viscosity would be 16-63 centistrokes or 80-288 seybolt universal seconds and at minimum operational viscosity would be 10-750 centistrokes or 59-3409 seybolt universal seconds and at maximum cold start 2000 centistokes or 9091 seybolt universal seconds.

      Helpful?

  4. What is the torque (in./ibs)?

    1 answer

    1. To determine the torque of the Gear Pump the fluid motor displacement (cubic inch) is divided by 0.0628.

      Helpful?

  5. Is a case drain required?

    The drawing shows a port on the bottom for case drain. Does this exist on this model? If so, does it have to be connected to low pressure line? Or can it be plugged?

    1 answer

    1. This does have a case drain with a steel plug installed. It depends on the application if its to be used or not. If it's used as a pump and has low back pressure the drain is not needed. If it's used a fluid motor and has higher back pressure then you would want to use the drain.

      Helpful?

  6. How slow can it turn and still handle rated pressure?

    1 answer

    1. If you are going to run the pump at a normal 1000-2000 PSI then the minimum RPM would be 600. If you are going to use it in a lube application at around 200 PSI then you can run it at whatever RPM necessary.

      Helpful?

  7. What port is the suction port in clockwise rotation?

    Clockwise input shaft rotation as viewed looking at the shaft end of the pump.

    1 answer

    1. With manufacturer tag facing up, and looking at the pump from shaft end you would install the high pressure line on the right port to make the shaft turn counter clockwise. You would install the high pressure line on the left port to make the shaft turn clockwise.

      Helpful?

  8. inlet and outlet size

    What is the size of the inlet and outlet? What size O ring adapter will fit the pump ports?

    1 answer

    1. This gear pump has o-ring port size inlet and outlet of 9/16-18 SAE #6.

      Helpful?

  9. What is the HP requirements for 1800 rpm and 3600 rpm?

    1 answer

    1. A formula to get approximate horsepower needed is as follows:

      HP needed = GPM x system pressure(PSI) / 1714 x % pump efficiency.

      This pump is 95% efficient. At 1800 RPM, the pump moves .5 GPM, and will be 1.0 GPM at 3600. Depending on pressure desired, you will have to do the math to determine horsepower needed.

      Helpful?

  10. i need to know where the lines hook up

    do these pumps have the hookups for the hydraulic line to hook in the back they bolt by two bolts on the back

    1 answer

    1. This Haldex gear pump features the inlet and outlet ports on opposite sides, not on the back.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
