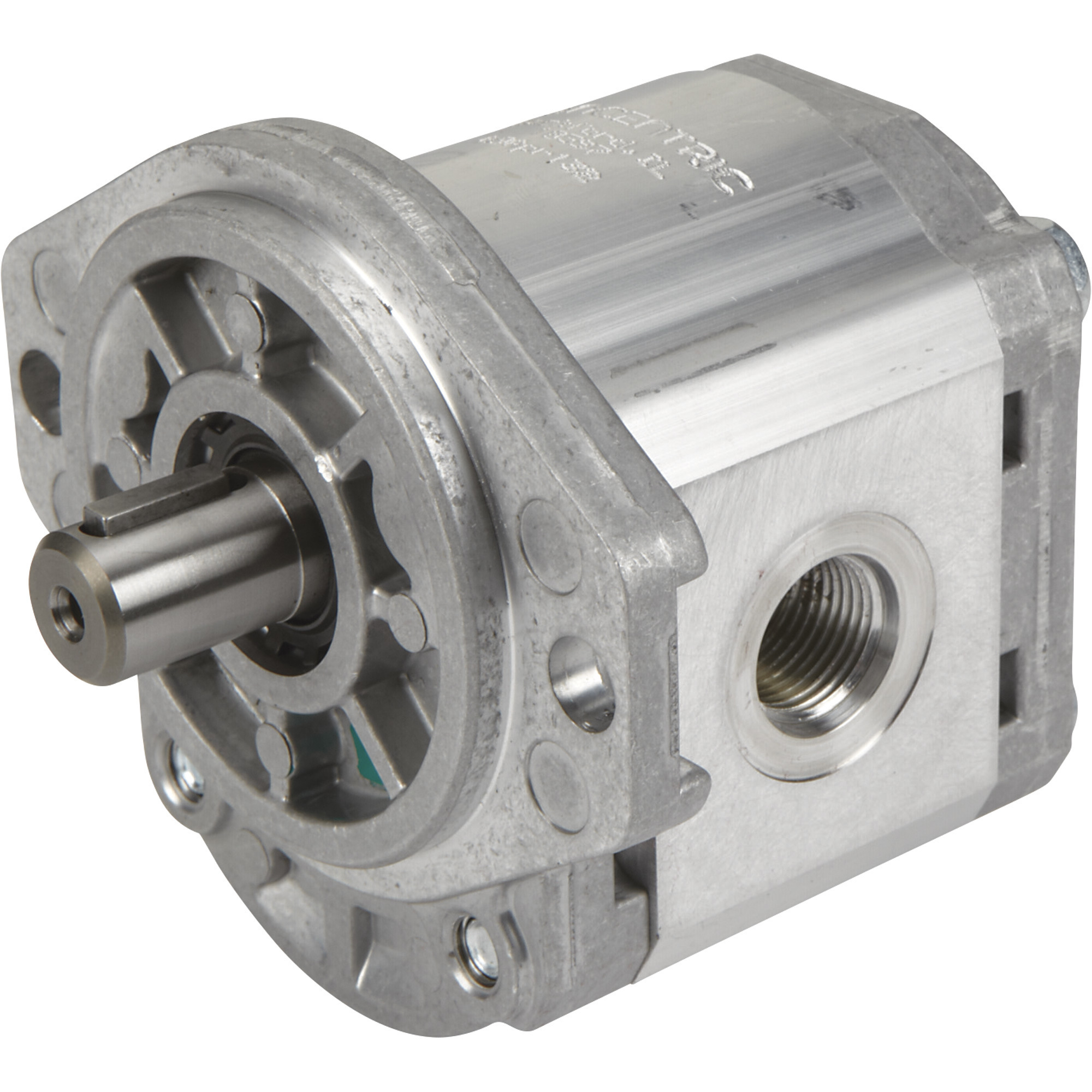

Concentric High Performance Hydraulic Gear Pump, .61 cu. in., Model# WP09A1B100R03BA102N

Item# 10597
"Concentric High Performance Hydraulic Gear Pump, .61 cu. in., Model# WP09A1B100R03BA102N"
Concentric High Performance Hydraulic Gear Pump, .61 cu. in., Model# WP09A1B100R03BA102N

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Concentric High Performance Hydraulic Gear Pump, .61 cu. in., Model# WP09A1B100R03BA102N

Click or Tap image to Zoom

$214.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not available - online only
  • Displacement Cubic In.: .61
  • Maximum Flow at 1,800 RPM: 4.72 GPM
  • Maximum Flow at 3,600 RPM: 9.44 GPM
  • Maximum RPM at 4,000 PSI: 3,600
  • Outlet: 7/8in.-14

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Concentric High Performance Hydraulic Gear Pump is a compact, high-performance package that is constructed of high-strength aluminum housing with cast iron end covers. Ideal for a wide variety of applications such as material handling, aerial lifts, turf care, agriculture and construction. Low-noise pumps have SAE A 2-bolt mounts and SAE O-ring side ports. W900 Series: 92% efficiency, 3/4in. keyed shaft.

What's Included

    (1) High performance hydraulic gear pump

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Displacement Cubic In.: .61
  • Maximum Flow at 1,800 RPM: 4.72 GPM
  • Maximum Flow at 3,600 RPM: 9.44 GPM
  • Maximum RPM at 4,000 PSI: 3,600
  • Outlet: 7/8in.-14
  • Rotation: CW

Key Specs

AttributeSpecification

item#

10597

Brand

Haldex

Manufacturer's Warranty

1 year limited warranty

Ship Weight

5.8 LB

Max. PSI

4,000
AttributeSpecification

Max. Flow Rate

9.44 GPM

Shaft Diameter

0.75 in

Pump Type

Gear

Material

Multiple

Thread Type

Other

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. Power requirements needed

    1 answer

    1. The minimum horsepower is 25, and will be the same for an electric motor.

      Helpful?

  2. What is the torque spec on the 4 m10 bolts that hold it together? I would need to reverse the gears to get it to work on my setup

    1 answer

    1. The torque spec would be 34-35 foot pounds for this hydraulic gear pump.

      Helpful?

  3. what size is the shaft

    1 answer

    1. This hydraulic gear pump has a 3/4" diameter shaft that is 1" long.

      Helpful?

  4. Which way does it run clock wise

    1 answer

    1. The pump will turn clockwise.

      Helpful?

  5. Bolt hole spacing

    I am looking at the specs pdf page to get the bolt pattern spacing. PDF lists 3 models: W600, W900 or W1500.
    All have different bolts patterns, which one is this?

    1 answer

    1. This unit is the W900. The bolt hole pattern from center to center is 4.189".

      Helpful?

  6. I have a crane that has a 3480 psi working pressure @ 8 gpm will this work

    1 answer

    1. The Concentric/Haldex high performance gear pump will work with your application.

      Helpful?

  7. Why does the pump not work in reverse?

    What happens if the shaft is rotated backwards?

    1 answer

    1. The gears in this pump are for only turning one direction in a clockwise rotation. If you were to try to turn the shaft in the wrong direction you will burn out the pump. The pump item #10598 will turn in the counter clockwise rotation.

      Helpful?

  8. HP engine

    What type of engine is recommended for this pump? How many HP, cc. etc? Better yet, what part number engine should go with this pump? Thanks

    1 answer

    1. The minimum HP required for this pump is 25 HP gas engine or electric motor. We do not have any electric motors that large. We do have a gas engine by Kohler in a 25 HP.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Replacement Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
