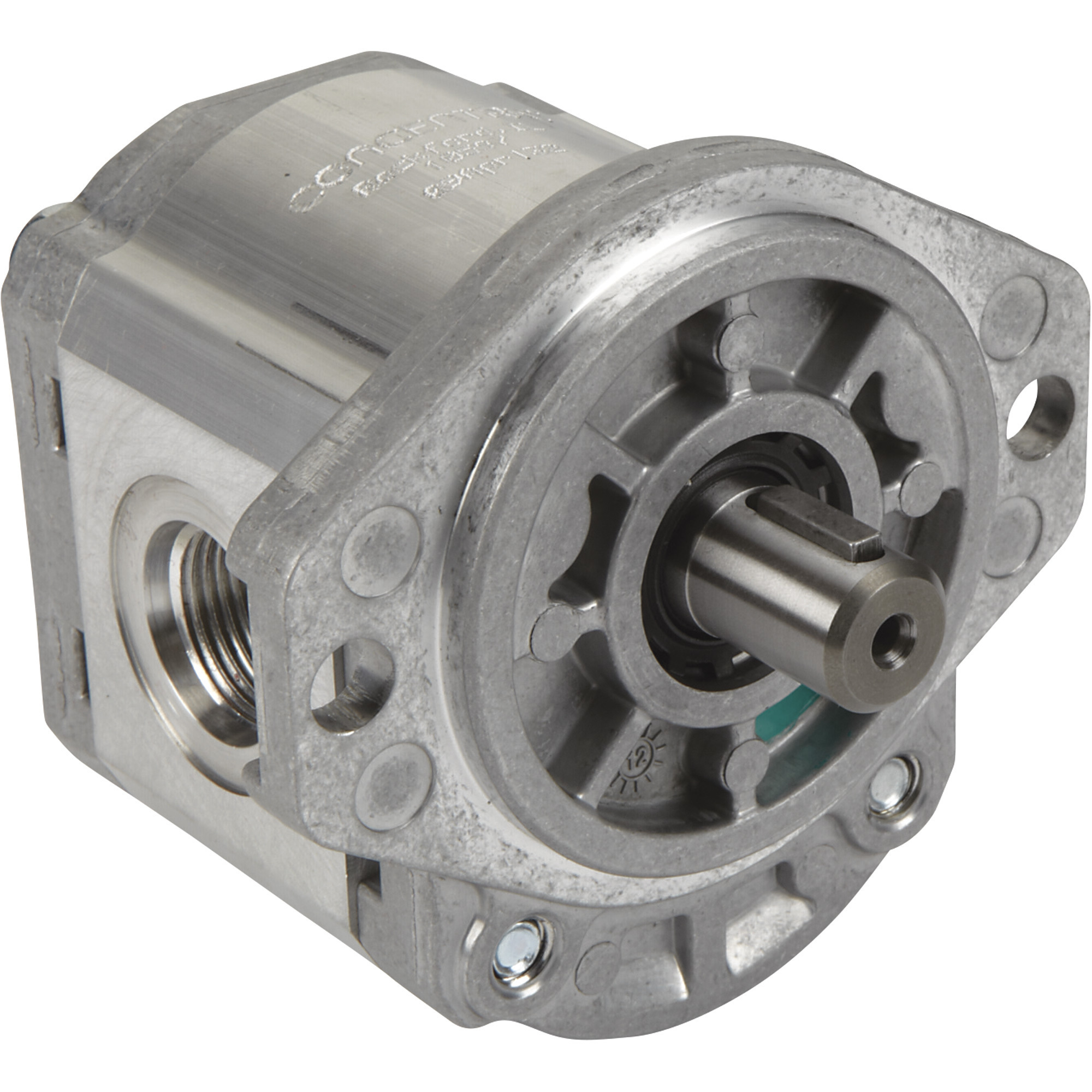

Concentric High Performance Hydraulic Gear Pump, 1.159 cu. in., Model# WP09A1B190R03BA103N

Item# 10601
"Concentric High Performance Hydraulic Gear Pump, 1.159 cu. in., Model# WP09A1B190R03BA103N"
Concentric High Performance Hydraulic Gear Pump, 1.159 cu. in., Model# WP09A1B190R03BA103N

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Concentric High Performance Hydraulic Gear Pump, 1.159 cu. in., Model# WP09A1B190R03BA103N

Click or Tap image to Zoom

$234.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • Displacement Cubic In.: 1.159
  • Maximum Flow at 1,800 RPM: 8.95 GPM
  • Maximum Flow at 3,600 RPM: 17.9 GPM
  • Maximum RPM at 4,000 PSI: 3,000
  • Outlet: 1 1/16in.-12

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Concentric High Performance Hydraulic Gear Pump is a compact, high-performance package that is constructed of high-strength aluminum housing with cast iron end covers. Ideal for a wide variety of applications such as material handling, aerial lifts, turf care, agriculture and construction. Low-noise pumps have SAE A 2-bolt mounts and SAE O-ring side ports. W900 Series: 92% efficiency, 3/4in. keyed shaft.

What's Included

    (1) Hydraulic gear pump

Downloads

Product Manual

Features + Benefits

  • Displacement Cubic In.: 1.159
  • Maximum Flow at 1,800 RPM: 8.95 GPM
  • Maximum Flow at 3,600 RPM: 17.9 GPM
  • Maximum RPM at 4,000 PSI: 3,000
  • Outlet: 1 1/16in.-12
  • Rotation: CW

Key Specs

AttributeSpecification

item#

10601

Brand

Haldex

Manufacturer's Warranty

1 year limited warranty

Ship Weight

6.57 LB

Max. PSI

4,000
AttributeSpecification

Max. Flow Rate

17.9 GPM

Shaft Diameter

0.75 in

Pump Type

Gear

Material

Multiple

Thread Type

Other

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Can this pump be belt driven

    1 answer

    1. The pump is not designed to be belt driven.

      Helpful?

  2. What size is the keyway?

    1 answer

    1. The shaft keyway on this gear pump is 0.187"W x 0.875"L.

      Helpful?

  3. what size is the flange & mounting bolt dimensions?

    1 answer

    1. The flange width is 4.38" and the bolt holes are 4.25" apart center to center.

      Helpful?

  4. What hp is required to run this pump?

    1 answer

    1. There are many variables that can change the required horsepower. Use the following equation to determine the horsepower needed : HP = GPM X PSI/1714.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
