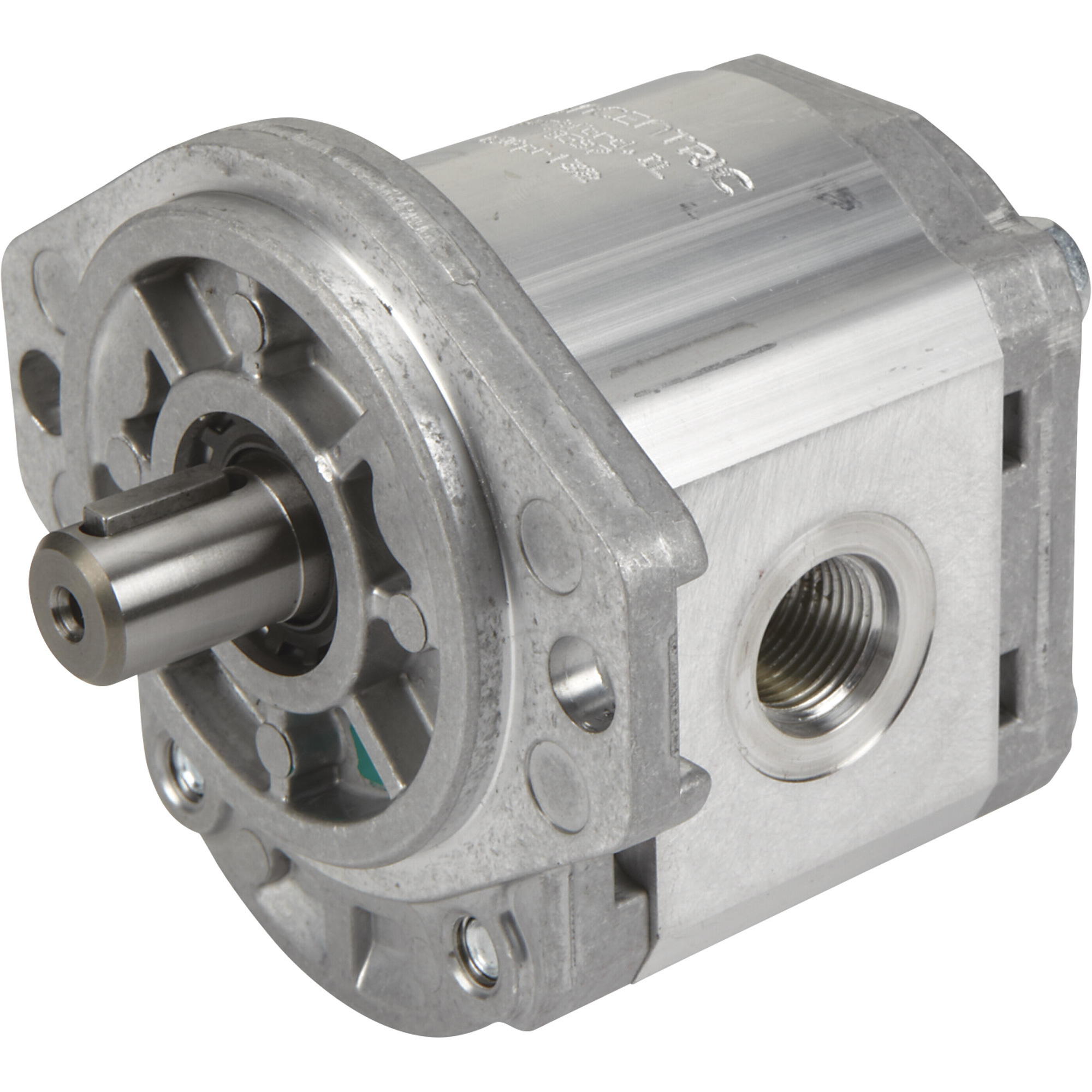

Concentric High Performance Hydraulic Gear Pump, 1.150 cu. in., Model# WP09A1B190L03BA103N

Item# 10603
Concentric High Performance Hydraulic Gear Pump, 1.150 cu. in., Model# WP09A1B190L03BA103N

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Concentric High Performance Hydraulic Gear Pump, 1.150 cu. in., Model# WP09A1B190L03BA103N

Click or Tap image to Zoom

$254.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not available - online only
  • Displacement Cubic In.: 1.150
  • Maximum Flow at 1,800 RPM: 8.95 GPM
  • Maximum Flow at 3,600 RPM: 17.9 GPM
  • Maximum RPM at 4,000 PSI: 3,000
  • Outlet: 1 1/16in.-12

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Concentric High Performance Hydraulic Gear Pump is a compact, high-performance package that is constructed of high-strength aluminum housing with cast iron end covers. Ideal for a wide variety of applications such as material handling, aerial lifts, turf care, agriculture and construction. Low-noise pumps have SAE A 2-bolt mounts and SAE O-ring side ports. W900 Series: 92% efficiency, 3/4in. keyed shaft.

What's Included

    (1) Hydraulic gear pump

Features + Benefits

  • Displacement Cubic In.: 1.150
  • Maximum Flow at 1,800 RPM: 8.95 GPM
  • Maximum Flow at 3,600 RPM: 17.9 GPM
  • Maximum RPM at 4,000 PSI: 3,000
  • Outlet: 1 1/16in.-12
  • Rotation: CCW

Key Specs

AttributeSpecification

item#

10603

Brand

Haldex

Manufacturer's Warranty

1 year limited warranty

Ship Weight

9.45 LB

Max. PSI

4,000
AttributeSpecification

Max. Flow Rate

17.9 GPM

Shaft Diameter

0.75 in

Pump Type

Gear

Material

Multiple

Thread Type

Other

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–10 of 11 Questions
Sort by:

  1. Will it work with water? If it does work with water, will it corrode?

    1 answer

    1. The gear pump could not be used with water.

      Helpful?

  2. What is the diameter of the shaft? Specs say .25", but that can't be right.

    1 answer

    1. The shaft is 3/4" D x 1" L with a 3/16" keyway.

      Helpful?

  3. Can this pump be powered with a belt and sheave?

    1 answer

    1. This pump cannot be powered with a belt and sheave.

      Helpful?

  4. I have ordered this pump as a replacement and need to know the inlet and outlet fitting sizes to get the correct adapters as I'll probably have to order them and hope to get them before the pump gets here.

    1 answer

    1. The inlet for this is 1-5/16" -12.
      The outlet is 1-1/16" -12.

      Helpful?

  5. What size gase engine would I need to run this pump with?

    1 answer

    1. To determine the size engine you would need you would use the follow formula.
      Take the GPM x PSI you want and divide by 1714.

      Example: 8 GPM x 3,000 PSI = 24,000 divided by 1714 = 14 HP.

      Helpful?

  6. Can this pump be reversed. My motor turns clockwise as I look at it. I ordered the ccw model and it’s backwards?

    1 answer

    1. This pump is non reversible. It is counter clockwise with the shaft pointing towards you as you look at it. The clockwise pump will be our item #10601.

      Helpful?

  7. Is the direction of rotation looking at the shaft or with the shaft facing away from you?

    1 answer

    1. The direction of rotation is determined when you are looking at the shaft.

      Helpful?

  8. What are the Bolt Center measurements of the 4 bolts that hold the case together & what is the length of said bolt ?

    I'm hoping that this motor will be a sub for a HALDEX unit.

    1 answer

    1. The bolt center measurement is 2.36 inches and the length of the 4 case bolts is 4 inches.

      Helpful?

  9. is this a two stage pump ?

    1 answer

    1. This gear pump is not a 2-stage type. Click the links below to view 2-stage gear pumps.

      Helpful?

  10. What size inlet, what are the overall dimensions?

    I am trying to replace a pump and it has 1" NPT inlet and 3/4" outlets. What is the size of the inlet? I also need to know the length from the mounting flange to the most outside point. That is the limiting dimension for this application.

    1 answer

    1. The inlet size is 1 5/16"-12 O ring. The length is 4.38".

      Helpful?
