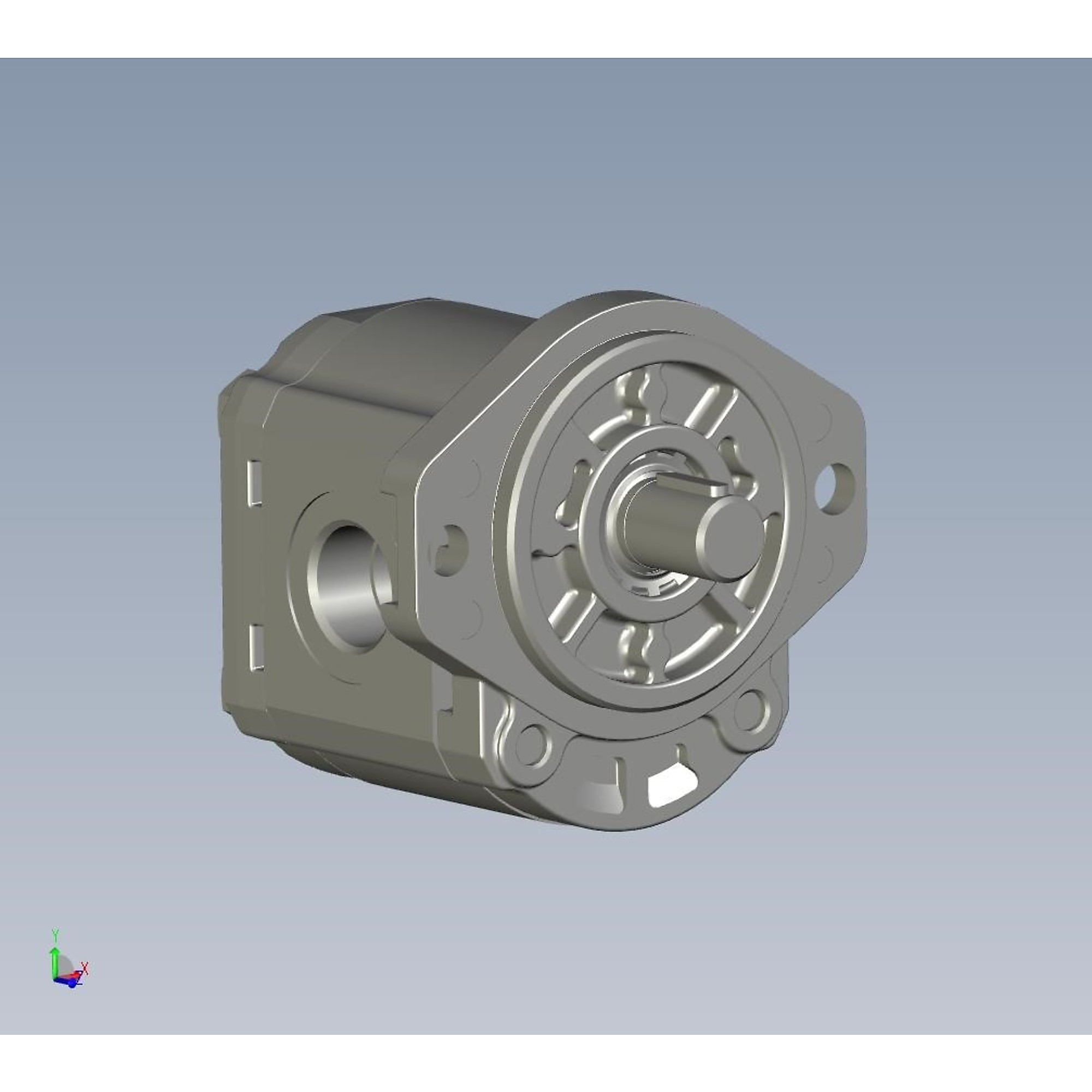

Concentric C800 Gear pump, 8cc, 3625psi, 4000 rpm, CW, 3/4in. shaft, Max. PSI 3625 Max. RPM 4000 Max. Flow Rate 4 GPM, Model# CP09A1B080R03BA102N

Item# 5890815
Concentric C800 Gear pump, 8cc, 3625psi, 4000 rpm, CW, 3/4in. shaft, Max. PSI 3625 Max. RPM 4000 Max. Flow Rate 4 GPM, Model# CP09A1B080R03BA102N

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Concentric C800 Gear pump, 8cc, 3625psi, 4000 rpm, CW, 3/4in. shaft, Max. PSI 3625 Max. RPM 4000 Max. Flow Rate 4 GPM, Model# CP09A1B080R03BA102N

Click or Tap image to Zoom

$149.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Standard SAE configuration for easy fit to new and existing applications
  • High efficiency pump - maximizes flow compared to less efficient pumps.
  • Aluminum construction - minimizing weight of the machine and application.
  • Utilizes a 13 tooth gear design which helps reduce fluid born noise in the application
  • Teflon coated bearings for superior performance across a wide range of operating speeds

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Concentric C800 hydraulic external gear pump. 4 gpm at 2000 rpm. A new product range from Concentric designed for mid-range duty cycle hydraulic applications. Pressure rating = 3625 psi continuous at 4000 rpm. SAE standard 2 bolt A mounting flange, SAE ORB side ports and standard 0.75in. straight key shaft with 0.187in. wide key. Aluminum construction. Clockwise rotation (looking at shaft end).

What's Included

    (1) Gear pump

Features + Benefits

  • Standard SAE configuration for easy fit to new and existing applications
  • High efficiency pump - maximizes flow compared to less efficient pumps.
  • Aluminum construction - minimizing weight of the machine and application.
  • Utilizes a 13 tooth gear design which helps reduce fluid born noise in the application
  • Teflon coated bearings for superior performance across a wide range of operating speeds
  • Dual pressure plate design increases product durability and higher duty cycles.

Key Specs

AttributeSpecification

item#

5890815

Brand

Concentric

Manufacturer's Warranty

1 year limited warranty

Ship Weight

8.25 LB

Max. PSI

3,625

Max. RPM

4,000

Max. Flow Rate

4 GPM

Shaft Diameter

0.75 in

Shaft Type

Keyed

Pump Type

Gear
AttributeSpecification

Stage

Single-Stage

Shaft Length

1.26 in

Material

Aluminum

Rotation

Clockwise

Port Inlet Size

1-1/16 in

Port Outlet Size

7/8 in

Thread Type

SAE

Product Weight

8.0000 lb

Dimensions L x W x H (in.)

3.75 x 5.25 x 4.7 in
