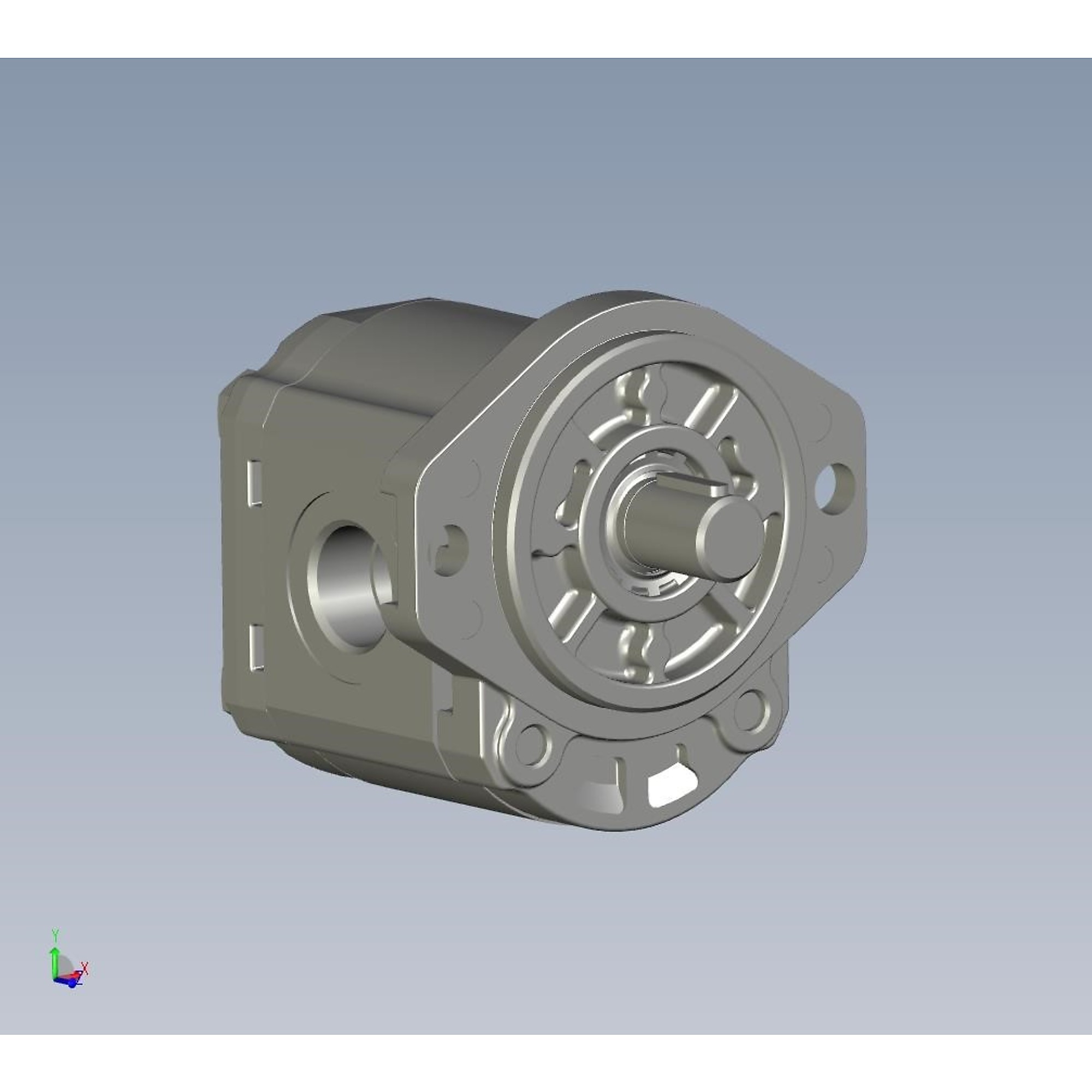

Concentric C800 Gear pump, 11 cc, 3625psi, 3600 rpm, CW, 3/4in. shaft, Max. PSI 3625 Max. RPM 3600 Max. Flow Rate 5.4 GPM, Model# CP09A1B110R03BA102N

Item# 5890840
Concentric C800 Gear pump, 11 cc, 3625psi, 3600 rpm, CW, 3/4in. shaft, Max. PSI 3625 Max. RPM 3600 Max. Flow Rate 5.4 GPM, Model# CP09A1B110R03BA102N

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Concentric C800 Gear pump, 11 cc, 3625psi, 3600 rpm, CW, 3/4in. shaft, Max. PSI 3625 Max. RPM 3600 Max. Flow Rate 5.4 GPM, Model# CP09A1B110R03BA102N

Click or Tap image to Zoom

$142.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Standard SAE configuration for easy fit to new and existing applications
  • High efficiency pump - maximizes flow compared to less efficient pumps.
  • Aluminum construction - minimizing weight of the machine and application.
  • Utilizes a 13 tooth gear design which helps reduce fluid born noise in the application
  • Teflon coated bearings for superior performance across a wide range of operating speeds

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Concentric C800 hydraulic external gear pump. 5.4 gpm at 2000 rpm. A new product range from Concentric designed for mid-range duty cycle hydraulic applications. Pressure rating = 3625 psi continuous at 3600 rpm. SAE standard 2 bolt A mounting flange, SAE ORB side ports and standard 0.75in. straight key shaft with 0.187in. wide key. Aluminum construction. Clockwise rotation (looking at shaft end).

What's Included

    (1) Gear pump

Features + Benefits

  • Standard SAE configuration for easy fit to new and existing applications
  • High efficiency pump - maximizes flow compared to less efficient pumps.
  • Aluminum construction - minimizing weight of the machine and application.
  • Utilizes a 13 tooth gear design which helps reduce fluid born noise in the application
  • Teflon coated bearings for superior performance across a wide range of operating speeds
  • Dual pressure plate design increases product durability and higher duty cycles.

Key Specs

AttributeSpecification

item#

5890840

Brand

Concentric

Manufacturer's Warranty

1 year limited warranty

Ship Weight

8.75 LB

Max. PSI

3,625

Max. RPM

3,600

Max. Flow Rate

5.4 GPM

Shaft Diameter

0.75 in

Shaft Type

Keyed

Pump Type

Gear
AttributeSpecification

Stage

Single-Stage

Shaft Length

1.26 in

Material

Aluminum

Rotation

Clockwise

Port Inlet Size

1-1/16 in

Port Outlet Size

7/8 in

Thread Type

SAE

Product Weight

8.5000 lb

Dimensions L x W x H (in.)

3.94 x 5.25 x 4.7 in

Reviews

Questions & Answers

Questions

  1. What horsepower engine is required to make this pump work?

    1 answer

    1. To determine the required horsepower for the Concentric C800 Gear Pump, we can use the following formula: Horsepower=1714×EfficiencyFlow (GPM)×Pressure (PSI)

      For the Concentric C800 Gear Pump:
      • Flow Rate: 5.4 GPM
      • Pressure: 3625 PSI
      • Efficiency: Typically around 85% (0.85) for gear pumps

      Plugging in these values; Horsepower=1714×0.855.4×3625≈13.1 HP

      So, you would need an engine with at least 13.1 horsepower to operate this pump efficiently.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
