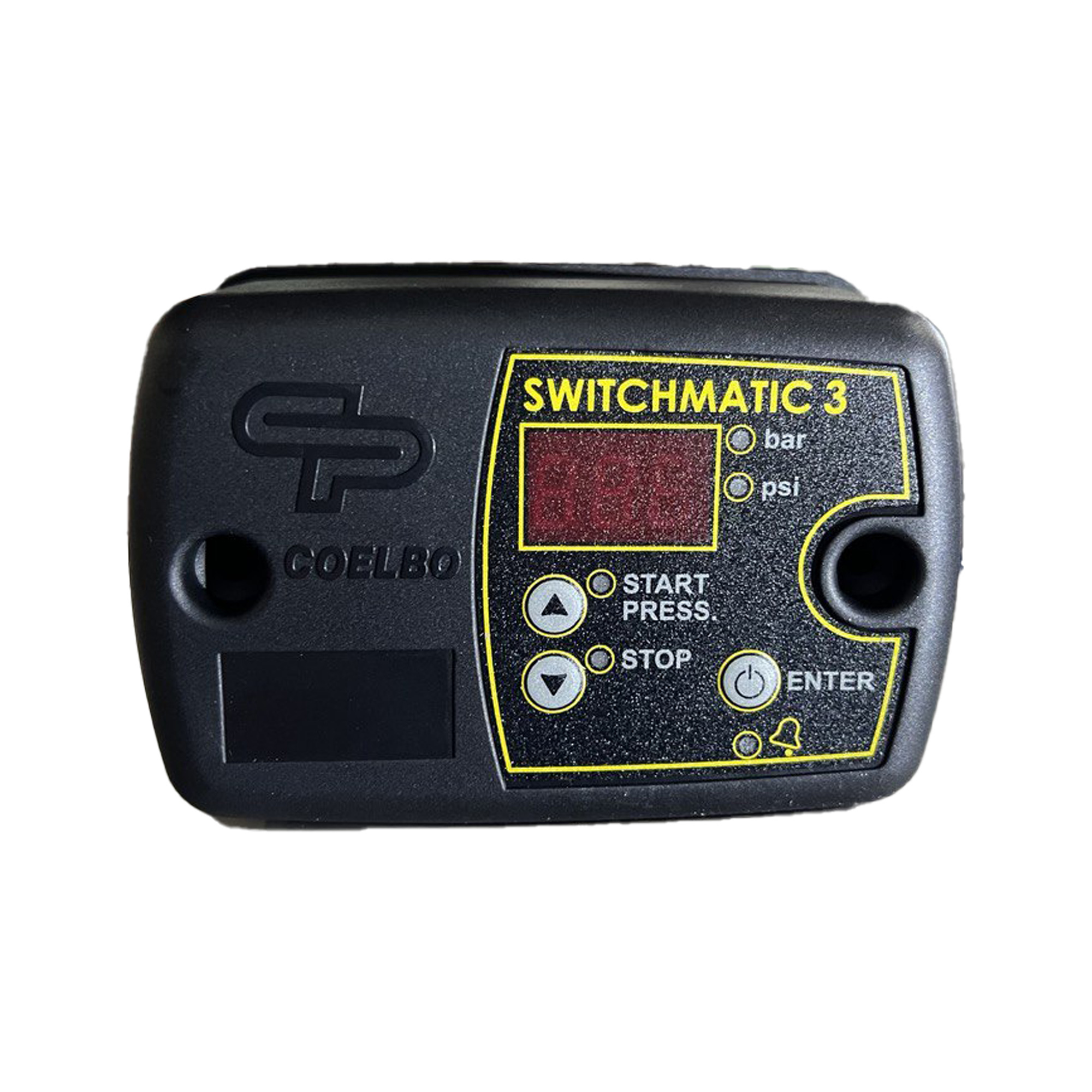

Coelbo, Electric pressure switch w/Digital pressure gauge, Model# SWITCHMATIC 3 (IN/OUT) NPT 110/230V

Item# 6539146
Coelbo, Electric pressure switch w/Digital pressure gauge, Model# SWITCHMATIC 3 (IN/OUT) NPT 110/230V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Coelbo, Electric pressure switch w/Digital pressure gauge, Model# SWITCHMATIC 3 (IN/OUT) NPT 110/230V

Click or Tap image to Zoom

$347.44

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Integrated protection system which stops the pump in case of dry-running operation.
  • Double voltage 110/230V
  • Integrated Digital Pressure Gauge
  • Inner pressure transmiter.
  • Sleep mode with low power consumption

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Coelbo Electric Pressure Switch with Digital Pressure Gauge is a highly efficient and reliable solution designed to save money, conserve energy, and protect your property. This advanced pressure switch is equipped with a digital pressure gauge, providing precise and accurate readings to ensure optimal performance and monitoring. The device is engineered to automatically control and maintain the desired pressure levels in various applications, reducing energy consumption and preventing potential damage to your land or equipment. With its user-friendly interface and robust construction, the Coelbo Electric Pressure Switch offers long-lasting durability and ease of use, making it an ideal choice for both residential and commercial settings. Whether you need to manage water pressure for irrigation, plumbing systems, or other pressure-dependent systems, this innovative pressure switch delivers consistent and reliable performance, helping you achieve efficiency and cost savings while safeguarding your valuable assets.

What's Included

    (1) controller

Features + Benefits

  • Integrated protection system which stops the pump in case of dry-running operation.
  • Double voltage 110/230V
  • Integrated Digital Pressure Gauge
  • Inner pressure transmiter.
  • Sleep mode with low power consumption
  • User friendly control panel including manuel start push-button,3-digits display, led-lights and pushbuttons.
  • Volt-free contact for monitoring the alarms displayed in screen originated by irregularities or problems of the system.
  • Float switch connection, for minimum level detection in the suction tank, its use is optional. This system is independent of the dry-running safety system.
  • Maximum current 16 amp.
  • Can manage to start and stop any sinlge-phase pump up to 3 hp.

Key Specs

AttributeSpecification

item#

6539146

Brand

Coelbo

Manufacturer's Warranty

6 month limited warranty

Ship Weight

4.0 LB

Max. PSI

108
AttributeSpecification

Material

Plastic

Accessory Type

Controller

Product Weight

3.0000 lb

Dimensions L x W x H (in.)

8.0 x 7.0 x 7.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

6 month limited warranty
