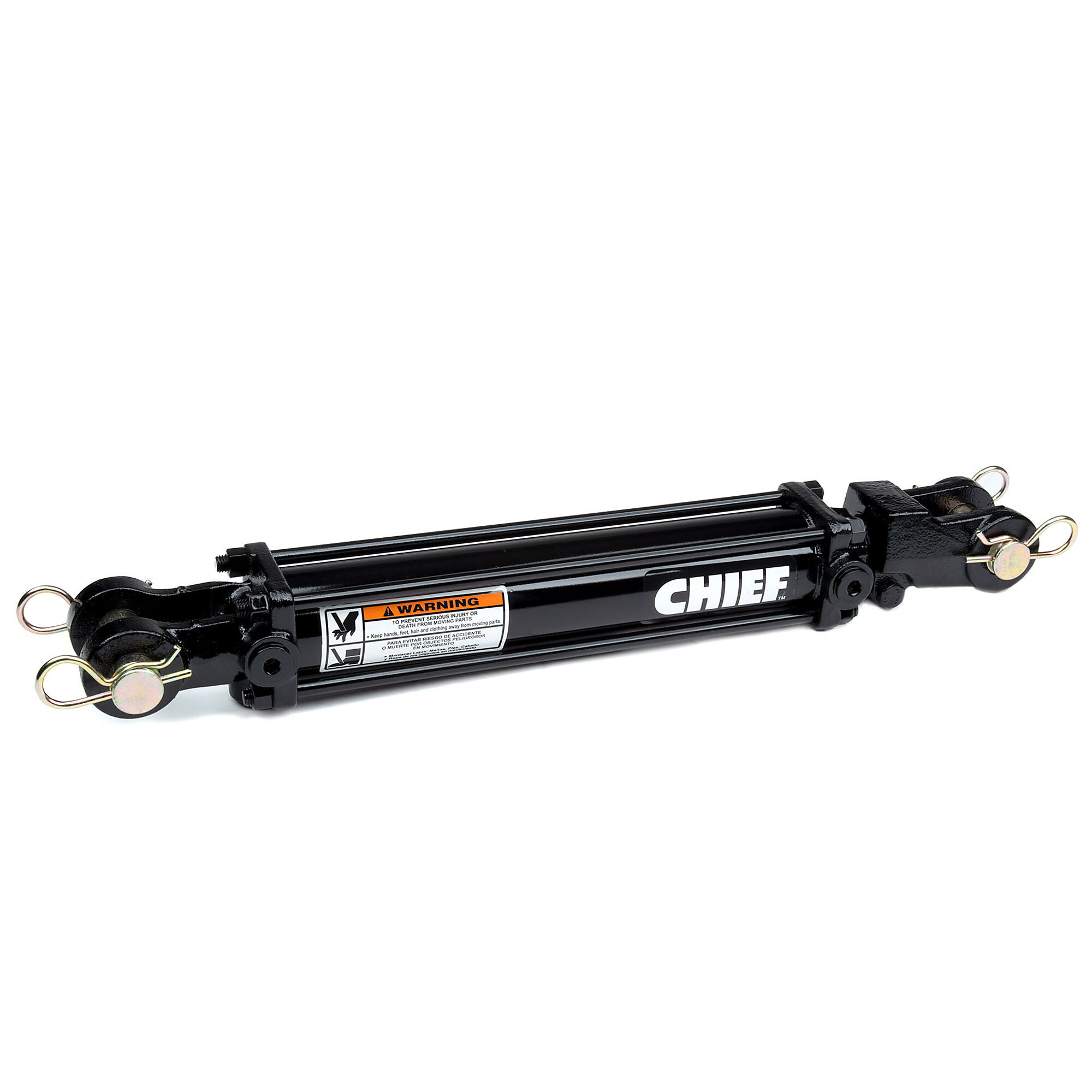

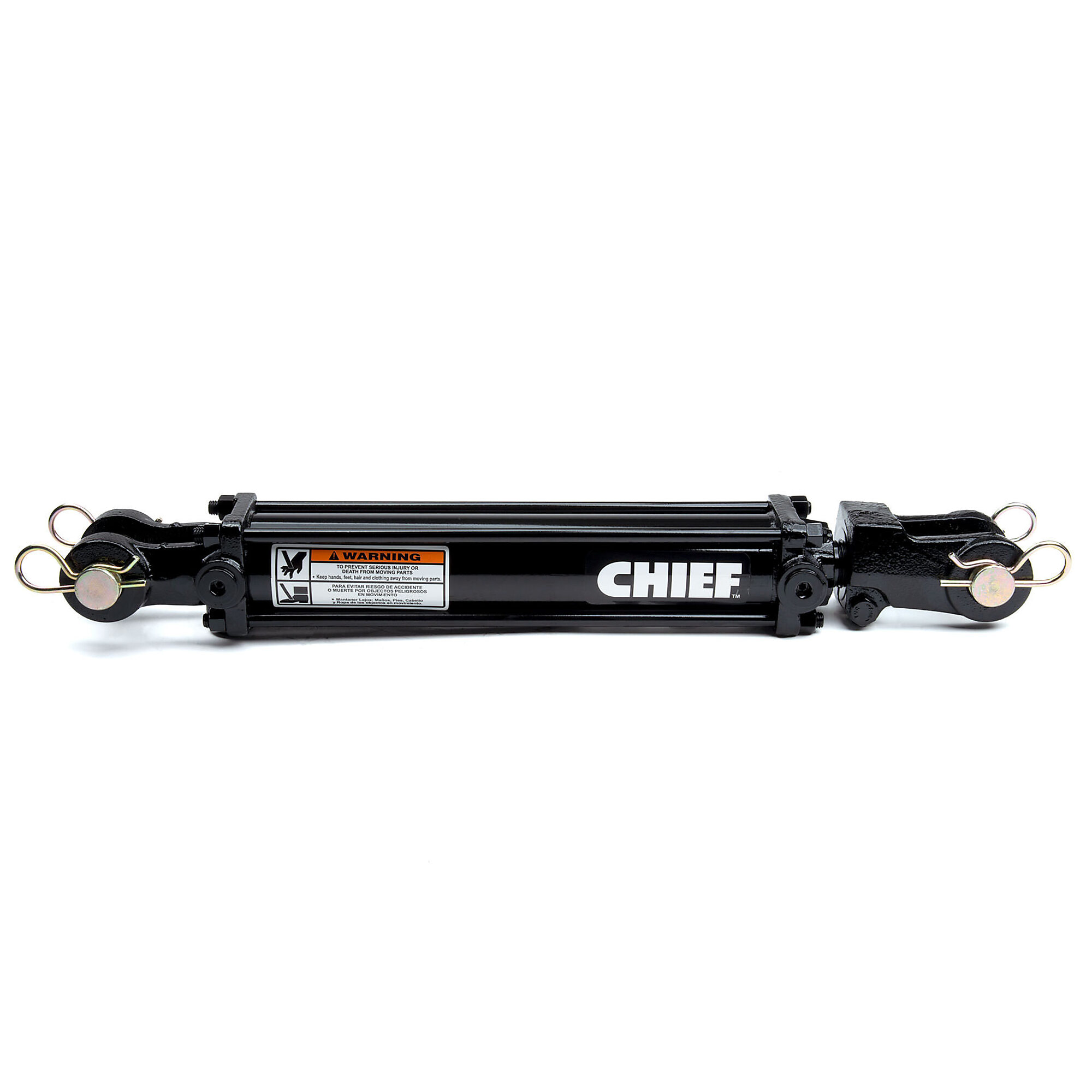

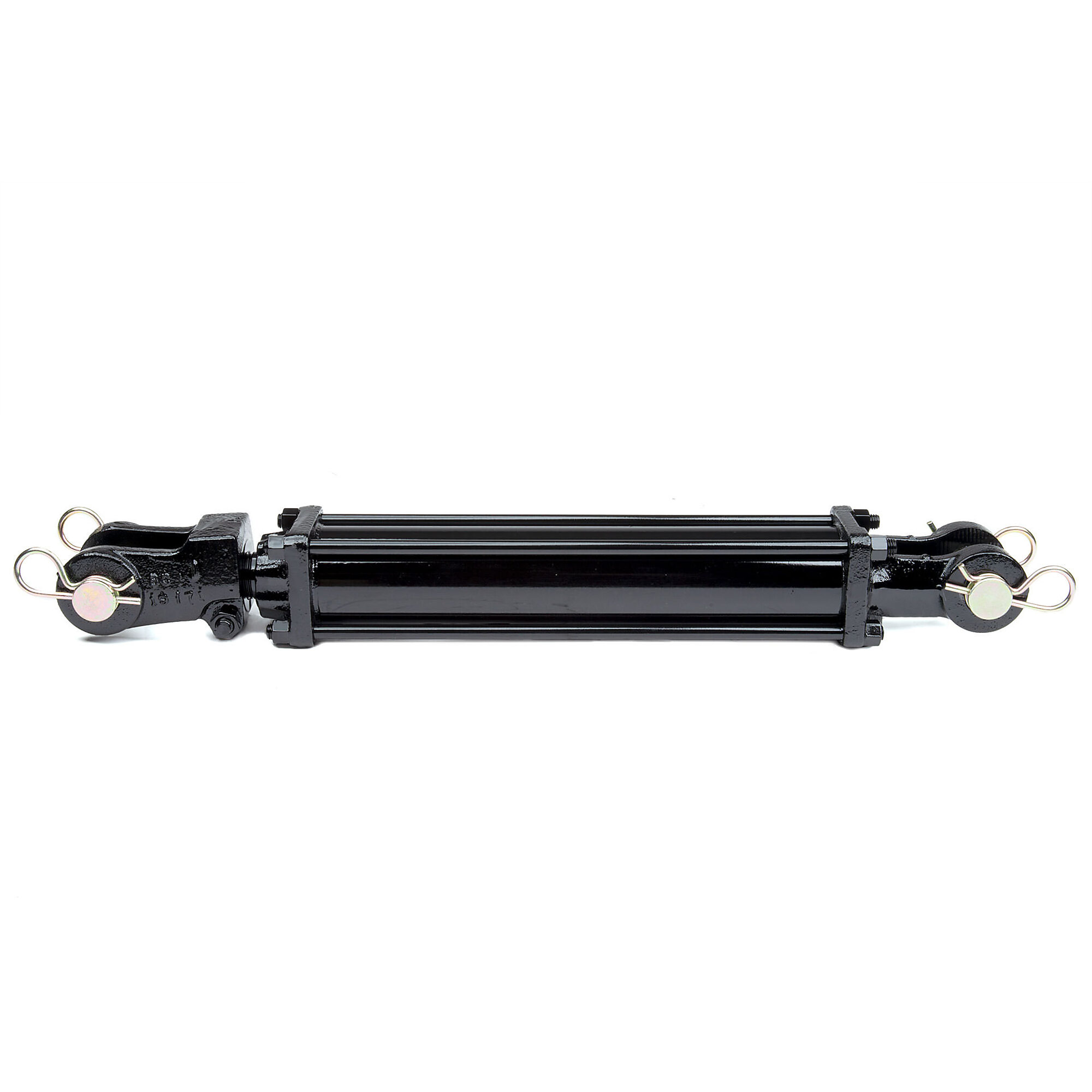

Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 2 in, Stroke Length 8 in, Model# 211303

Item# 4858320
"Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 2 in, Stroke Length 8 in, Model# 211303"
Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 2 in, Stroke Length 8 in, Model# 211303

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 2 in, Stroke Length 8 in, Model# 211303

Click or Tap image to Zoom

$114.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Buna O-ring with Polytemp Hytrel backup
  • Hallite 755 piston seal for prolonged wear resistance
  • D-style rod wiper prevents contamination

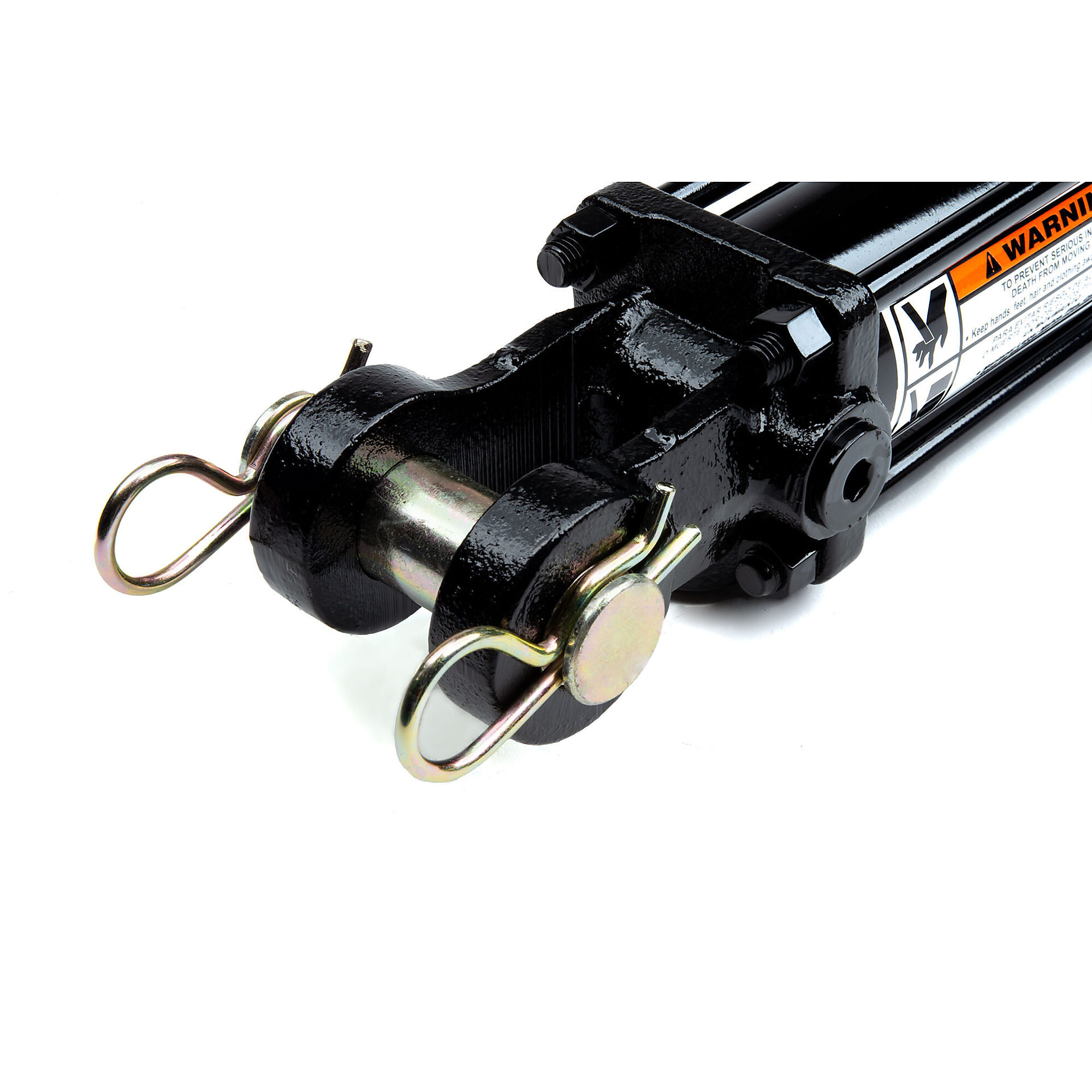

  • High strength, ductile iron female clevis end mounts with pins and R-clips

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This 3000 psi Chief TC3 tie-rod hydraulic cylinder is designed to provide outstanding performance in a variety of applications, including agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications. The base end clevis extends out 2in. for greater swing ability on applications. Featuring SAE O-ring ports for easy hookup, every Chief TC3 cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability. The TC3 is available in bore sizes from 2in. to 5in., strokes from 4in. to 60in., and comes with our best 3-year limited warranty. Each cylinder comes painted black.

What's Included

    (1) Cylinder

Features + Benefits

  • Buna O-ring with Polytemp Hytrel backup
  • Hallite 755 piston seal for prolonged wear resistance
  • D-style rod wiper prevents contamination
  • High strength, ductile iron female clevis end mounts with pins and R-clips

Key Specs

AttributeSpecification

item#

4858320

Brand

Chief

Manufacturer's Warranty

3 year limited warranty

Ship Weight

20.21 LB

Max. PSI

3,000

Bore Diameter

2 in
AttributeSpecification

Stroke Length

8 in

Retracted Length

20.25 in

Extended Length

28.25 in

Pin Diameter

1 in

Product Weight

20.2100 lb

Dimensions L x W x H (in.)

28.25 x 2.0 x 2.0 in

Reviews

Questions & Answers

12 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. What is the port size.  I only see that they are sae o-ring ports.

    1 answer

    1. The cylinder will have an SAE #8 O ring SAE port 3/4"-16.

      Helpful?

  2. What is the closed length of the cylinder?

    1 answer

    1. The closed length of the cylinder is 20.25".

      Helpful?

  3. Is this a single or double acting cylinder

    1 answer

    1. This is a double acting cylinder.

      Helpful?

  4. What is the hydraulic line thread connection size?

    1 answer

    1. The port size for this is SAE 8.

      Helpful?

  5. what is thread on shaft? i need 3/4 x 14. I bought a cylinder with metric threads, that i cant use now.

    1 answer

    1. This will have an 1-1/8"-12 UNF thread on the shaft.

      Helpful?
