The port size is an SAE 8 (3/4-16).

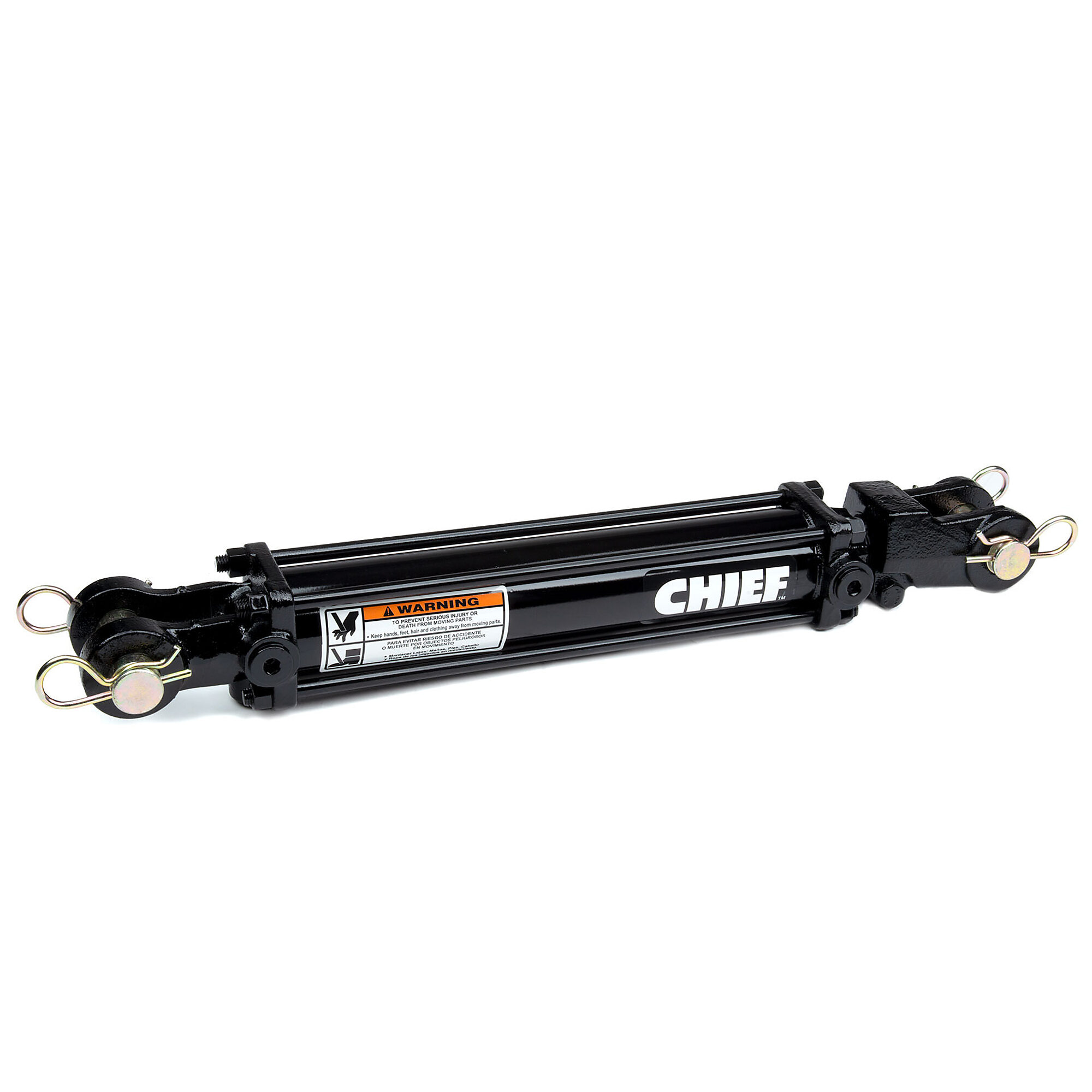

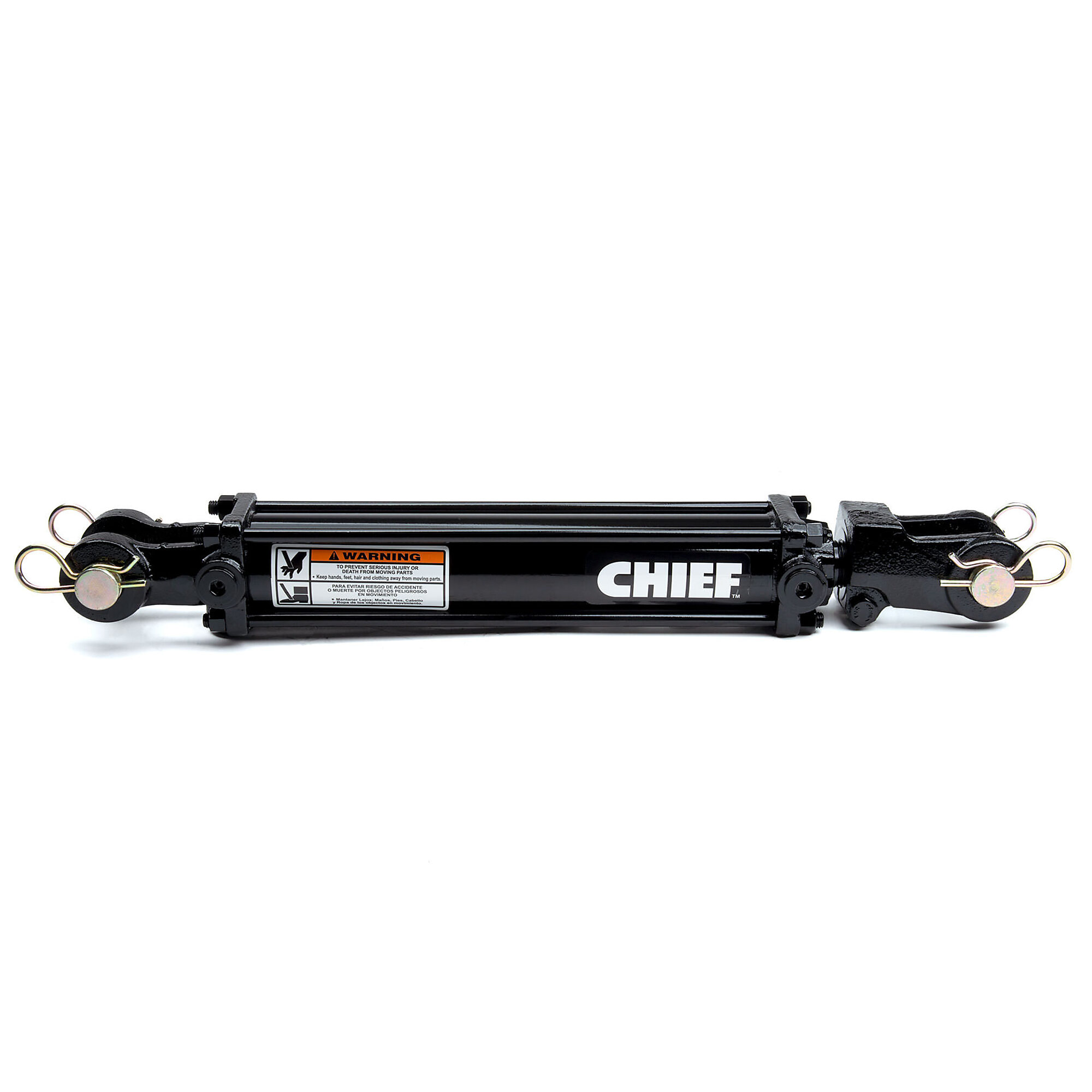

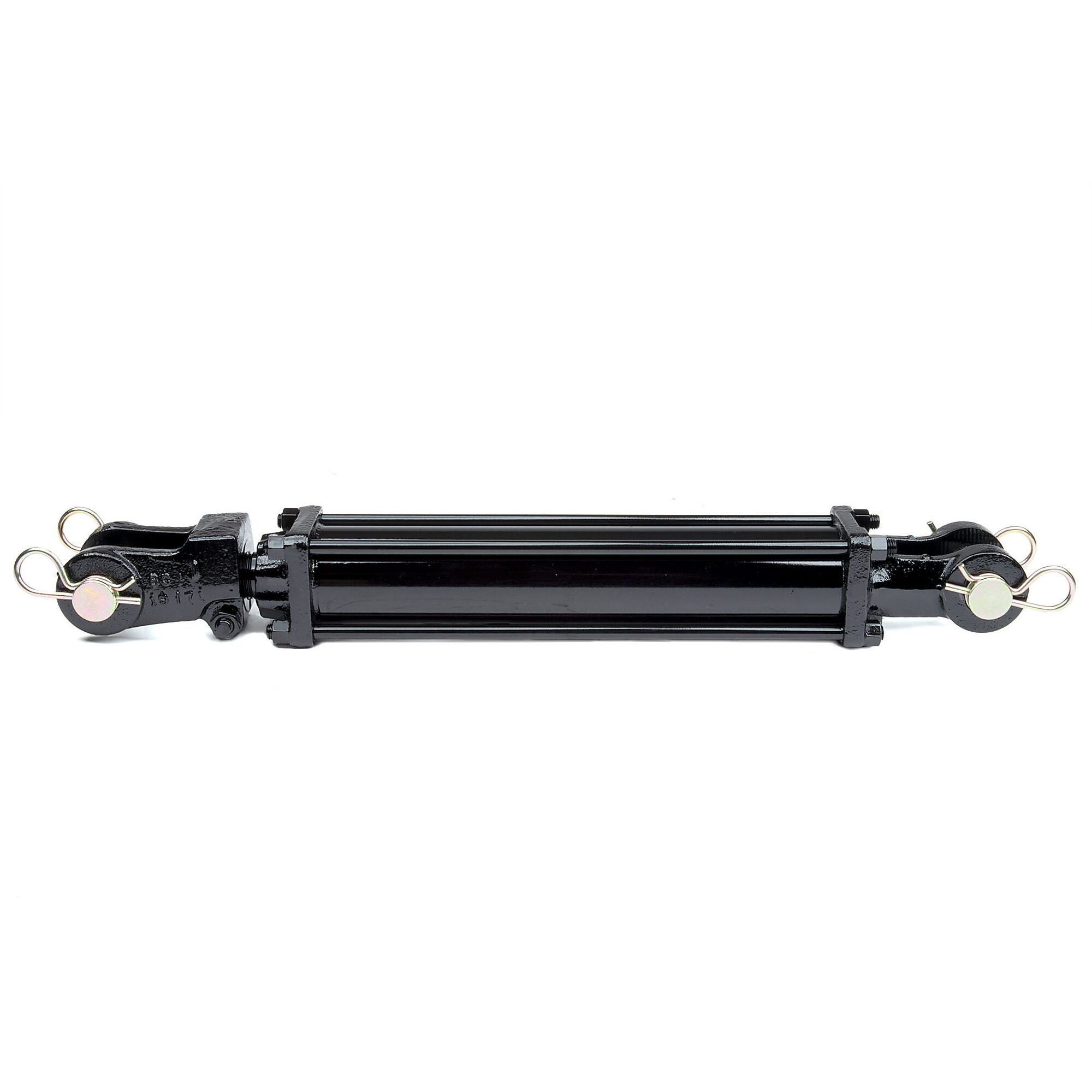

Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 2 in, Stroke Length 12 in, Model# 211305
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$129.99
- Buna O-ring with Polytemp Hytrel backup
- Hallite 755 piston seal for prolonged wear resistance
- D-style rod wiper prevents contamination

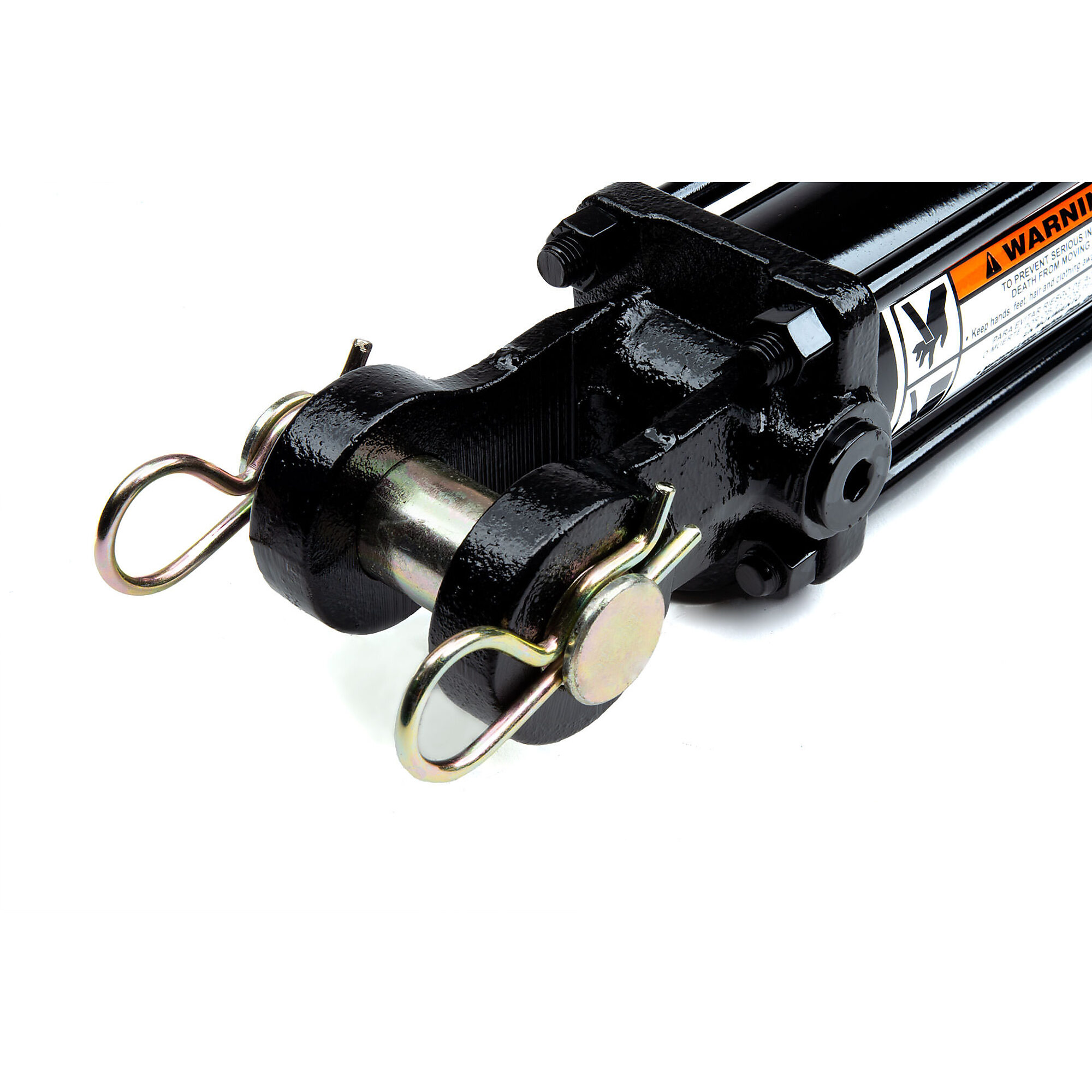

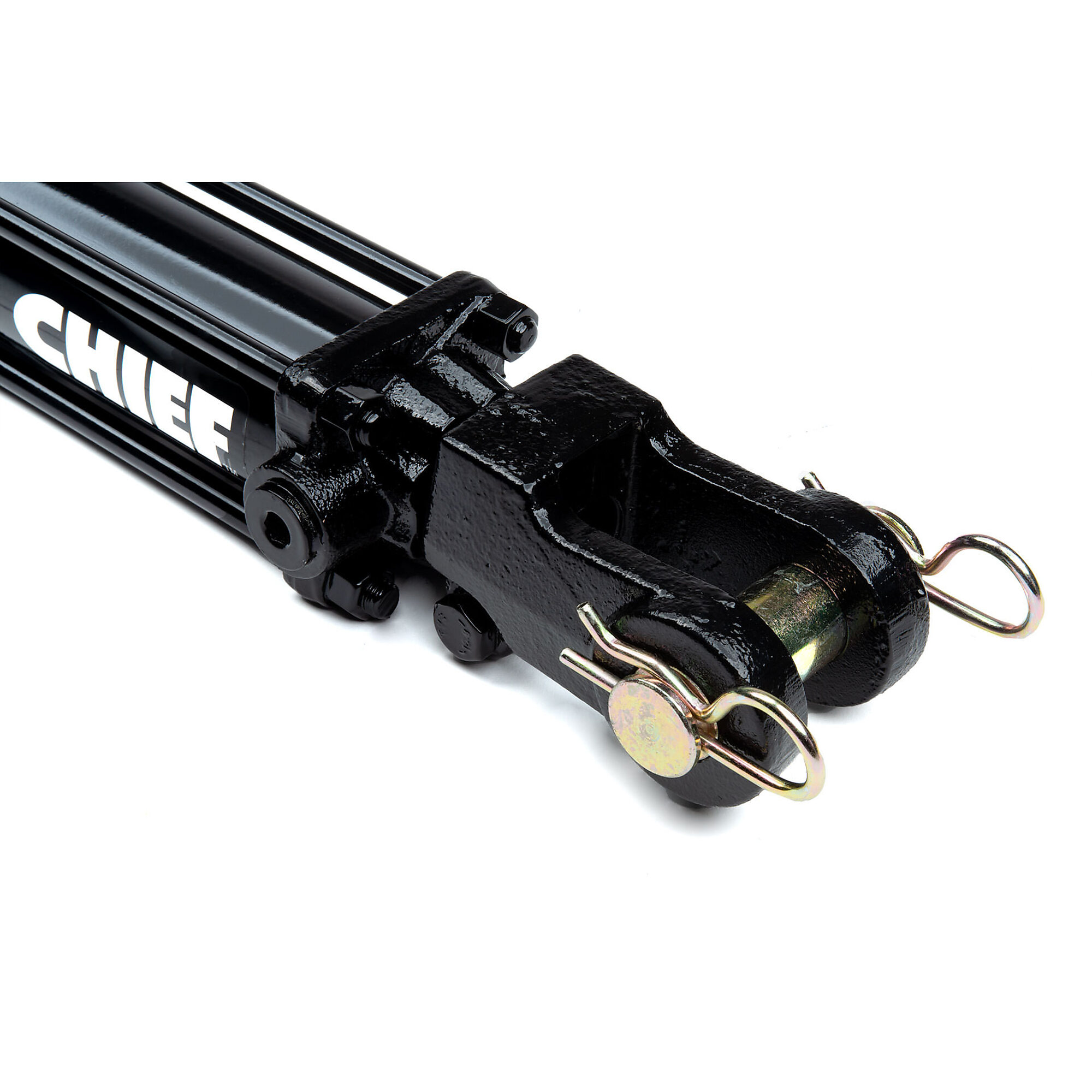

- High strength, ductile iron female clevis end mounts with pins and R-clips
Prop 65 Warning: See Details
See full description
See All Tie Rod Cylinders
See All Chief Tie Rod Cylinders
Currently Viewing This Product
Specifications
Specifications
Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 2 in, Stroke Length 12 in, Model# 211305
Buyers Products, Tie Rod Style Clevis Mount-0.75 Rod x 6in., Max. PSI 0 Bore Diameter 2.5 in, Stroke Length 6 in, Model# TGC25006V
Buyers Products, Tie Rod Style Clevis Mount-1.0 Rod x 8in., Max. PSI 0 Bore Diameter 3.25 in, Stroke Length 8 in, Model# TGC32508V
Buyers Products, Tie Rod Style Clevis Mount-0.75 Rod x 8in., Max. PSI 0 Bore Diameter 2.5 in, Stroke Length 8 in, Model# TGC25008V
Max. PSI
Same
3,000
0
0
0
Bore Diameter
Same
2 in
2.5 in
3.25 in
2.5 in
Stroke Length
Same
12 in
6 in
8 in
8 in
Retracted Length
Same
22.25 in
13.25 in
17 in
15.25 in
Extended Length
Same
34.25 in
19.25 in
25 in
23.25 in
Pin Diameter
Same
1 in
-
-
-
Product Weight
Same
23.6800 lb
6.2050 lb
10.1000 lb
7.0000 lb
Dimensions L x W x H (in.)
Same
34.25 x 2.0 x 2.0 in
16.95 x 3.45 x 3.45 in
18.35 x 4.2 x 4.0 in
17.05 x 3.55 x 3.35 in
