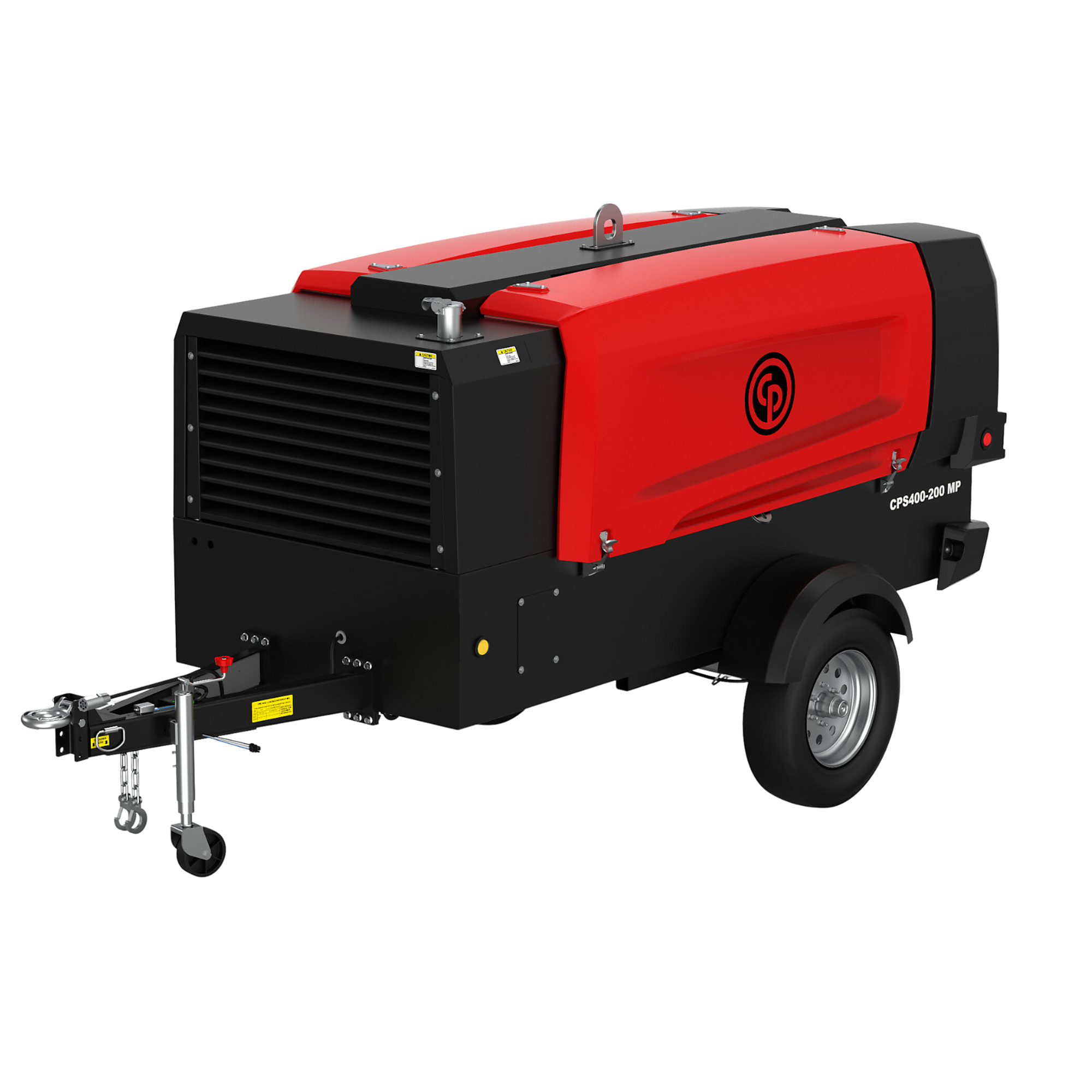

Chicago Pneumatic 400 Series CPS 400-200 KoD MP Air Compressor, 400 CFM @ 200 PSI, Multi-Pressure, Kohler Diesel Engine, Red Rock Canopy, Heavy-Duty Single-Axle Trailer, Model# CPS 400-200 KOD MP

Item# 7477557
New
Chicago Pneumatic 400 Series CPS 400-200 KoD MP Air Compressor, 400 CFM @ 200 PSI, Multi-Pressure, Kohler Diesel Engine, Red Rock Canopy, Heavy-Duty Single-Axle Trailer, Model# CPS 400-200 KOD MP

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Chicago Pneumatic 400 Series CPS 400-200 KoD MP Air Compressor, 400 CFM @ 200 PSI, Multi-Pressure, Kohler Diesel Engine, Red Rock Canopy, Heavy-Duty Single-Axle Trailer, Model# CPS 400-200 KOD MP

Click or Tap image to Zoom

$69,422.43

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Xc2004 controller/ The standard instrument package includes an operating pressure gauge and a fully diagnostic ECU controller with a large 3.5-inch display. The controller also features ECO Mode, an intuitive function that can help reduce fuel consumption by up to 50% during periods of low or no air demand. Multi-Pressure functionality allows the operator to adjust pressure in 2 psi increments at the touch of a button. The controller also manages the engine ECU operating system and monitors a number of safety parameters, providing warnings and shutdown protection when required. In addition, the controller displays multiple compressor measurements, including running hours, regulating pressure, and service counters, along with warnings and shutdowns for conditions such as high compressor oil temperature and low engine oil pressure.
  • 110% spill containment/ Designed with a spill-free containment frame, this unit can capture 110% of all onboard fluids, including compressor oil, engine oil, and engine coolant. By containing leaks at the source, it helps protect the jobsite, reduce environmental risk, and avoid expensive cleanup costs.
  • Redrock Canopy/Built with durable double-wall polyethylene, the Redrock Canopy eliminates concerns about dents and rust. UV protection helps preserve its color and finish, keeping the machine looking newer longer and enhancing resale value.
  • Advanced Vessel Design/ Less than 10 minutes to change air oil separator (without needing to touch scavenger light)
  • Heavy Duty Single Axle Trailer with 15" tires and electric brakes/ smooth ride & less wear (torsion axle) with improved saety and control (electric brakes), easier service access + higher ground clearance (15" tires)

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Chicago Pneumatic 400 Series KoD T4F is a single-stage, oil-injected, rotary screw-type air compressor powered by a liquid-cooled, four-cylinder, turbocharged Kohler diesel engine. The unit consists of an air end, diesel engine with exhaust treatment, cooling circuit, air/oil separation system, and control systems, all enclosed within a sound-attenuated Red Rock Canopy enclosure. A range of undercarriage formats, as well as factory-installed and locally installed options, are available. Special attention has been given to overall product quality, user-friendliness, ease of serviceability, and economical operation to ensure a best-in-class cost of ownership.

What's Included

    (1) Towable 400 CFM Air Compressor

Downloads

Safety Data Sheet

Features + Benefits

  • Xc2004 controller/ The standard instrument package includes an operating pressure gauge and a fully diagnostic ECU controller with a large 3.5-inch display. The controller also features ECO Mode, an intuitive function that can help reduce fuel consumption by up to 50% during periods of low or no air demand. Multi-Pressure functionality allows the operator to adjust pressure in 2 psi increments at the touch of a button. The controller also manages the engine ECU operating system and monitors a number of safety parameters, providing warnings and shutdown protection when required. In addition, the controller displays multiple compressor measurements, including running hours, regulating pressure, and service counters, along with warnings and shutdowns for conditions such as high compressor oil temperature and low engine oil pressure.
  • 110% spill containment/ Designed with a spill-free containment frame, this unit can capture 110% of all onboard fluids, including compressor oil, engine oil, and engine coolant. By containing leaks at the source, it helps protect the jobsite, reduce environmental risk, and avoid expensive cleanup costs.
  • Redrock Canopy/Built with durable double-wall polyethylene, the Redrock Canopy eliminates concerns about dents and rust. UV protection helps preserve its color and finish, keeping the machine looking newer longer and enhancing resale value.
  • Advanced Vessel Design/ Less than 10 minutes to change air oil separator (without needing to touch scavenger light)
  • Heavy Duty Single Axle Trailer with 15" tires and electric brakes/ smooth ride & less wear (torsion axle) with improved saety and control (electric brakes), easier service access + higher ground clearance (15" tires)

Key Specs

AttributeSpecification

item#

7477557

Brand

Chicago Pneumatic

Manufacturer's Warranty

1 year limited warranty

Ship Weight

4520.0 LB

Horsepower

134 HP

Air Tank Size

11 Gal

Volts

12

Engine Brand

Kohler

CFM at 90 PSI

400

Max. PSI

150

Stage

1

Air Outlets (qty.)

4

Fuel Capacity

52 Gal

Motor RPM

1,926
AttributeSpecification

Working Pressure

100/150/200 PSI

CFM at Max. PSI

375

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Other

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Air Dryer

None

Drain Type

Manual

Engine Model

KDI3404

Product Weight

4520.0000 lb

Dimensions L x W x H (in.)

167.0 x 72.82 x 80.62 in
