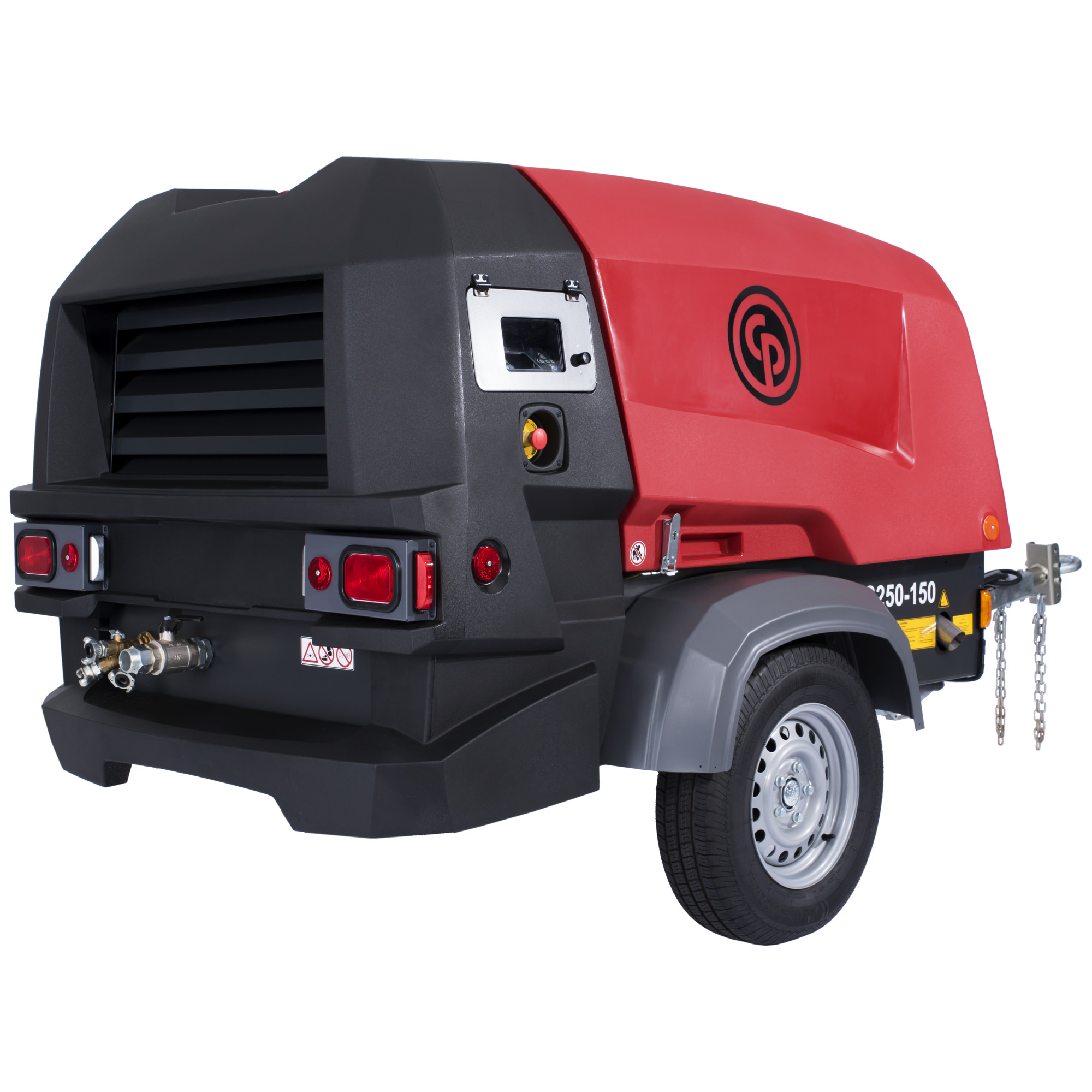

Chicago Pneumatic CPS 250-150 MoD KD 238 CFM @ 100 PSI 189 CFM @ 150 PSI 8162010023

Item# 7477573
New
Chicago Pneumatic CPS 250-150 MoD KD 238 CFM @ 100 PSI 189 CFM @ 150 PSI 8162010023

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Chicago Pneumatic CPS 250-150 MoD KD 238 CFM @ 100 PSI 189 CFM @ 150 PSI 8162010023

Click or Tap image to Zoom

$38,808.06

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Xc2004 controller/ The standard instrument package includes an operating pressure gauge and a fully diagnostic ECU controller with a large 3.5-inch display. The controller also features ECO Mode, an intuitive function that can help reduce fuel consumption by up to 50% during periods of low or no air demand. Multi-Pressure functionality allows the operator to adjust pressure in 2 psi increments at the touch of a button. The controller also manages the engine ECU operating system and monitors a number of safety parameters, providing warnings and shutdown protection when required. In addition, the controller displays multiple compressor measurements, including running hours, regulating pressure, and service counters, along with warnings and shutdowns for conditions such as high compressor oil temperature and low engine oil pressure.
  • 110% spill containment/ Designed with a spill-free containment frame, this unit can capture 110% of all onboard fluids, including compressor oil, engine oil, and engine coolant. By containing leaks at the source, it helps protect the jobsite, reduce environmental risk, and avoid expensive cleanup costs.
  • Redrock Canopy/Built with durable double-wall polyethylene, the Redrock Canopy eliminates concerns about dents and rust. UV protection helps preserve its color and finish, keeping the machine looking newer longer and enhancing resale value.
  • Internal toolbox/ Internall toolbox inside of the unit large enough to stow a 90 lb breaker
  • Spin on type air oil separator filter/ Allows for a complete compressor service all under one hour with no special tools needed

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Chicago Pneumatic CPS 250-150 MP is a single-stage, oil-injected, rotary screw-type air compressor powered by a liquid-cooled, four-cylinder, turbocharged Kubota diesel engine. The unit features a C90 screw element combined with a V2403-CR-T-E4B engine equipped with a DPF and DOC exhaust treatment system, cooling circuit, air/oil separation system, and control systems. An undercarriage with a fixed towbar, brakes, and a pintle eye is available as standard. Special attention has been given to overall product quality, user-friendliness, ease of serviceability, and economical operation to ensure a best-in-class cost of ownership. The unique feature of this compressor is its Multi-Pressure functionality, coupled with the intuitive XC2004 controller. This pioneering technology enables multiple pressure and flow settings, ensuring that air flow and pressure are matched to your application requirements.

What's Included

    (1) Towable 250 CFM Air Compressor

Downloads

Safety Data Sheet

Features + Benefits

  • Xc2004 controller/ The standard instrument package includes an operating pressure gauge and a fully diagnostic ECU controller with a large 3.5-inch display. The controller also features ECO Mode, an intuitive function that can help reduce fuel consumption by up to 50% during periods of low or no air demand. Multi-Pressure functionality allows the operator to adjust pressure in 2 psi increments at the touch of a button. The controller also manages the engine ECU operating system and monitors a number of safety parameters, providing warnings and shutdown protection when required. In addition, the controller displays multiple compressor measurements, including running hours, regulating pressure, and service counters, along with warnings and shutdowns for conditions such as high compressor oil temperature and low engine oil pressure.
  • 110% spill containment/ Designed with a spill-free containment frame, this unit can capture 110% of all onboard fluids, including compressor oil, engine oil, and engine coolant. By containing leaks at the source, it helps protect the jobsite, reduce environmental risk, and avoid expensive cleanup costs.
  • Redrock Canopy/Built with durable double-wall polyethylene, the Redrock Canopy eliminates concerns about dents and rust. UV protection helps preserve its color and finish, keeping the machine looking newer longer and enhancing resale value.
  • Internal toolbox/ Internall toolbox inside of the unit large enough to stow a 90 lb breaker
  • Spin on type air oil separator filter/ Allows for a complete compressor service all under one hour with no special tools needed

Key Specs

AttributeSpecification

item#

7477573

Brand

Chicago Pneumatic

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2430.0 LB

Horsepower

65 HP

Air Tank Size

8 Gal

Volts

12

Engine Brand

Kubota

CFM at 90 PSI

238

Max. PSI

150

Stage

1

Air Outlets (qty.)

3

Fuel Capacity

23 Gal

Motor RPM

2,700
AttributeSpecification

Working Pressure

100/150 PSI

CFM at Max. PSI

189

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Other

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Air Dryer

None

Drain Type

Manual

Engine Model

V2403

Product Weight

2430.0000 lb

Dimensions L x W x H (in.)

148.0 x 62.7 x 63.4 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
