Chicago Pneumatic CPS 185-100 KoD CW 180 CFM @ 100 PSI 8972426004

Item# 7477549
New
Chicago Pneumatic CPS 185-100 KoD CW 180 CFM @ 100 PSI 8972426004

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Chicago Pneumatic CPS 185-100 KoD CW 180 CFM @ 100 PSI 8972426004

Click or Tap image to Zoom

$27,708.12

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Xc1004 Controller/ Standard instrument package includes an operating pressure gauge, and fully diagnostic ECU controller with large 3.5” display. The intuitive XC1004 controller is easy to operate with all functions conveniently at your fingertips. The controller also manages the engine ECU operating system, and a number of safety warnings and shut downs on various parameters. Functionaly includes compressor measurments such as running hours, regulating pressure, service counters along with warnings and shut downs for high temp compresssor oil & low engine oil pressure.
  • 110% spill containment/ Designed with a spill-free containment frame, this unit can capture 110% of all onboard fluids, including compressor oil, engine oil, and engine coolant. By containing leaks at the source, it helps protect the jobsite, reduce environmental risk, and avoid expensive cleanup costs.
  • Redrock Canopy/Built with durable double-wall polyethylene, the Redrock Canopy eliminates concerns about dents and rust. UV protection helps preserve its color and finish, keeping the machine looking newer longer and enhancing resale value.
  • Internal toolbox/ Internall toolbox inside of the unit large enough to stow a 90 lb breaker
  • Spin on type air oil separator filter/ Allows for a complete compressor service all under one hour with no special tools needed

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

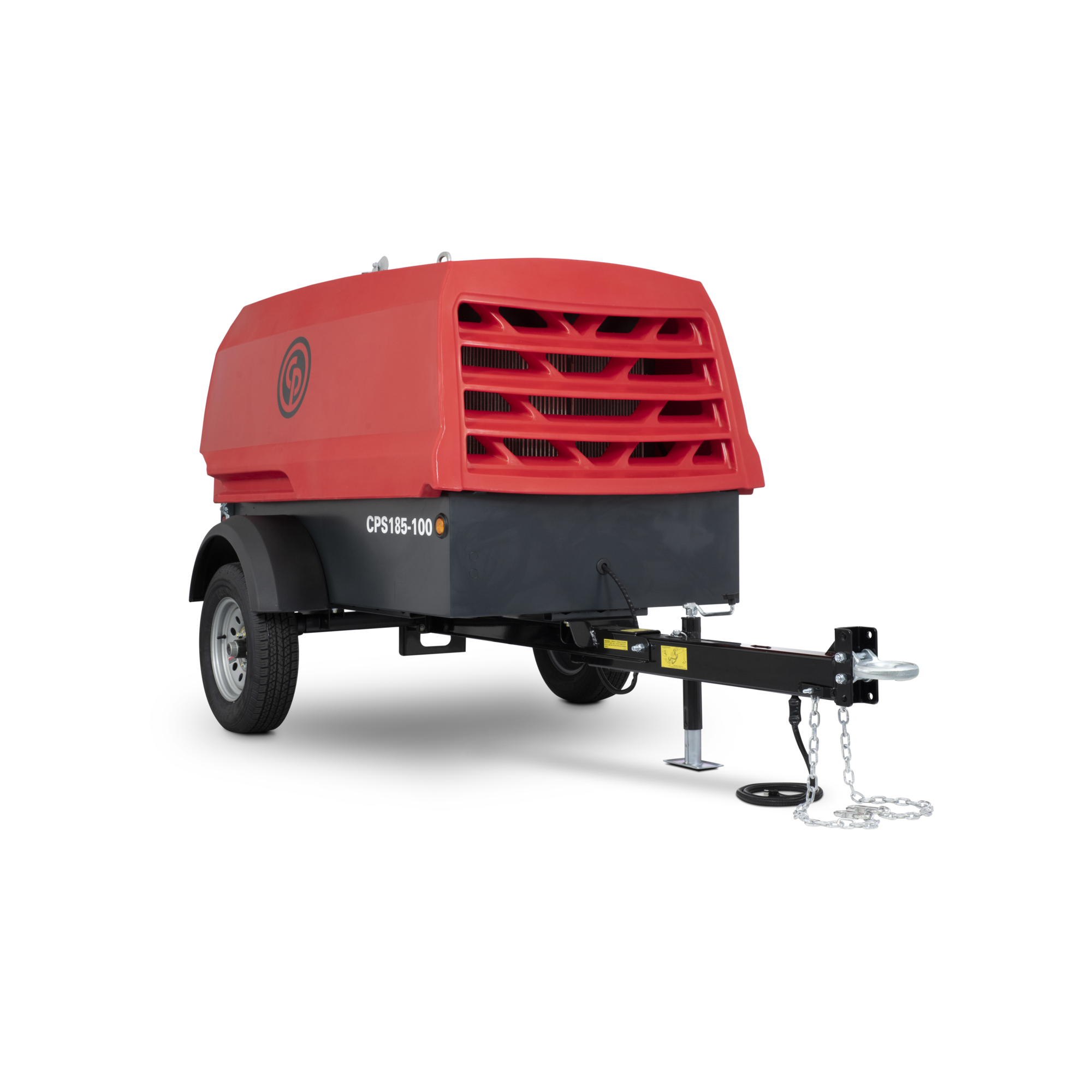

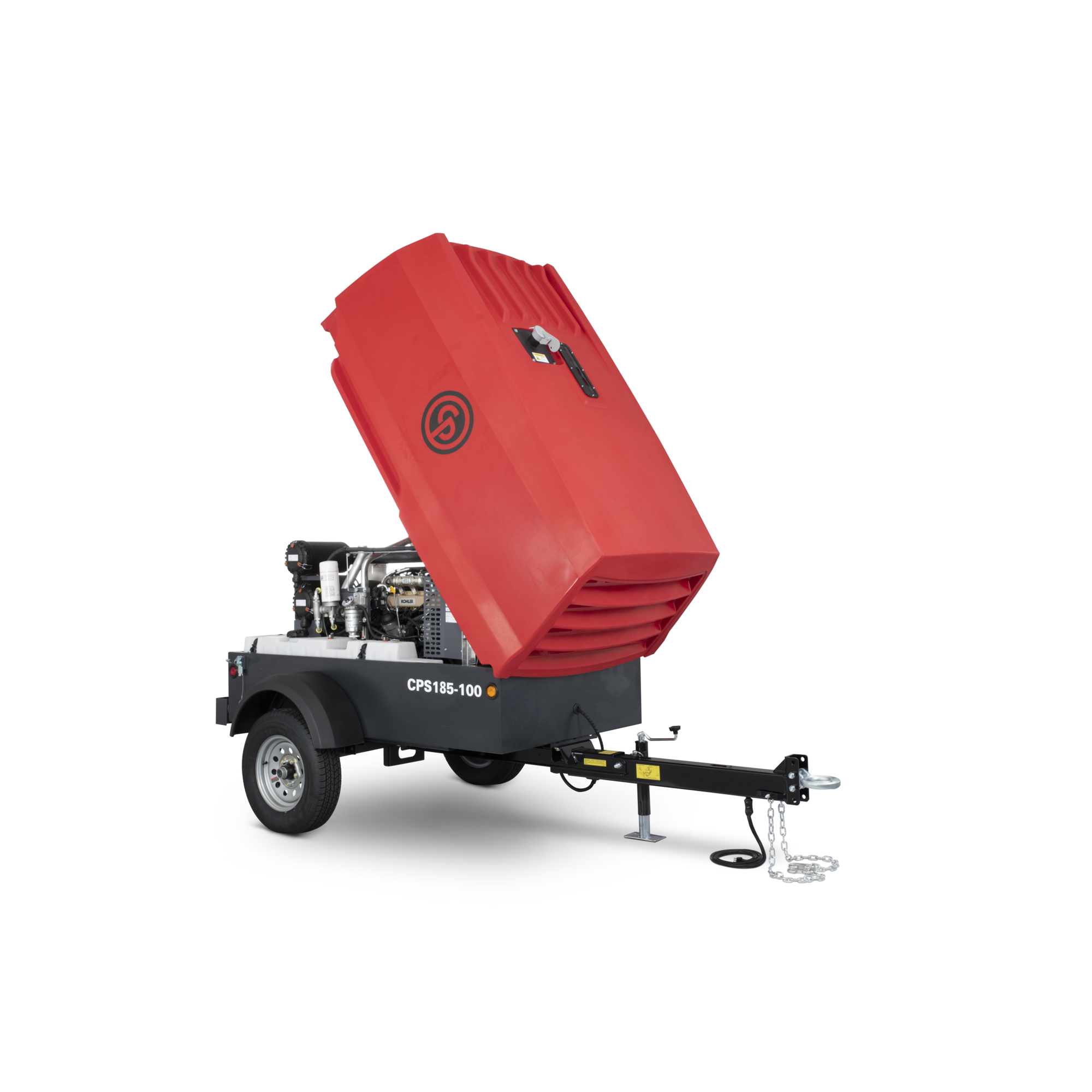

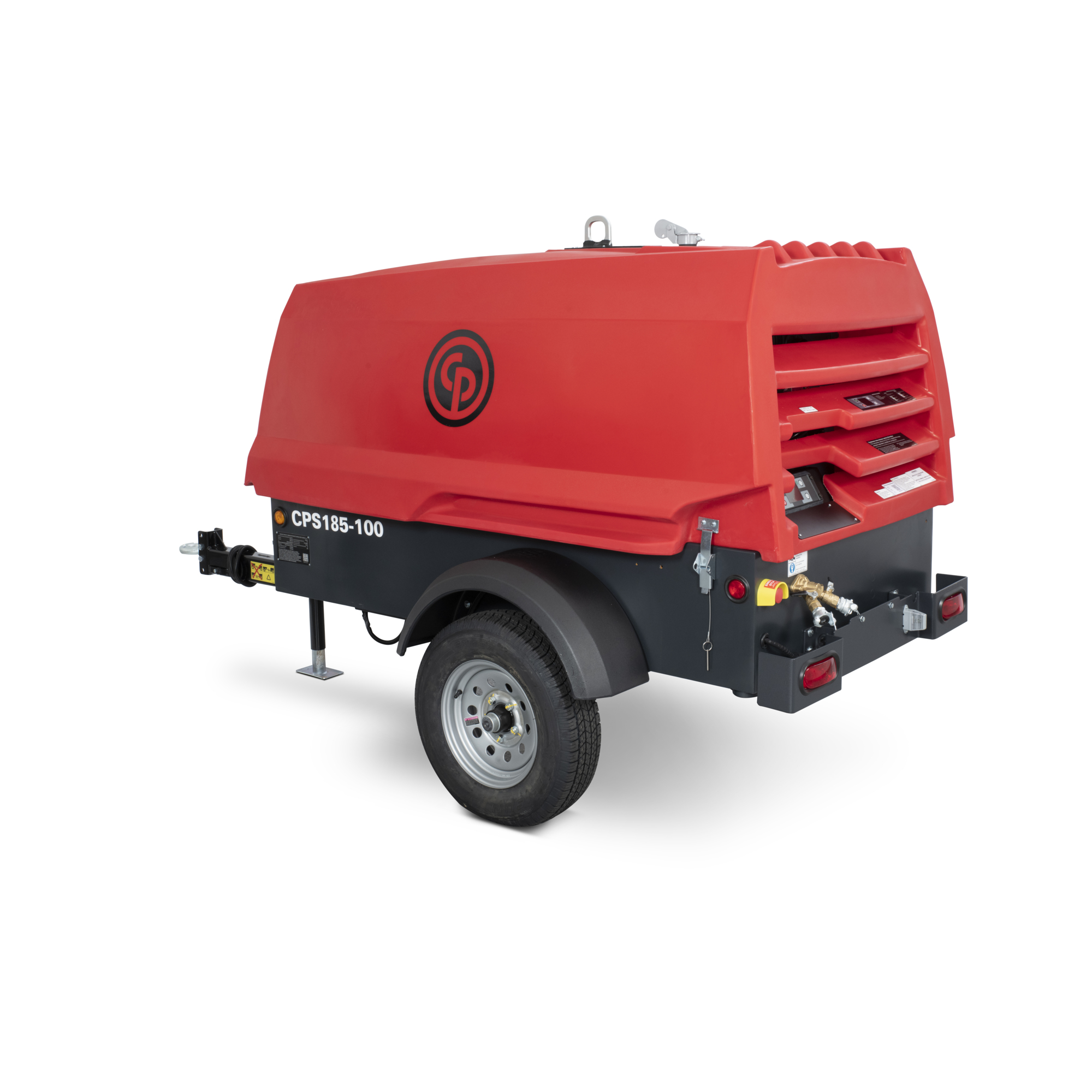

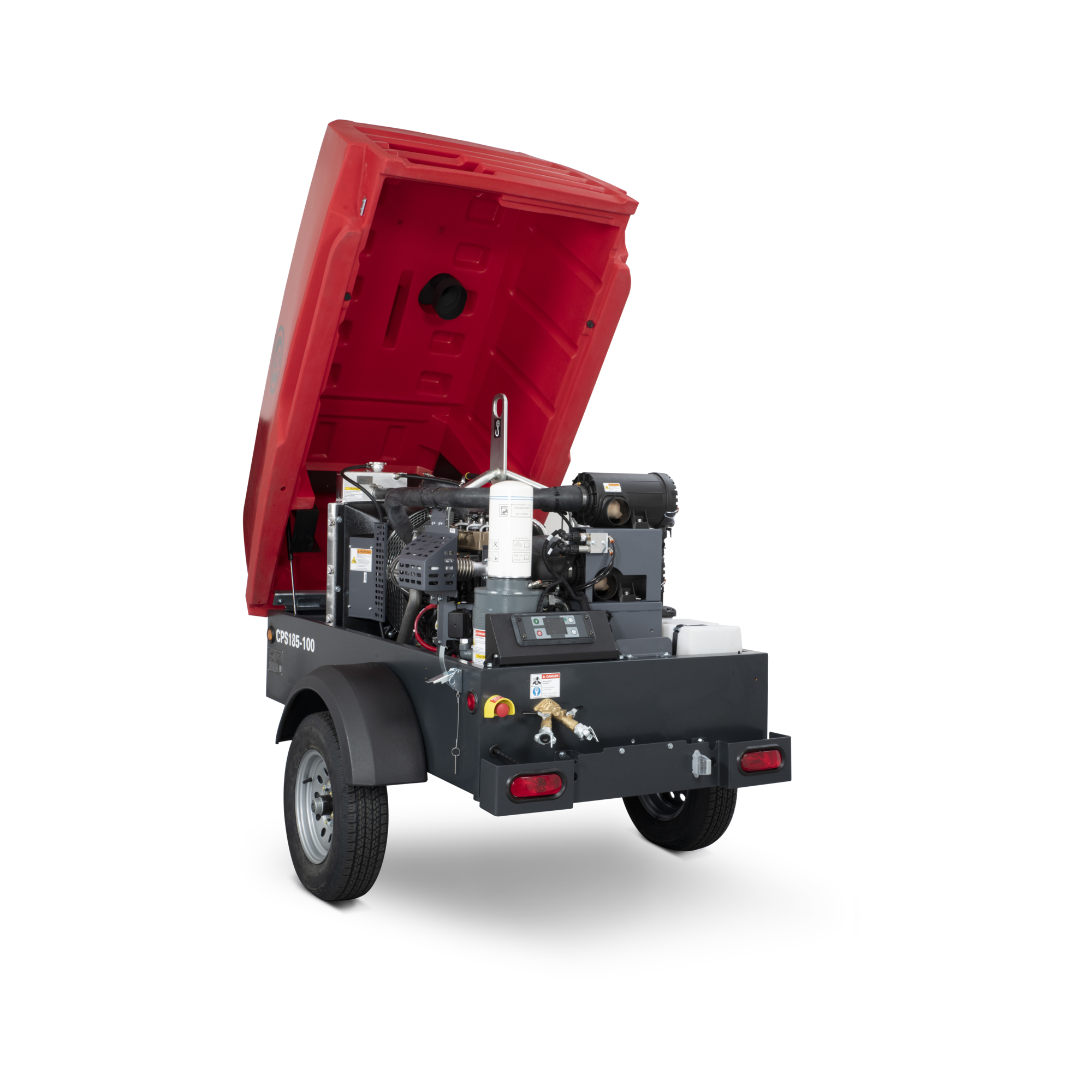

The Chicago Pneumatic CPS 185-100 is a single-stage oil-injected rotary screw type air compressor, powered by a liquid cooled, three-cylinder tubrocharged Kohler Diesel engine. The unit consists of an air end, diesel engine, cooling circuit, air/oil separation and control systems - all enclosed within a Redrock poleythlene shell. Unique features include 100% fluid containment, internal toobox, external lifting eye, easy to use Xc1004 controller. The CW spec comes standard with an engine block heater along with synthetic compressor oil, allowing the operator to start the unit in temps as low as -13 degrees Farenheit

What's Included

    (1) Towable 185 CFM Air Compressor

Downloads

Safety Data Sheet

Features + Benefits

  • Xc1004 Controller/ Standard instrument package includes an operating pressure gauge, and fully diagnostic ECU controller with large 3.5” display. The intuitive XC1004 controller is easy to operate with all functions conveniently at your fingertips. The controller also manages the engine ECU operating system, and a number of safety warnings and shut downs on various parameters. Functionaly includes compressor measurments such as running hours, regulating pressure, service counters along with warnings and shut downs for high temp compresssor oil & low engine oil pressure.
  • 110% spill containment/ Designed with a spill-free containment frame, this unit can capture 110% of all onboard fluids, including compressor oil, engine oil, and engine coolant. By containing leaks at the source, it helps protect the jobsite, reduce environmental risk, and avoid expensive cleanup costs.
  • Redrock Canopy/Built with durable double-wall polyethylene, the Redrock Canopy eliminates concerns about dents and rust. UV protection helps preserve its color and finish, keeping the machine looking newer longer and enhancing resale value.
  • Internal toolbox/ Internall toolbox inside of the unit large enough to stow a 90 lb breaker
  • Spin on type air oil separator filter/ Allows for a complete compressor service all under one hour with no special tools needed

Key Specs

AttributeSpecification

item#

7477549

Brand

Chicago Pneumatic

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2100.0 LB

Horsepower

49 HP

Air Tank Size

4.76 Gal

Volts

12

Engine Brand

Kohler

CFM at 90 PSI

180

Max. PSI

125

Stage

1

Air Outlets (qty.)

3

Fuel Capacity

22.3 Gal

Motor RPM

2,500
AttributeSpecification

Working Pressure

100 PSI

CFM at Max. PSI

180

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Other

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Air Dryer

None

Drain Type

Manual

Engine Model

KDI 1903

Product Weight

2100.0000 lb

Dimensions L x W x H (in.)

131.8 x 82.13 x 63.34 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
