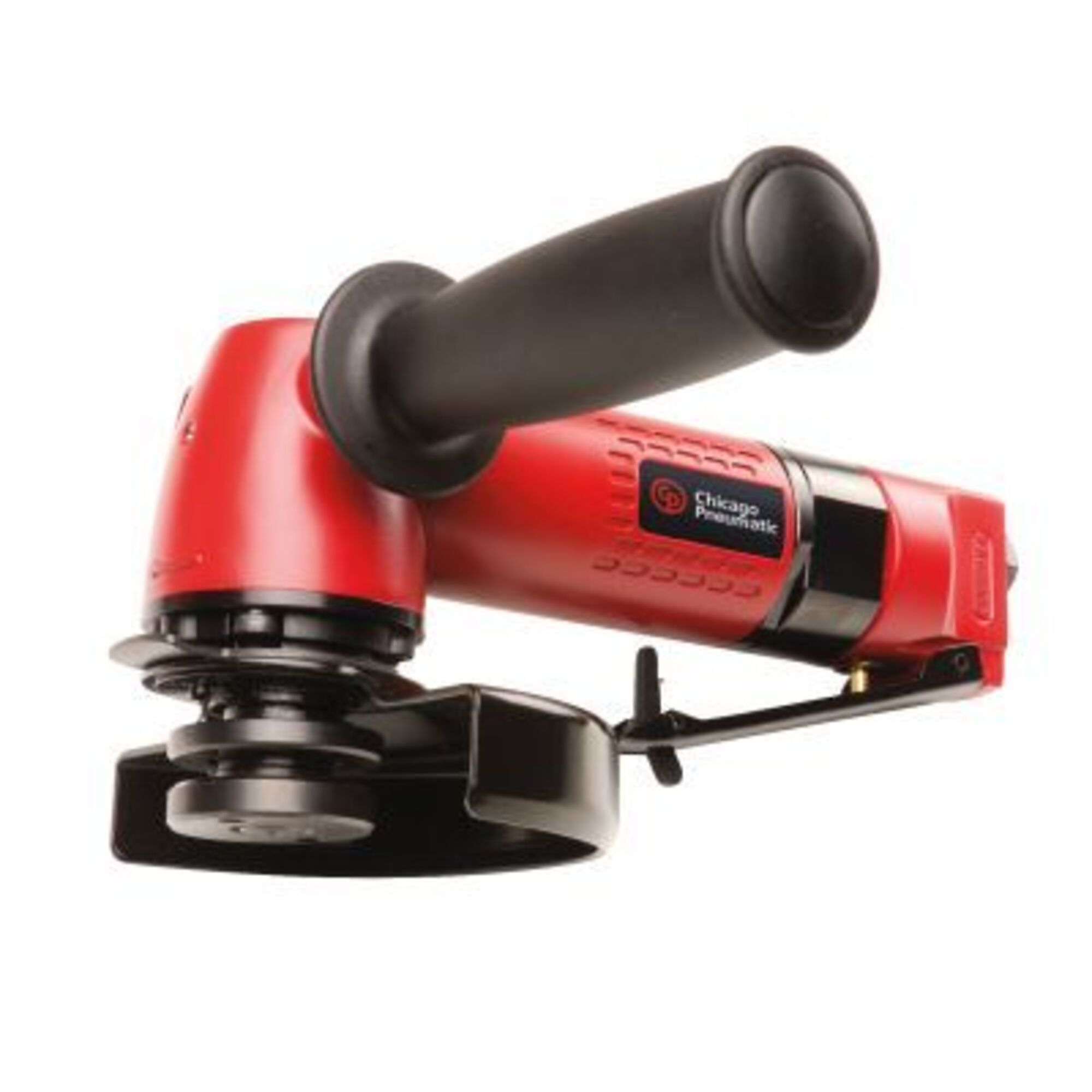

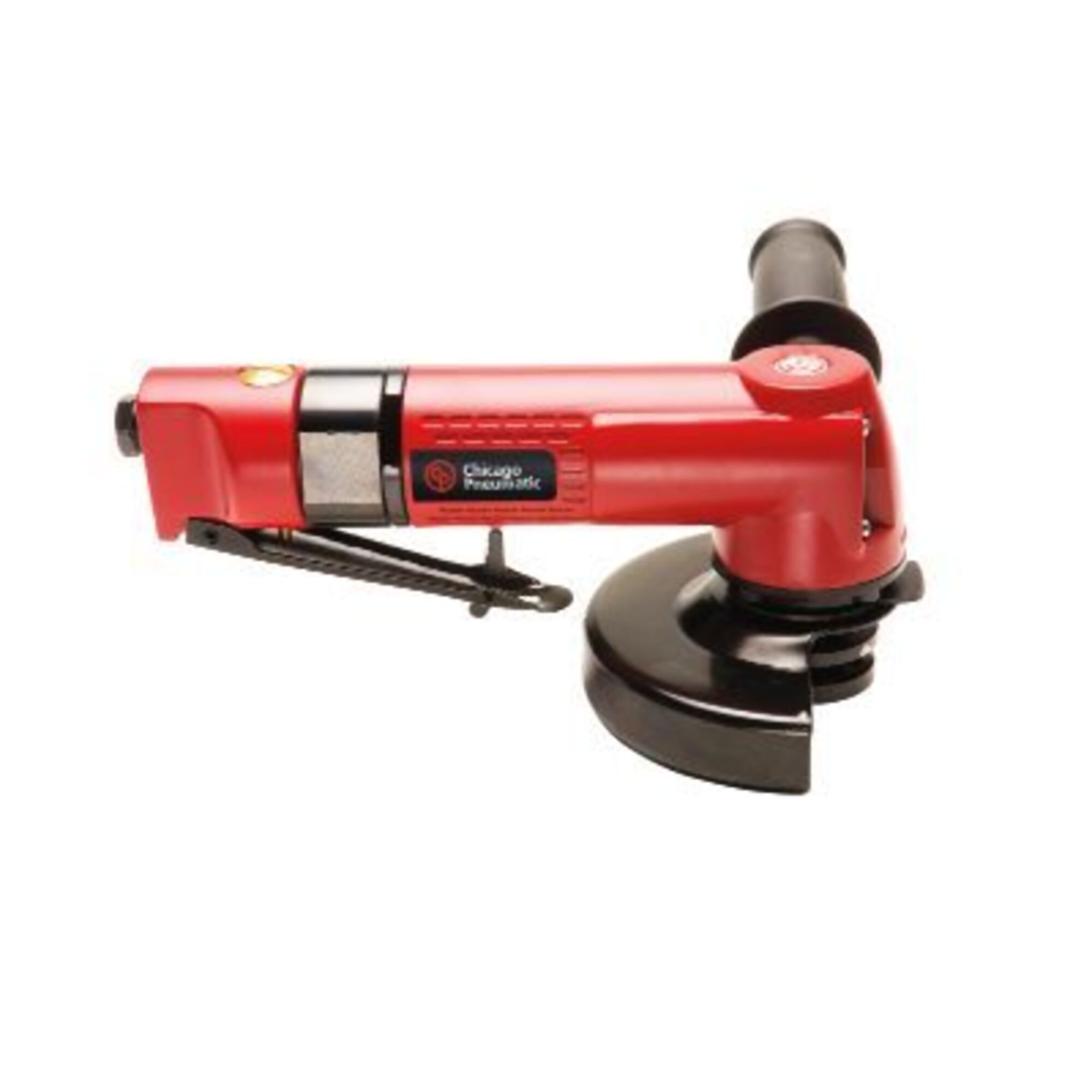

Chicago Pneumatic CP9122BR - Air Right Angle Grinder, 4.5 in, 5/8-11 UNC, 1/4 in NPT, 0.8 HP, 12,000 RPM
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Powerful and Efficient: With a 0.8 HP (600 W) motor, the CP9122BR Air Angle Grinder is capable of high efficiency and fast metal removal. It has a free speed of 12,000 RPM and a maximum wheel capacity of 4.5 inches (115 mm), making it ideal for general maintenance applications
- Ergonomic Design: The CP9122BR Air Angle Grinder is designed with a lightweight aluminum alloy housing that is rugged yet comfortable to use. The helical bevel gearing in the angle head provides extended life and smooth low vibration, making it comfortable to use for extended periods of time
- Safety Features: The CP9122BR Air Angle Grinder is equipped with a helical bevel gear design that ensures high durability. It also has a sound pressure level of 84 dB(A) and a sound power level of 95 dB(A), making it safe to use in various industries including shipbuilding, pipe fabricating, transportation equipment manufacturing, and welding applications
- Versatile Applications: The CP9122BR Air Angle Grinder is suitable for weld preparation and smoothing, rust removal, deburring, and blending of steel, cast iron, and aluminum. It can be used with 4.5-inch (115 mm) type 27 grinding wheels, making it ideal for various applications

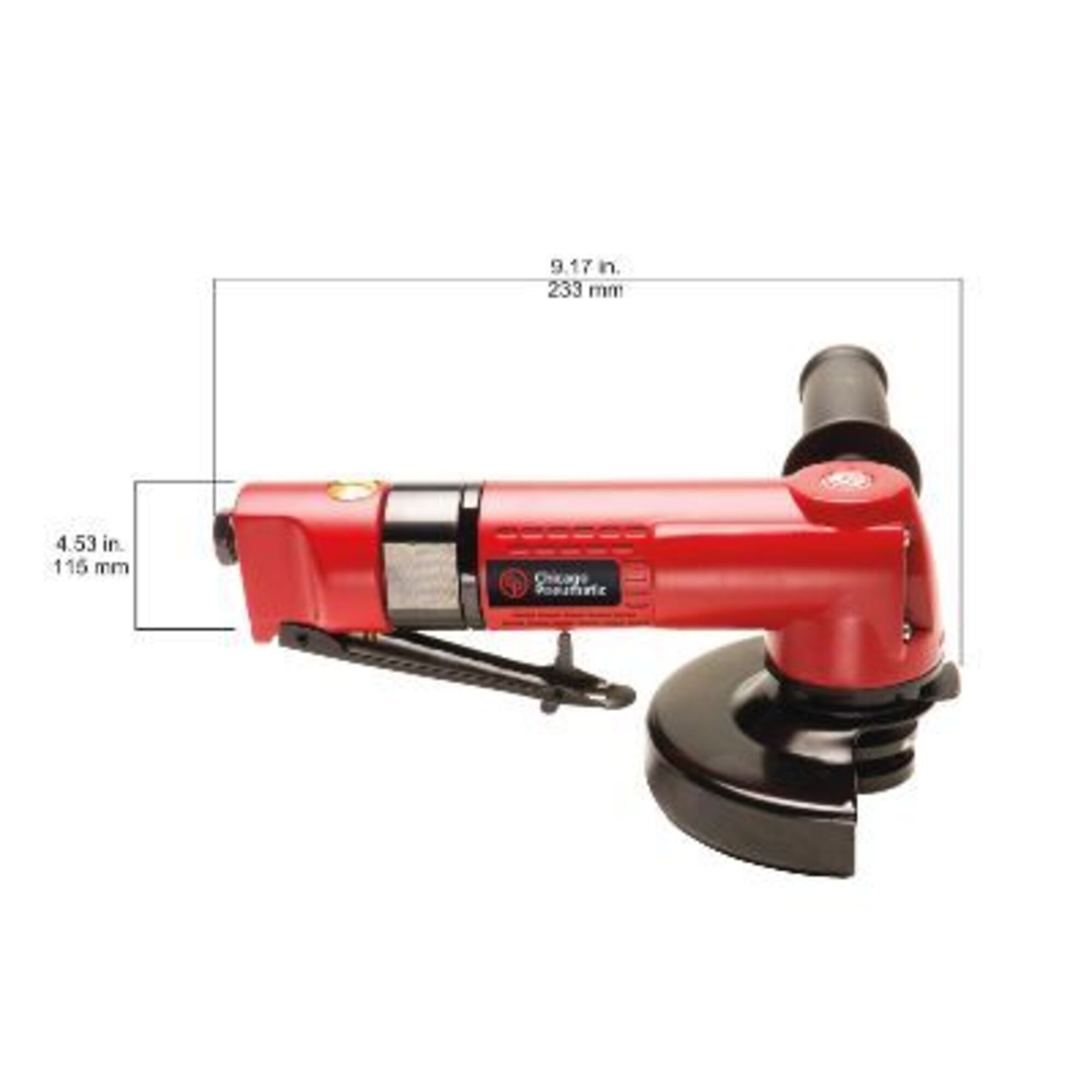

- General Specifications: The CP9122BR Air Angle Grinder has a spindle thread of 5/8-11, a free speed air consumption of 21 cfm (9.9 l/s), and an actual air consumption of 29.7 cfm (14 l/s). It has a length of 9.3 inches (233 mm) and weighs 3.5 pounds. It is equipped with a 1/4-inch air inlet size and a 4.5-inch (115 mm) wheel. It is also harmonized with EN ISO 12100 and ISO 8662 8/ISO 8662 4, PN8NTC1.2 standards
See full description
See All Air Grinders
See All Chicago Pneumatic Air Grinders
Currently Viewing This Product
Specifications
12,000 rpm
20,000 rpm
22,000 rpm
11,000 rpm
90 PSI
-
-
90 PSI
1/4 in
3/8 in
1/4 in
1/4 in
5/8 in
1/4 in
1/4 in
1/4 in
Angle
Die
Die
Angle
3/8 in
3/8 in
3/8 in
3/8 in
4.5 in
-
-
-
Yes
No
No
No
29 cfm
6 cfm
29 cfm
6 cfm
Yes
-
-
-
Yes
Yes
-
-
None
-
-
-
4.1900 lb
-
1.1000 lb
4.0000 lb
9.17 x 0.0 x 0.0 in
-
6.6 x 1.4 x 2.75 in
9.0 x 3.5 x 7.5 in
