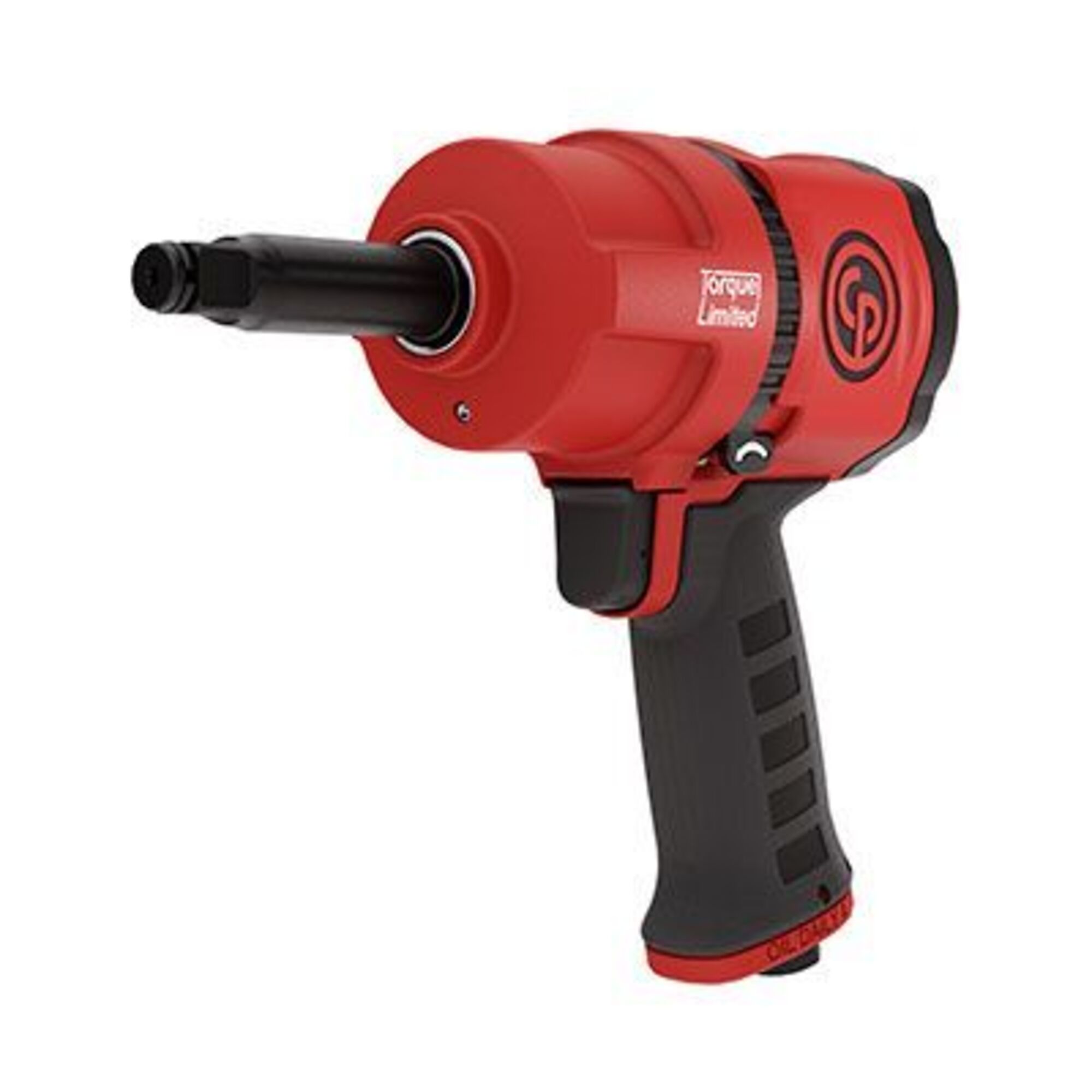

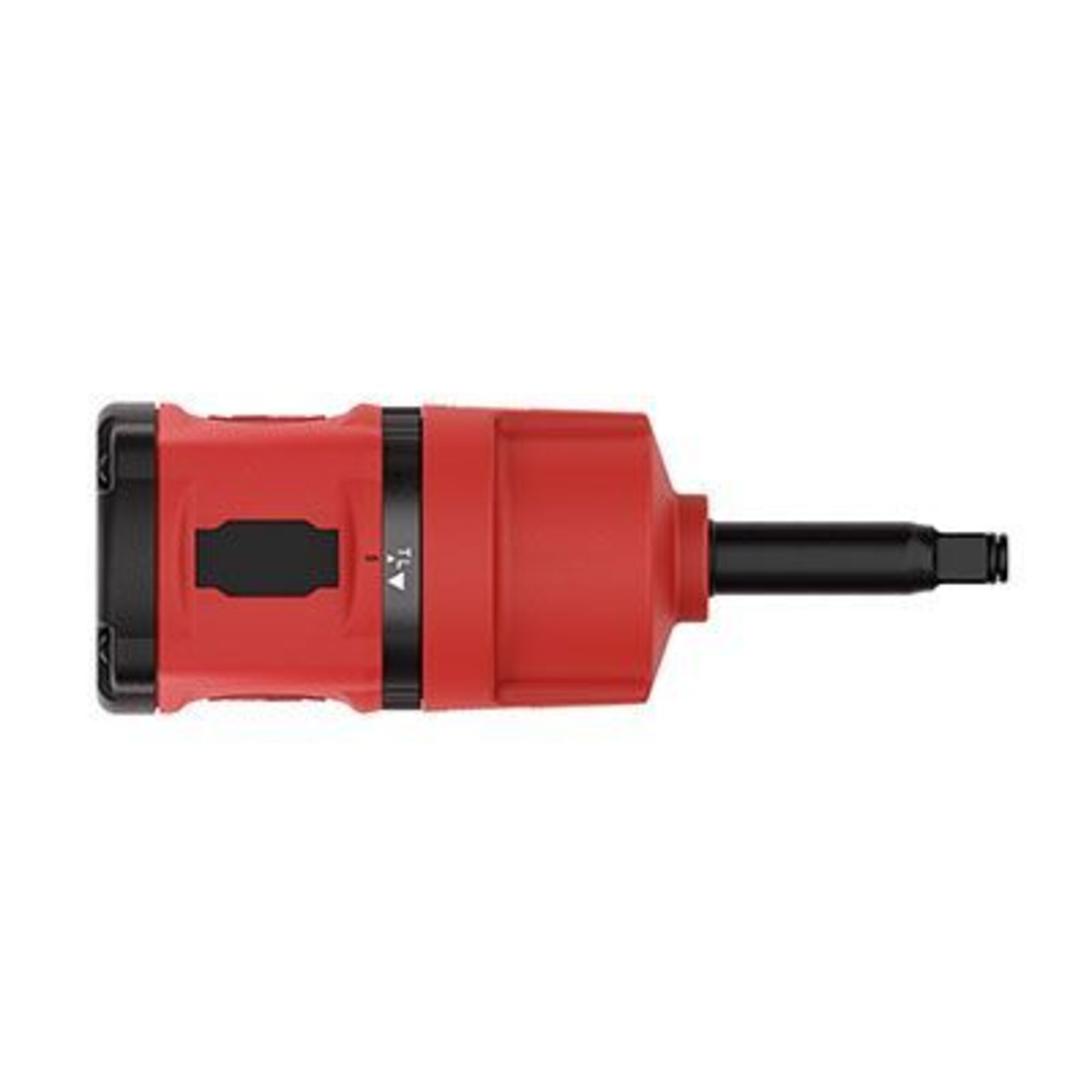

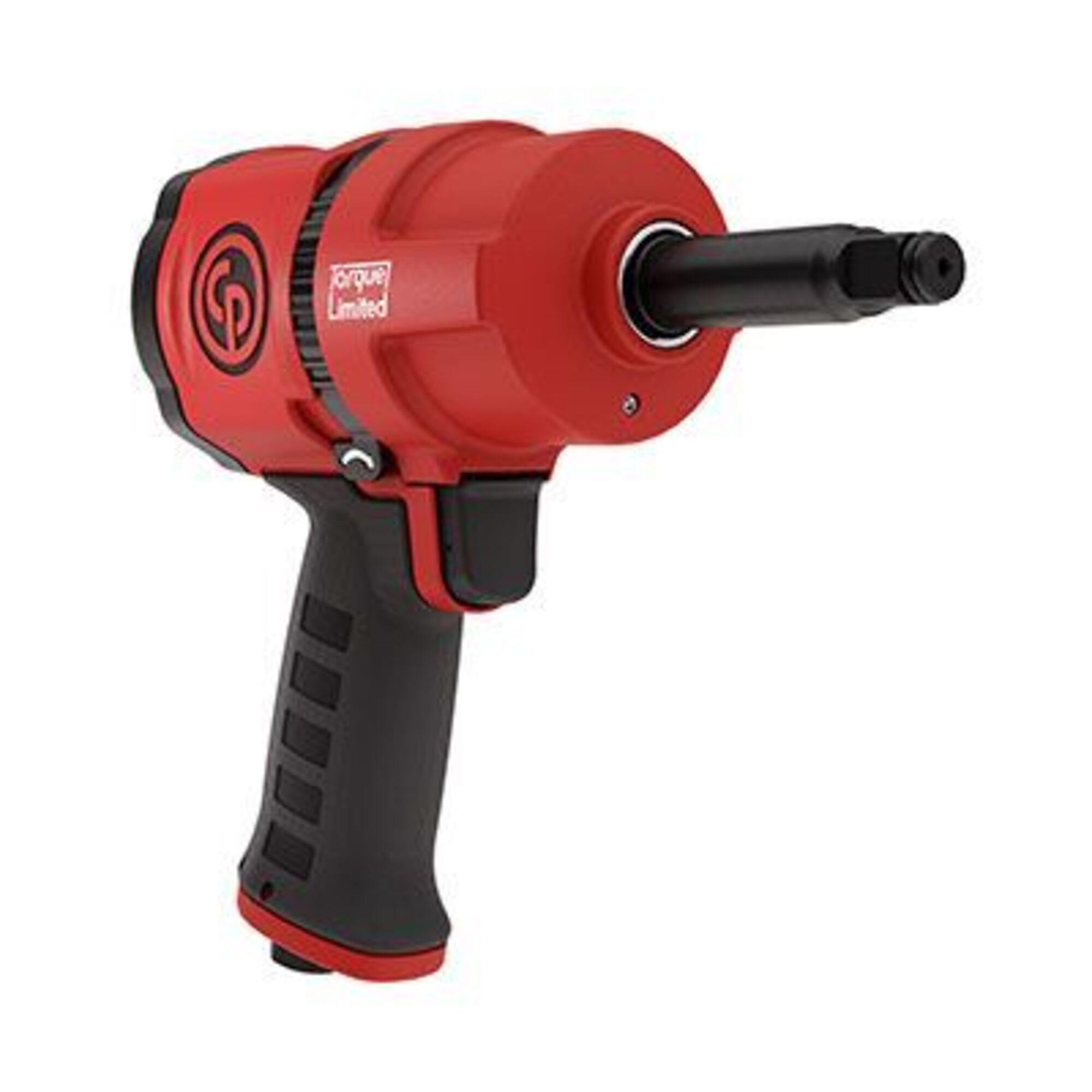

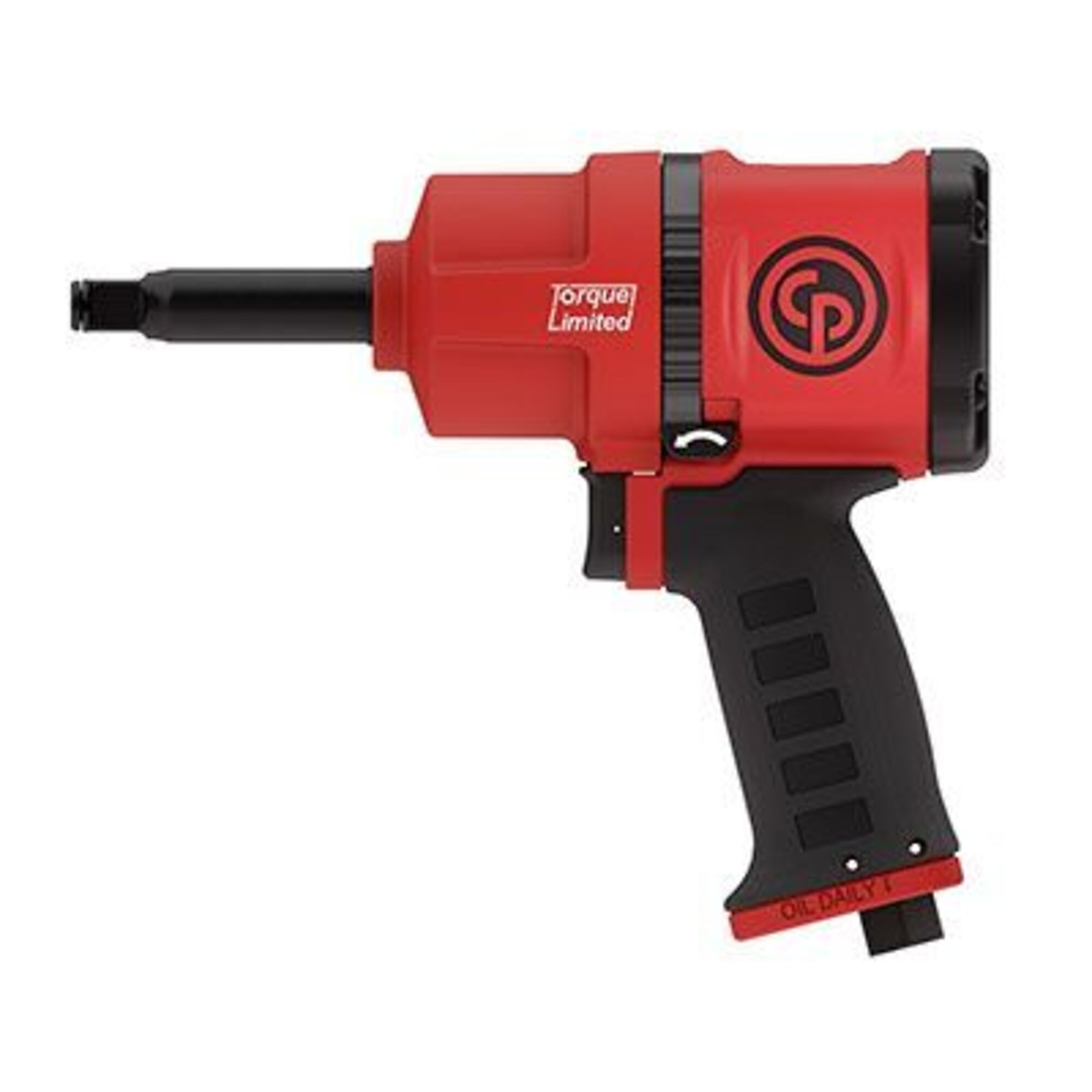

Chicago Pneumatic Air Impact Wrench — 1/2in., 2in. Extended Anvil, 960 ft.-lbs. Max Torque, 7000 RPM, Model# CP7748TL-2

Item# 6999046
Chicago Pneumatic Air Impact Wrench — 1/2in., 2in. Extended Anvil, 960 ft.-lbs. Max Torque, 7000 RPM, Model# CP7748TL-2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Chicago Pneumatic Air Impact Wrench — 1/2in., 2in. Extended Anvil, 960 ft.-lbs. Max Torque, 7000 RPM, Model# CP7748TL-2

Click or Tap image to Zoom

$349.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Torque limited in forward to limit the risk of over tightening and maximum torque in reverse
  • Lightweight (4.65 lbs – 2.11 kg) and compact (8.86 in. / 225 mm long) for improved comfort
  • Composite housing, twin hammer impact mechanism, hard anodized end plates, and hard chromium aluminum cylinder for high durability
  • Low vibration tool due to lower torque in forward
  • Curved rubber handle to help prevent slipping

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Designed for tire-changing applications with a torque limited in forward to 60-70ft. Lbs / 90-100 Nm and a maximum torque in reverse of 960ft.lbs / 1,300 Nm, the CP7748TL series limits the risk of over-tightening during the tightening phase while also being very powerful when nuts or bolts have to be removed. In addition, the new forward/reverse system power control (ring system) increase operator comfort while also improving functionality. The CP7748TL Series is composed of 2 models: 1/2in. short anvil and 1/2in. long anvil (2in. anvil).

What's Included

    (1) CP7748TL-2 IMPACT WRENCH

Features + Benefits

  • Torque limited in forward to limit the risk of over tightening and maximum torque in reverse
  • Lightweight (4.65 lbs – 2.11 kg) and compact (8.86 in. / 225 mm long) for improved comfort
  • Composite housing, twin hammer impact mechanism, hard anodized end plates, and hard chromium aluminum cylinder for high durability
  • Low vibration tool due to lower torque in forward
  • Curved rubber handle to help prevent slipping

Key Specs

AttributeSpecification

item#

6999046

Brand

Chicago Pneumatic

Manufacturer's Warranty

1 year limited warranty

Ship Weight

5.67 LB

Drive Size

1/2 in

Max. RPM

8,200

Max. Reverse Torque

922 ft-lbs.

Max. Forward Torque

91 ft-lbs.

Min. Working Torque

66 ft-lbs.
AttributeSpecification

Max. Working Torque

103 ft-lbs.

Air Consumption

21 cfm

Max. PSI

90

Air Inlet Size

1/4 in

Hammer Mechanism

Yes

Tool Length

9.84 in

Product Weight

4.6500 lb

Dimensions L x W x H (in.)

8.86 x 3.0 x 7.87 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
