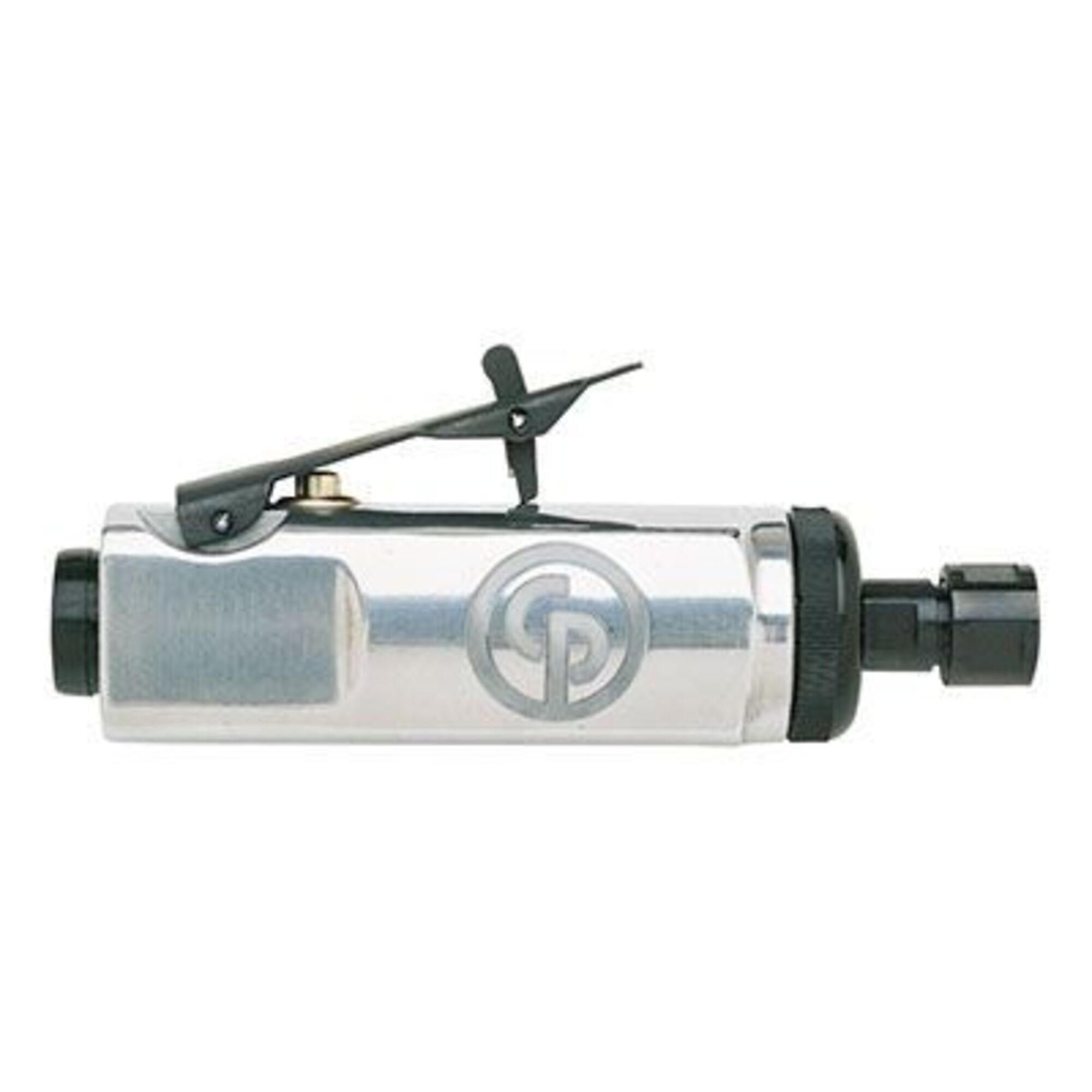

Chicago Pneumatic, 1/4in. Air Straight Die Grinder, 0.54 HP, Max. Speed 24000 rpm, Model# CP860

Item# 6546389
Chicago Pneumatic, 1/4in. Air Straight Die Grinder, 0.54 HP, Max. Speed 24000 rpm, Model# CP860

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Chicago Pneumatic, 1/4in. Air Straight Die Grinder, 0.54 HP, Max. Speed 24000 rpm, Model# CP860

Click or Tap image to Zoom

  • Rugged and energy efficient 0.54 HP (400 W) motor for better productivity
  • Adjustable speed regulator & lock-off throttle
  • Square handle design for greater comfort

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The CP860 Series, a 1/4in. (6.35 mm) capacity die grinder with collet, features a compact or extended shaft to accommodate your most demanding accesses in general maintenance applications to keep your quality at the highest level. The motor is extremely powerful and reliable with 0.54 HP (400 W). Available in 4 models: 1/4in. collet (short long shank) and 6 mm collet (short long shank).

What's Included

    (1) Die grinder

Features + Benefits

  • Rugged and energy efficient 0.54 HP (400 W) motor for better productivity
  • Adjustable speed regulator & lock-off throttle
  • Square handle design for greater comfort

Key Specs

AttributeSpecification

item#

6546389

Brand

Chicago Pneumatic

Manufacturer's Warranty

2 year limited warranty

Ship Weight

2.15 LB

Max. Speed

24,000 rpm

Max. Pressure

90 PSI

Air Inlet Size

1/4 in
AttributeSpecification

Product Type

Die

Min. Hose Size

3/8 in

Side Handle

No

Air Consumption

21 cfm

Trigger Lock

Yes

Storage Type

None

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
