Product Summary

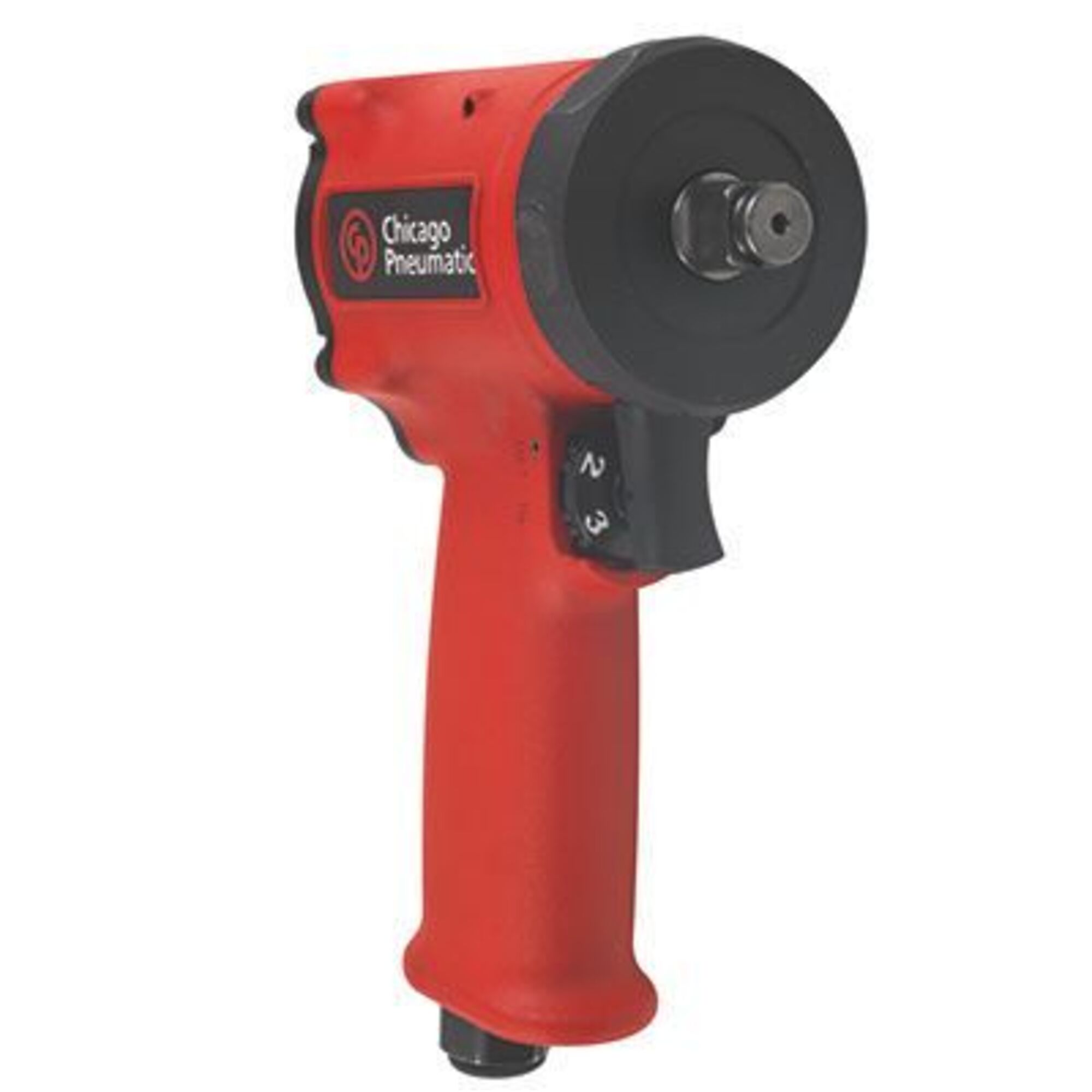

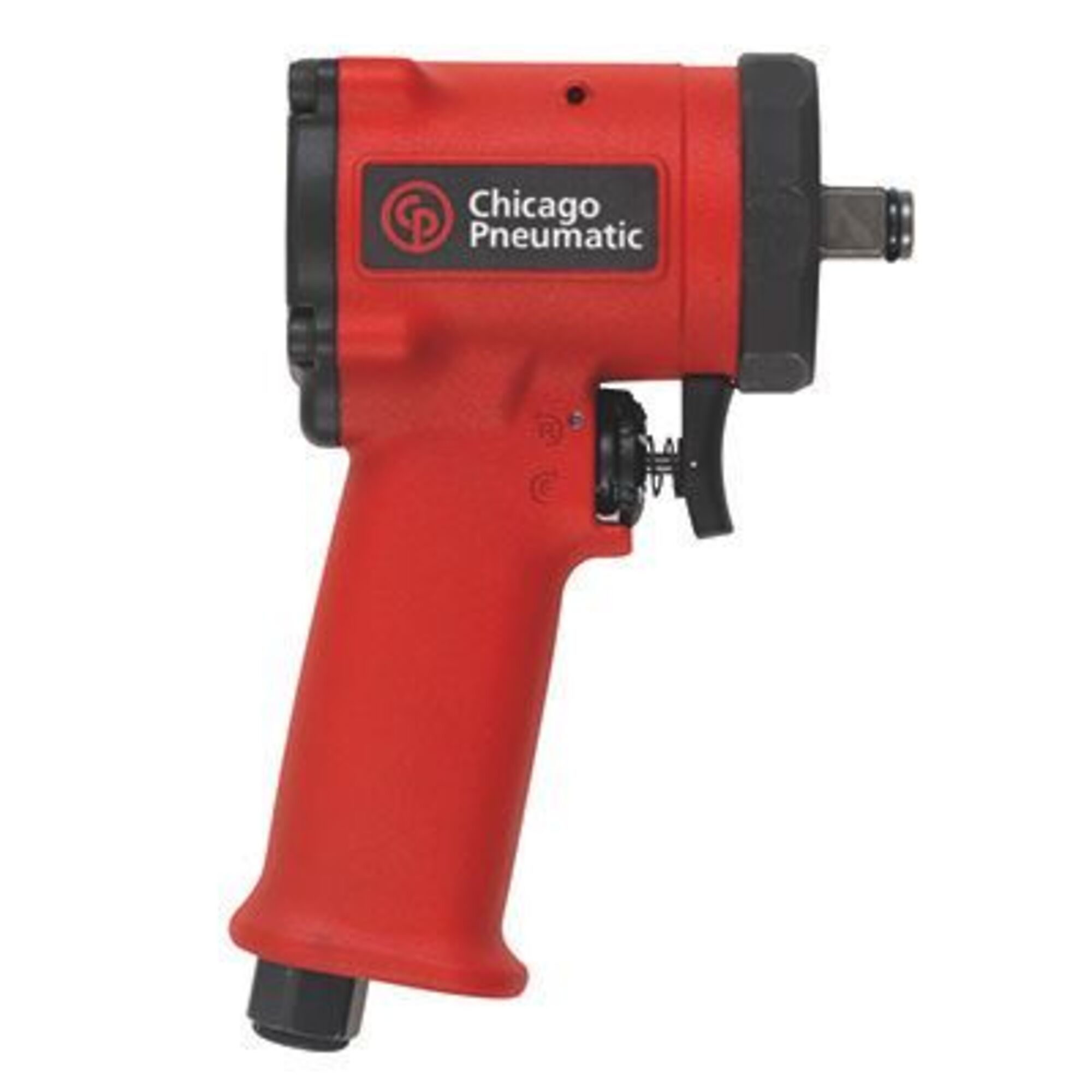

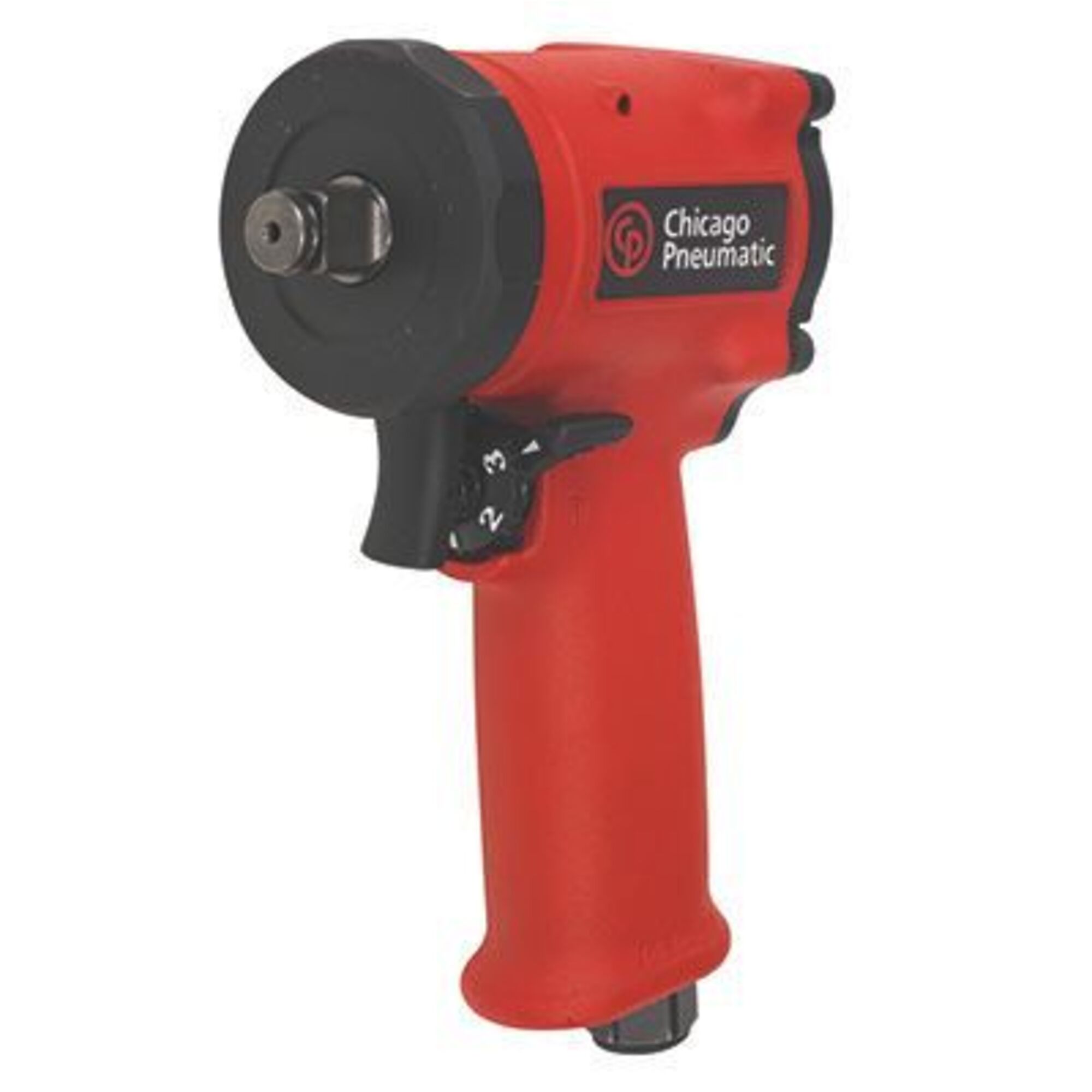

This impact wrench, designed to be the best tool for general maintenance with its torque of 450ft.lbs / 610 Nm and its compactness of 4.4in. / 112 mm, is highly recommended. Its jumbo hammer impact mechanism and metal housing offer high durability. The CP7731/CP7732 series is composed of 2 models: a 3/8in. short anvil and a 1/2in. short anvil.

What's Included

    (1) Tool

Features + Benefits

  • Ultra-compact tool with its 4.4 Inch (112 mm) length which allows you to work in tight places
  • Metal housing and jumbo hammer impact mechanism for high durability while also being extremely light and powerful.
  • Easily adjustable one hand operation forward / reverse for either right or left-handed operation

Key Specs

AttributeSpecification

item#

6546776

Brand

Chicago Pneumatic

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2.87 LB

Drive Size

1/2 in

Max. RPM

9,000

Impacts Per Minute

1,400

Max. Reverse Torque

450 ft-lbs.

Max. Forward Torque

310 ft-lbs.

Min. Working Torque

102 ft-lbs.

Max. Working Torque

310 ft-lbs.
AttributeSpecification

Air Consumption

19 cfm

CFM at Load

9

Max. PSI

90

Air Inlet Size

1/4 in

Min. Hose Size

3/4 in

Variable Speed

Yes

Reversible

Yes

Case Included

No

Noise Level

106 dB

Tool Length

4.41 in

Warranty

Manufacturer's Warranty

1 year limited warranty
