Champion Power Equipment, 5000/4000w Tri Fuel Portable Generator CO Shield, Surge Watts 5000 Rated Watts 4000 Voltage 120 Model# 201223

Item# 5893320
"Champion Power Equipment, 5000/4000w Tri Fuel Portable Generator CO Shield, Surge Watts 5000 Rated Watts 4000 Voltage 120 Model# 201223"
Champion Power Equipment, 5000/4000w Tri Fuel Portable Generator CO Shield, Surge Watts 5000 Rated Watts 4000 Voltage 120 Model# 201223

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Champion Power Equipment, 5000/4000w Tri Fuel Portable Generator CO Shield, Surge Watts 5000 Rated Watts 4000 Voltage 120 Model# 201223

Click or Tap image to Zoom

$819.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • The Champion 224cc OHV engine features electric start (battery included), easily switches between gasoline/Propane/Natural Gas, Cold Start Technology, low oil shutdown, and CO Shield
  • Produces 5,000 starting watts and 4,000 running watts using gasoline, and will run for 14 hours at 50% load when the 5-gallon fuel tank is full.
  • Produces 4,500 starting watts and 3,600 running watts on Propane/LPG, and will run for 10.5 hours at 50% load.
  • Produces 4,050 starting watts and 3,240 running watts on Natural Gas. To connect this generator to your home’s natural gas source, this generator includes a 25-foot NG hose kit, which includes a female quick connect end, a female flare fitting end and an NPT male adapter.
  • The covered outlets include a 120V 30A locking outlet (L5-30R), a 120V 30A RV outlet (TT-30R) and a 120V 20A duplex household outlet (5-20R).

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Champion Power Equipment 4000-Watt Tri-Fuel Portable Natural Gas Ready Generator with CO Shield is a reliable source of power with the flexibility you need. When you are not running your generator on natural gas, you also have the option of operating it on gasoline or propane. The ability to operate your generator on three types of fuel out of the box makes this one of the most versatile generators on the market.

What's Included

    (1) Engine Oil & Funnel, Propane/LPG Hose, Natural Gas Hose & NPT Adapter, Wheel Kit

Downloads

Safety Data Sheet Safety Data Sheet2

Features + Benefits

  • The Champion 224cc OHV engine features electric start (battery included), easily switches between gasoline/Propane/Natural Gas, Cold Start Technology, low oil shutdown, and CO Shield
  • Produces 5,000 starting watts and 4,000 running watts using gasoline, and will run for 14 hours at 50% load when the 5-gallon fuel tank is full.
  • Produces 4,500 starting watts and 3,600 running watts on Propane/LPG, and will run for 10.5 hours at 50% load.
  • Produces 4,050 starting watts and 3,240 running watts on Natural Gas. To connect this generator to your home’s natural gas source, this generator includes a 25-foot NG hose kit, which includes a female quick connect end, a female flare fitting end and an NPT male adapter.

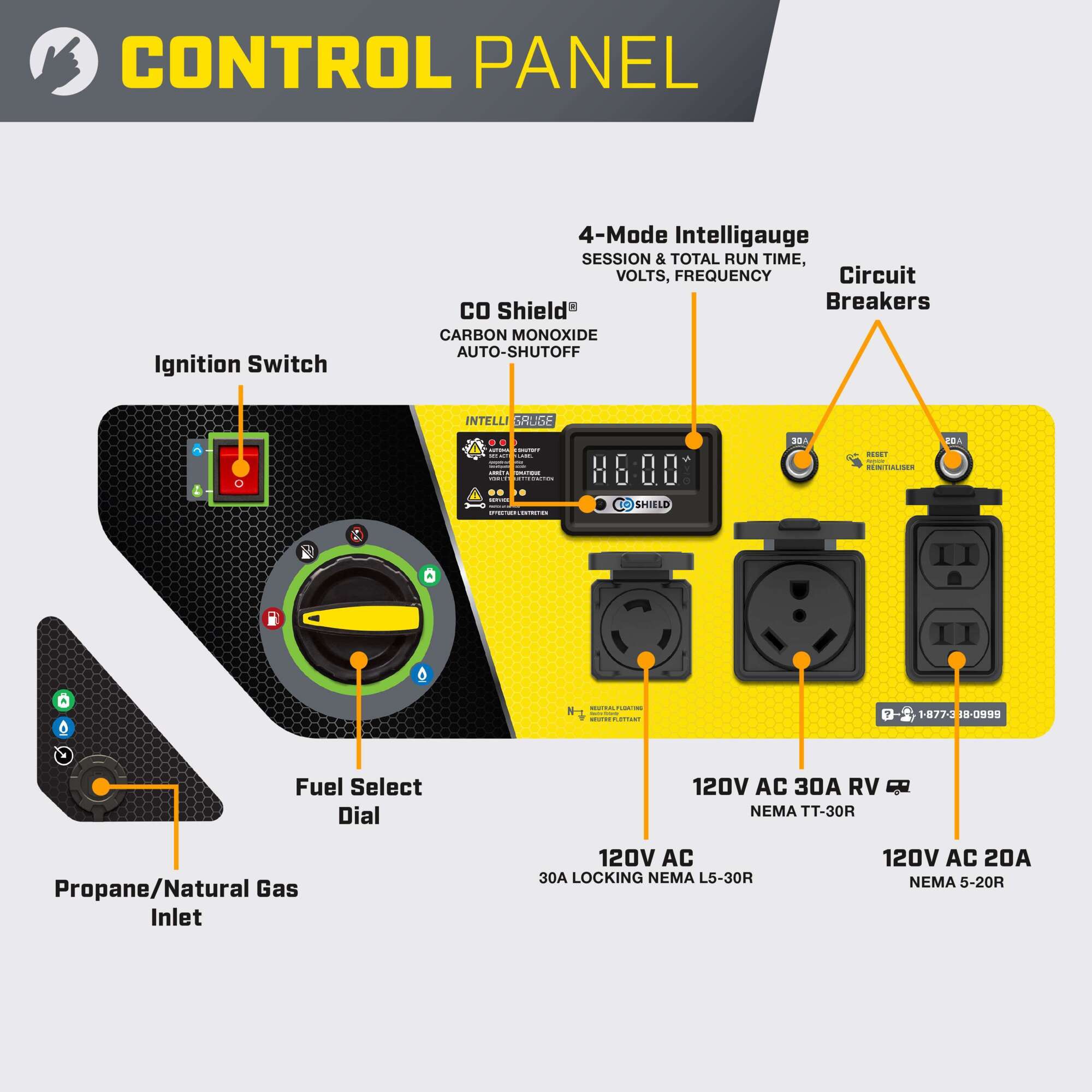

  • The covered outlets include a 120V 30A locking outlet (L5-30R), a 120V 30A RV outlet (TT-30R) and a 120V 20A duplex household outlet (5-20R).
  • The Intelligauge with Power Meter monitors voltage, frequency, operating hours and power output, while Volt Guard™ built-in surge protector prevents overloads.
  • CO Shield® technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield® detects unsafe elevated levels of CO gas, it automatically shuts off the engine.
  • This generator is EPA certified and CARB compliant. Buy with confidence - Champion Support and our nationwide network of service centers will back your purchase up with a 3-year limited warranty and FREE lifetime technical support.

Key Specs

AttributeSpecification

item#

5893320

Brand

Champion Power Equipment

Manufacturer's Warranty

3 months parts/3 months labor

Ship Weight

137.0 LB

Surge Watts

5,000

Rated Watts

4,000

Fuel Type

Tri Fuel - Gasoline, Propane, and Natural Gas

Voltage

120

Max. Amps

41.7

Engine Displacement

224 cc

Engine Brand

OEM

Engine Model

Champion 224cc

Noise Level

68 dB

Enclosure Material

Steel

Start Type

Electric and Recoil

Fuel Capacity

5 Gal

Battery Required

Yes
AttributeSpecification

Battery Included

Yes

Rated Watts LP

3,600

Rated Watts NG

3,240

Surge Watts LP

4,500

Surge Watts NG

4,050

Auto Shutdown

Yes

Overload Protection

Yes

Low Oil Shutdown

Yes

Hour Meter

Yes

Hertz

60

Engine Cooling

Air

Built-in Inverter

No

Total Harmonic Distortion

Less than 5%

CARB Compliant

Yes

Product Weight

128.0000 lb

Dimensions L x W x H (in.)

24.6 x 22.2 x 25.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

3 months parts/3 months labor
