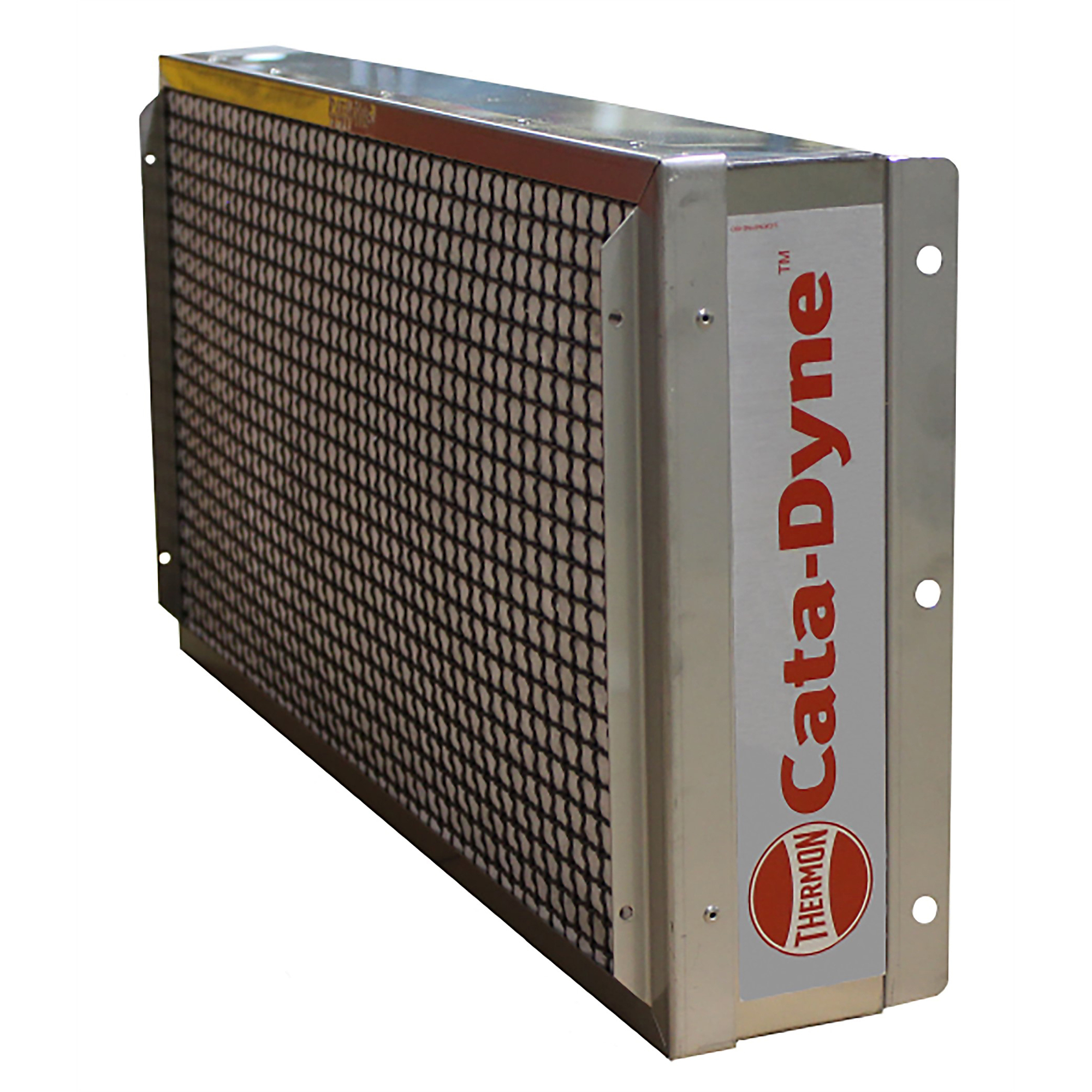

Cata-Dyne, WXS - Infrared Gas Catalytic Heater, 12in.x 24in., Model# WXS1224-111421

Item# 5089366
Cata-Dyne, WXS - Infrared Gas Catalytic Heater, 12in.x 24in., Model# WXS1224-111421

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Cata-Dyne, WXS - Infrared Gas Catalytic Heater, 12in.x 24in., Model# WXS1224-111421

Click or Tap image to Zoom

$829.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Applications: WX Series heaters are used in many different applications that involve spot or space heating where hazardous materials may be present. These include: Comfort heating for industrial buildings and installations, Freeze protection for equipment or components, and Drying or curing processes.
  • Certifications: The WX Series Cata-Dyne™ explosion-proof catalytic heaters are approved for the following: Canadian Standards Association (CSA) for use in Class I, Division 1 & 2, Group D hazardous locations, Factory Mutual (FM) for use in Class I, Division 1, Group D hazardous locations. Temperature code T2C at an ambient temperature of 40°C (104°F)
  • Heater box constructed of 300 series stainless steel for corrosion protection
  • Cata-Dyne™ proprietary explosion-proof catalyst pad.
  • Standard 3/8” NPT gas connections

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Cata-Dyne WX Series infrared gas catalytic explosion-proof heaters are the industry standard for hazardous location heating needs. They are available in over twenty, three-inch depth cabinet sizes, with gas, electrical and accessory connections on the back side of the heater. These are the heaters of choice for many of our customers who have come to trust their reliability. Applications - WX Series heaters are used in many different applications that involve spot or space heating where hazardous materials may be present. These include
  • Comfort heating for industrial buildings and installations
  • Freeze protection for equipment or components
  • Drying or curing processes Features
  • Heater box constructed of 300 series stainless steel for corrosion protection
  • Cata-Dyne proprietary explosion-proof catalyst pad.
  • Standard 3/8” NPT gas connections
  • Explosion-proof electrical junction box with standard 3/4” NPT connections
  • Cata-Dyne heaters are designed to operate on either natural gas or propane
  • Cata-Dyne heaters do not require electrical power to operate once they have been started
  • Our explosion-proof catalytic technology is the most efficient in the industrial heating market
  • Heater contains no moving parts and is designed to operate indefinitely when supplied with air and clean fuel
  • Internal heater components such as our proprietary catalyst pad and preheat Caloritech tubular element are manufactured in-house Certifications - The WX Series Cata-Dyne explosion-proof catalytic heaters are approved for the following:
  • Canadian Standards Association (CSA) for use in Class I, Division 1 2 Group D hazardous locations
  • Factory Mutual (FM) for use in Class I, Division 1 Group D hazardous locations. Temperature code T2C at an ambient temperature of 40°C (104°F)

    • What's Included

      (1) Explosion-Proof Infrared Gas Catalytic Heater - 12"x24" - 14,000 Btu/hr - Temp Code T2C

    Downloads

    Additional Product Info Additional Product Info2
    Play Item Video

    Features + Benefits

    • Applications: WX Series heaters are used in many different applications that involve spot or space heating where hazardous materials may be present. These include: Comfort heating for industrial buildings and installations, Freeze protection for equipment or components, and Drying or curing processes.
    • Certifications: The WX Series Cata-Dyne™ explosion-proof catalytic heaters are approved for the following: Canadian Standards Association (CSA) for use in Class I, Division 1 & 2, Group D hazardous locations, Factory Mutual (FM) for use in Class I, Division 1, Group D hazardous locations. Temperature code T2C at an ambient temperature of 40°C (104°F)
    • Heater box constructed of 300 series stainless steel for corrosion protection
    • Cata-Dyne™ proprietary explosion-proof catalyst pad.
    • Standard 3/8” NPT gas connections
    • Explosion-proof electrical junction box with standard 3/4” NPT connections
    • Cata-Dyne™ heaters are designed to operate on either natural gas or propane
    • Cata-Dyne™ heaters do not require electrical power to operate once they have been started
    • Our explosion-proof catalytic technology is the most efficient in the industrial heating market
    • Heater contains no moving parts and is designed to operate indefinitely when supplied with air and clean fuel
    • Internal heater components such as our proprietary catalyst pad and preheat Caloritech™ tubular element are manufactured in-house

    Key Specs

    AttributeSpecification

    item#

    		5089366

    Brand

    		Cata-Dyne

    Manufacturer's Warranty

    		1 year limited warranty

    Ship Weight

    		23.0 LB

    Heat Type

    		Infrared

    Heat Output

    		14,000 Btu/hour

    Indoor Outdoor Use

    		Indoor
    AttributeSpecification

    Volts

    		12

    Watts

    		360

    Amps

    		30

    Hardwired

    		No

    Product Weight

    		20.0000 lb

    Dimensions L x W x H (in.)

    		8.0 x 25.25 x 12.0 in

    Reviews

    Questions & Answers

    Warranty

    Manufacturer's Warranty

    1 year limited warranty
