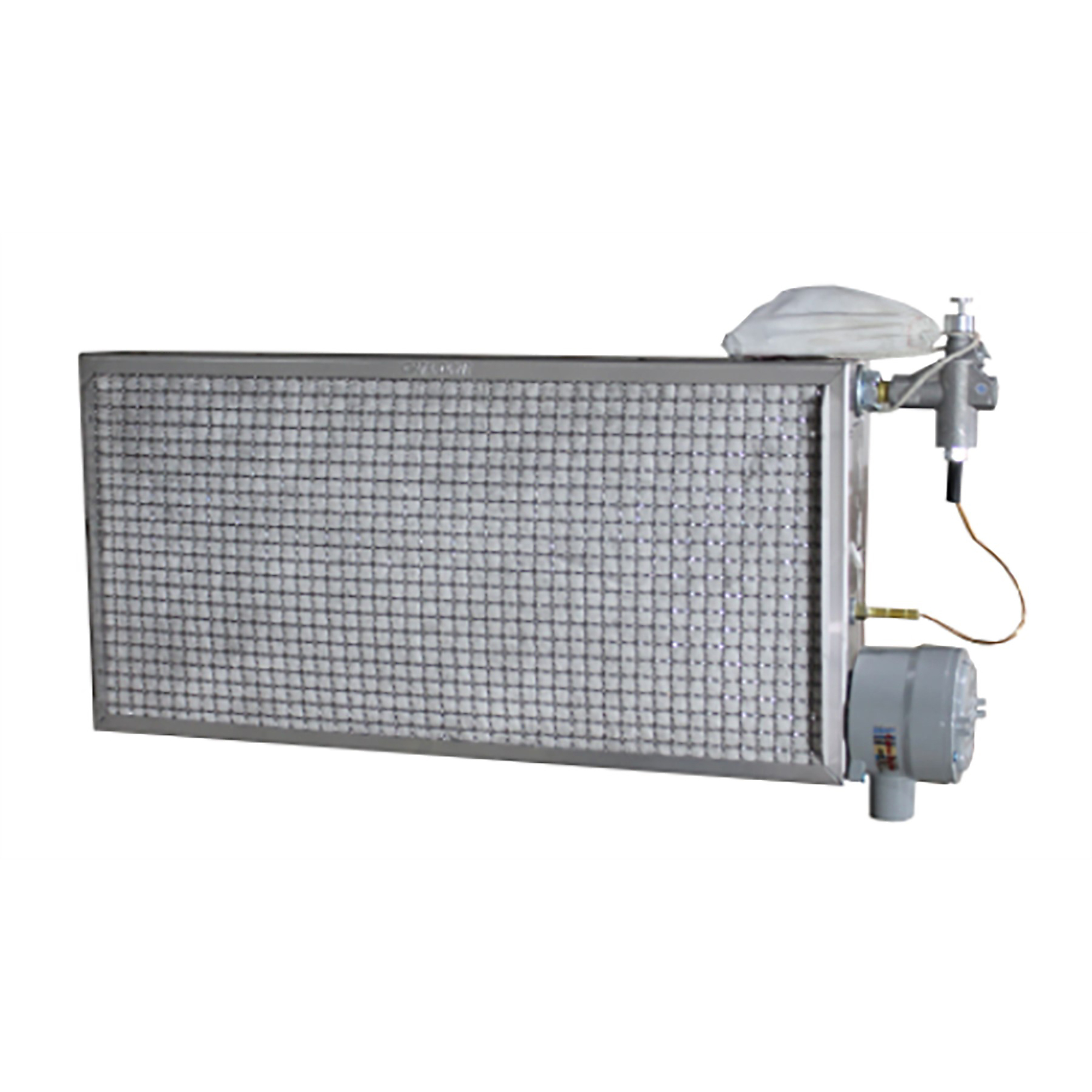

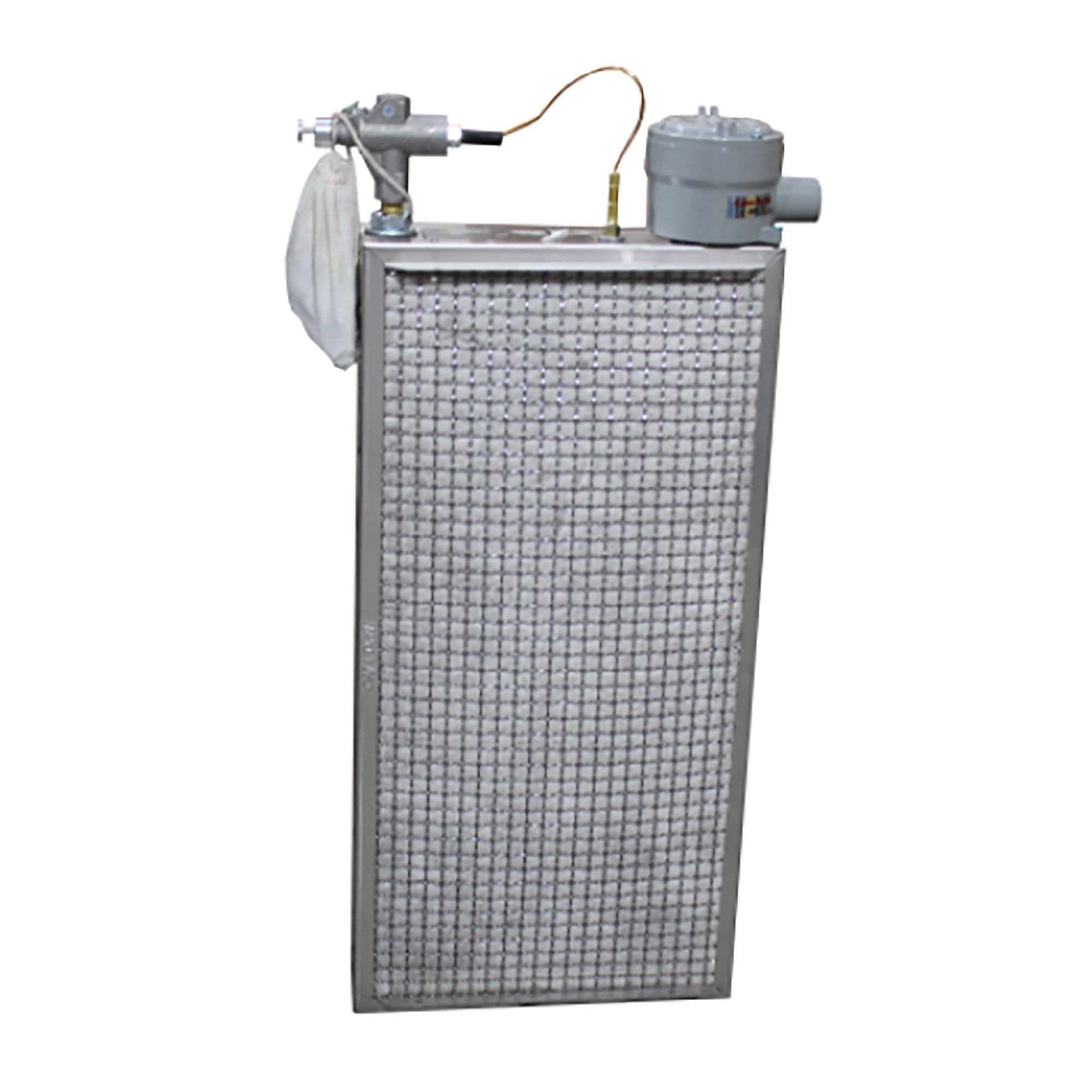

Cata-Dyne, MKII - Infrared Gas Catalytic Heater, 12in.x 24in., Model# MK1224-111111

Item# 5089323
Cata-Dyne, MKII - Infrared Gas Catalytic Heater, 12in.x 24in., Model# MK1224-111111

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Cata-Dyne, MKII - Infrared Gas Catalytic Heater, 12in.x 24in., Model# MK1224-111111

Click or Tap image to Zoom

$919.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Applications: The Cata-Dyne™ MKII Series heaters are used in many different applications that involve spot or space heating where hazardous materials may be present. These include Comfort heating for industrial buildings and installations, Freeze protection for equipment or components, Drying or curing processes
  • Certifications: The Cata-Dyne™ MKII Series explosion-proof catalytic heater is approved for the following: Canadian Standards Association (CSA) for use in Class I, Division 1 & 2, Group D hazardous locations, Factory Mutual (FM) for use in Class I, Division 1, Group D hazardous locations. Temperature code T2C at an ambient temperature of 40°C (104°F) See TABLE 3 on page 14 for fuel & electrical ratings
  • Heater box constructed of 300 series stainless steel for corrosion protection
  • Cata-Dyne™ proprietary explosion-proof catalyst pad.
  • Standard 3/8” NPT gas connections

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Our Cata-Dyne MKII Series explosion-proof catalytic heater has sleek side mount controls ideal for customers seeking to reduce costs with easier and quicker heater installation. Applications - The Cata-Dyne MKII Series heaters are used in many different applications that involve spot or space heating where hazardous materials may be present. These include
  • comfort heating for industrial buildings and installations
  • freeze protection for equipment or components
  • drying or curing processes Features
  • heater box constructed of 300 series stainless steel for corrosion protection
  • Cata-Dyne proprietary explosion-proof catalyst pad.
  • standard 3/8” NPT gas connections
  • Cata-Dyne heaters are designed to operate on either natural gas or propane
  • Cata-Dyne heaters do not require electrical power to operate once they have been started
  • our QuikSTART heater technology reaches the catalytic threshold faster, bringing the heater to full operating temperature in half the time
  • shorter thermocouple is nickel plated with an added polymer sleeve to enhance the corrosion protection for a stronger electromagnetic connection to the safety shut-off valve (SSOV)
  • all gas control components as well as all electrical connections are side mounted for easy installation and access

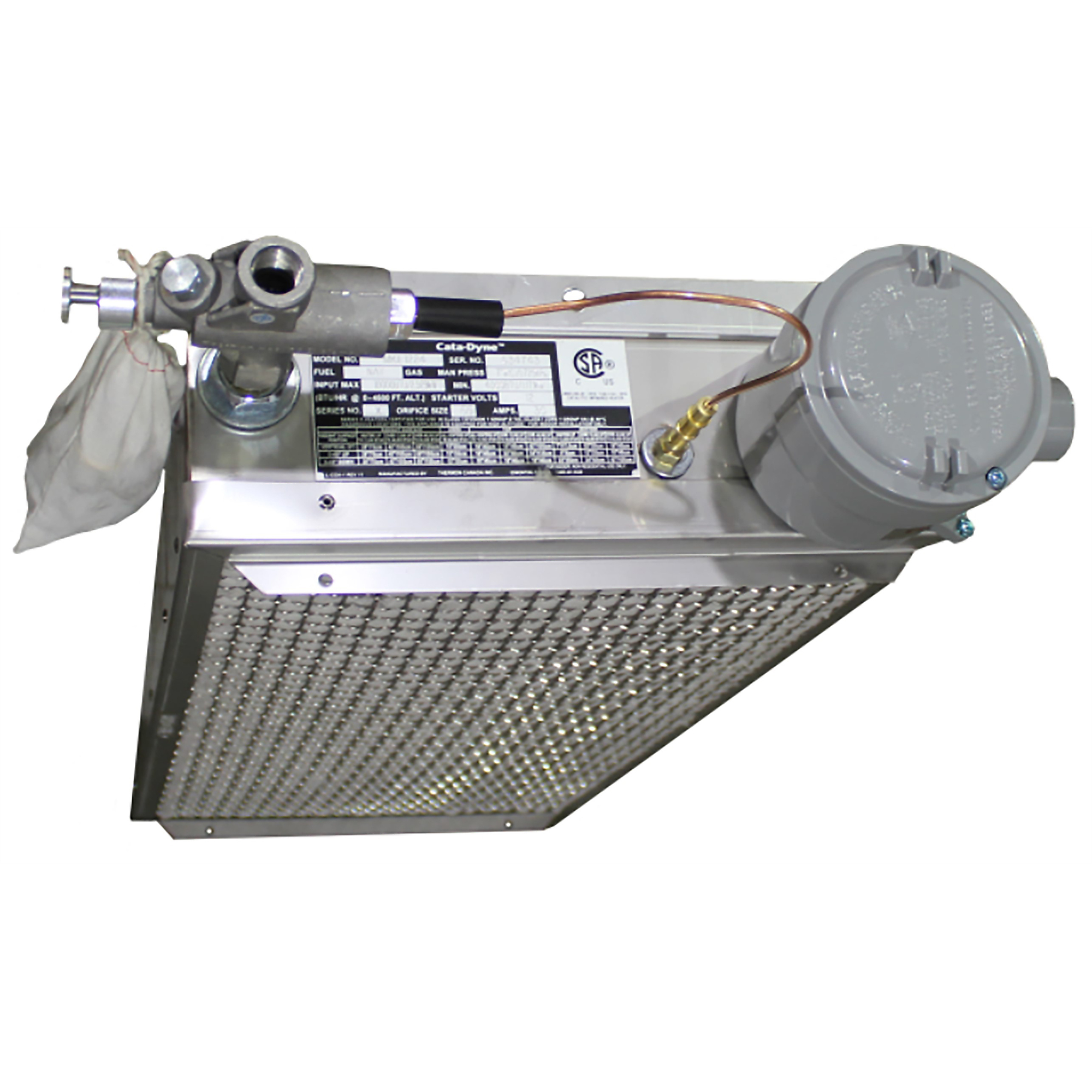

  • side mounted rating plate for easy visibility
  • single start-up element with the same power and wattage rating as used in the standard WX heater's dual elements
  • heater contains no moving parts and is designed to operate indefinitely when supplied with air and clean fuel
  • internal heater components such as our proprietary catalyst pad and preheat Caloritech tubular element are manufactured in-house Certifications The Cata-Dyne MKII Series explosion-proof catalytic heater is approved for the following:
  • Canadian Standards Association (CSA) for use in Class I, Division 1 2 Group D hazardous locations
  • Factory Mutual (FM) for use in Class I, Division 1 Group D hazardous locations. Temperature code T2C at an ambient temperature of 40°C (104°F)

    • What's Included

      (1) Explosion-Proof Infrared Gas Catalytic Heater - 12"x24" - 10,000 Btu/hr - Temp Code T2C

    Downloads

    Additional Product Info Additional Product Info2
    Play Item Video

    Features + Benefits

    • Applications: The Cata-Dyne™ MKII Series heaters are used in many different applications that involve spot or space heating where hazardous materials may be present. These include Comfort heating for industrial buildings and installations, Freeze protection for equipment or components, Drying or curing processes
    • Certifications: The Cata-Dyne™ MKII Series explosion-proof catalytic heater is approved for the following: Canadian Standards Association (CSA) for use in Class I, Division 1 & 2, Group D hazardous locations, Factory Mutual (FM) for use in Class I, Division 1, Group D hazardous locations. Temperature code T2C at an ambient temperature of 40°C (104°F) See TABLE 3 on page 14 for fuel & electrical ratings
    • Heater box constructed of 300 series stainless steel for corrosion protection
    • Cata-Dyne™ proprietary explosion-proof catalyst pad.
    • Standard 3/8” NPT gas connections
    • Cata-Dyne™ heaters are designed to operate on either natural gas or propane
    • Cata-Dyne™ heaters do not require electrical power to operate once they have been started
    • Our QuikSTART heater technology reaches the catalytic threshold faster, bringing the heater to full operating temperature in half the time
    • Shorter thermocouple is nickel plated with an added polymer sleeve to enhance the corrosion protection for a stronger electromagnetic connection to the safety shut-off valve (SSOV)
    • All gas control components as well as all electrical connections are side mounted for easy installation and access
    • Side-mounted rating plate for easy visibility
    • Single start-up element with the same power and wattage rating as used in the standard WX heaters dual elements
    • Heater contains no moving parts and is designed to operate indefinitely when supplied with air and clean fuel
    • Internal heater components such as our proprietary catalyst pad and preheat Caloritech™ tubular element are manufactured in-house

    Key Specs

    AttributeSpecification

    item#

    		5089323

    Brand

    		Cata-Dyne

    Manufacturer's Warranty

    		1 year limited warranty

    Ship Weight

    		24.0 LB

    Heat Type

    		Infrared

    Heat Output

    		10,000 Btu/hour
    AttributeSpecification

    Volts

    		12

    Watts

    		360

    Amps

    		30

    Hardwired

    		No

    Product Weight

    		21.0000 lb

    Dimensions L x W x H (in.)

    		6.25 x 28.25 x 15.5 in

    Reviews

    Questions & Answers

    Questions

    Warranty

    Manufacturer's Warranty

    1 year limited warranty
