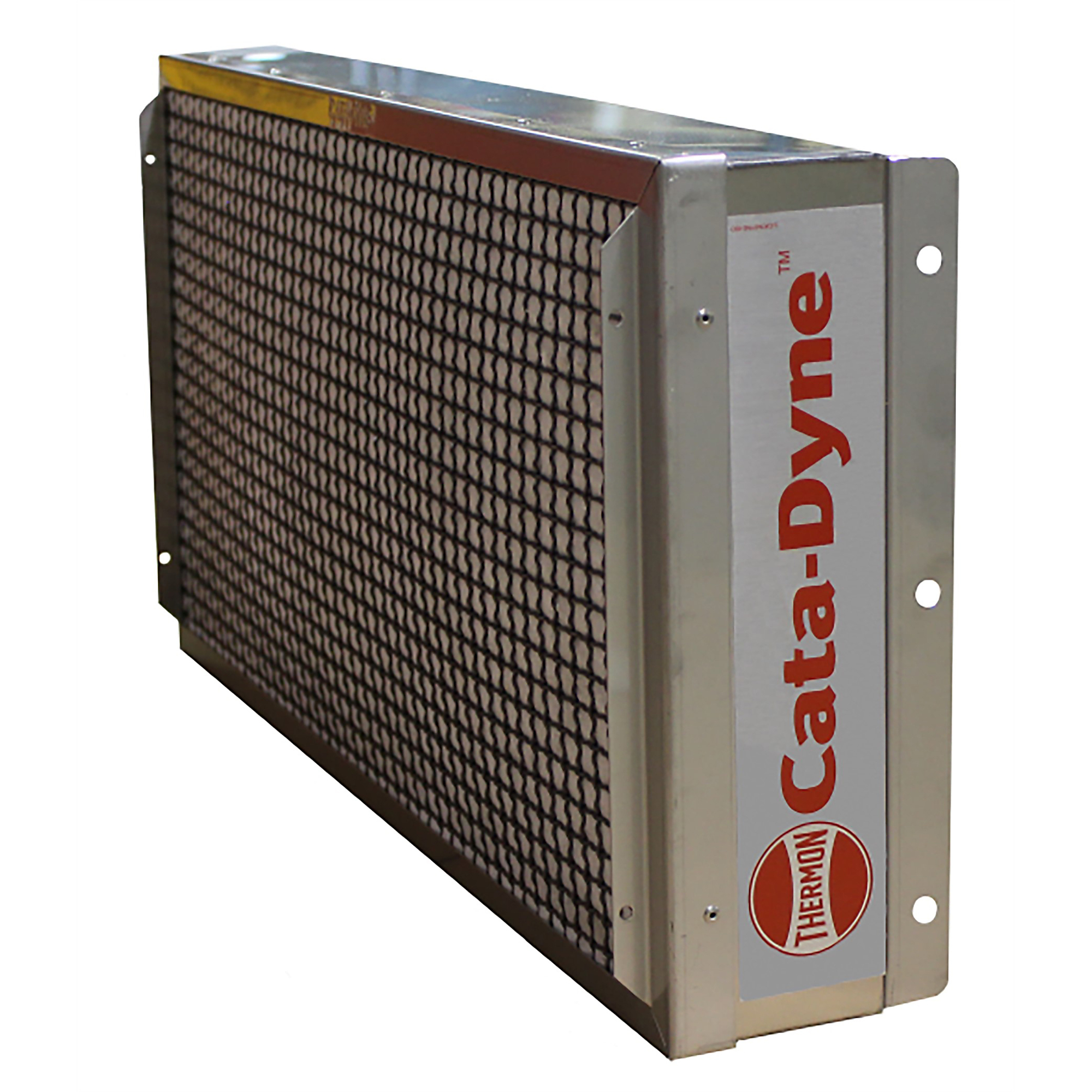

Cata-Dyne, BX - Infrared Gas Catalytic Heater, 24in.x 72in., Heat Type Infrared, Heat Output 72000 Btu/hour, Model# H2472-632113

Item# 5089219
Cata-Dyne, BX - Infrared Gas Catalytic Heater, 24in.x 72in., Heat Type Infrared, Heat Output 72000 Btu/hour, Model# H2472-632113

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Cata-Dyne, BX - Infrared Gas Catalytic Heater, 24in.x 72in., Heat Type Infrared, Heat Output 72000 Btu/hour, Model# H2472-632113

Click or Tap image to Zoom

$5629.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Applications: The large surface area of the Cata-Dyne™ heater allows for efficient transfer of infrared heat that can be used in a variety of applications including: - Facility space heating - Process heating - Freeze protection - Comfort heating for personnel - Ovens
  • Certifications: G Series catalytic pad is certified by the Canadian Standards Association (CSA) and Factory Mutual (FM) and (European standards) for non-hazardous area applications.
  • Internal heater components such as our proprietary catalyst pad and preheat Caloritech™ tubular element are manufactured in-house
  • Multiple Btu input ratings and a variety of standard heater sizes are available
  • Offered in a variety of preheating voltages

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Cata-Dyne BX Series infrared gas catalytic heater with 'G' Series catalytic pad is designed for use in non-hazardous heating applications such as infrared drying and curing ovens. It is fitted with a patented high temperature catalyst pad, operates on either natural or propane fuel and is available in a wide variety of cabinet sizes. Applications - The large surface area of the Cata-Dyne heater allows for efficient transfer of infrared heat that can be used in a variety of applications including: - facility space heating - process heating - freeze protection - comfort heating for personnel - ovens. Features
  • Internal heater components such as our proprietary catalyst pad and preheat Caloritech tubular element are manufactured in-house
  • Multiple Btu input ratings and a variety of standard heater sizes available
  • Offered in a variety of preheat voltages
  • natural gas (NG) or propane (LPG) configurations
  • Choice of manual control or electronic control options
  • Multiple heater mounting bracket configurations available
  • Heater contains no moving parts and is designed to operate indefinitely when supplied with air and clean fuel Certifications
  • G Series catalytic pad is certified by Canadian Standards Association (CSA) and Factory Mutual (FM) and (European standards) for non-hazardous area applications.

    • What's Included

      (1) Infrared Gas Catalytic Heater for Non-hazardous Locations - 24"x72" - 72,000 Btu/hr

    Downloads

    Additional Product Info Additional Product Info2
    Play Item Video

    Features + Benefits

    • Applications: The large surface area of the Cata-Dyne™ heater allows for efficient transfer of infrared heat that can be used in a variety of applications including: - Facility space heating - Process heating - Freeze protection - Comfort heating for personnel - Ovens
    • Certifications: G Series catalytic pad is certified by the Canadian Standards Association (CSA) and Factory Mutual (FM) and (European standards) for non-hazardous area applications.
    • Internal heater components such as our proprietary catalyst pad and preheat Caloritech™ tubular element are manufactured in-house
    • Multiple Btu input ratings and a variety of standard heater sizes are available
    • Offered in a variety of preheating voltages
    • Natural gas (NG) or propane (LPG) configurations
    • Choice of manual control or electronic control options
    • Multiple heater mounting bracket configurations are available
    • The heater contains no moving parts and is designed to operate indefinitely when supplied with air and clean fuel

    Key Specs

    AttributeSpecification

    item#

    		5089219

    Brand

    		Cata-Dyne

    Manufacturer's Warranty

    		1 year limited warranty

    Ship Weight

    		100.0 LB

    Heat Type

    		Infrared

    Heat Output

    		72,000 Btu/hour

    Hardwired

    		Yes

    Indoor-Outdoor Use

    		Indoor

    Volts

    		600

    Watts

    		2,880

    Amps

    		4.8
    AttributeSpecification

    Assembled Width

    		72 in

    Assembled Height

    		26.5 in

    Assembled Depth

    		9.5 in

    Needs Direct Venting

    		No

    Remote Included

    		No

    Tip-Over Safety Switch

    		No

    Blower Included

    		No

    Oscillating

    		No

    Product Weight

    		95.0000 lb

    Dimensions L x W x H (in.)

    		9.5 x 72.0 x 26.5 in

    Reviews

    Questions & Answers

    Questions

    Warranty

    Manufacturer's Warranty

    1 year limited warranty
