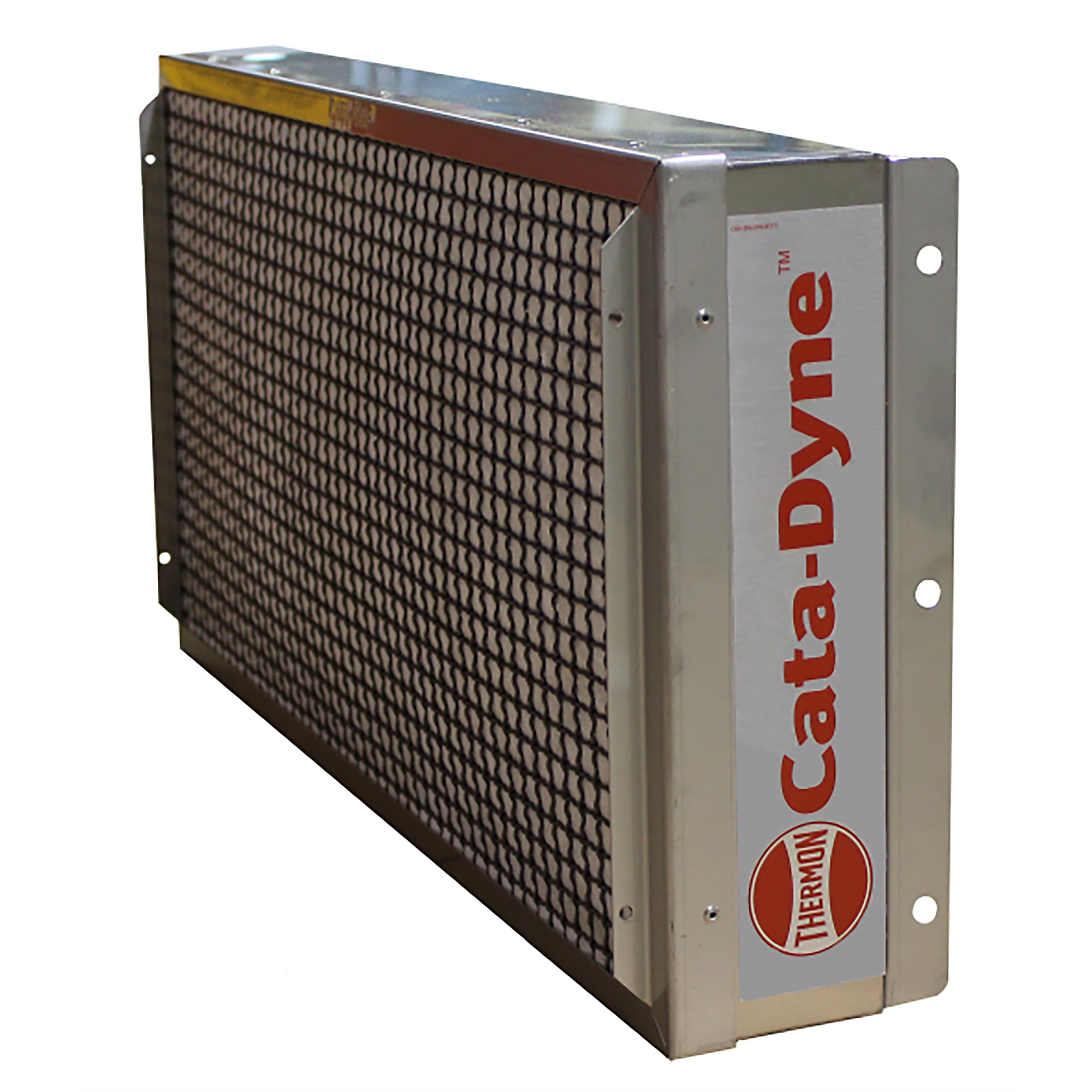

Cata-Dyne, BX - Infrared Gas Catalytic Heater, 12in.x24in., Heat Type Infrared, Heat Output 12000 Btu/hour, Model# H1224-114421

Item# 5089331
Cata-Dyne, BX - Infrared Gas Catalytic Heater, 12in.x24in., Heat Type Infrared, Heat Output 12000 Btu/hour, Model# H1224-114421

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Cata-Dyne, BX - Infrared Gas Catalytic Heater, 12in.x24in., Heat Type Infrared, Heat Output 12000 Btu/hour, Model# H1224-114421

Click or Tap image to Zoom

$849.99

  • Shipping:

    Factory shipped

  • Store Pickup:

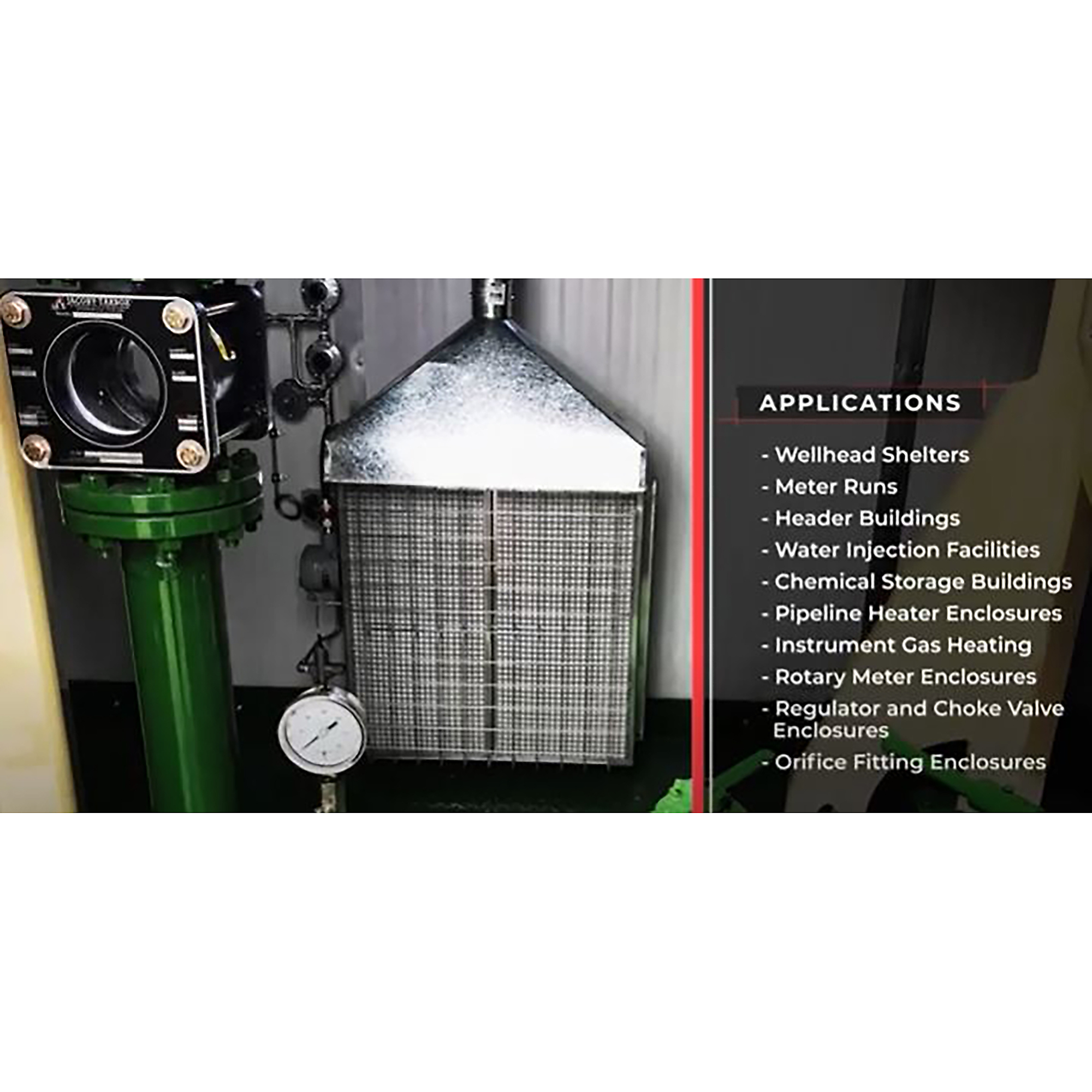

  • Applications: The large surface area of the Cata-Dyne™ heater allows for efficient transfer of infrared heat that can be used in a variety of applications including: - Facility space heating - Process heating - Freeze protection - Comfort heating for personnel - Ovens
  • Certifications: G Series catalytic pad is certified by the Canadian Standards Association (CSA) and Factory Mutual (FM) and (European standards) for non-hazardous area applications.

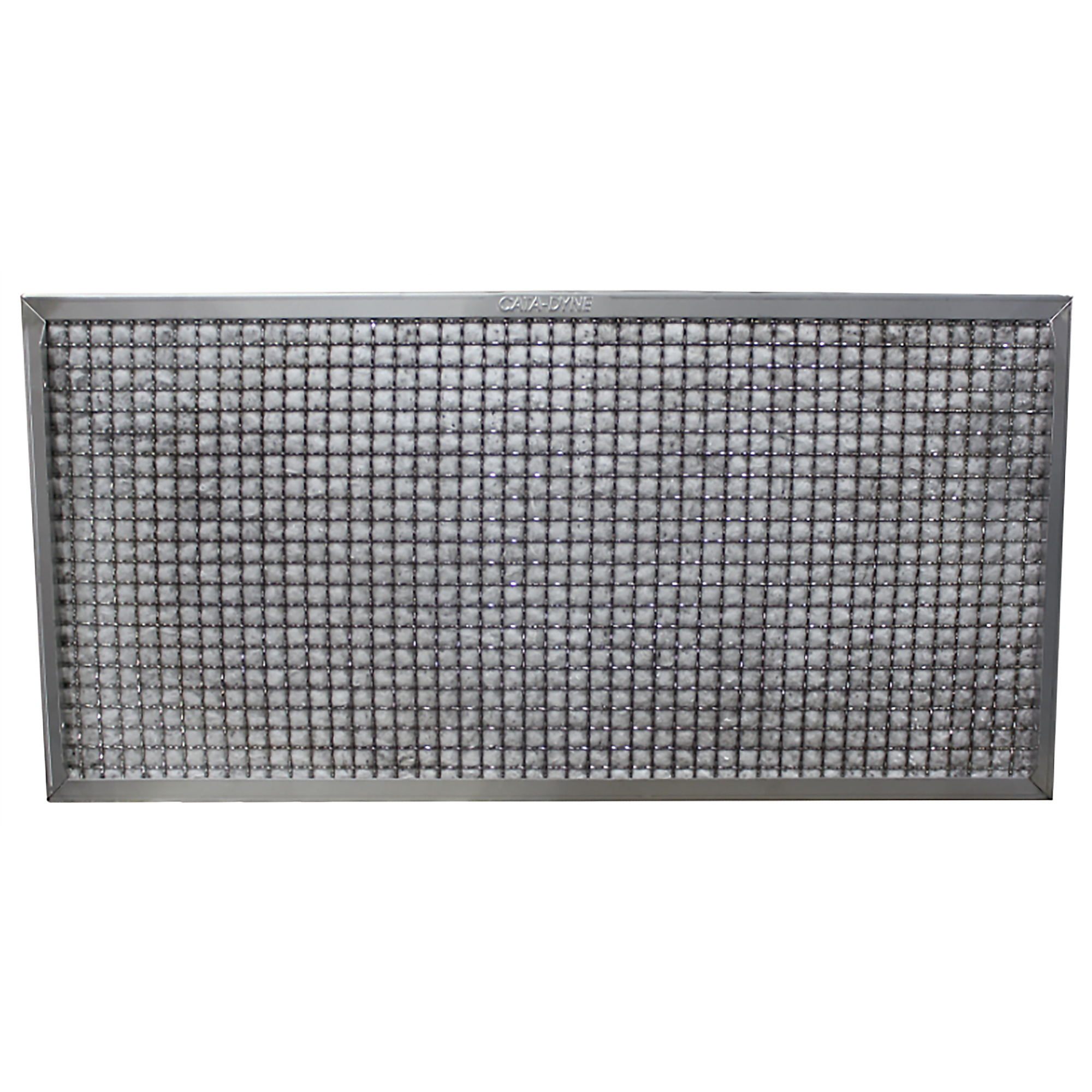

  • Internal heater components such as our proprietary catalyst pad and preheat Caloritech™ tubular element are manufactured in-house
  • Multiple Btu input ratings and a variety of standard heater sizes are available
  • Offered in a variety of preheating voltages

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Cata-Dyne BX Series infrared gas catalytic heater with 'G' Series catalytic pad is designed for use in non-hazardous heating applications such as infrared drying and curing ovens. It is fitted with a patented high temperature catalyst pad, operates on either natural or propane fuel and is available in a wide variety of cabinet sizes. Applications - The large surface area of the Cata-Dyne heater allows for efficient transfer of infrared heat that can be used in a variety of applications including: - facility space heating - process heating - freeze protection - comfort heating for personnel - ovens. Features
  • Internal heater components such as our proprietary catalyst pad and preheat Caloritech tubular element are manufactured in-house
  • Multiple Btu input ratings and a variety of standard heater sizes available
  • Offered in a variety of preheat voltages
  • natural gas (NG) or propane (LPG) configurations
  • Choice of manual control or electronic control options
  • Multiple heater mounting bracket configurations available
  • Heater contains no moving parts and is designed to operate indefinitely when supplied with air and clean fuel Certifications
  • G Series catalytic pad is certified by Canadian Standards Association (CSA) and Factory Mutual (FM) and (European standards) for non-hazardous area applications.

    • What's Included

      (1) Infrared Gas Catalytic Heater for Non-hazardous Locations - 12"x24" - 12,000 Btu/hr

    Downloads

    Additional Product Info Additional Product Info2
    Play Item Video

    Features + Benefits

    • Applications: The large surface area of the Cata-Dyne™ heater allows for efficient transfer of infrared heat that can be used in a variety of applications including: - Facility space heating - Process heating - Freeze protection - Comfort heating for personnel - Ovens
    • Certifications: G Series catalytic pad is certified by the Canadian Standards Association (CSA) and Factory Mutual (FM) and (European standards) for non-hazardous area applications.
    • Internal heater components such as our proprietary catalyst pad and preheat Caloritech™ tubular element are manufactured in-house
    • Multiple Btu input ratings and a variety of standard heater sizes are available
    • Offered in a variety of preheating voltages
    • Natural gas (NG) or propane (LPG) configurations
    • Choice of manual control or electronic control options
    • Multiple heater mounting bracket configurations are available
    • The heater contains no moving parts and is designed to operate indefinitely when supplied with air and clean fuel

    Key Specs

    AttributeSpecification

    item#

    		5089331

    Brand

    		Cata-Dyne

    Manufacturer's Warranty

    		1 year limited warranty

    Ship Weight

    		24.0 LB

    Heat Type

    		Infrared

    Heat Output

    		12,000 Btu/hour

    Hardwired

    		No

    Indoor-Outdoor Use

    		Indoor

    Volts

    		12 DC

    Watts

    		360

    Amps

    		30
    AttributeSpecification

    Assembled Width

    		24 in

    Assembled Height

    		12 in

    Assembled Depth

    		9.5 in

    Needs Direct Venting

    		No

    Remote Included

    		No

    Tip-Over Safety Switch

    		No

    Blower Included

    		No

    Oscillating

    		No

    Product Weight

    		21.0000 lb

    Dimensions L x W x H (in.)

    		9.5 x 24.0 x 12.0 in

    Reviews

    Questions & Answers

    Warranty

    Manufacturer's Warranty

    1 year limited warranty
