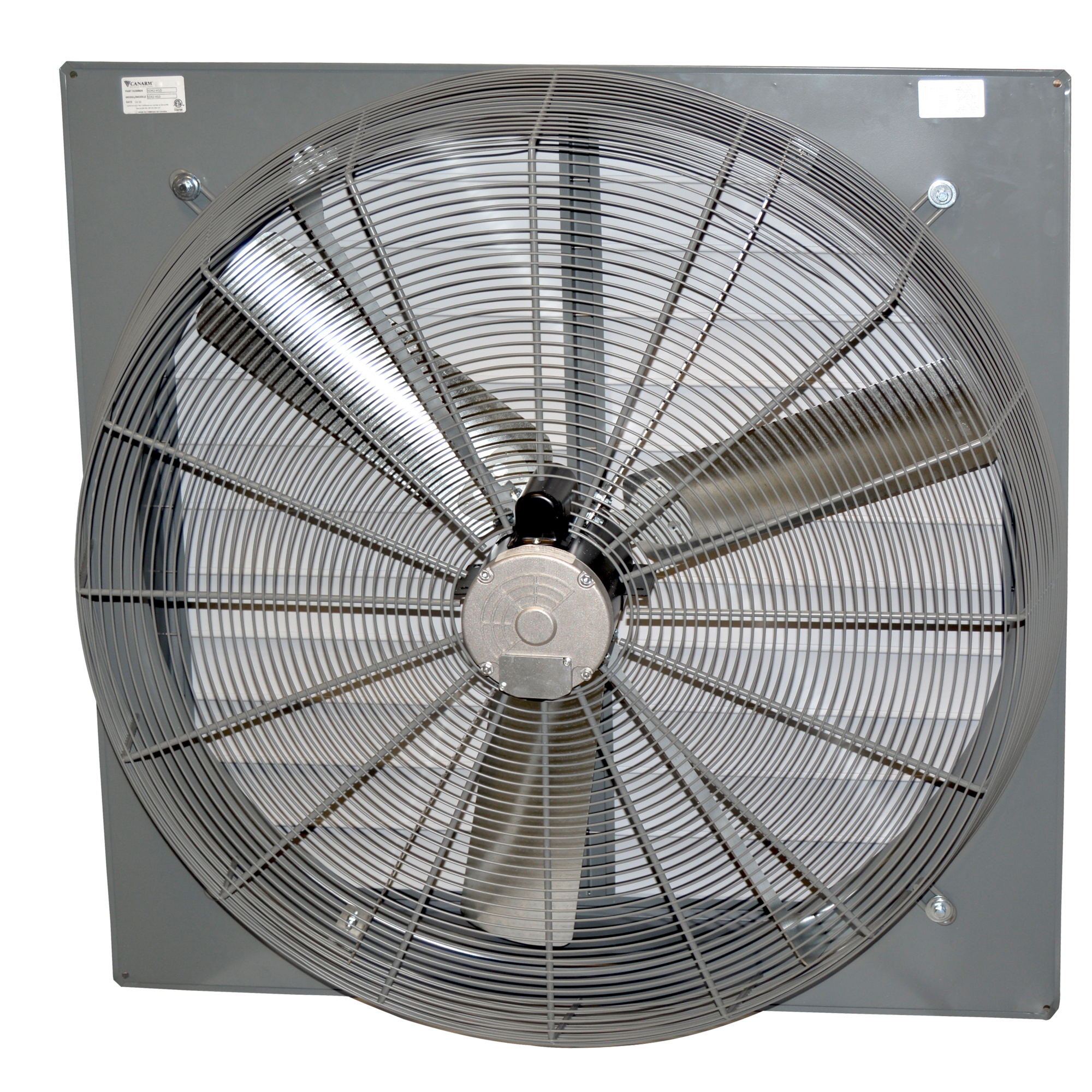

Canarm Wall Exhaust Fan, 48in., 12,860 CFM, 1 HP, Model# SD48-H1d

Item# 84777
Top Seller
Canarm Wall Exhaust Fan, 48in., 12,860 CFM, 1 HP, Model# SD48-H1d

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Canarm Wall Exhaust Fan, 48in., 12,860 CFM, 1 HP, Model# SD48-H1d

Click or Tap image to Zoom

$1249.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Totally enclosed, thermally protected motor
  • Rugged steel welded box housing with durable power coated finish
  • PVC louvers
  • Requires hardwired electrical connection

See full description

Complete Your Solution

  • Canarm Wall Exhaust Fan, 48in., 12,860 CFM, 1 HP, Model# SD48-H1d
  • Strongway Outdoor Extension Cord, 100ft., 12/3 Gauge, 15 Amps, 3-Prong Grounded Plug, Heavy Duty, Green
  • Strongway Outdoor Extension Cord with Triple Tap, 50ft., 14/3 Gauge, 15 Amps, 3-Prong Grounded Plug, Heavy Duty, Blue/Yellow
  • Strongway 8-Outlet Workshop Power Box, 14/3 Ga., 15 Amps
Price for all four:

$1424.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Canarm Wall Exhaust Fan is a robust and efficient ventilation solution designed to keep indoor air fresh and clean. With a large 48in. diameter, this fan delivers an impressive airflow of 12,860 cubic feet per minute (CFM), ensuring effective air circulation in large spaces. Powered by a 1 horsepower motor, the fan operates with high efficiency and reliability, making it suitable for a variety of commercial and industrial applications. Its easy-to-install design simplifies the setup process, while the low-maintenance construction ensures long-lasting performance with minimal upkeep. The Canarm Wall Exhaust Fan is built to provide consistent and powerful ventilation, making it an essential addition to any environment requiring optimal air quality and temperature control.

What's Included

    (1) Wall exhaust fan

Downloads

Product Manual Product Manual2

Features + Benefits

  • Totally enclosed, thermally protected motor
  • Rugged steel welded box housing with durable power coated finish
  • PVC louvers
  • Requires hardwired electrical connection

Key Specs

AttributeSpecification

item#

84777

Brand

Canarm

Manufacturer's Warranty

1 year limited warranty

Ship Weight

180.0 LB

Drive Type

Direct

Fan Diameter

48 in
AttributeSpecification

Air Delivery

12,860 cfm

Volts

230

Speeds (qty.)

1

Horsepower

1 HP

Product Weight

140.0000 lb

Dimensions L x W x H (in.)

53.25 x 19.0 x 52.0 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–10 of 12 Questions
Sort by:

  1. What is the amperage of this exhaust fan? What square footage area does this fan support?

    1 answer

    1. The power requirement of the fan is 5 amps at 230 volt. There is not an estimated coverage area that the fan will support. Exhaust fans are rated by CFM (cubic feet per minute) not by square footage. You will need to calculate the volume of air in the space and how many minutes per air change you need.

      Helpful?

  2. How loud is this fan?

    1 answer

    1. The fan is rated at 84 decibels (DBA).

      Helpful?

  3. Is it explosion proof or standard?

    1 answer

    1. The Canarm model SD48 is not explosion proof.

      Helpful?

  4. Is this module 110V or 220?

    1 answer

    1. The Canarm Wall Exhaust Fan, Model# SD48-H1D, operates on 230 volts, single-phase power.

      Helpful?

  5. Can it be installed in a roof. I have a sky light and would like to install in the skylight roof curb.

    1 answer

    1. The fan is for wall mounting only. The louvers open and shut with gravity and may or may not operate correctly if ceiling mounted. The motor has also not been tested in a horizontally mounted application.

      Helpful?

  6. WHAT ARE THE AMPS

    1 answer

    1. The fan is rated at 5 amps.

      Helpful?

  7. Is this wet area rated?

    1 answer

    1. The fan is not water proof. It is no recommended to be used in an area that it would be exposed to wet conditions.

      Helpful?

  8. Is this single phase or 3 phase

    1 answer

    1. The fan would be single phase.

      Helpful?

  9. Can I get aluminum louvers for this fan?

    1 answer

    1. The fan will include aluminum louvers.

      Helpful?

  10. How big of an opening is required to install this unit?

    1 answer

    1. This fits a 51" L x 51" W opening.

      Helpful?
