Canarm Speed Control for 4 Ceiling Fans, Model# CNFRMC5

Item# 517125
"Canarm Speed Control for 4 Ceiling Fans, Model# CNFRMC5"
Top Seller
Canarm Speed Control for 4 Ceiling Fans, Model# CNFRMC5

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Canarm Speed Control for 4 Ceiling Fans, Model# CNFRMC5

Click or Tap image to Zoom

$32.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Controls speed and direction of up to four industrial reversible ceiling fans
  • Switch from updraft to downdraft in an instant

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

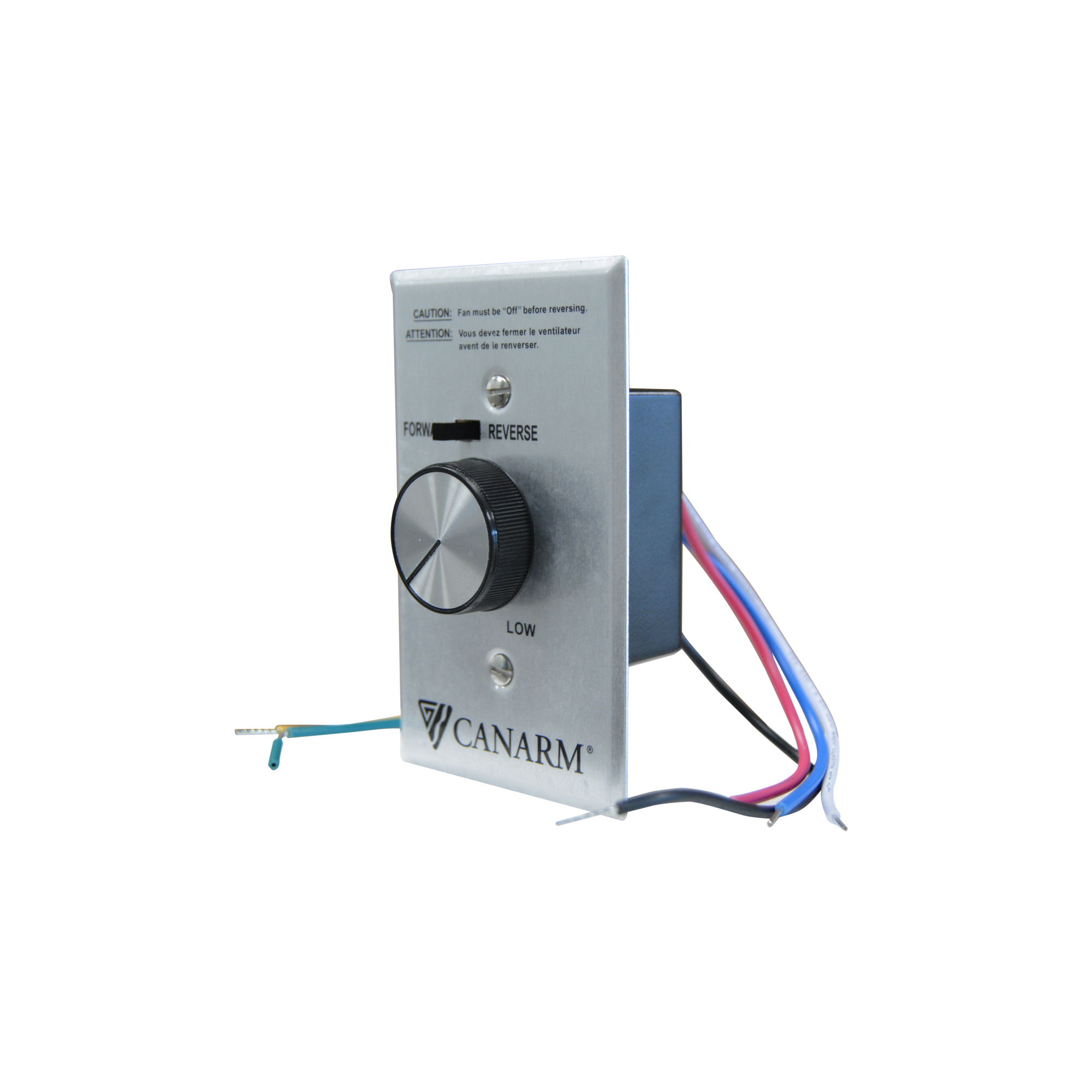

This Canarm Speed Control provides complete control of the speed and direction of up to four industrial reversible ceiling fans. This high-quality, 5 Amp unit allows you to switch from updraft to downdraft in an instant. Select any speed from high to low. Fits standard electrical box.

What's Included

    (1) Speed control

Downloads

Product Manual
Additional Product Info
Play Item Video

Features + Benefits

  • Controls speed and direction of up to four industrial reversible ceiling fans
  • Switch from updraft to downdraft in an instant

Key Specs

AttributeSpecification

item#

517125

Brand

Canarm

Manufacturer's Warranty

1 year limited warranty

Ship Weight

0.35 LB

Product Type

Speed Control
AttributeSpecification

Material

Aluminum

Volts

120

Product Weight

lb

Dimensions L x W x H (in.)

4.5 x 2.75 x 2.5 in

Reviews

Questions & Answers

25 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Multiple Fan Control

    I'm looking to install four fans in my barn ceiling and want to use one variable speed control for all fans wired in a row...is this possible?

    1. The Switch manual says works up to 4 fans.

      Helpful?

    2. According to the directions, Yes it will.

      Helpful?

    3. yes. and you can reverse them with switch

      Helpful?

    4. Yes. I installed it with four Canarm Industrial 56 in. Loose Wire Black Ceiling Fans and it works fine.

      Helpful?

    5. It is possible for the Canarm Speed Control for 4 Ceiling Fans, to control the speed and direction of up to four fans at one time.

      Helpful?

  2. are all wires of this switch used to connect to fan

    Do I need 4 wires plus ground to the fan to operate the forward /reverse feature?
    Thank's, Dave

    1. Yes, I ran a 4 wire with ground to control the forward and reverse operations.

      Helpful?

    2. Four wires go to the fan(s)

      Helpful?

    3. This speed control has to be used on a fan that has forward and reverse. You would need 4 wires plus ground to hook up to the fan.

      Helpful?

  3. Can this control more than 4 fans if it's under 5 AMPS? Outdoor placement ok?

    If I have 5 of the Canarm Model# CP60HPWP which use .83 amps, can this control 5 fans since the total would only be 4.15 amps? The description says it has a 5 amp limit.

    Also, can this be used outside under a cover so it is only exposed to warm temperatures and humidity?

    1 answer

    1. This speed control is designed to work with a maximum of 4 fans and should be mounted in a dry location. We do offer a similar speed control that can work with up to 8 fans; however, it does not have a reverse option. The part number is MSMC-10 and it can be purchased by calling our parts department at 1.800.657.0516.

      Helpful?

  4. What are the required wire sizes?

    The speed control manual shows four wires going from the controller to the fan(s). Do all the wired need to be 12 gauge (for a 20 amp circuit) or are any of them just signal wires that can be smaller?

    1 answer

    1. The gauge of wire will depend on your local codes.

      Helpful?

  5. what wires are on the back of the switch

    what color are the wires on the back of the switch

    1 answer

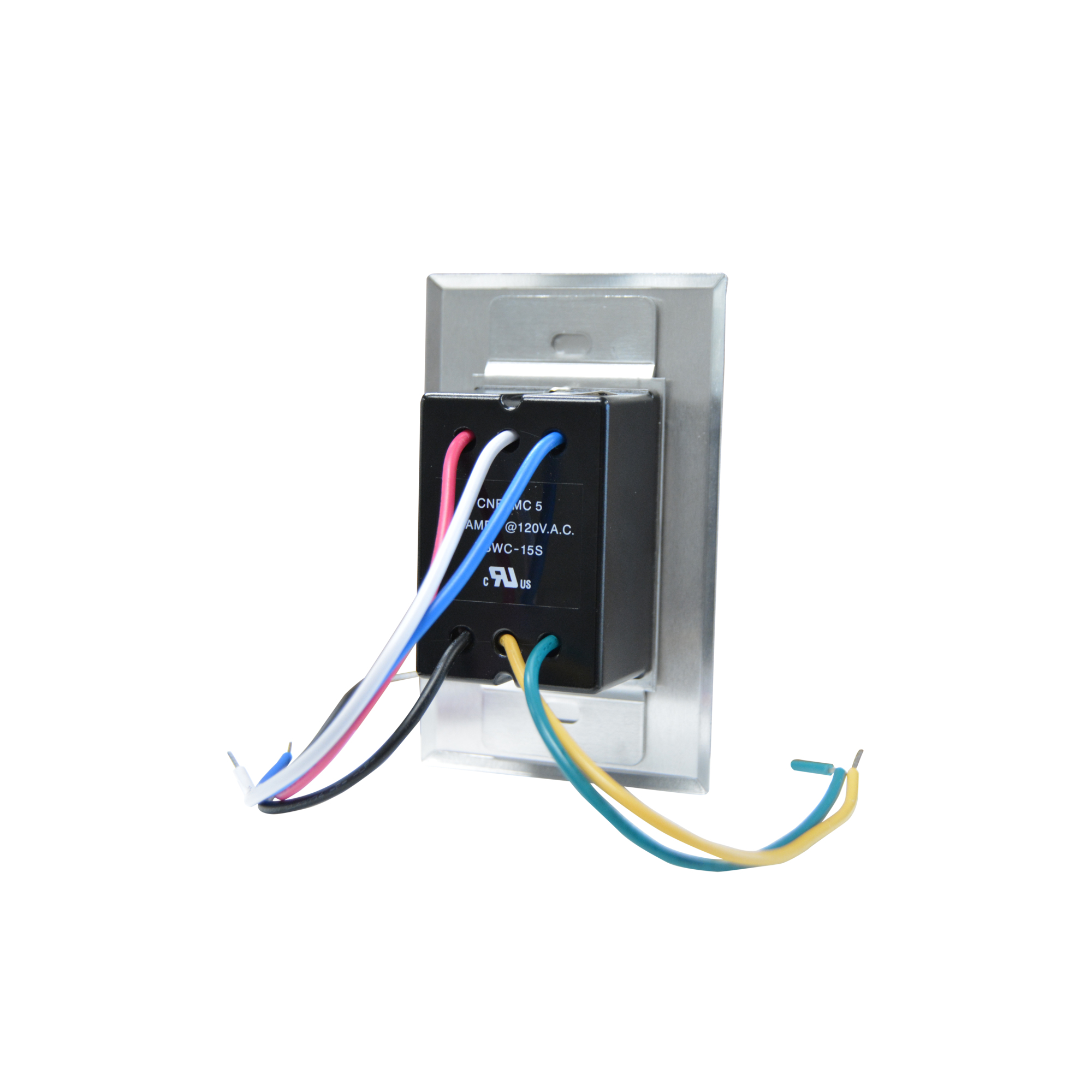

    1. The colors of the wires on the back of this control are black, white, yellow, blue, and red. These only match up to the Canarm fans. It has one wire for power in and the other 4 are for power out that match up to the Canarm fan.

      Helpful?

  6. Will this speed control work with other fan brands?

    Will the reverse function on this speed control work with the JDI CF60 reversible fan? The CF60 has a manual reverse switch on the fan unit. I want to control the blade direction at the speed control unit, rather than the manual switch on the fan.
    Thanks.

    1 answer

    1. This speed control will work with other brands of reversible ceiling fans.

      Helpful?
