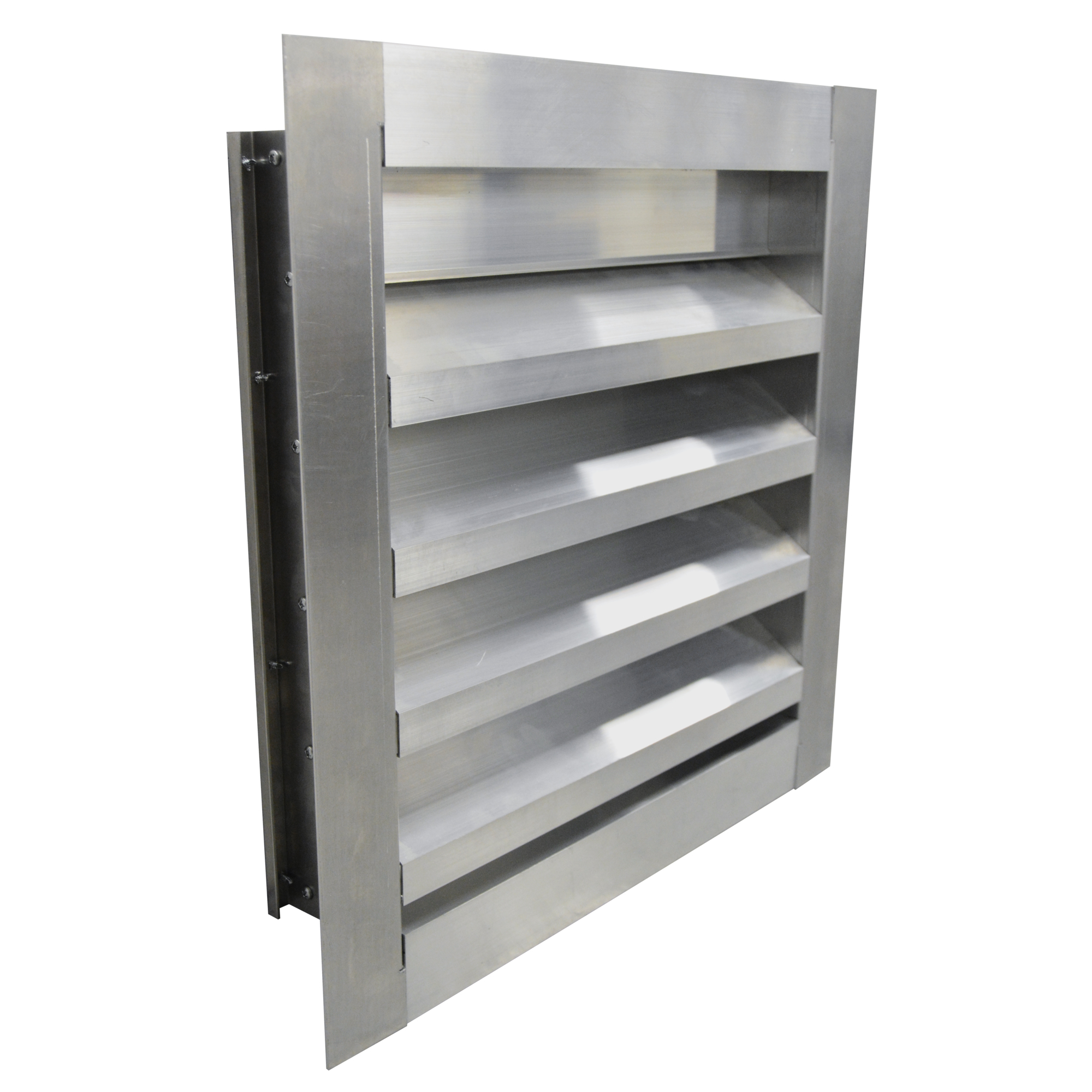

Canarm, Canarm Fixed Louver, Material Aluminum, Height 5 in, Width 24 in, Model# EL4F20X20-MIH

Item# 6295891
Canarm, Canarm Fixed Louver, Material Aluminum, Height 5 in, Width 24 in, Model# EL4F20X20-MIH

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Canarm, Canarm Fixed Louver, Material Aluminum, Height 5 in, Width 24 in, Model# EL4F20X20-MIH

Click or Tap image to Zoom

$255.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • MATERIAL: .081” (2.06 mm) thick, 6063-T5 alloy, extruded aluminum
  • BLADE DESIGN: set at 45º spaced 4” (100 mm) on centres with storm proof performance
  • CONSTRUCTION: blade assembly is designed to prevent bowing and distortions. All corners are mitered to provide a neat, uniform extrusion profile at the perimeter.
  • SCREENS: 1/2” x 1/2” regalvanized, 19 gauge wire
  • FINISHES: mill is standard finish, anodized or baked enamel available at additional cost

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Models EL-4 are 4” deep louvres with blades set at a 30º angle, ensuring positive drainage which prevents discoloration of building walls. All louvres are furnished with 1/2” x 1/2” regalvanized wire birdscreen.

What's Included

    (1) Fixed Louver

Downloads

Product Manual

Features + Benefits

  • MATERIAL: .081” (2.06 mm) thick, 6063-T5 alloy, extruded aluminum
  • BLADE DESIGN: set at 45º spaced 4” (100 mm) on centres with storm proof performance
  • CONSTRUCTION: blade assembly is designed to prevent bowing and distortions. All corners are mitered to provide a neat, uniform extrusion profile at the perimeter.
  • SCREENS: 1/2” x 1/2” regalvanized, 19 gauge wire
  • FINISHES: mill is standard finish, anodized or baked enamel available at additional cost
  • SIZES: per customer specification multiple sections may be required. Consult factory. Minimum size available: 12” x 12”.

Key Specs

AttributeSpecification

item#

6295891

Brand

Canarm

Manufacturer's Warranty

1 year limited warranty

Ship Weight

12.0 LB

Product Type

Fixed Louver

Material

Aluminum
AttributeSpecification

Height

5 in

Width

24 in

Length

24 in

Product Weight

12.0000 lb

Dimensions L x W x H (in.)

24.0 x 24.0 x 5.0 in
