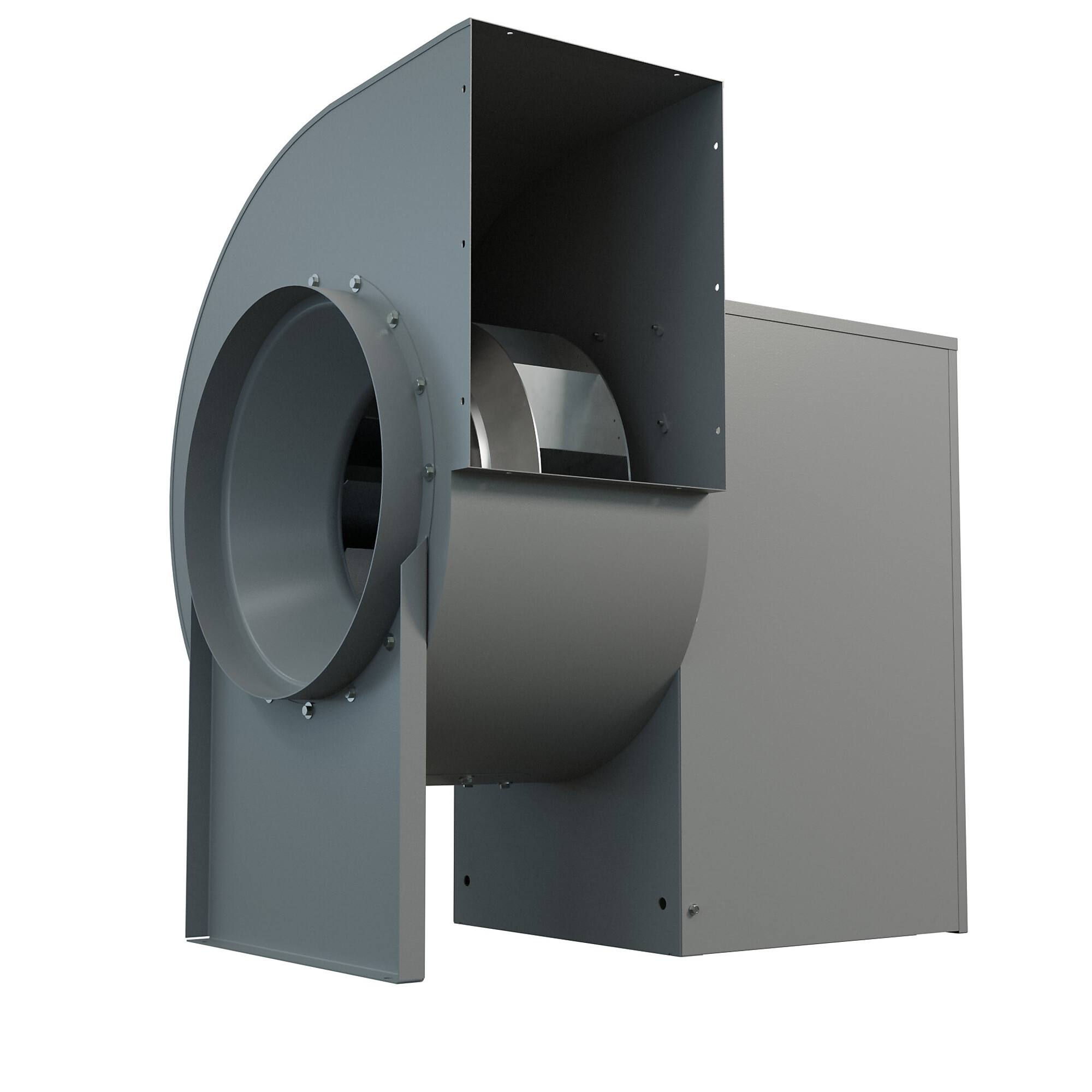

Canarm Belt Driven Utility Blower — 5HP, 230/460V, Counterclockwise Rotation, Model# BI1330500M

Item# 7116209
On Sale
Canarm Belt Driven Utility Blower — 5HP, 230/460V, Counterclockwise Rotation, Model# BI1330500M

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Canarm Belt Driven Utility Blower — 5HP, 230/460V, Counterclockwise Rotation, Model# BI1330500M

Click or Tap image to Zoom

$2889.99
Reg $3499.99Save $610.00

Order today to get this price.

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Full AMCA Class 1 Operation.

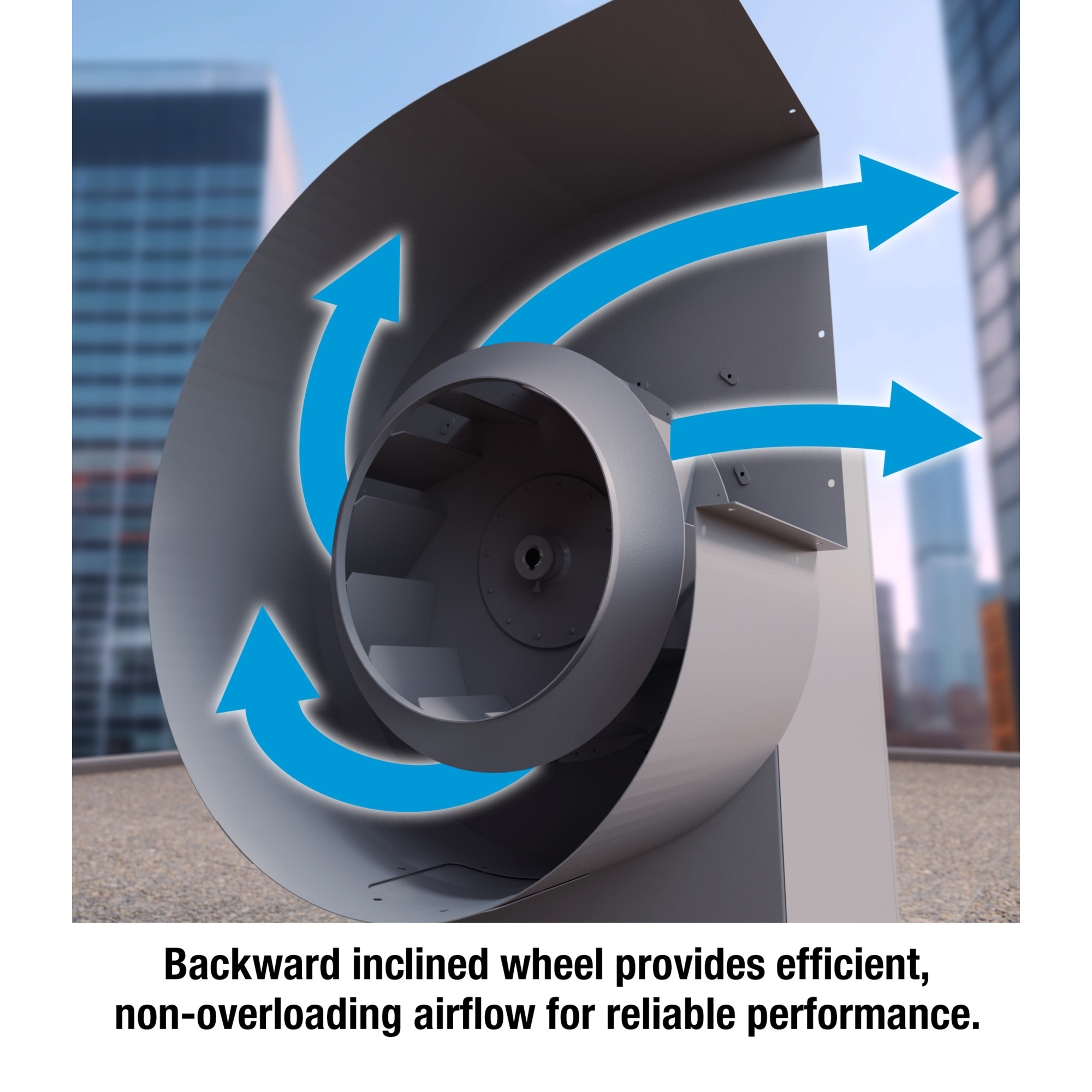

  • Non-overloading backward inclined (BI) welded wheels.
  • Discharge position can be field rotated to any of 8 discharge positions.
  • Counter clock wise rotation is standard
  • Temperature Ratings - without a heat slinger 250º F with a heat slinger, steel wheel 400º F,

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Canarm BI series, belt drive utility blowers are perfect for commercial and industrial applications. Come in standard Counter clock wise rotation. They are used in restaurants, warehouses, and retail buildings to move large volumes of air.

What's Included

    (1) Belt Driven Utility Blower

Features + Benefits

  • Full AMCA Class 1 Operation.
  • Non-overloading backward inclined (BI) welded wheels.
  • Discharge position can be field rotated to any of 8 discharge positions.
  • Counter clock wise rotation is standard
  • Temperature Ratings - without a heat slinger 250º F with a heat slinger, steel wheel 400º F,
  • aluminum wheel 300º F.

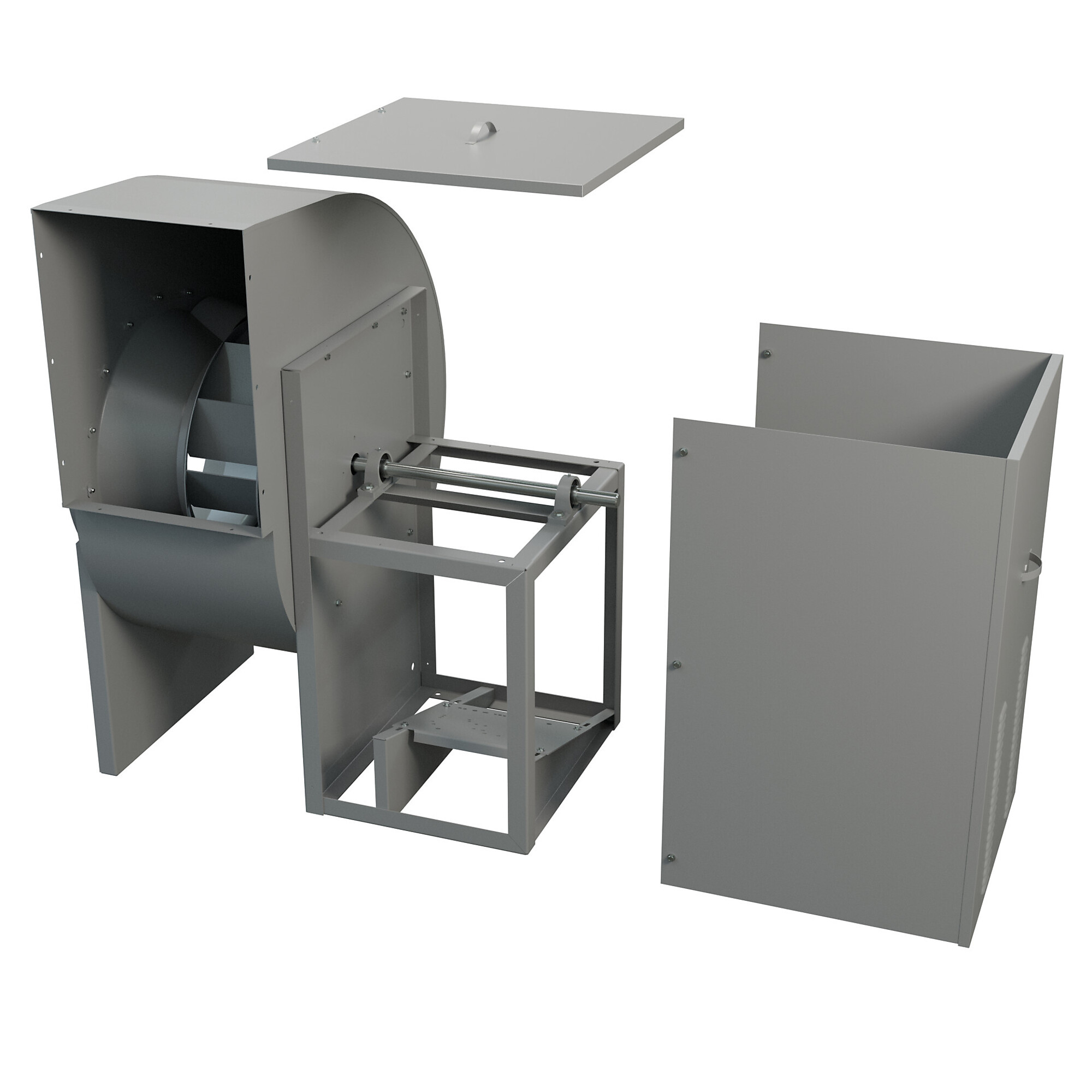

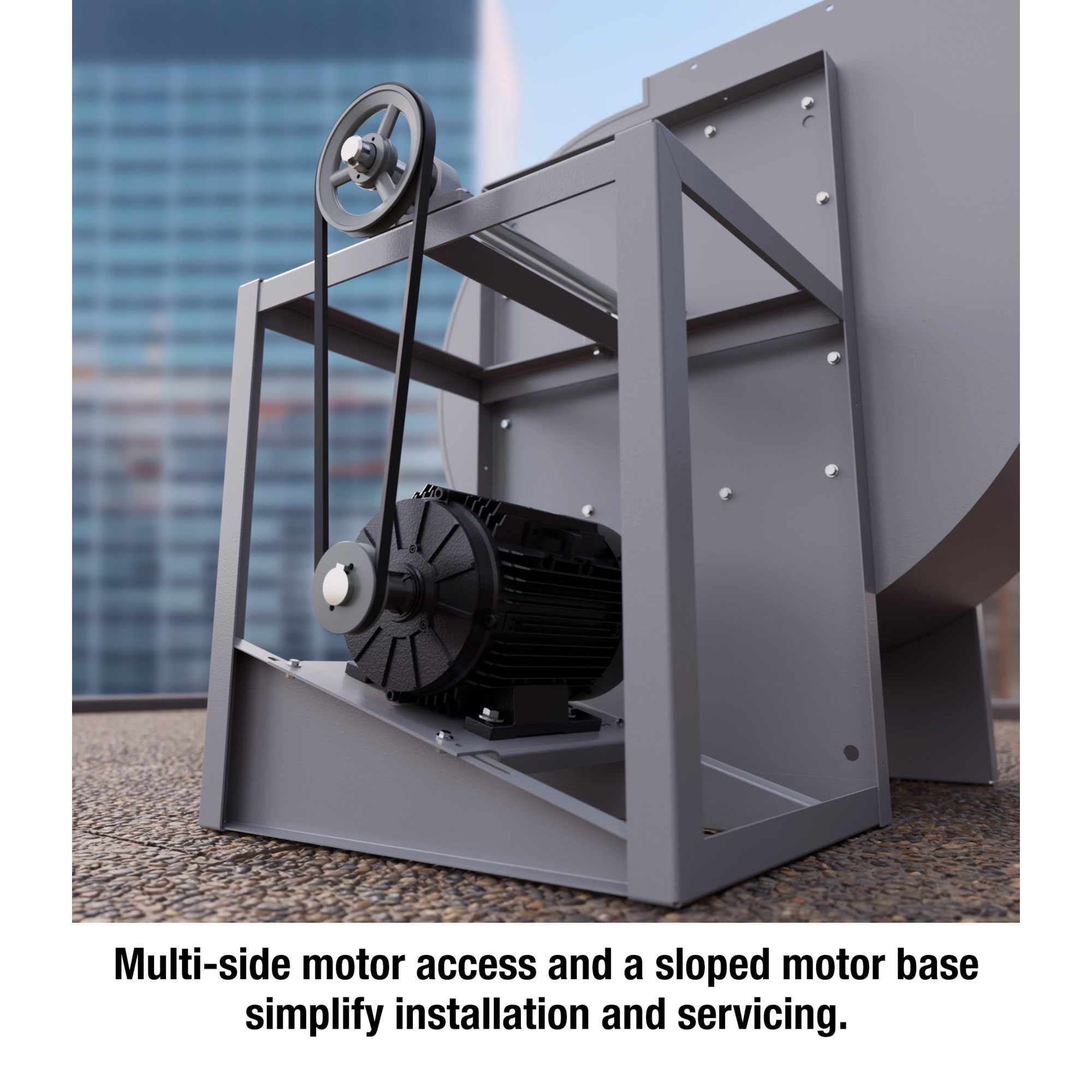

  • Motor access from 3 sides.
  • Sloped motor base for ease of motor installation.
  • Vented motor and drive compartment cover, with handles, for safety & weather protection.
  • 16 gauge or heavier blower housing.
  • Heavy duty pillow block ball bearings.

Key Specs

AttributeSpecification

item#

7116209

Brand

Canarm

Manufacturer's Warranty

1 year limited warranty

Ship Weight

292.0 LB

Drive Type

Belt
AttributeSpecification

Fan Diameter

13 in

Air Delivery

4,013 cfm

Volts

230/460

Product Weight

292.0000 lb

Dimensions L x W x H (in.)

48.0 x 40.0 x 48.0 in
