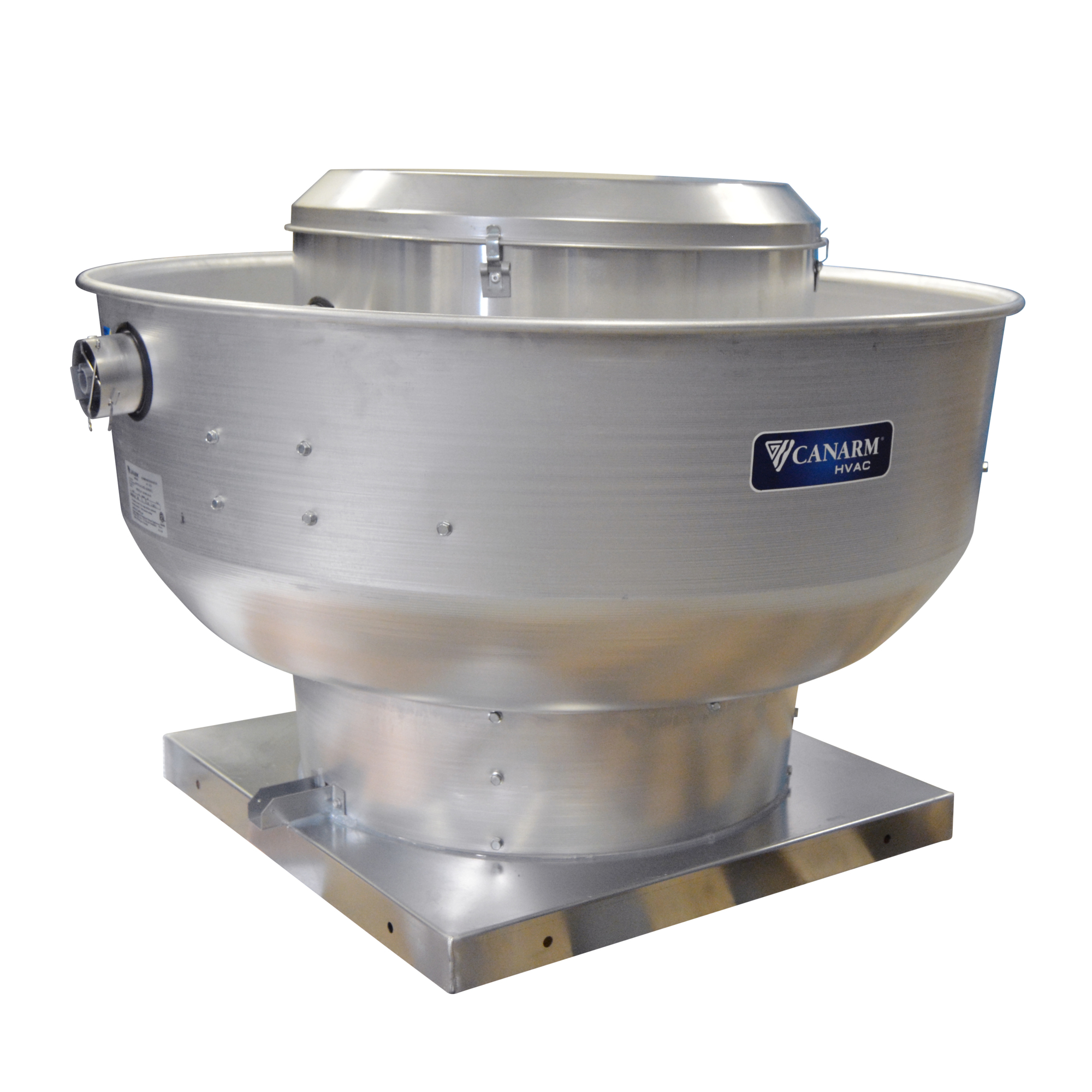

Canarm ALX Series Upblast Spun Aluminum Exhauster — 15in. dia., Direct Drive, 3/4 HP EC Motor, Model# ALX150-UD075EC

Item# 6687886
Canarm ALX Series Upblast Spun Aluminum Exhauster — 15in. dia., Direct Drive, 3/4 HP EC Motor, Model# ALX150-UD075EC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Canarm ALX Series Upblast Spun Aluminum Exhauster — 15in. dia., Direct Drive, 3/4 HP EC Motor, Model# ALX150-UD075EC

Click or Tap image to Zoom

$1599.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Spun aluminum housing will not rust, chip or peel.
  • Aluminum backward inclined wheel is non-overloading.
  • 1 Phase 120/240V operation and can be operated at 50 or 60 Hz.
  • Can be wall mounted.
  • Comes with bird screen.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Ideal for exhausting air from factories, offices, warehouses or commercial buildings. The ALX series spun aluminum exhaust fan can be used as either a roof top or wall mount exhaust fan.

What's Included

    (1) Spun aluminum exhauster

Downloads

Product Manual Product Manual2

Features + Benefits

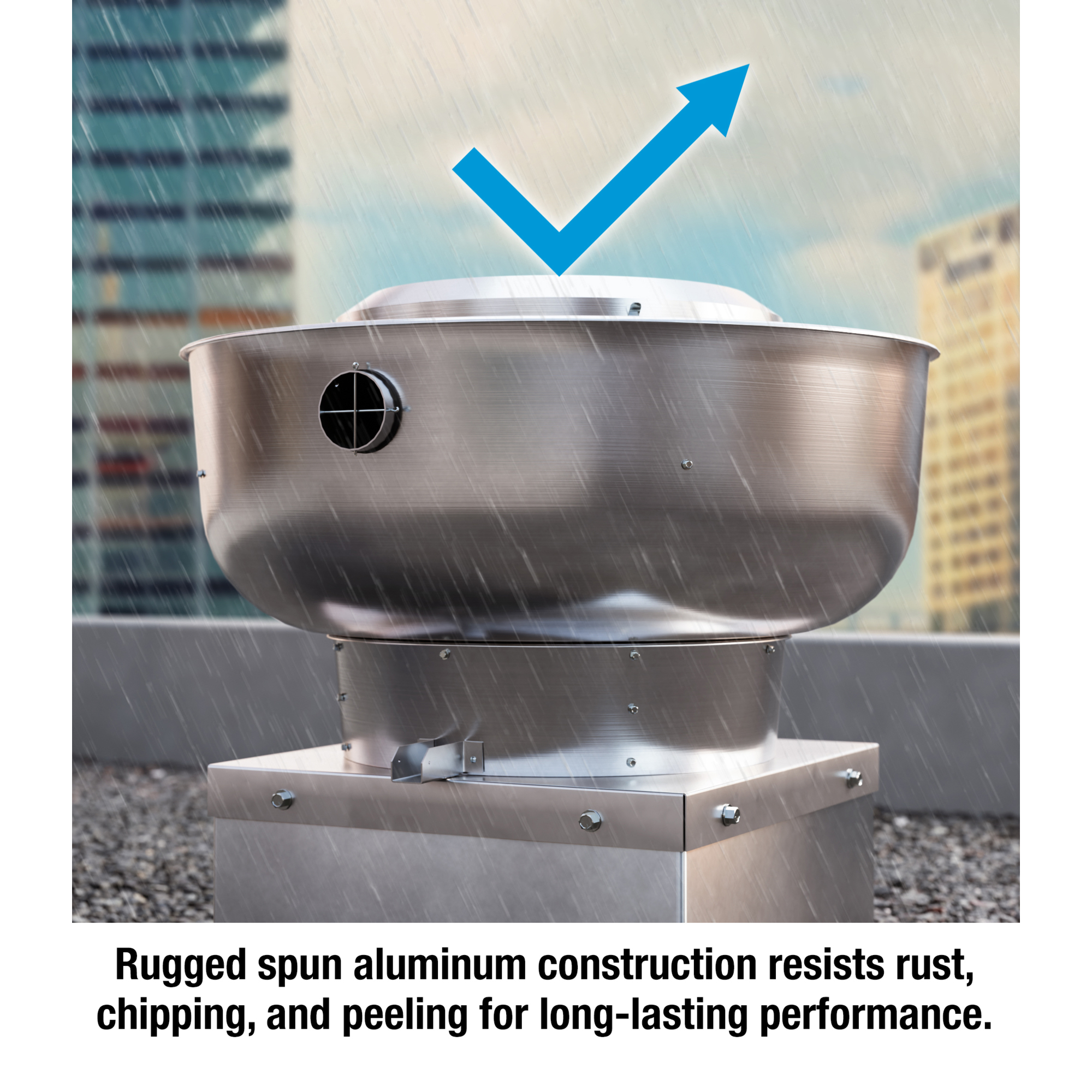

  • Spun aluminum housing will not rust, chip or peel.

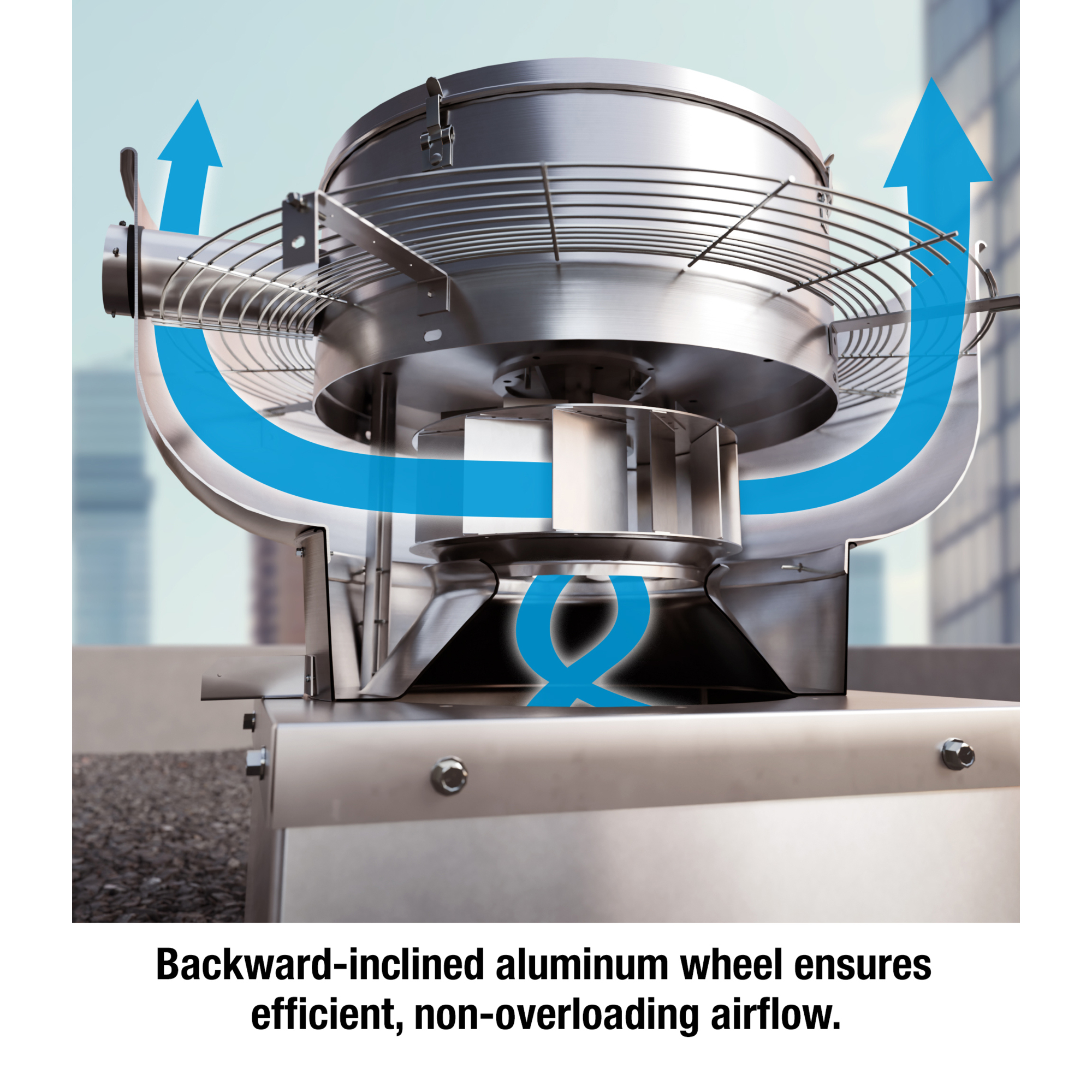

  • Aluminum backward inclined wheel is non-overloading.
  • 1 Phase 120/240V operation and can be operated at 50 or 60 Hz.
  • Can be wall mounted.
  • Comes with bird screen.
  • EC motors offer true variable speed operation and up to 70% energy savings over PSC motors.
  • Can be controlled remotely up to 50’ using a remote mount potentiometer or 0-10V.

Key Specs

AttributeSpecification

item#

6687886

Brand

Canarm

Manufacturer's Warranty

1 year limited warranty

Ship Weight

115.0 LB

Drive Type

Direct

Fan Diameter

15 in

Air Delivery

2,508 cfm

Volts

115/230
AttributeSpecification

Primary Color

Gray

Secondary Color

Gray

Assembly Required

No

Outdoor Rated

Yes

Phase

Single-phase

Horsepower

0.75 HP

Product Weight

40.0000 lb

Dimensions L x W x H (in.)

48.0 x 40.0 x 36.0 in
