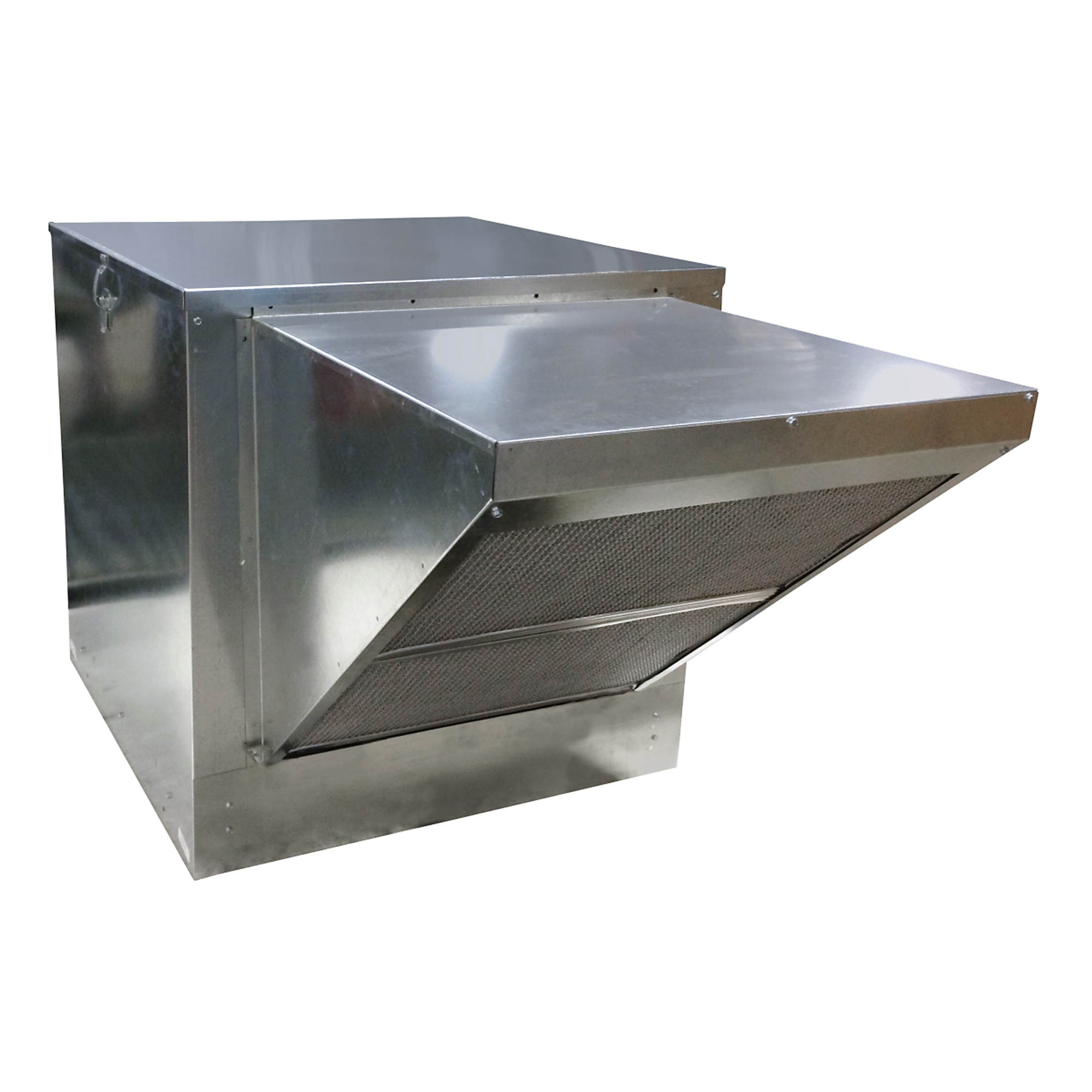

Canarm, 9in. Supply Fan 1hp ec motor, Air Delivery 1900 cfm, Outdoor Rated, Model# SIG9DD100EC

Item# 6295145
Canarm, 9in. Supply Fan 1hp ec motor, Air Delivery 1900 cfm, Outdoor Rated, Model# SIG9DD100EC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Canarm, 9in. Supply Fan 1hp ec motor, Air Delivery 1900 cfm, Outdoor Rated, Model# SIG9DD100EC

Click or Tap image to Zoom

$2149.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Flexible forward curved belt drive blowers operate at low speed and low noise levels.
  • Galvanized steel housing
  • Heavy duty ball bearings suitable for -65º to +250º F.

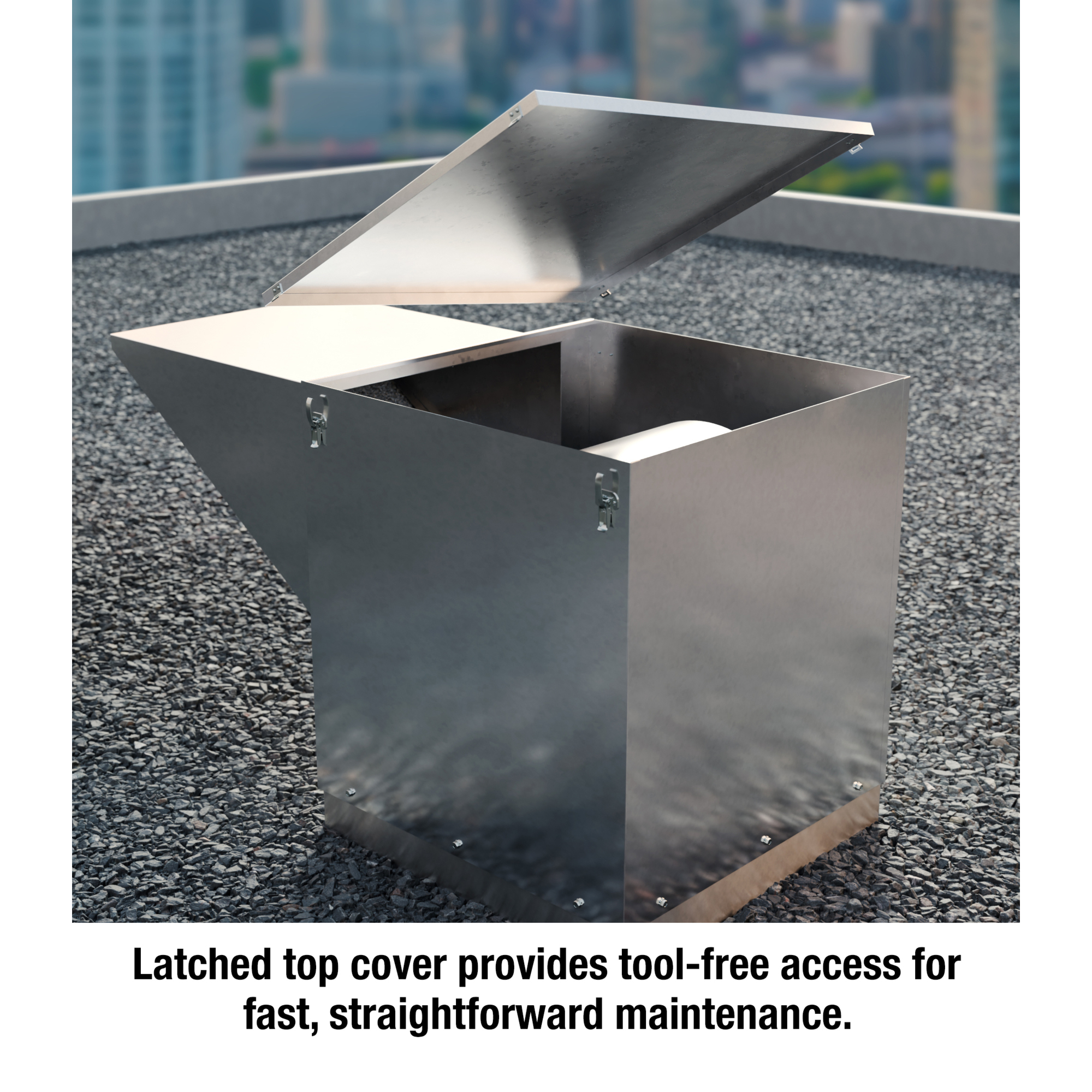

  • Weather proof cabinet designed for outdoor roof mounting.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

SIG series fresh air supply units are ideal for commercial applications such as schools, apartments and office buildings. They also provide an economical and practical solution to meet NFPA 96 separation requirements between supply exhaust air streams in commercial kitchen applications.

What's Included

    (1) Fresh Air Supply fan with Filter & EC motor

Downloads

Product Manual

Features + Benefits

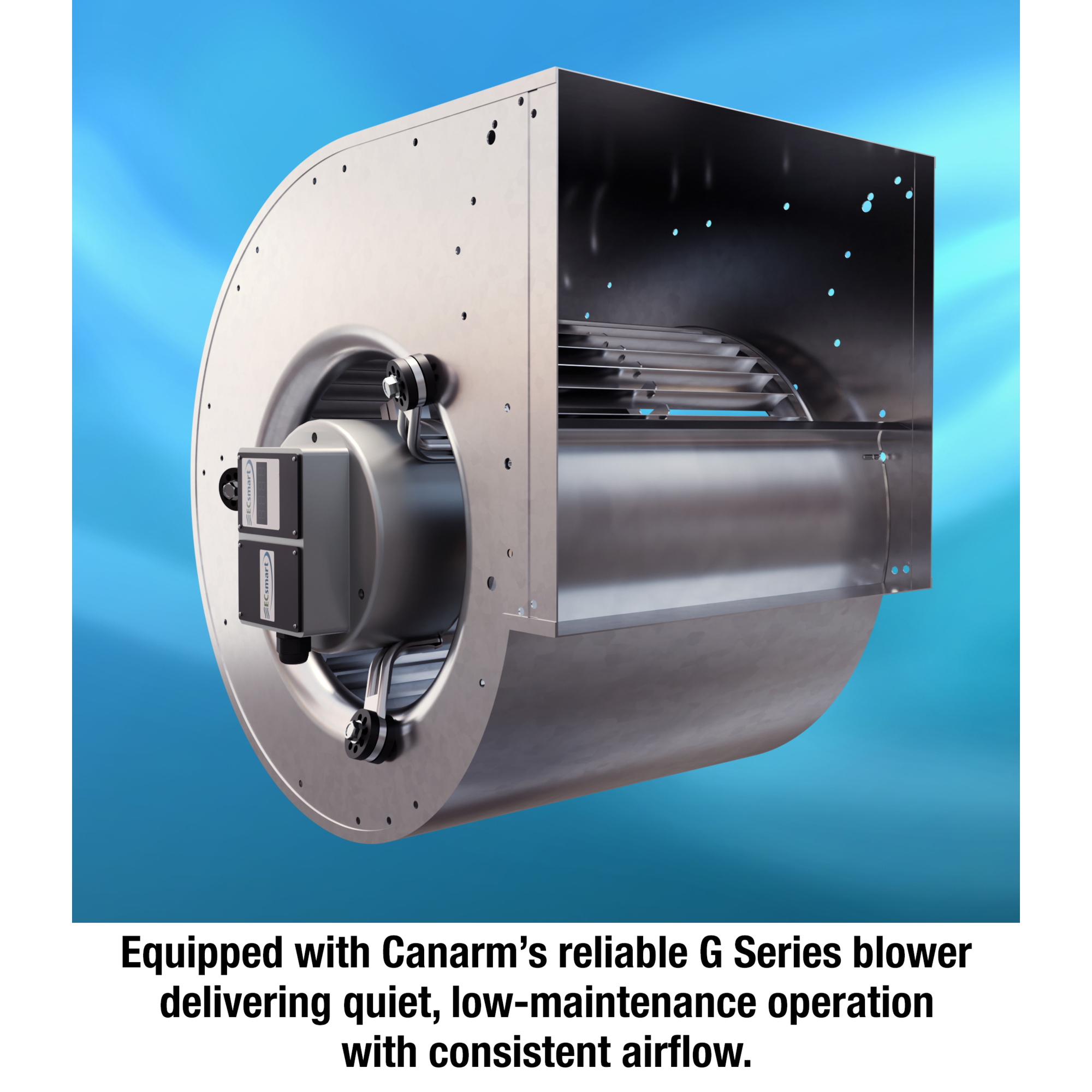

  • Flexible forward curved belt drive blowers operate at low speed and low noise levels.
  • Galvanized steel housing
  • Heavy duty ball bearings suitable for -65º to +250º F.
  • Weather proof cabinet designed for outdoor roof mounting.
  • Filters designed with large surface area for efficient filtration.

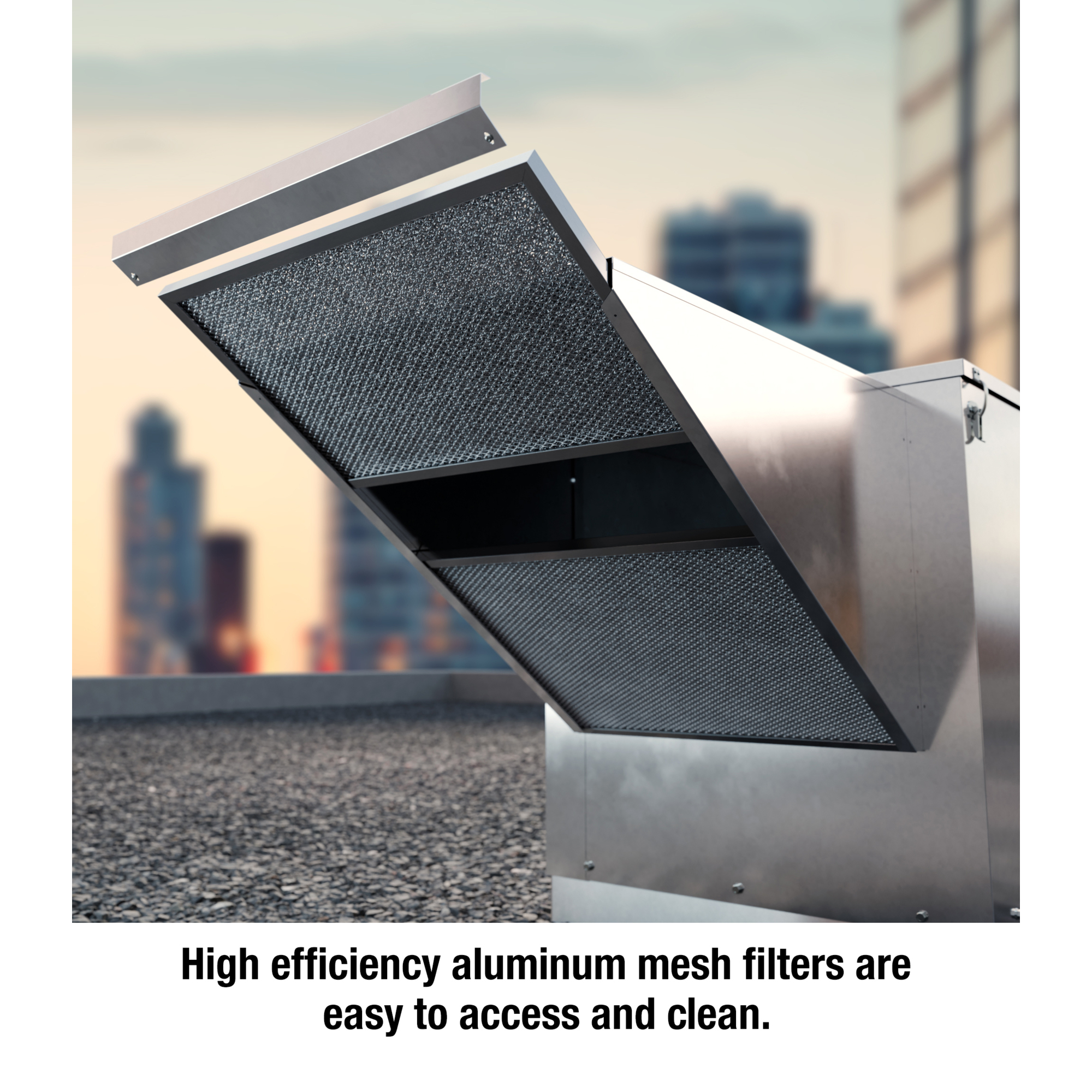

  • Washable aluminum mesh filter are located in the intake hood and are accessible through the hood end cap for ease of service.
  • Easy on-site addition of customer supplied air supply duct extension between the intake hood and unit provides additional separation where necessary.

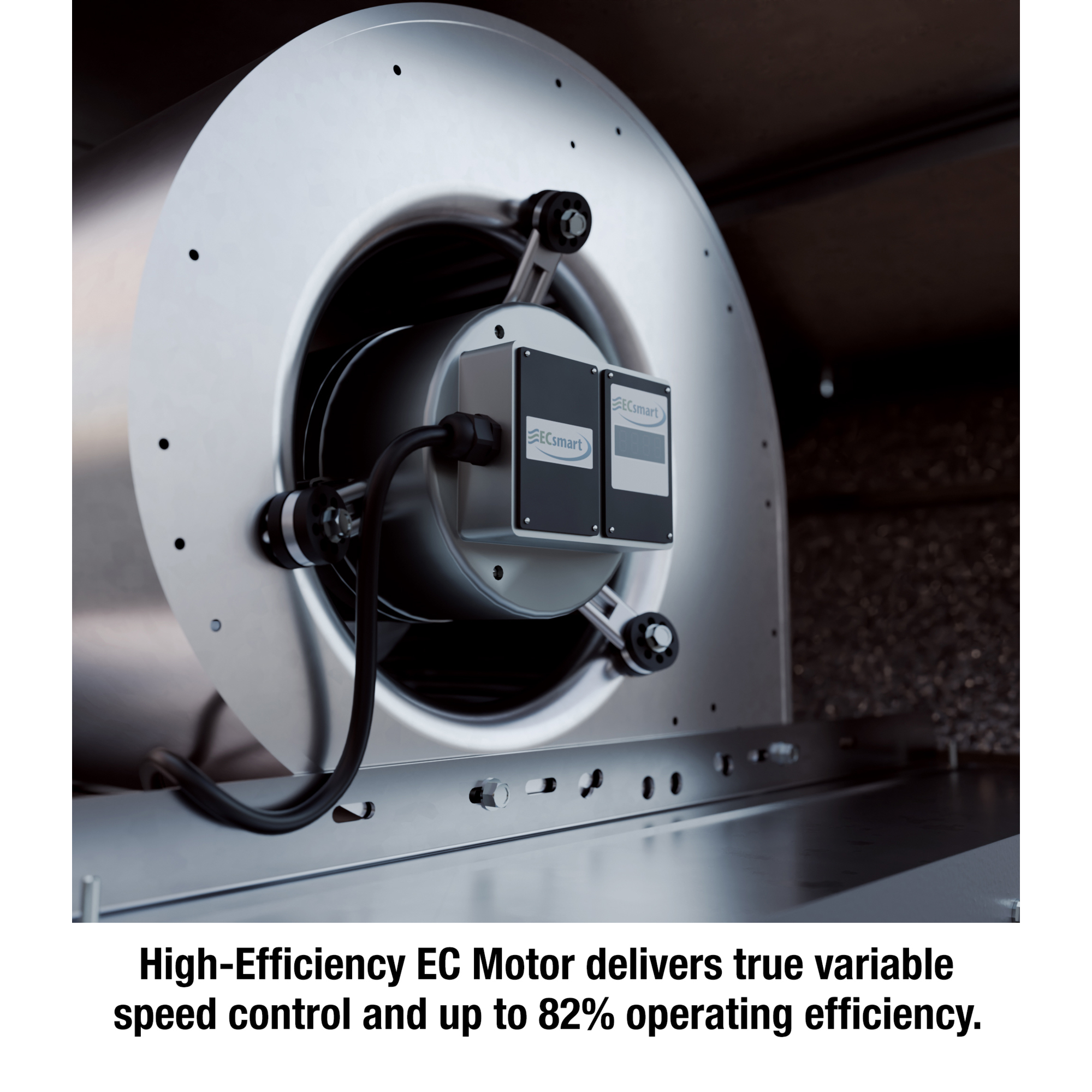

  • EC motor

Key Specs

AttributeSpecification

item#

6295145

Brand

Canarm

Manufacturer's Warranty

1 year limited warranty

Ship Weight

70.0 LB

Air Delivery

1,900 cfm

Outdoor Rated

Yes

Volts

120/208
AttributeSpecification

Fan Diameter

9 in

Assembly Required

Yes

Housing Material

Galvanized Steel

Primary Color

Gray

Hardwired

Yes

Product Weight

70.0000 lb

Dimensions L x W x H (in.)

27.0 x 21.0 x 27.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
