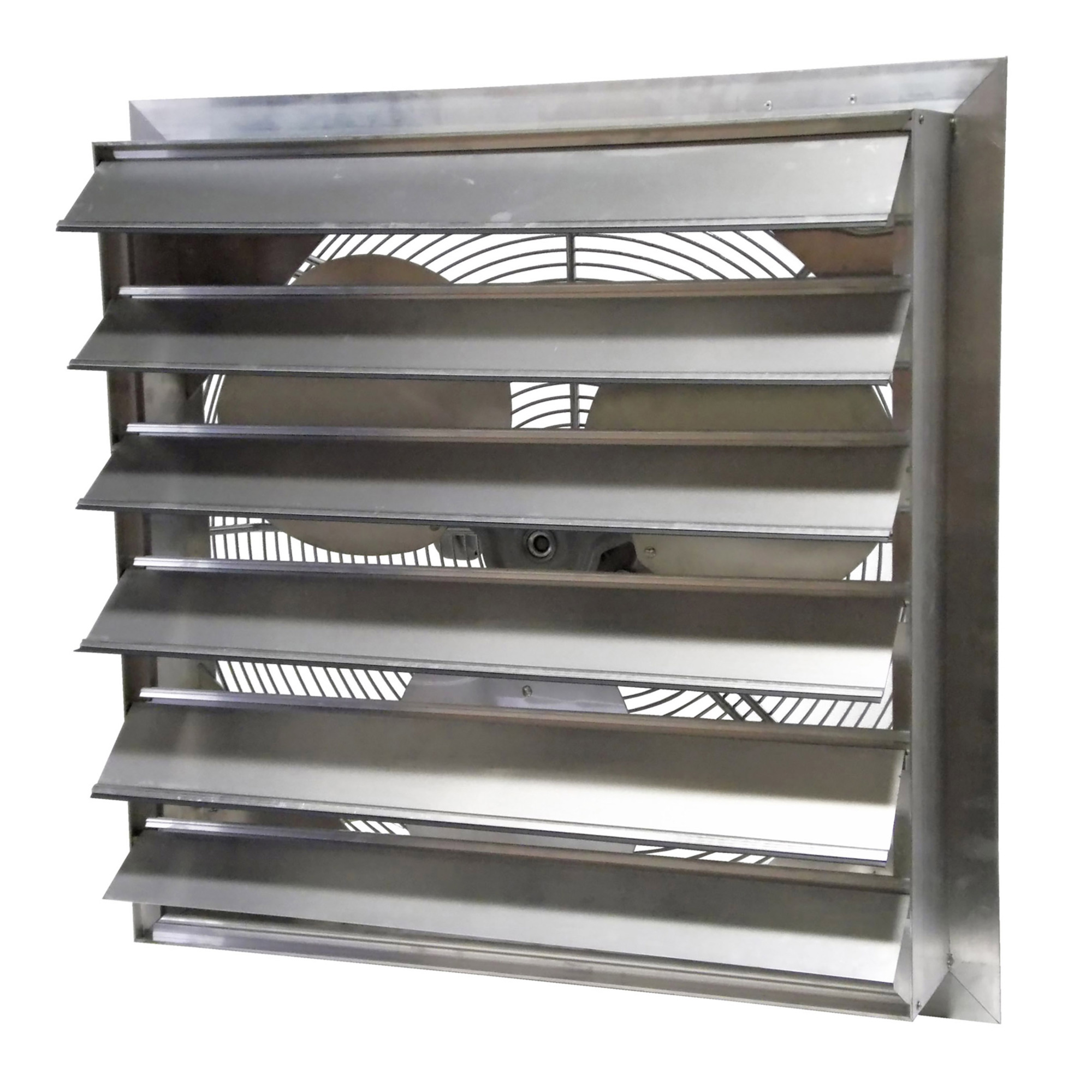

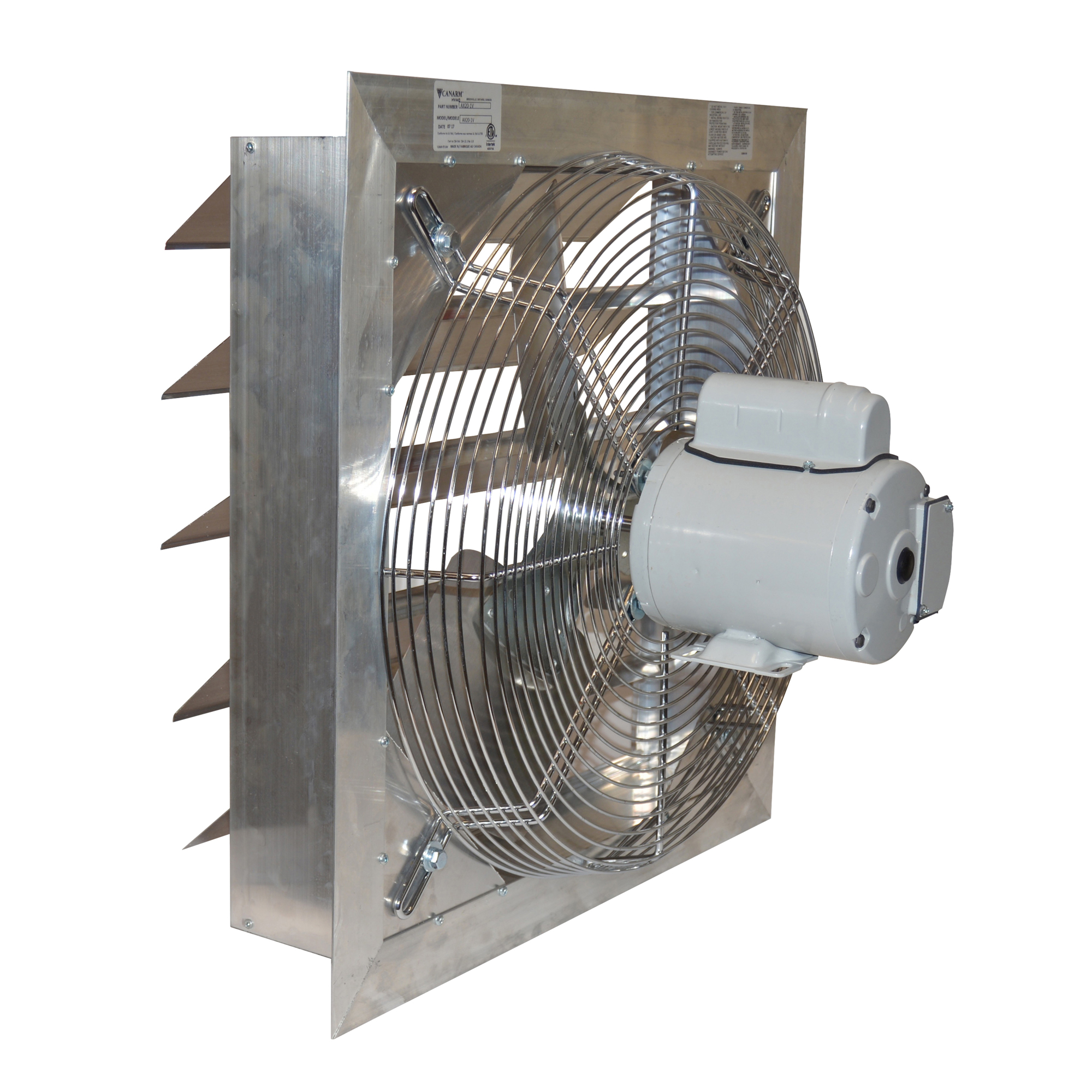

Canarm, 24in.EXHAUST FAN. 1/3 H.P.1075RPM.1/60/115/230V., Drive Type Direct, Fan Diameter 24 in, Air Delivery 5500 cfm, Model# AX24-1V

Item# 6106391
Canarm, 24in.EXHAUST FAN. 1/3 H.P.1075RPM.1/60/115/230V., Drive Type Direct, Fan Diameter 24 in, Air Delivery 5500 cfm, Model# AX24-1V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Canarm, 24in.EXHAUST FAN. 1/3 H.P.1075RPM.1/60/115/230V., Drive Type Direct, Fan Diameter 24 in, Air Delivery 5500 cfm, Model# AX24-1V

Click or Tap image to Zoom

$669.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Sturdily constructed from all-aluminum extrusions.
  • Totally enclosed air over motor with overload protection.

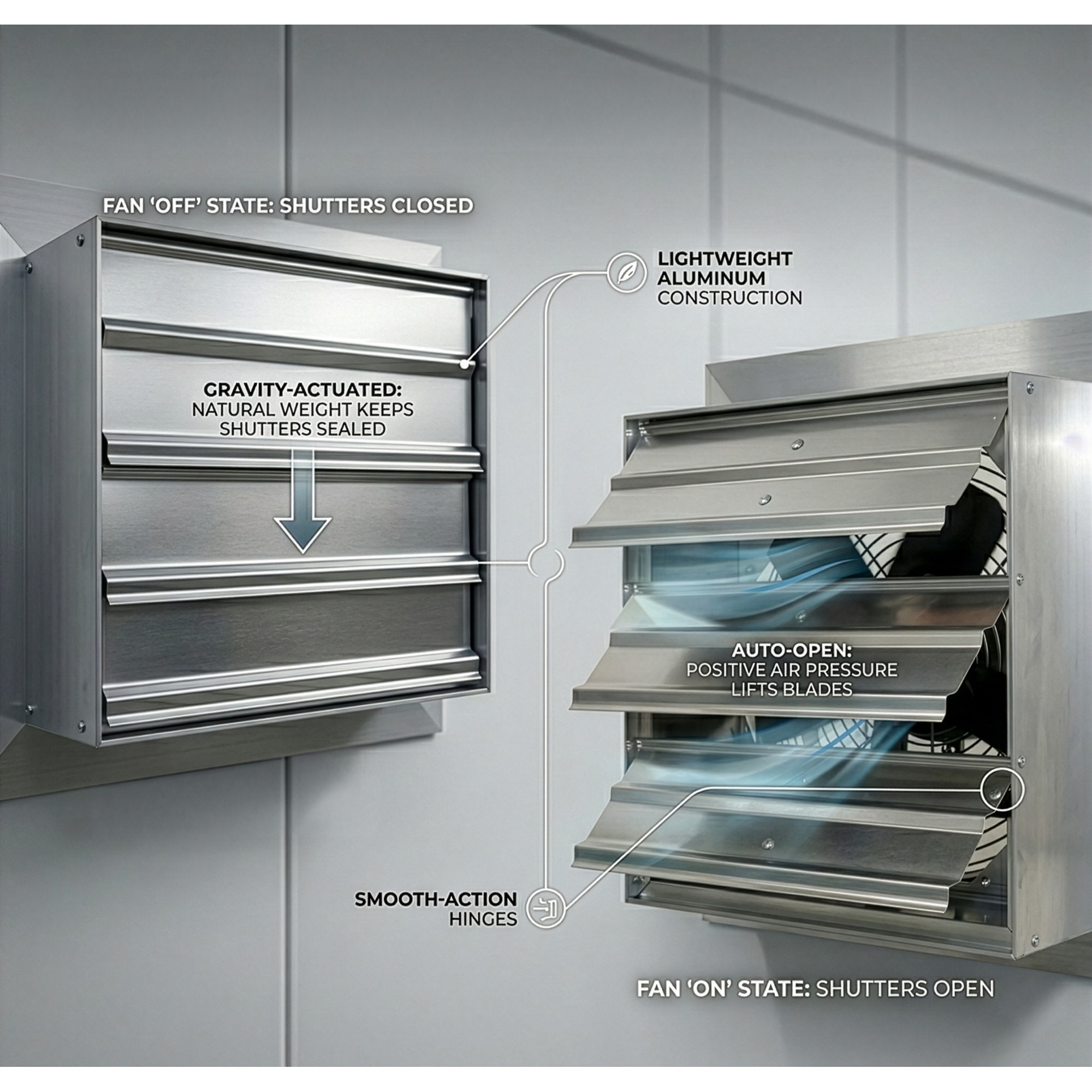

  • built in shutters that automatically open when the fan starts and gravity closes when the fan stops.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

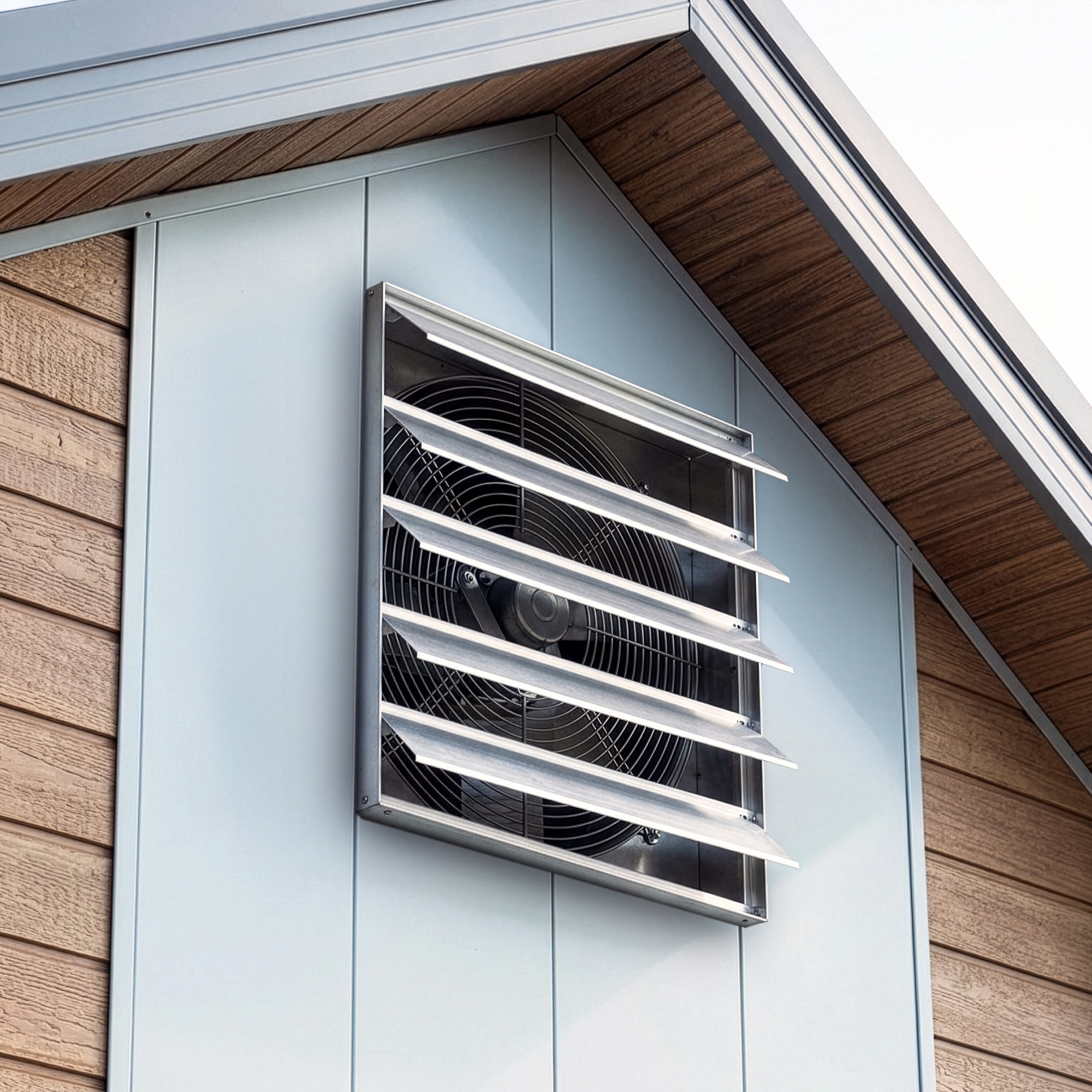

The AX series exhaust fan is a sturdily constructed, direct drive, horizontal discharge fan that is typically used for general ventilation of factories, garages, warehouses and other industrial or commercial buildings.

What's Included

    (1) 1 AX aluminum shutter exhaust fan

Downloads

Product Manual Product Manual2

Features + Benefits

  • Sturdily constructed from all-aluminum extrusions.
  • Totally enclosed air over motor with overload protection.
  • built in shutters that automatically open when the fan starts and gravity closes when the fan stops.

Key Specs

AttributeSpecification

item#

6106391

Brand

Canarm

Manufacturer's Warranty

1 year limited warranty

Ship Weight

52.0 LB

Drive Type

Direct

Fan Diameter

24 in

Air Delivery

5,500 cfm
AttributeSpecification

Volts

115/230

Hardwired

Yes

Primary Color

Gray

Assembly Required

No

Phase

Single-phase

Product Weight

52.0000 lb

Dimensions L x W x H (in.)

31.0 x 20.0 x 31.0 in

Reviews

Questions & Answers

Questions

  1. Can I use a variable speed controller on this fan I thi k the part number is 23n624 is what I have found

    1 answer

    1. A variable speed controller can be used with this exhaust fan. Northern Tool does not offer the model 23N624 variable speed controller. We do offer the Canarm variable speed controller item #47938.
