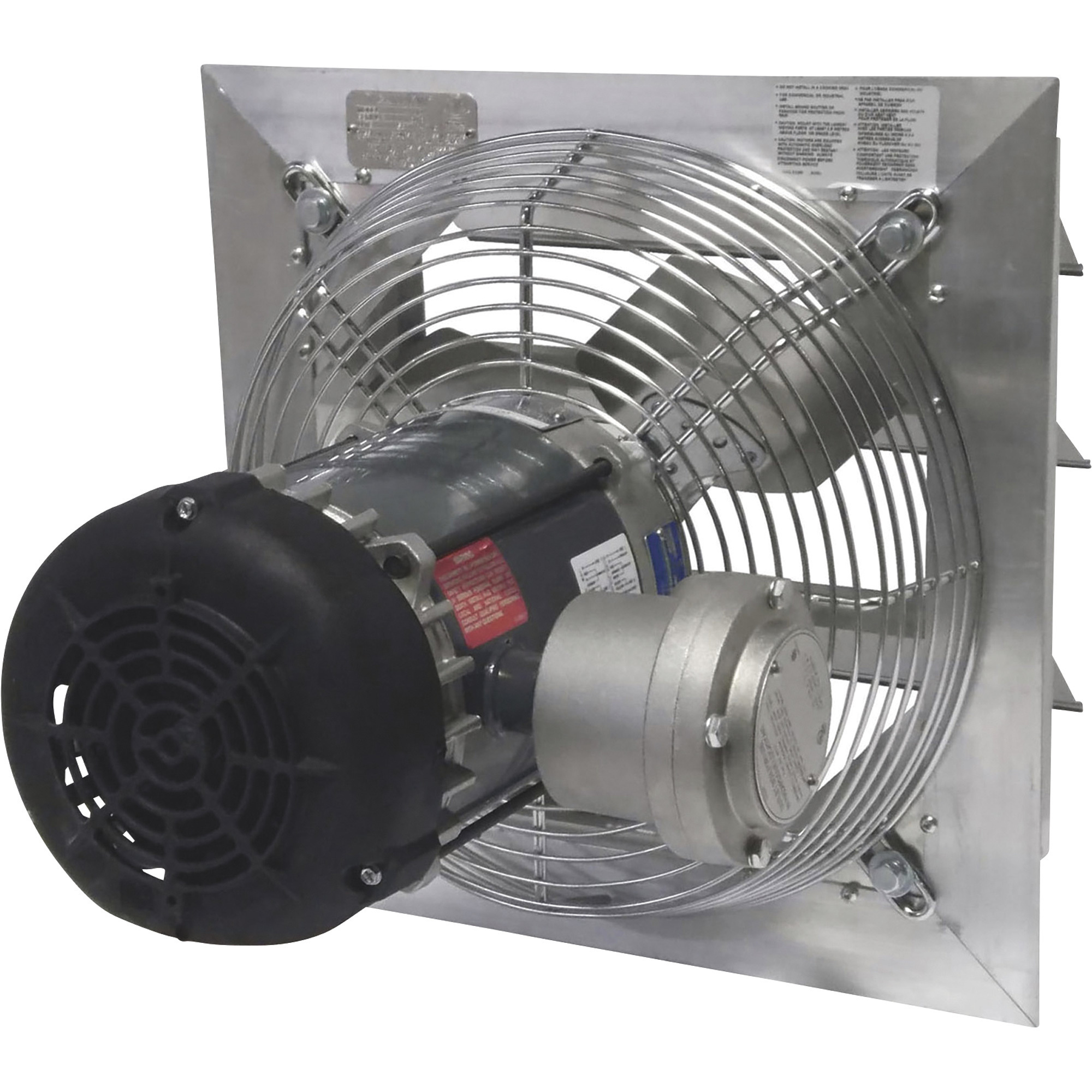

Canarm, 12ft.' Explosion Proof Exhaust fan, 1/3HP, 115/230V, Drive Type Direct, Fan Diameter 12 in, Air Delivery 1670 cfm, Model# AX12-4

Item# 6553079
Canarm, 12ft.' Explosion Proof Exhaust fan, 1/3HP, 115/230V, Drive Type Direct, Fan Diameter 12 in, Air Delivery 1670 cfm, Model# AX12-4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Canarm, 12ft.' Explosion Proof Exhaust fan, 1/3HP, 115/230V, Drive Type Direct, Fan Diameter 12 in, Air Delivery 1670 cfm, Model# AX12-4

Click or Tap image to Zoom

$1699.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Sturdily constructed from all-aluminum extrusions.
  • 12” - 24” models have heavy wire chrome plated OSHA guards on intake side of fan.
  • Totally enclosed air over motor with overload protection.
  • Ships fully assembled.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

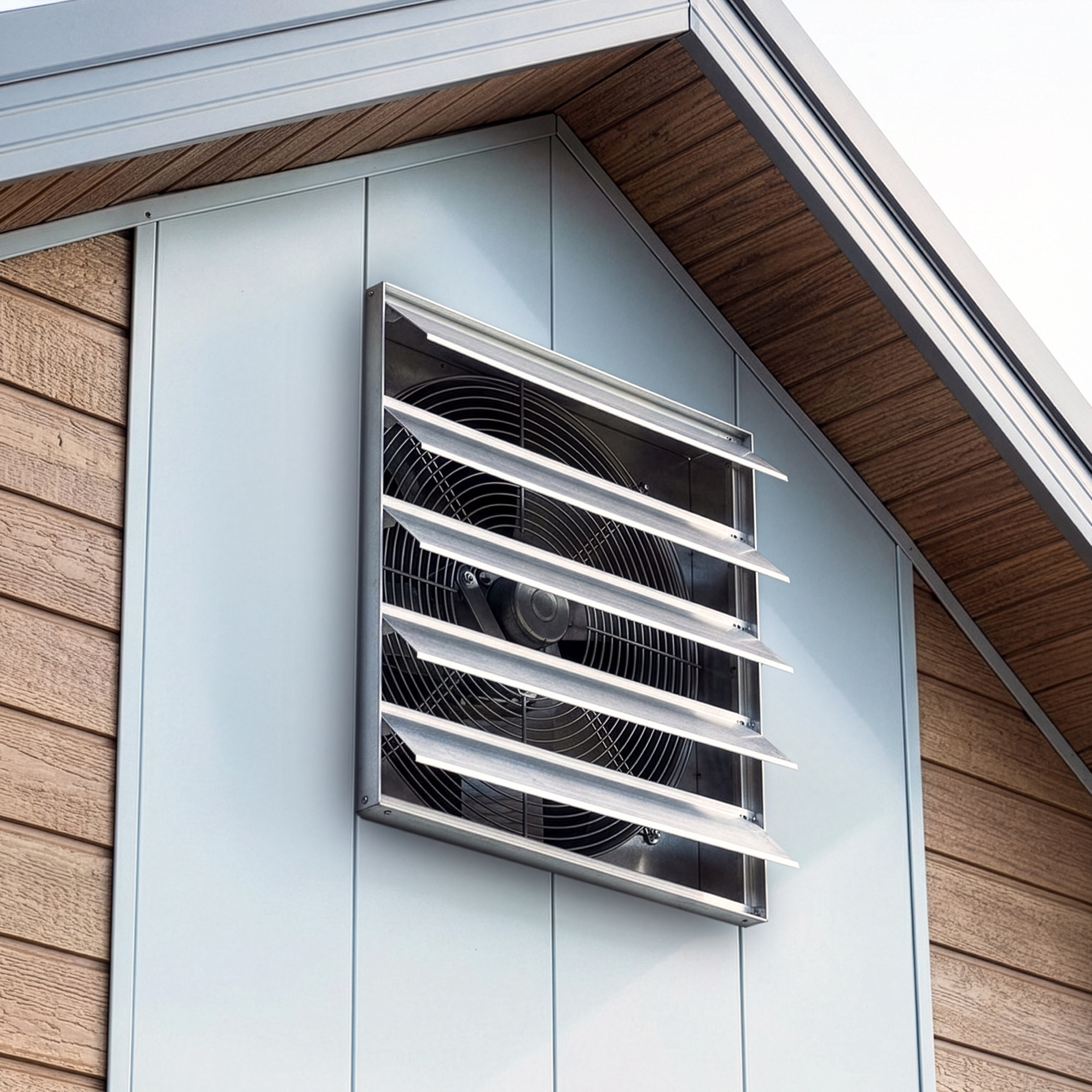

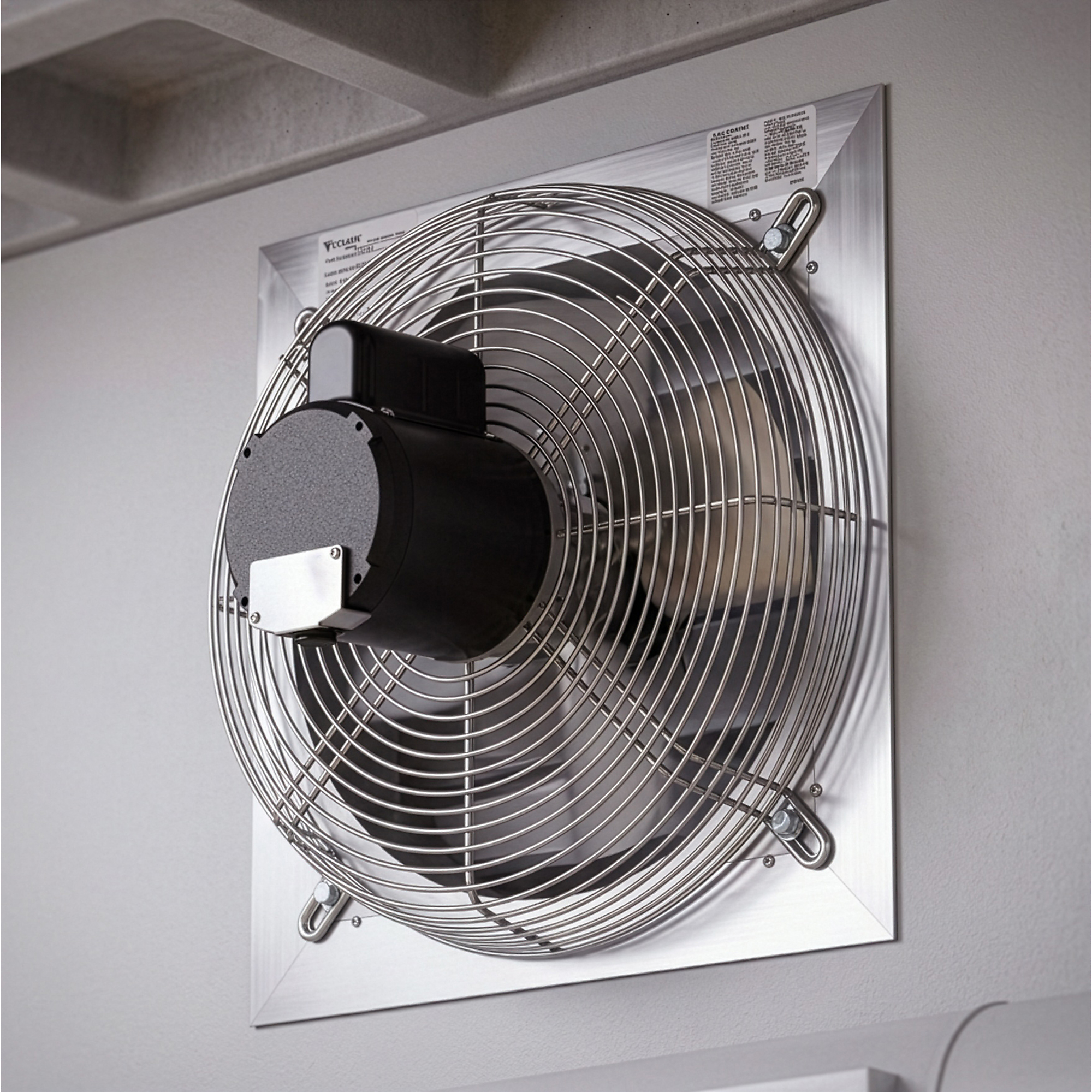

The AX series exhaust fan is a sturdily constructed, direct drive, horizontal discharge fan that is typically used for general ventilation of factories, garages, warehouses and other industrial or commercial buildings. The AX Explosion Proof Fans have a single speed, dual voltage explosion proof motor that meets and conforms to all the standards that are listed below.

What's Included

    (1) 1 Explosion proof exhaust fan

Downloads

Product Manual Product Manual2

Features + Benefits

  • Sturdily constructed from all-aluminum extrusions.
  • 12” - 24” models have heavy wire chrome plated OSHA guards on intake side of fan.
  • Totally enclosed air over motor with overload protection.
  • Ships fully assembled.

Key Specs

AttributeSpecification

item#

6553079

Brand

Canarm

Manufacturer's Warranty

12 months lmtd parts/no labor

Ship Weight

43.0 LB

Drive Type

Direct

Fan Diameter

12 in

Air Delivery

1,670 cfm

Volts

115/230
AttributeSpecification

Hardwired

Yes

Primary Color

Gray

Secondary Color

Gray

Assembly Required

No

Outdoor Rated

Yes

Phase

Single-phase

Product Weight

43.0000 lb

Dimensions L x W x H (in.)

19.0 x 24.0 x 20.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

12 months lmtd parts/no labor
