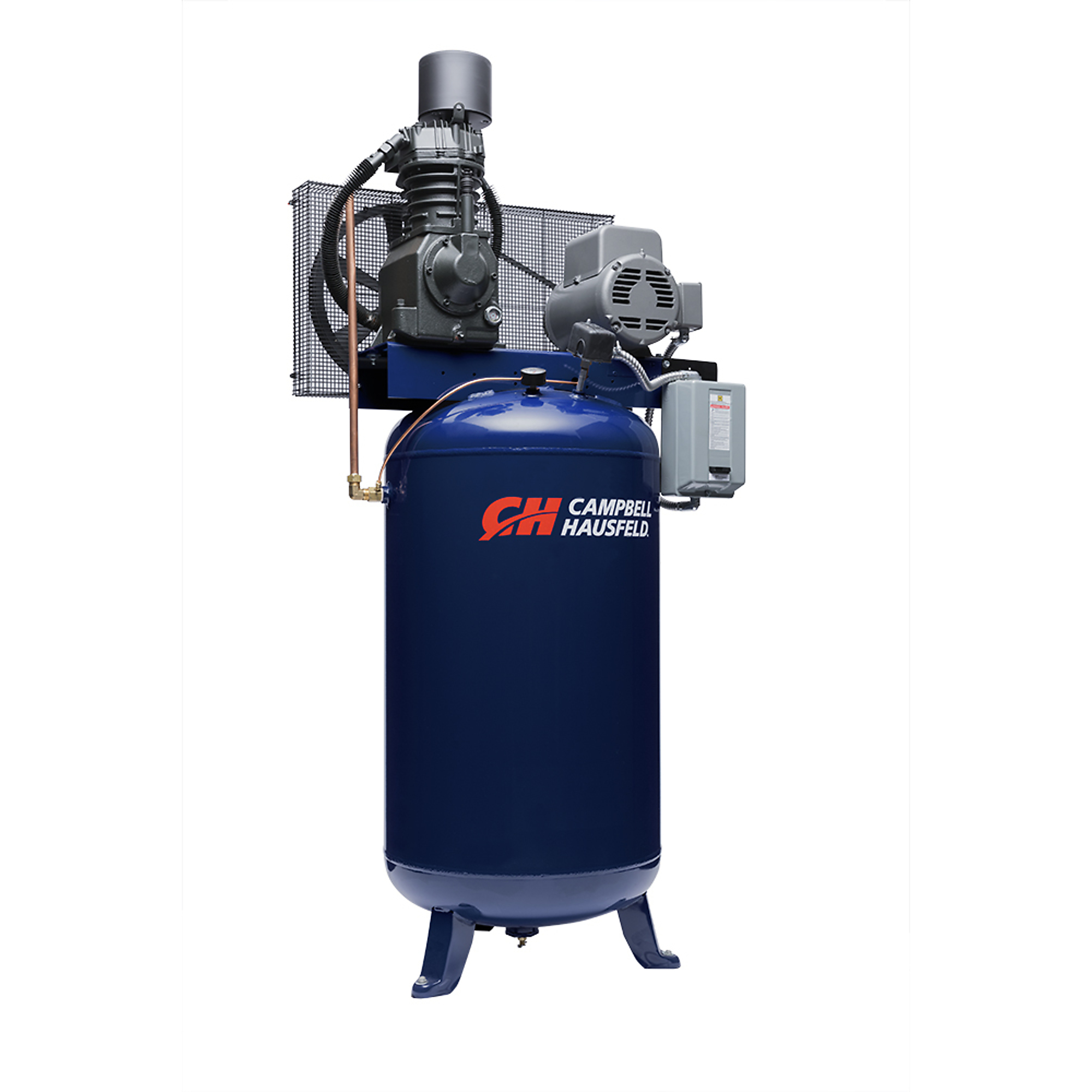

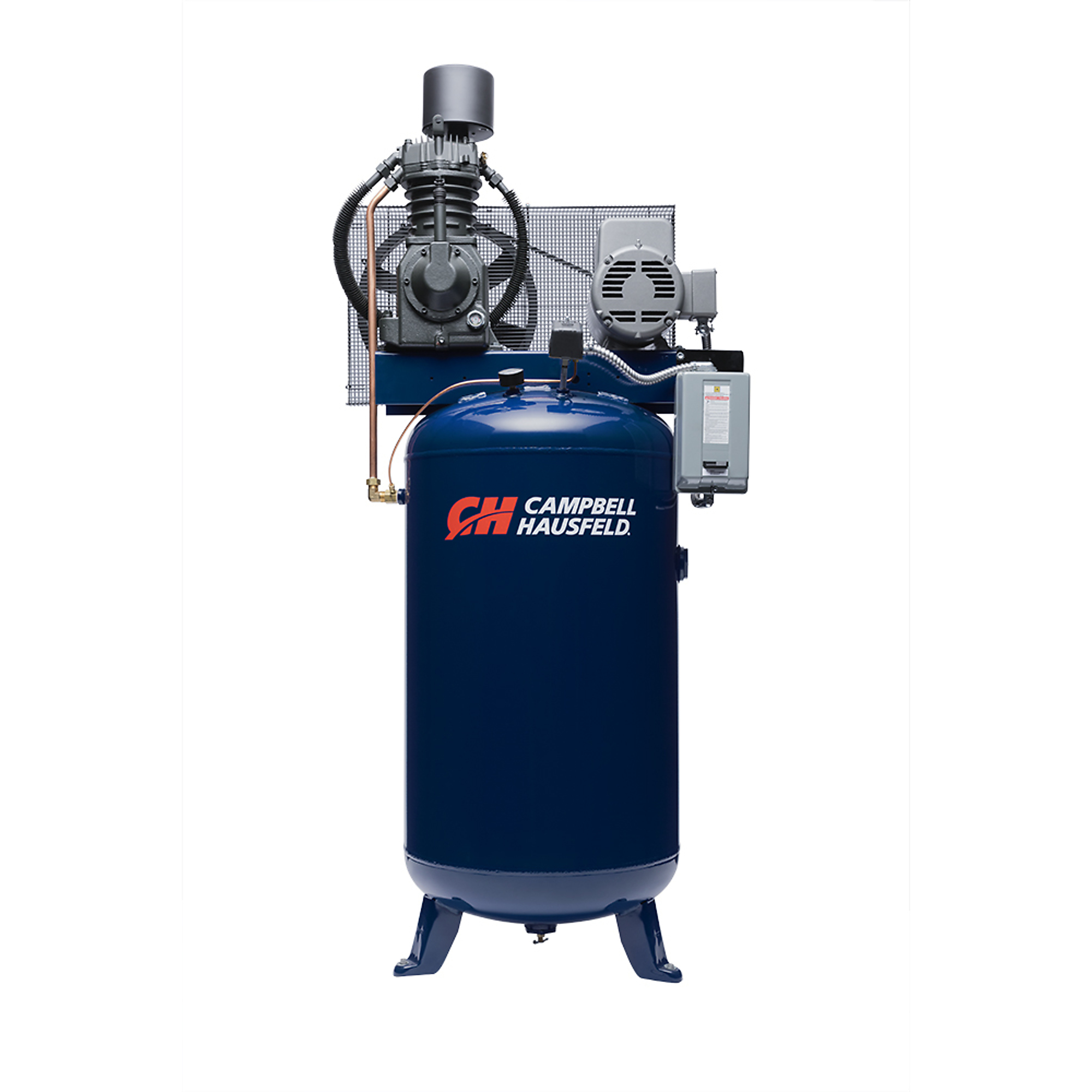

Campbell Hausfeld Vertical Stationary Electric Air Compressor, 80 Gallon, 7.5HP, 1-Phase, Model# TF211201AJ

Item# 7305835
New
Campbell Hausfeld Vertical Stationary Electric Air Compressor, 80 Gallon, 7.5HP, 1-Phase, Model# TF211201AJ

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Campbell Hausfeld Vertical Stationary Electric Air Compressor, 80 Gallon, 7.5HP, 1-Phase, Model# TF211201AJ

Click or Tap image to Zoom

$3149.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 80 Gallon Tank, 25.0 CFM @ 90 PSI, 175 Max PSI, 7.5 horsepower, 230 Volt, 31 Amp, 1PH, 60 Hz.
  • Commercial duty cast iron, oil-lubricated, two stage pump designed to deliver more than 15,000 hours of operation
  • Mounted and wired motor starter for quick electrical hook up. A pre-wired magnetic starter provides safe and clean power with a safe shop installation
  • High air flow of 25 CFM @ 90 PSI to power multiple, high-demand air tools, including air sanders
  • Located on the front of the pump, the oil site glass allows for quick and easy tracking of oil levels

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Campbell Hausfeld 80-gallon, 7.5 hp, vertical, two-stage air compressor (TF211201AJ) has a high air flow of 25 CFM 90 PSI to power multiple, high-demand air tools, including air sanders. Its industrial-rated NEMA motor has an 80% duty cycle and drives a cast-iron, two-stage pump that's designed to deliver more than 15,000 hours of operation. A prewired magnetic starter provides safe and clean power with a safe shop installation. Finish your projects faster and easier with Campbell Hausfeld - The Air Power Expert.

What's Included

    (1) compressor

Features + Benefits

  • 80 Gallon Tank, 25.0 CFM @ 90 PSI, 175 Max PSI, 7.5 horsepower, 230 Volt, 31 Amp, 1PH, 60 Hz.
  • Commercial duty cast iron, oil-lubricated, two stage pump designed to deliver more than 15,000 hours of operation
  • Mounted and wired motor starter for quick electrical hook up. A pre-wired magnetic starter provides safe and clean power with a safe shop installation
  • High air flow of 25 CFM @ 90 PSI to power multiple, high-demand air tools, including air sanders
  • Located on the front of the pump, the oil site glass allows for quick and easy tracking of oil levels
  • Finish your projects faster and easier with Campbell Hausfeld - The Air Power Expert

Key Specs

AttributeSpecification

item#

7305835

Brand

Campbell Hausfeld

Manufacturer's Warranty

3 year limited warranty

Ship Weight

540.0 LB

Air Tank Size

80 Gal

Volts

230

CFM at 90 PSI

25

Motor Phase

1

Stage

2

Tank Orientation

Vertical

Horsepower

7.5 HP
AttributeSpecification

Max. PSI

175

Amps

31.4

Pump Life

15,000 hr

Pump Material

Cast Iron

Pump Drive

Belt

CFM at 40 PSI

25.6

Oil Required

Yes

Electronic Drain Valve

No

Product Weight

540.0000 lb

Dimensions L x W x H (in.)

37.0 x 33.0 x 80.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

3 year limited warranty
