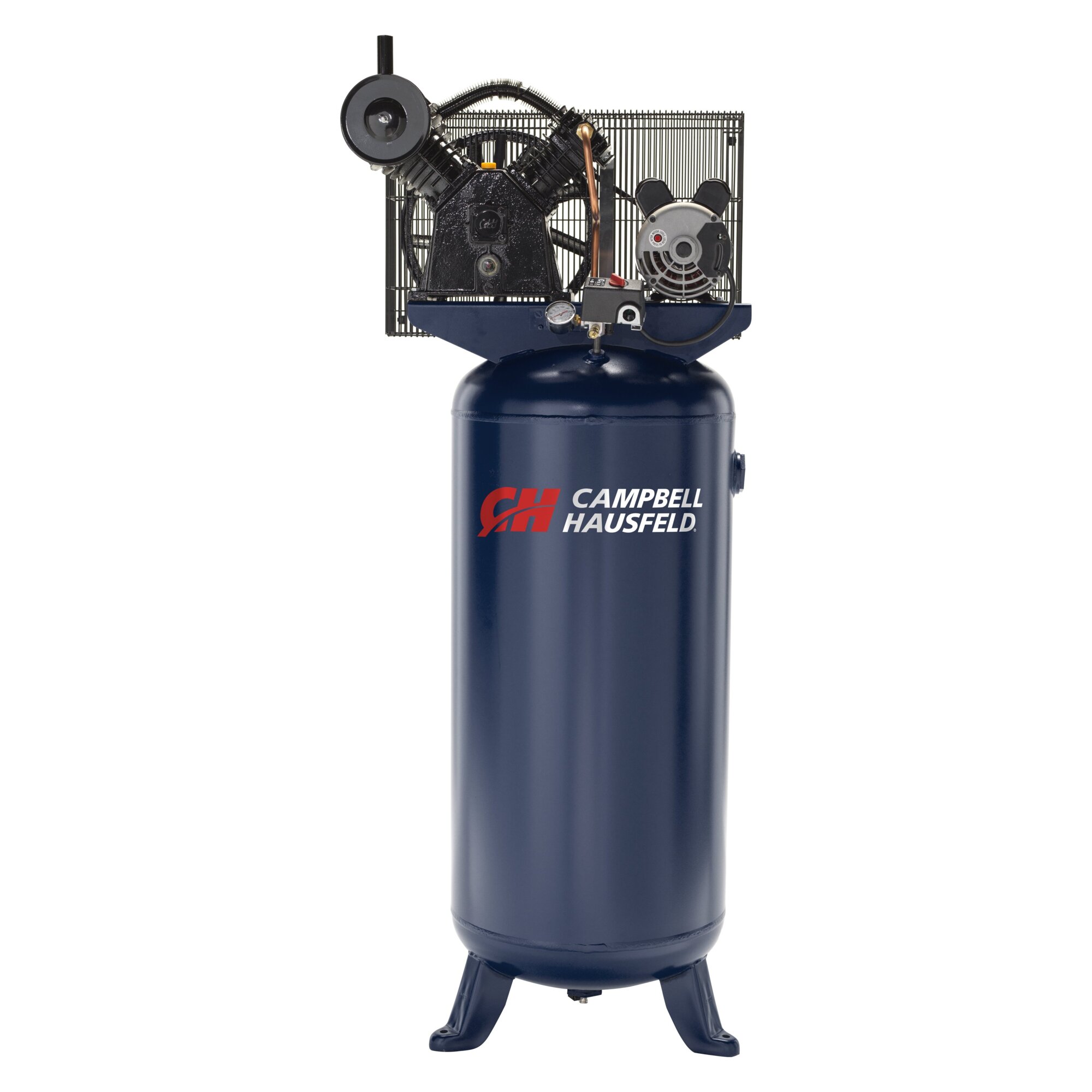

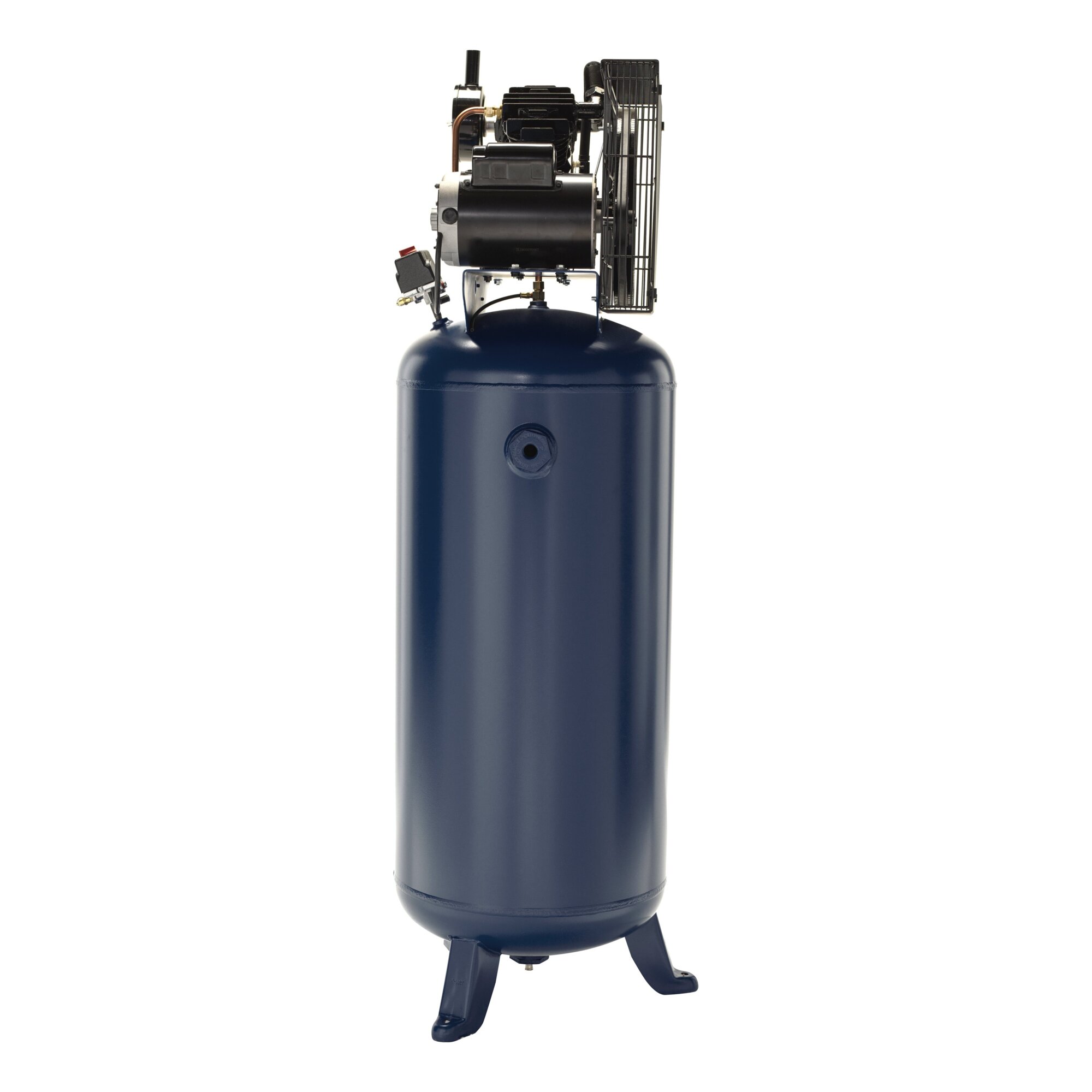

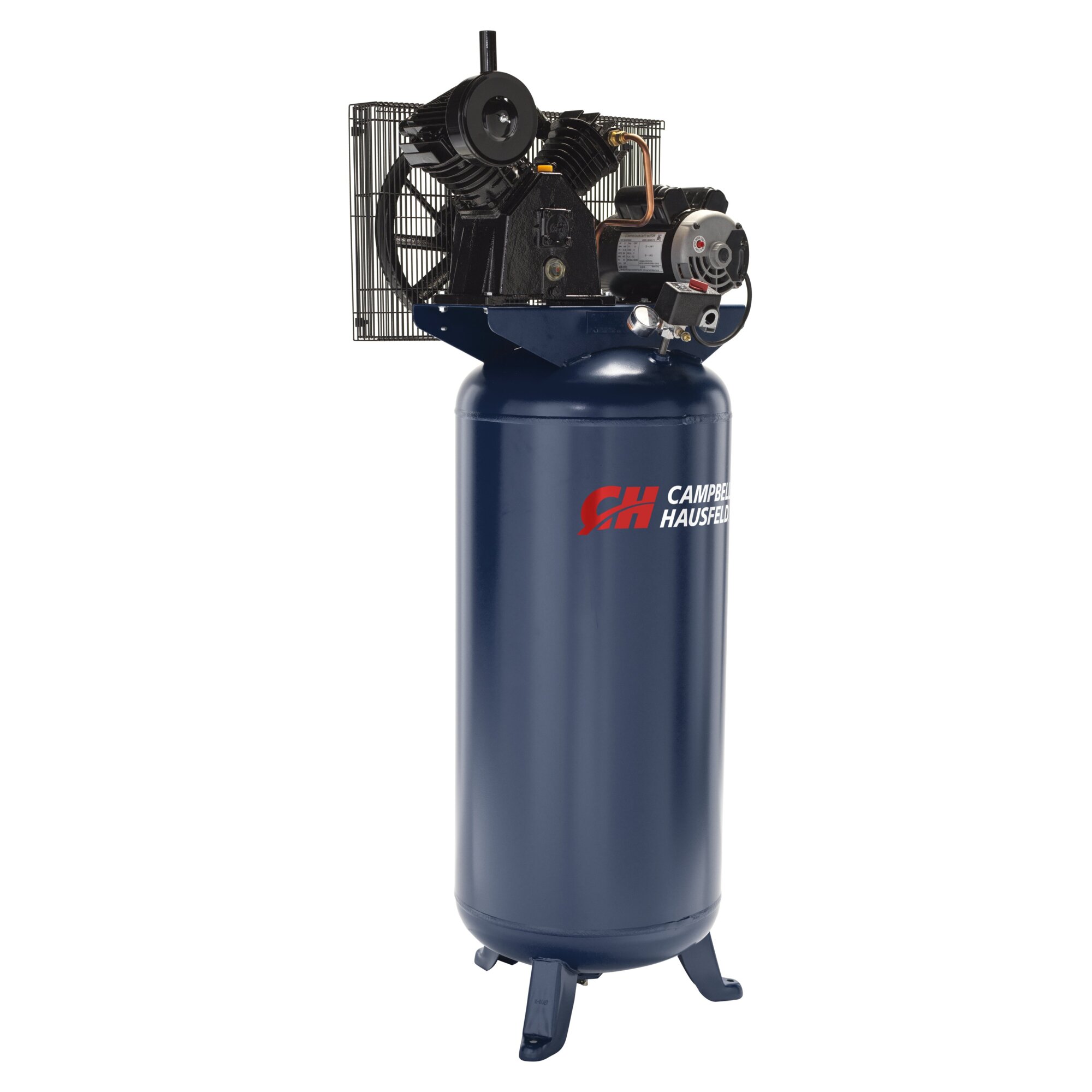

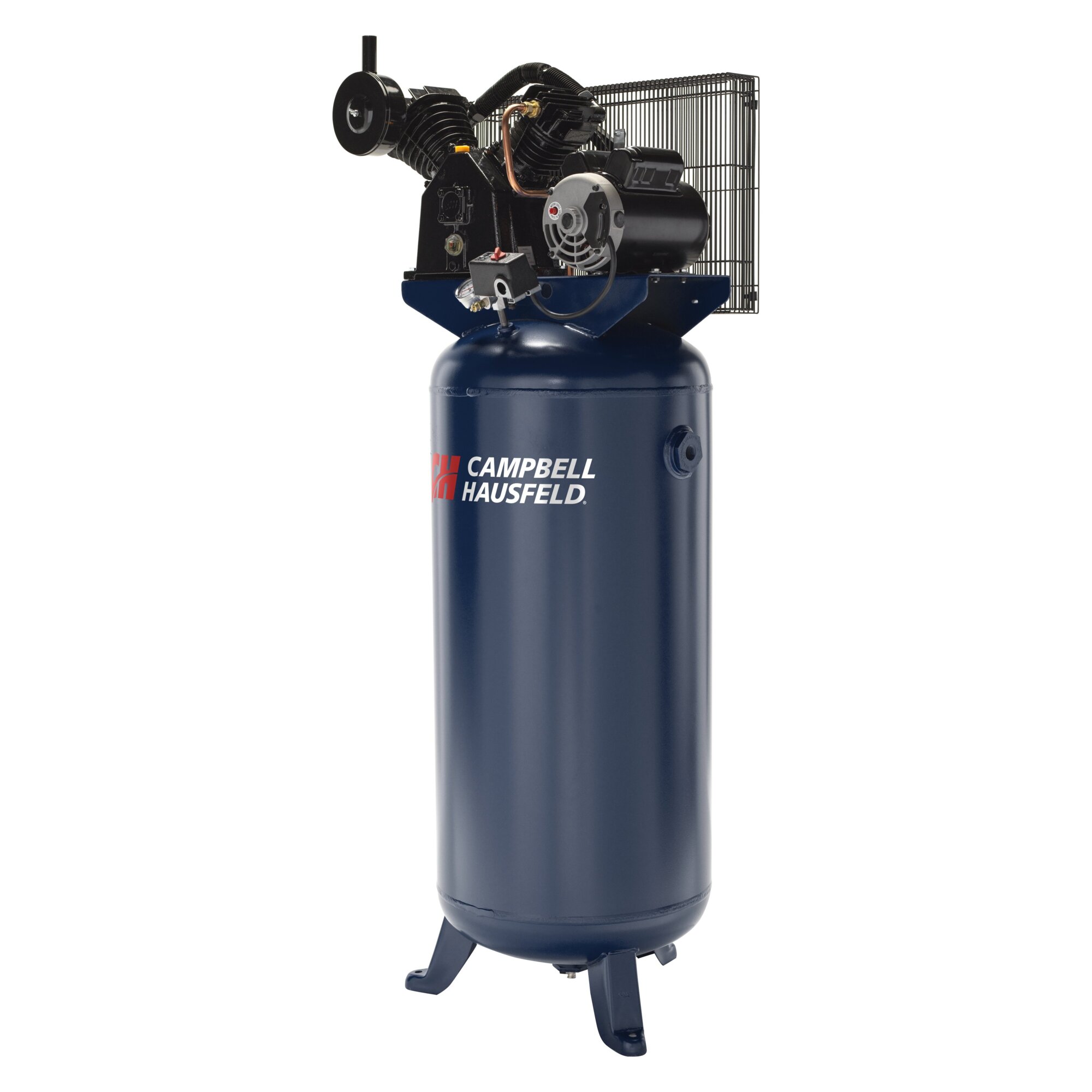

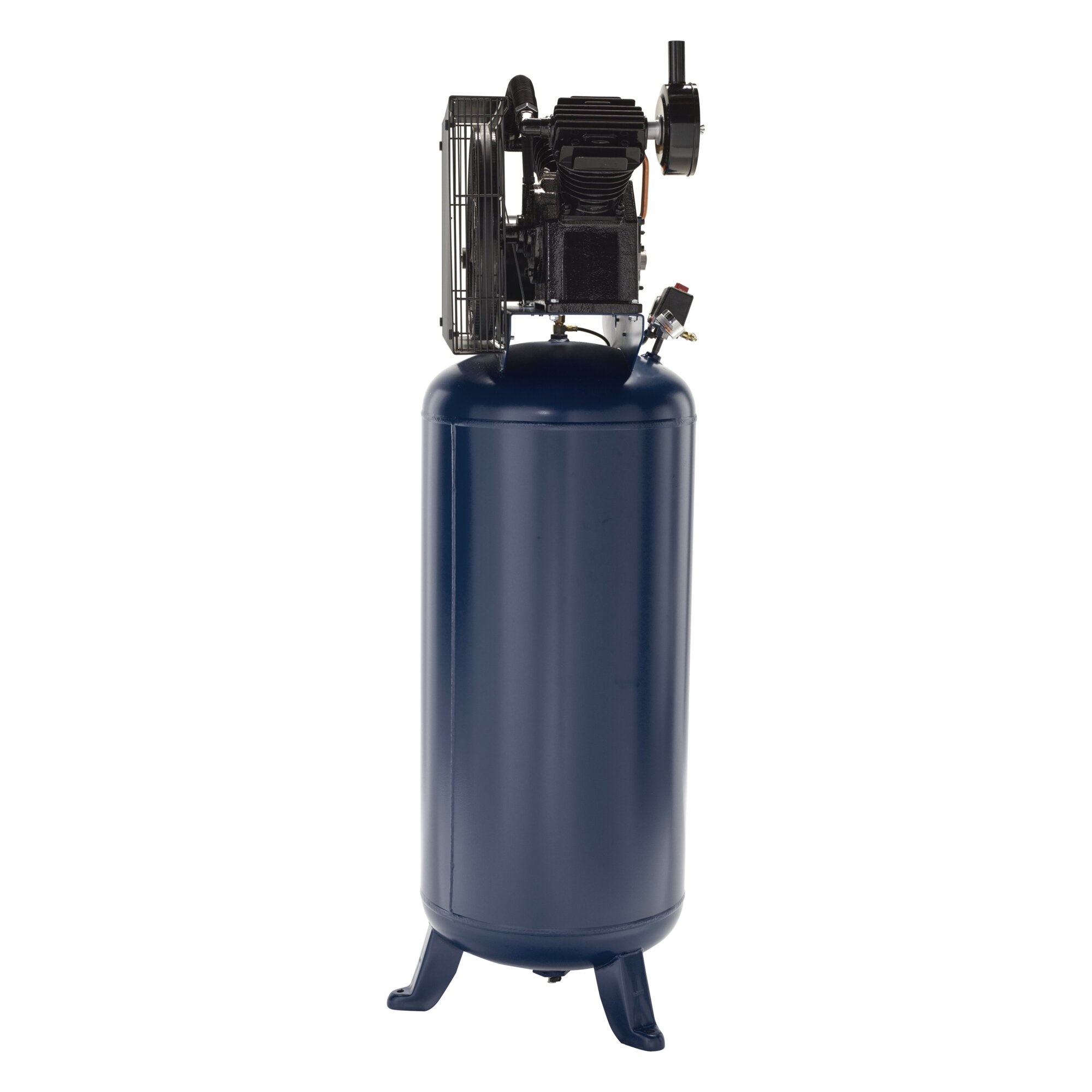

Campbell Hausfeld Vertical Stationary Electric Air Compressor, 60 Gallon, 175 PSI, 2-Stage, Model# XC602100

Item# 7304322
Campbell Hausfeld Vertical Stationary Electric Air Compressor, 60 Gallon, 175 PSI, 2-Stage, Model# XC602100

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Campbell Hausfeld Vertical Stationary Electric Air Compressor, 60 Gallon, 175 PSI, 2-Stage, Model# XC602100

Click or Tap image to Zoom

$1249.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Air compressor features a cast iron, oil lubricated 2 stage pump for 5,000-hours of longevity while also offering reduced noise
  • Designed to tackle a wide variety of jobs, from rotating wheels, painting furniture, grinding welds and heavy-duty nailing
  • 240-Volt 3.7 HP heavy-duty induction motor creates maximum pressure to operate a wider range of tools while maintaining longer air compressor run times
  • 60 gallon vertical ASME tank maximizes floor space, leaving a reduced compressor footprint
  • Compressor features 175 maximum PSI and 7.6 SCFM at 90 PSI

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Campbell Hausfeld, 60 Gal. 2-stage, 3.7 HP electric air compressor (XC602100) features a cast iron, oil lubricated 2 stage pump for up to 5,000-hours of increased longevity and reduced noise. The stationary air compressor boasts 175 PSI of maximum pressure and 7.6 SCFM at 90 PSI, allowing for optimum tool performance. The 60 gallon ASME vertical tank design is ideal for garage and workshop applications with a space-saving footprint. Needing a 230-Volt power supply, the XC602100 is ideal for rotating tires, repairing engines, grinding, sanding, stapling, painting, nailing and more. Finish your projects faster and easier with Campbell Hausfeld. The air power expert.

What's Included

    (1) compressor

Downloads

Product Manual

Features + Benefits

  • Air compressor features a cast iron, oil lubricated 2 stage pump for 5,000-hours of longevity while also offering reduced noise
  • Designed to tackle a wide variety of jobs, from rotating wheels, painting furniture, grinding welds and heavy-duty nailing
  • 240-Volt 3.7 HP heavy-duty induction motor creates maximum pressure to operate a wider range of tools while maintaining longer air compressor run times
  • 60 gallon vertical ASME tank maximizes floor space, leaving a reduced compressor footprint
  • Compressor features 175 maximum PSI and 7.6 SCFM at 90 PSI

Key Specs

AttributeSpecification

item#

7304322

Brand

Campbell Hausfeld

Manufacturer's Warranty

3 year limited warranty

Ship Weight

296.0 LB

Air Tank Size

60 Gal

Volts

230

CFM at 90 PSI

7.6

Motor Phase

1

Stage

2

Tank Orientation

Vertical

Horsepower

3.7 HP
AttributeSpecification

Max. PSI

175

Amps

16.2

Pump Material

Cast Iron

Pump Drive

Belt

CFM at 40 PSI

7.9

Noise Level

84 dB

Oil Required

Yes

Electronic Drain Valve

No

Product Weight

296.0000 lb

Dimensions L x W x H (in.)

34.0 x 36.0 x 72.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

3 year limited warranty
