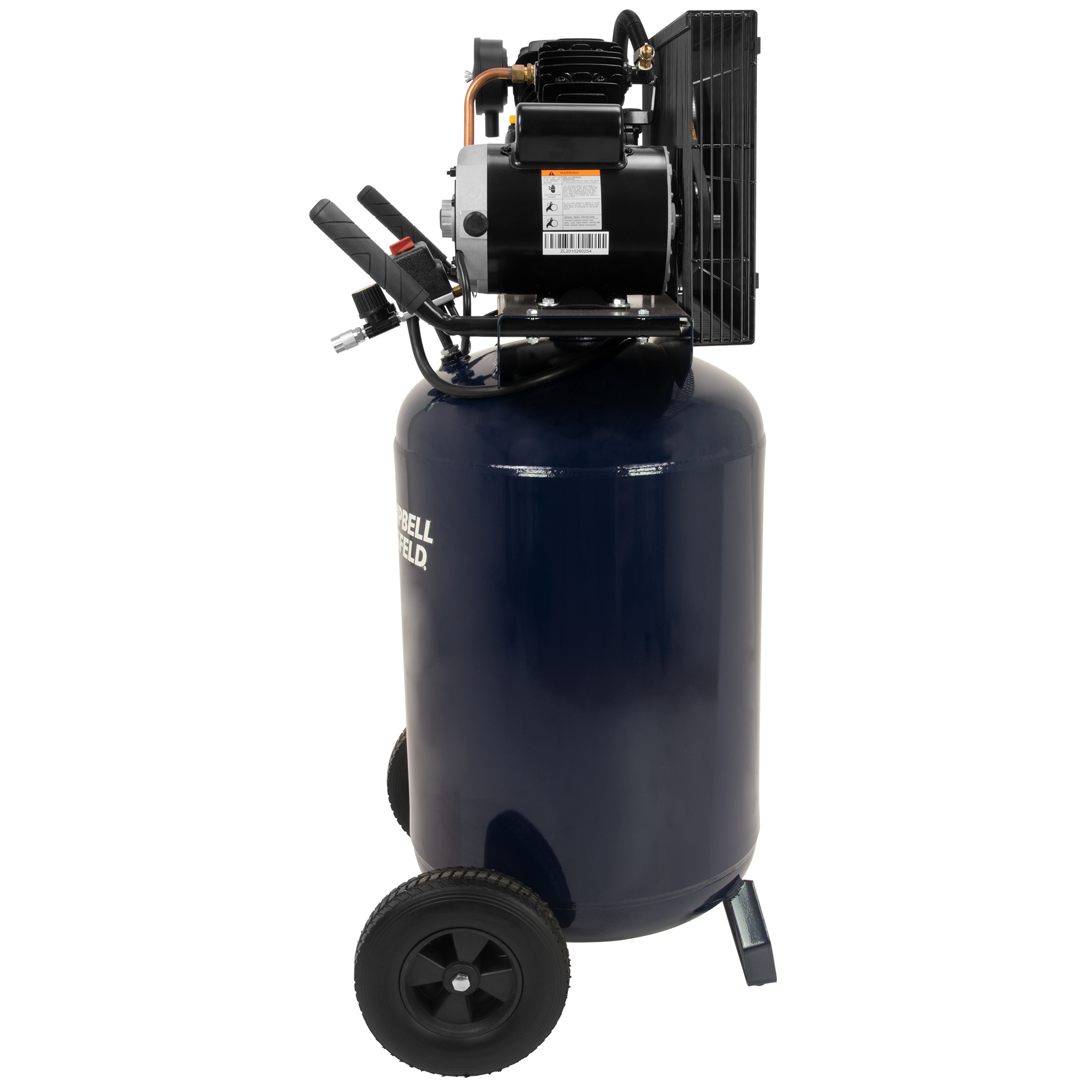

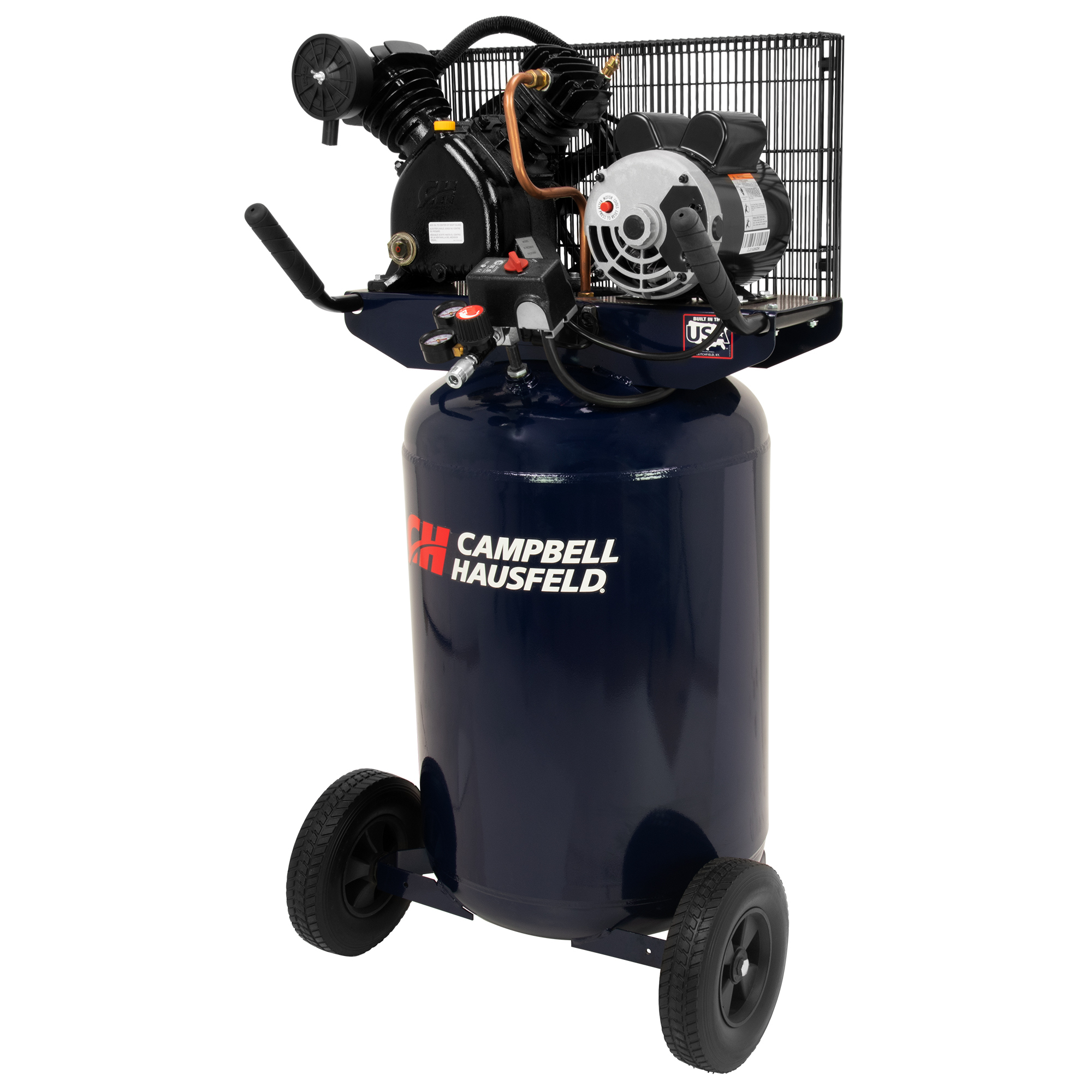

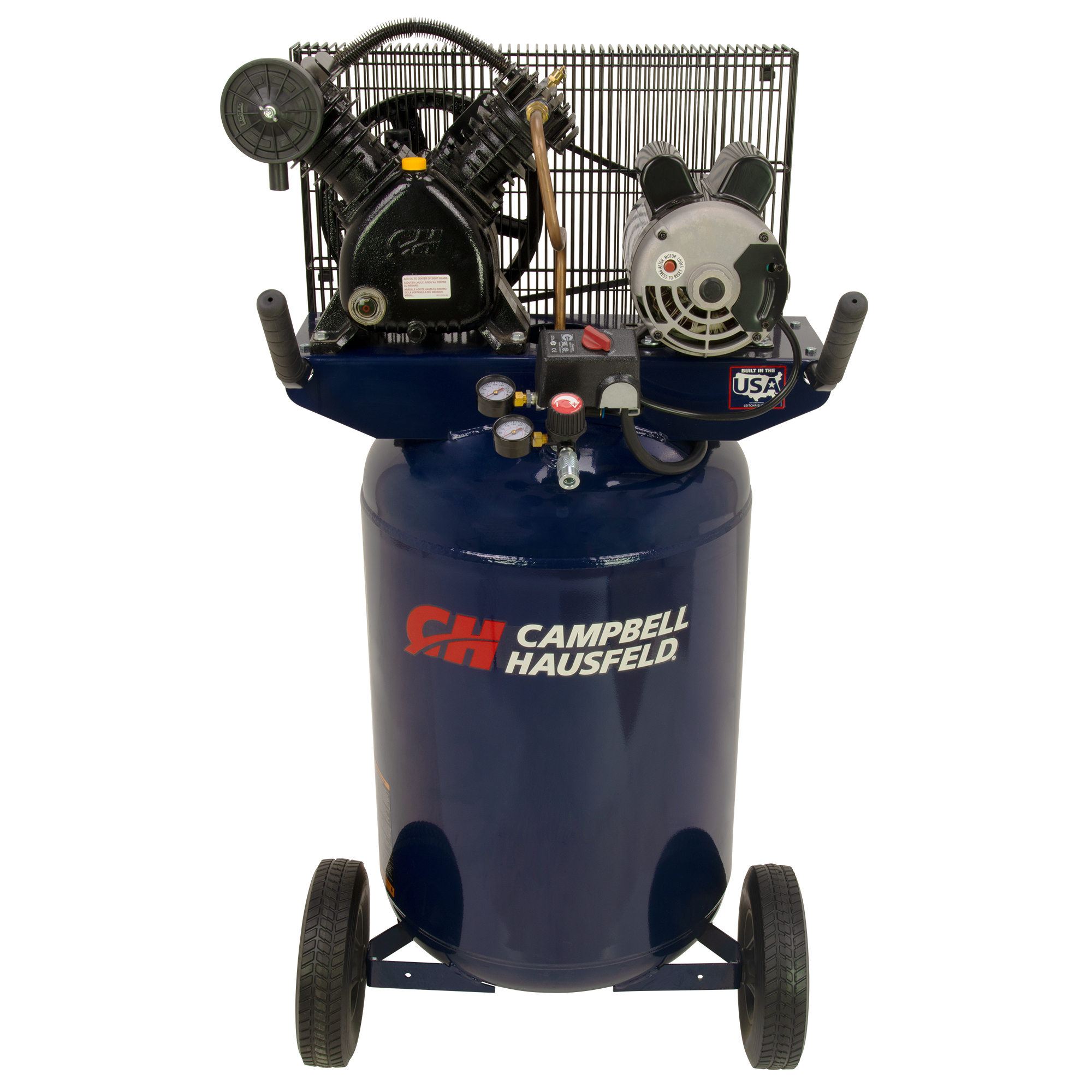

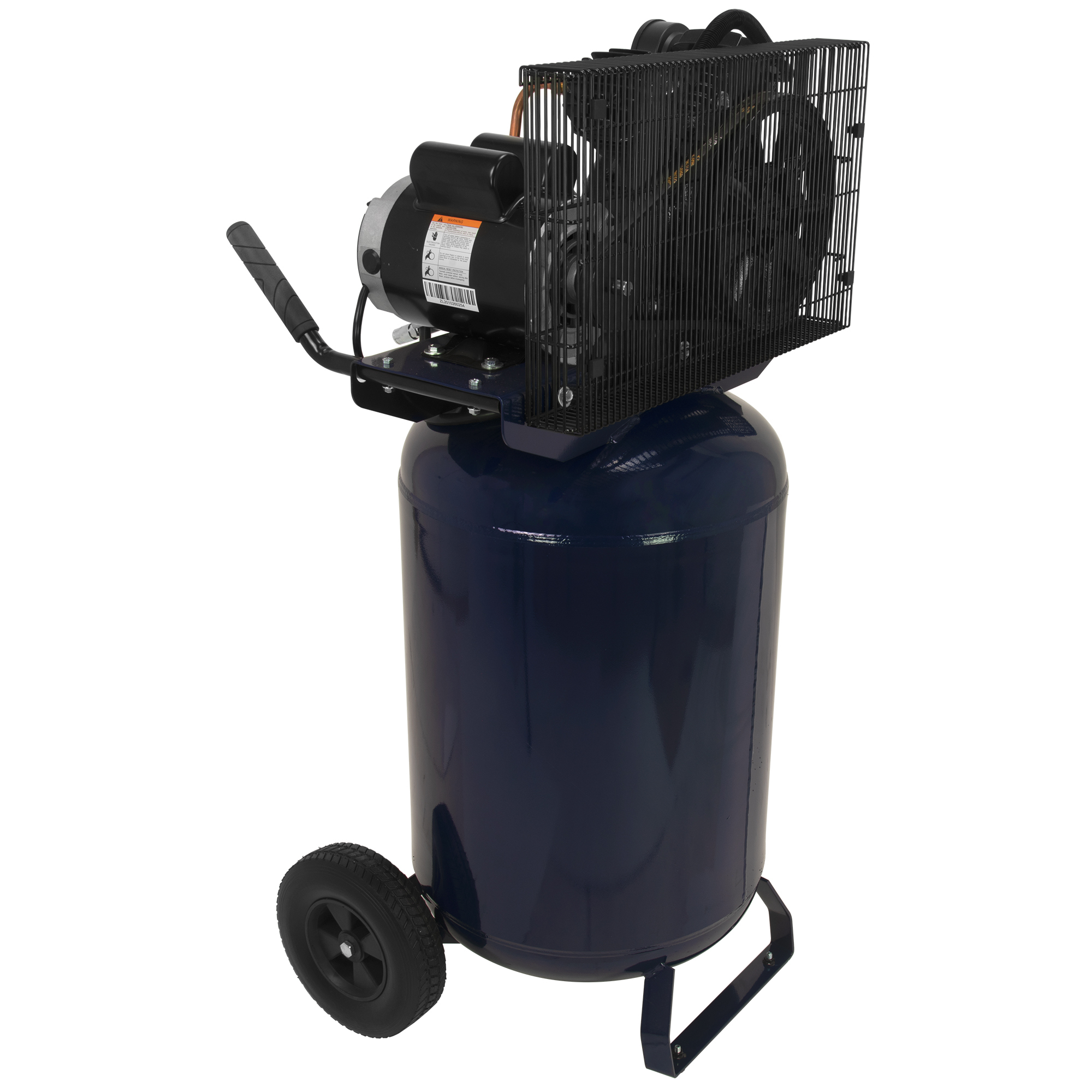

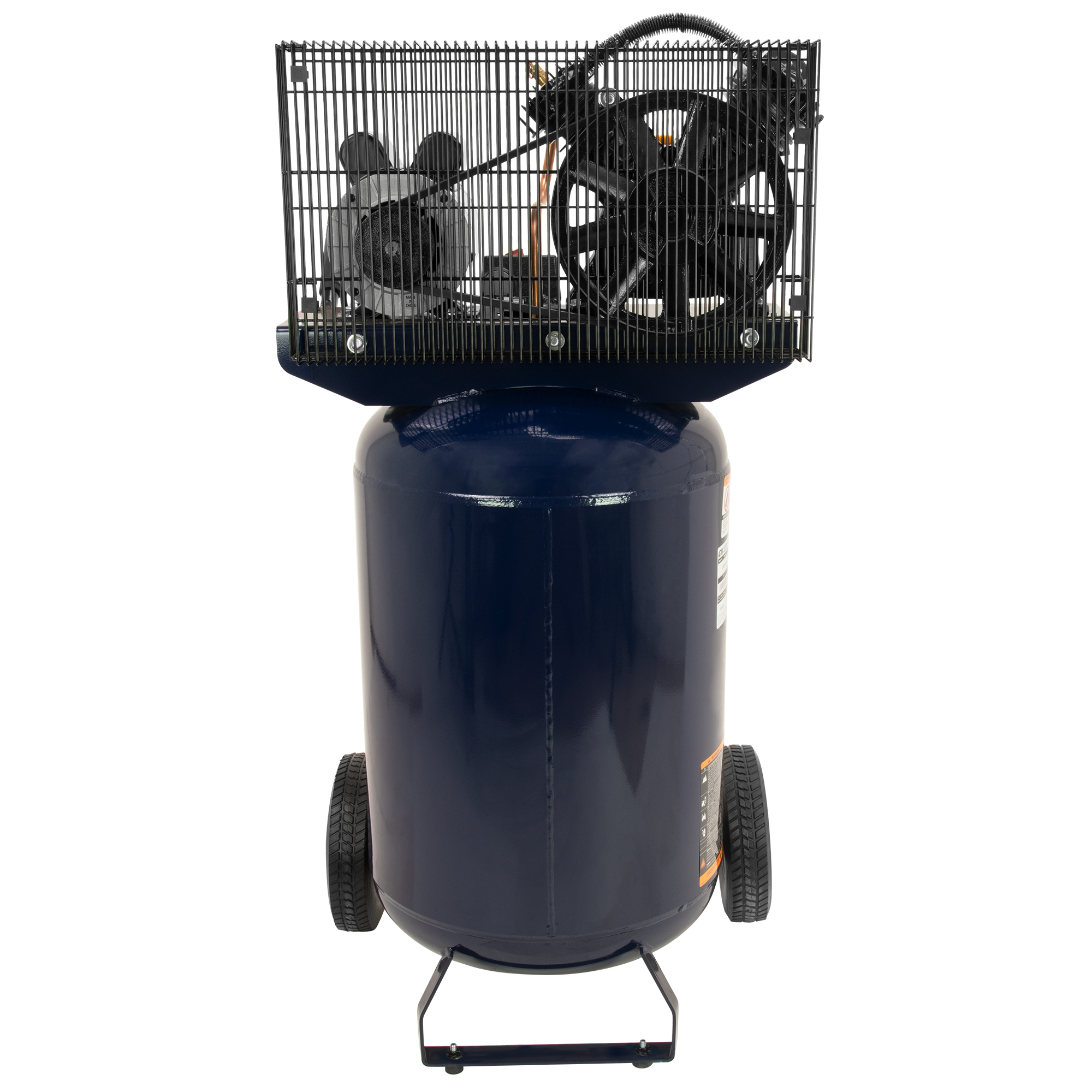

Campbell Hausfeld Dual Voltage Electric Vertical Portable Air Compressor, 30 Gallon, 175 PSI, Model# XC302100

Item# 7304277
Campbell Hausfeld Dual Voltage Electric Vertical Portable Air Compressor, 30 Gallon, 175 PSI, Model# XC302100

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Campbell Hausfeld Dual Voltage Electric Vertical Portable Air Compressor, 30 Gallon, 175 PSI, Model# XC302100

Click or Tap image to Zoom

$859.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Compressor features an oil-lubricated, 2-stage pump to increase the compressor's longevity while reducing noise
  • Air compressor is designed to tackle a wide variety of jobs, from small projects and upholstery to heavy-duty nailing
  • Dual-voltage motor allows the unit to be ran on the household 120-Volt or 240-Volt for the professional or contractor
  • Fully enclosed metal belt guard offers protection from the air compressor's moving parts
  • Compressor boasts air delivery of 4.1 SCFM at 90 PSI

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Campbell Hausfeld, 2-stage 30 Gal., 2 HP vertical portable air compressor (XC302100) can power a variety of air tools for the serious DIYer, professional, or contractor. With a dual-voltage motor that can operate on either 120-Volt or 240-Volt current, this versatile air compressor can work in more locations. Designed for quiet operation, the heavy-duty, cast-iron, 2 cylinder pump is oil lubricated for a long life and delivers 4.1 SCFM at 90 PSI.

What's Included

    (1) compressor

Downloads

Product Manual

Features + Benefits

  • Compressor features an oil-lubricated, 2-stage pump to increase the compressor's longevity while reducing noise
  • Air compressor is designed to tackle a wide variety of jobs, from small projects and upholstery to heavy-duty nailing
  • Dual-voltage motor allows the unit to be ran on the household 120-Volt or 240-Volt for the professional or contractor
  • Fully enclosed metal belt guard offers protection from the air compressor's moving parts
  • Compressor boasts air delivery of 4.1 SCFM at 90 PSI

Key Specs

AttributeSpecification

item#

7304277

Brand

Campbell Hausfeld

Manufacturer's Warranty

3 year limited warranty

Ship Weight

208.0 LB

Horsepower

2 HP

Air Tank Size

30 Gal

Volts

120/240

CFM at 90 PSI

4.1

Max. PSI

90

Stage

2
AttributeSpecification

Motor Phase

1

Pump Material

Cast Iron

Pump Drive

Belt

CFM at 40 PSI

4.4

Noise Level

78 dB

Oil Required

Yes

Electronic Drain Valve

No

Tank Orientation

Vertical

Product Weight

208.0000 lb

Dimensions L x W x H (in.)

32.0 x 31.0 x 55.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

3 year limited warranty
