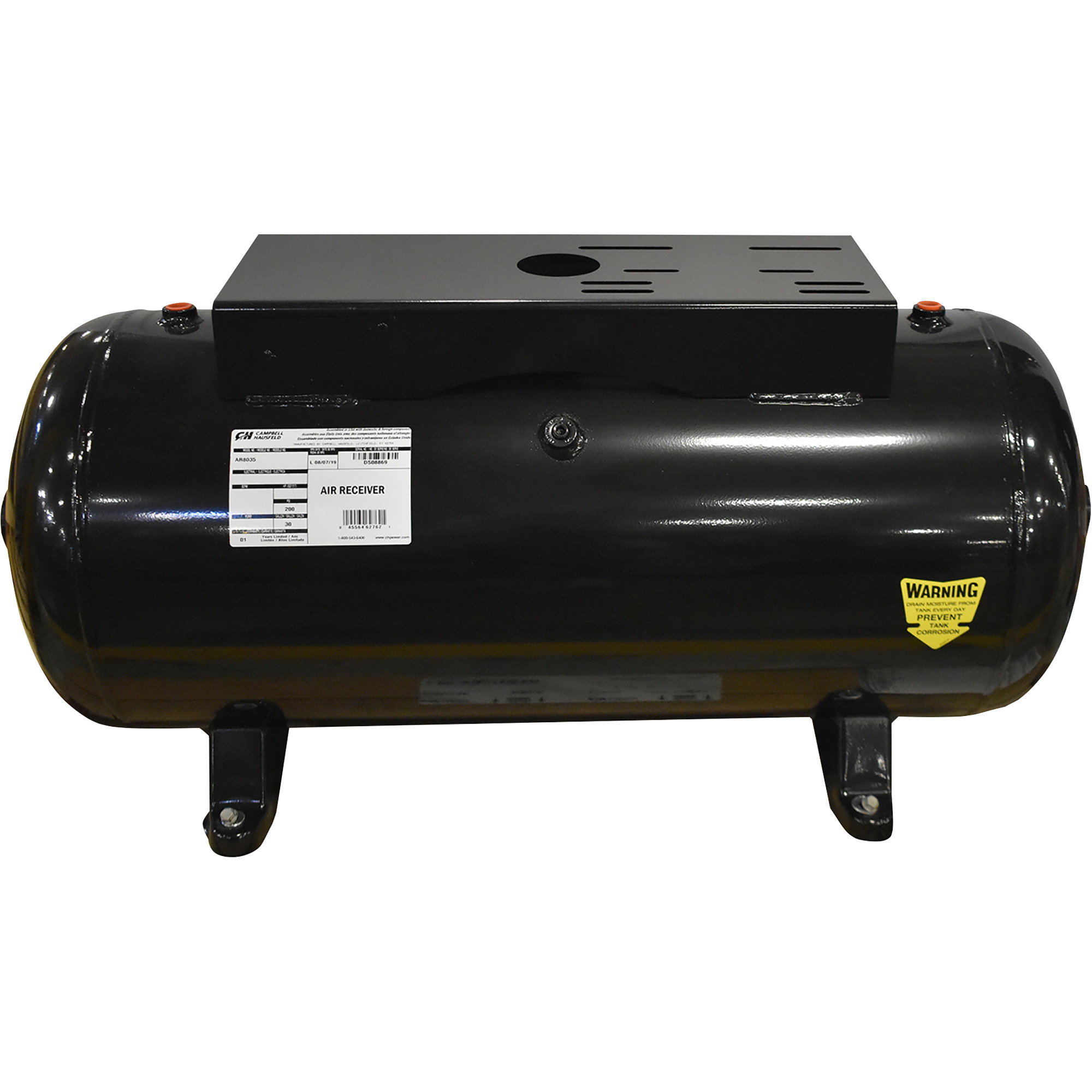

Campbell Hausfeld Air Compressor Receiver Tank, 30-Gallon, Horizontal, 200 PSI, Model# AR8035

Item# 95150
"Campbell Hausfeld Air Compressor Receiver Tank, 30-Gallon, Horizontal, 200 PSI, Model# AR8035"
Campbell Hausfeld Air Compressor Receiver Tank, 30-Gallon, Horizontal, 200 PSI, Model# AR8035

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Campbell Hausfeld Air Compressor Receiver Tank, 30-Gallon, Horizontal, 200 PSI, Model# AR8035

Click or Tap image to Zoom

$619.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 30-gallon horizontal receiver tank is a replacement tank for single-stage air compressors
  • Multiple port locations allow for easy plumbing into and out of tank
  • Meets ASME code
  • 200 PSI max. allowable working pressure (MAWP)
  • Multiple openings and NPT thread sizes

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Campbell Hausfeld ASME certified, 30-gallon air compressor tank (AR8035) is a replacement tank for single-stage air compressors with a maximum working pressure of 200 PSI. Over time, most air compressor tanks will need to be replaced due to the internal formation of rust caused by exposure to the moisture in compressed air. Finish your projects faster and easier with Campbell Hausfeld - the air power expert. Made in U.S.A.

What's Included

    (1) 30-gallon horizontal air receiver tank

Features + Benefits

  • 30-gallon horizontal receiver tank is a replacement tank for single-stage air compressors
  • Multiple port locations allow for easy plumbing into and out of tank
  • Meets ASME code
  • 200 PSI max. allowable working pressure (MAWP)
  • Multiple openings and NPT thread sizes
  • Plugs included in all openings
  • Black powder-coated paint finish
  • Horizontal or vertical mounting options

Key Specs

AttributeSpecification

item#

95150

Brand

Campbell Hausfeld

Manufacturer's Warranty

1 year limited warranty

Ship Weight

166.0 LB

Capacity

30 Gal
AttributeSpecification

Max. PSI

200

Application

Air Storage

Product Weight

166.0000 lb

Dimensions L x W x H (in.)

45.0 x 21.5 x 27.5 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Why does it say for a single stage compressor? Will it work for a double stage?

    1 answer

    1. It is designed to be used with a single stage compressor, but can be used with a double stage compressor as long as the compressor's maximum pressure does not exceed the tank's 200 PSI maximum working pressure.

      Helpful?

  2. What are the dimensions of the mount plate?

    1 answer

    1. The mounting plate measures 23" L x 9" W.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
