Campbell Hausfeld 30 Gallon Portable Air Compressor, 175 PSI, 13HP Honda Gas Engine, Model# CHH1393077

Item# 7321616
New

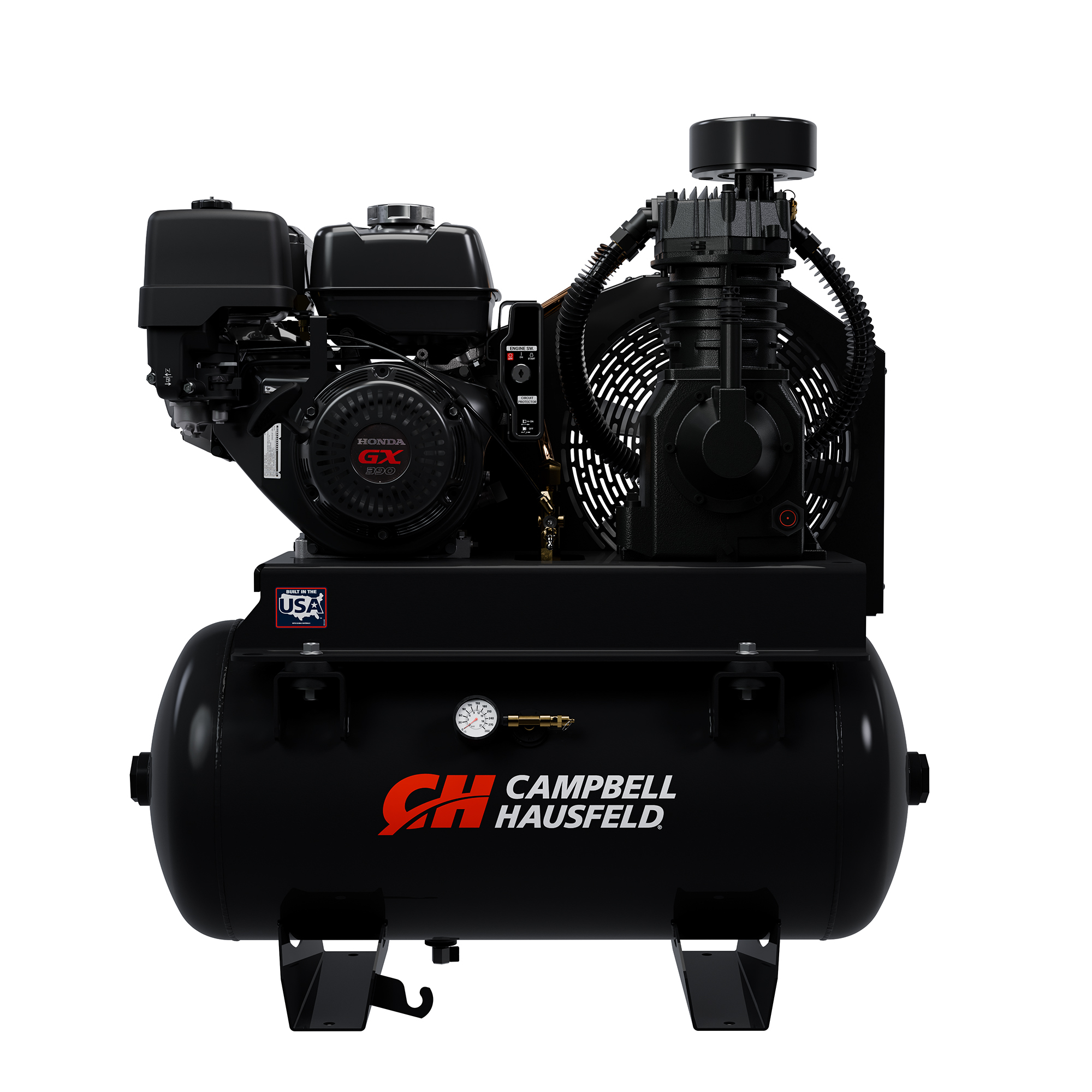

Campbell Hausfeld 30 Gallon Portable Air Compressor, 175 PSI, 13HP Honda Gas Engine, Model# CHH1393077

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Campbell Hausfeld 30 Gallon Portable Air Compressor, 175 PSI, 13HP Honda Gas Engine, Model# CHH1393077

Click or Tap image to Zoom

$3649.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Built for service vehicles and remote field work - combines a long life 2 -stage cast iron pump, Honda gas engine, and vehicle-friendly mounting design to support demanding applications where electrical power is not available
  • Honda GX390 gas engine with reliable electric start, automatic low oil shutdown for added safety, and automatic idle control to save on fuel and reduce noise
  • 30 gallon ASME tank includes liquid filled pressure gauge, large 3/4 inch air outlet ports, and wide channel feet including vibration isolators for added stability
  • 2-stage industrial cast iron pump delivers 24 SCFM @100 PSI and 22 SCFM @175PSI with a working pressure of 145-175 PSI
  • Engine and pump basemount assembly detaches fully from the tank, providing flexibility for vehicle mounting options

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Campbell Hausfeld 30 gallon truck mount compressor is designed for service vehicles and field applications that require high-volume air output without access to electrical power. The 2 stage cast iron industrial pump delivers 24 SCFM at 100 PSI and 22 SCFM at 175 PSI providing sufficient volume to operate multiple air tools simultaneously. A Honda GX390 OHV gas engine with electric start powers the unit efficiently, with automatic low oil shutdown and automatic idle control that reduces engine RPM and fuel consumption when the air tank is full. The 30 gallon ASME-certified tank features an isolated platform engineered to absorb pump and engine vibration to the tank. The engine and pump base mount assembly is removable, allowing for vehicle mounting options.

What's Included

    (1) compressor

Downloads

Product Manual

Features + Benefits

  • Built for service vehicles and remote field work - combines a long life 2 -stage cast iron pump, Honda gas engine, and vehicle-friendly mounting design to support demanding applications where electrical power is not available
  • Honda GX390 gas engine with reliable electric start, automatic low oil shutdown for added safety, and automatic idle control to save on fuel and reduce noise
  • 30 gallon ASME tank includes liquid filled pressure gauge, large 3/4 inch air outlet ports, and wide channel feet including vibration isolators for added stability
  • 2-stage industrial cast iron pump delivers 24 SCFM @100 PSI and 22 SCFM @175PSI with a working pressure of 145-175 PSI
  • Engine and pump basemount assembly detaches fully from the tank, providing flexibility for vehicle mounting options
  • Large 16 in. flywheel and unique belt guard design provide for superior cooling over the pump
  • Multi-groove flat belt drive system largely eliminates the need for belt tensioning
  • Pump is equipped with a large air intake filter, oil level sight glass, high-temperature o-rings for superior high-pressure sealing vs paper gaskets, and a ductile iron optimally balanced crankshaft providing long life, durable, and reliable operation

Key Specs

AttributeSpecification

item#

7321616

Brand

Campbell Hausfeld

Manufacturer's Warranty

3 year limited warranty

Ship Weight

452.0 LB

Horsepower

13 HP

Air Tank Size

30 Gal

Engine Brand

Honda

CFM at 90 PSI

22

Max. PSI

175

Stage

2

Air Outlets (qty.)

2

Working Pressure

145-175 PSI

Engine Start Type

Electric
AttributeSpecification

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

3/4 in. NPT

CFM at 40 PSI

24

Noise Level

75 dB

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Tank Orientation

Horizontal

Product Weight

452.0000 lb

Dimensions L x W x H (in.)

24.0 x 46.0 x 43.0 in
