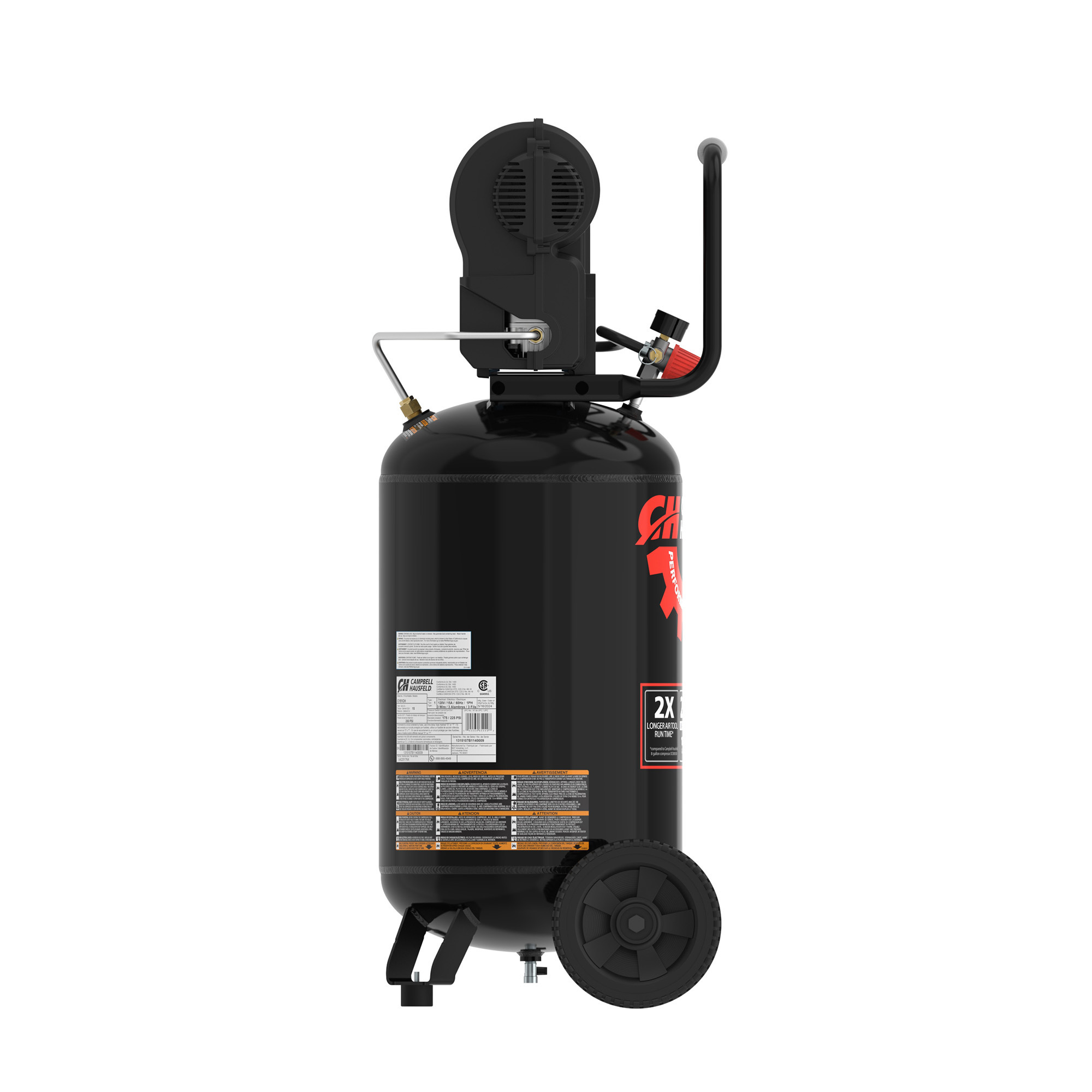

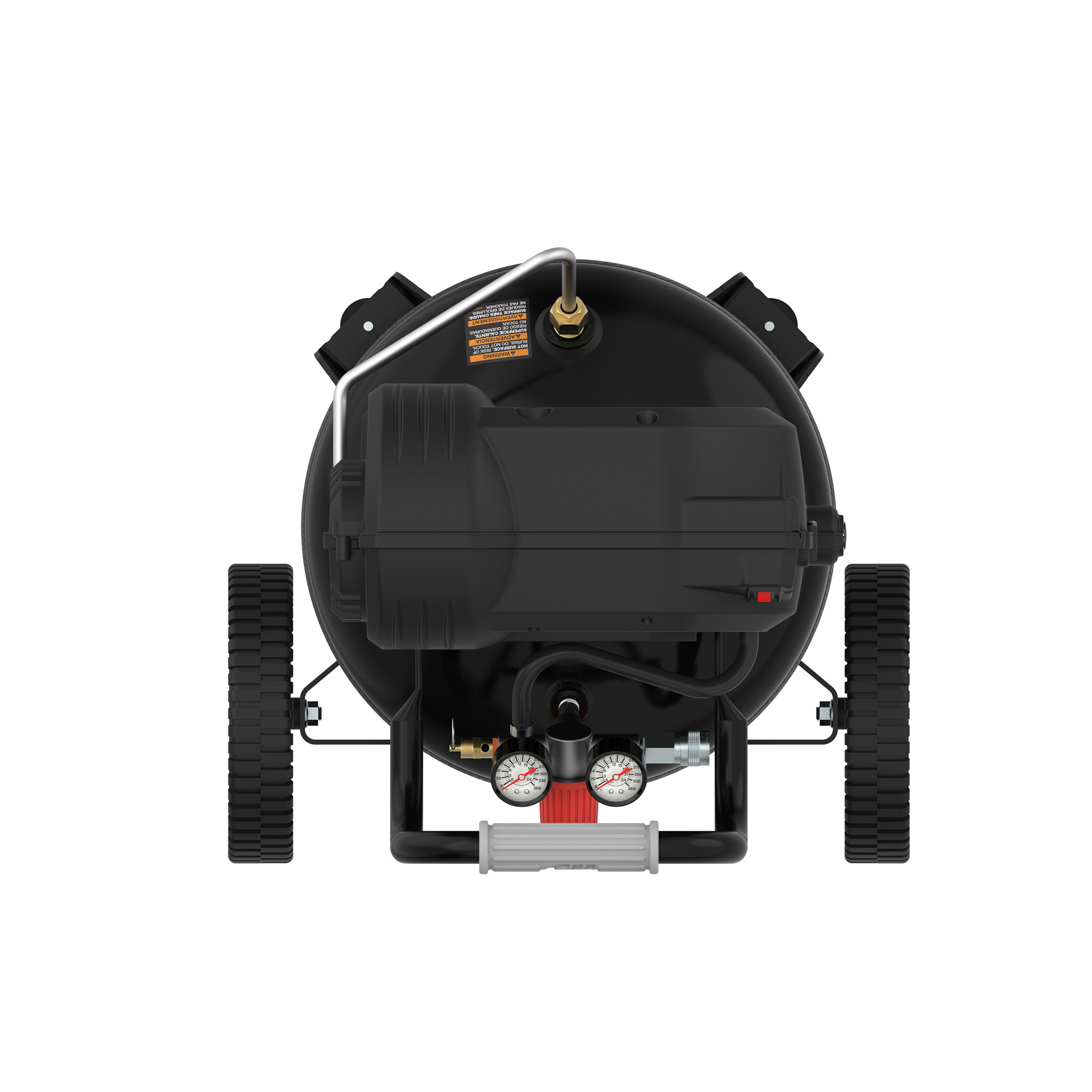

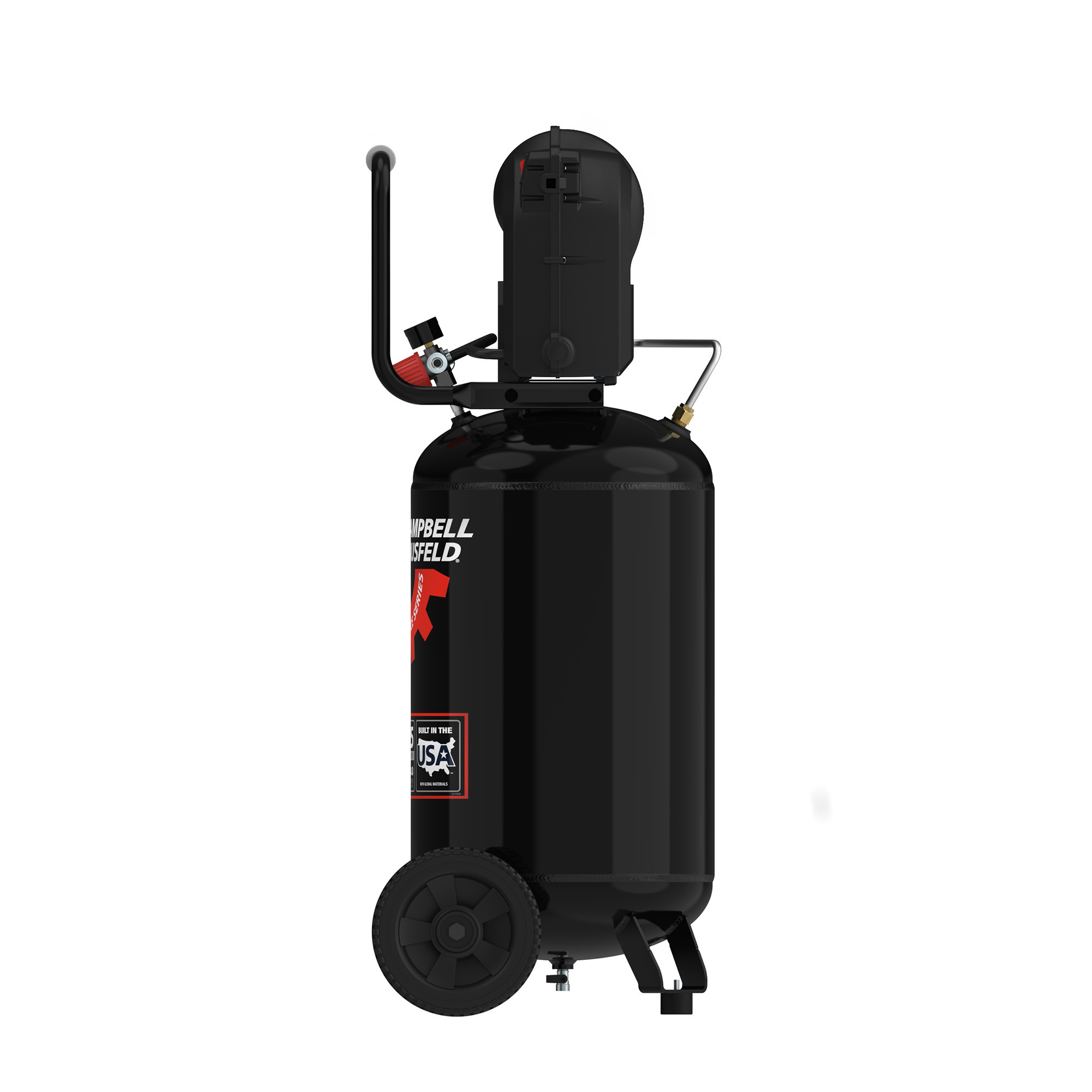

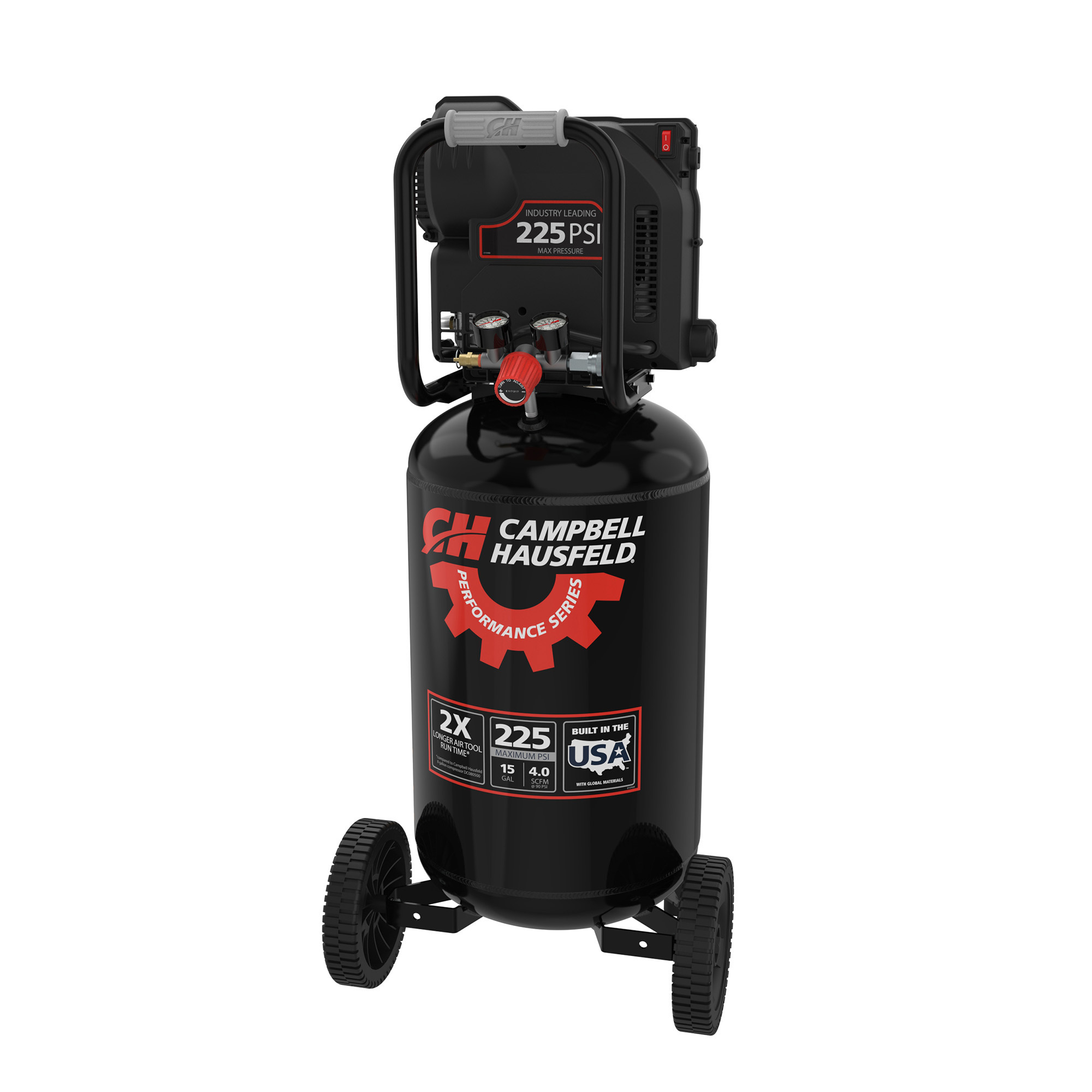

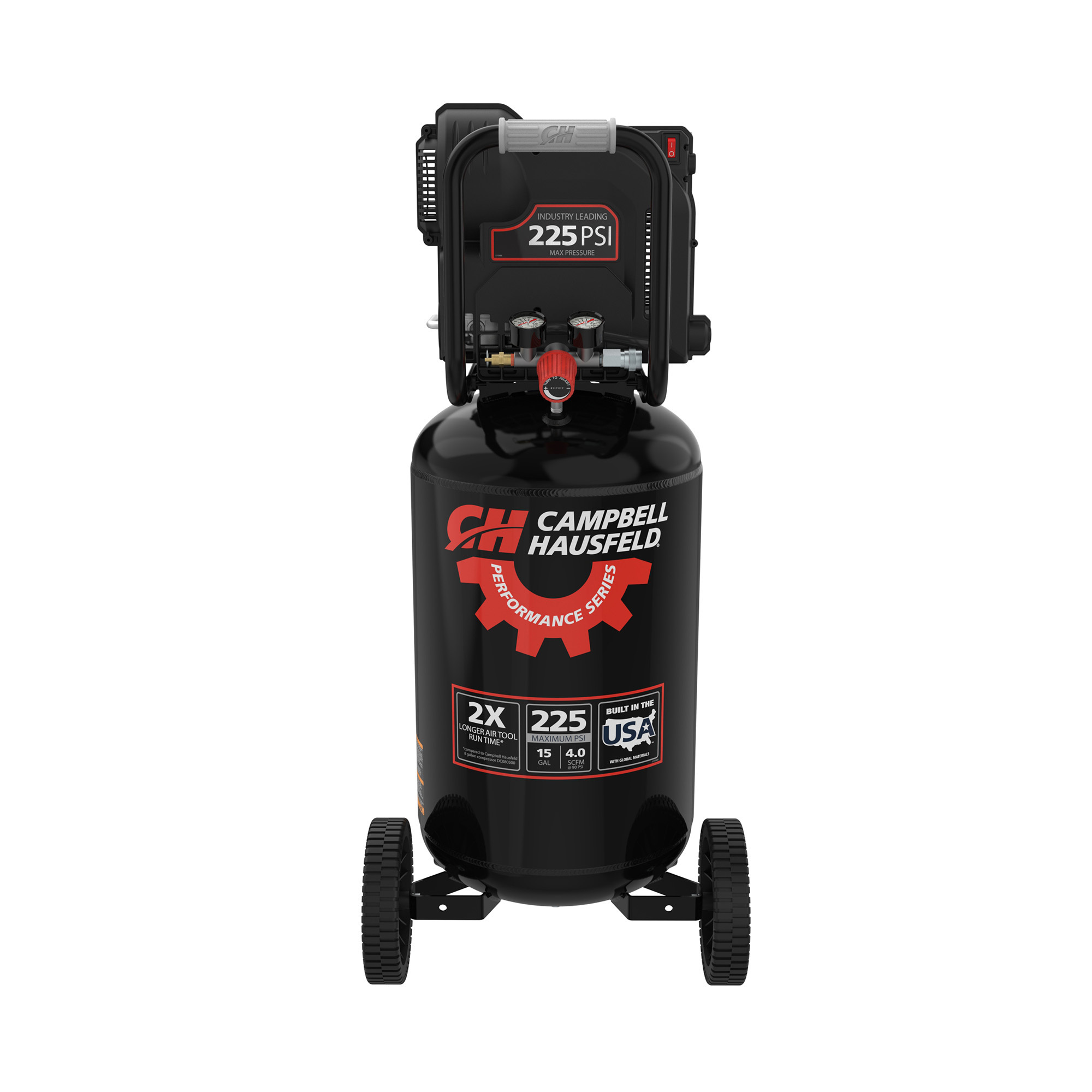

Campbell Hausfeld 15 Gallon 225 PSI Vertical Portable Performance Series Air Compressor, Model# C151CH

Item# 7463286
New
Campbell Hausfeld 15 Gallon 225 PSI Vertical Portable Performance Series Air Compressor, Model# C151CH

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Campbell Hausfeld 15 Gallon 225 PSI Vertical Portable Performance Series Air Compressor, Model# C151CH

Click or Tap image to Zoom

$445.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 225 Max PSI and 4.0 SCFM @ 90 PSI provides more usable air and longer air tool runtimes
  • Highly portable 15 gallon tank size for versatility in the shop and on jobsites
  • Large handle enables maneuverability and provides protection for critical components
  • Oil-free, low maintenance pump enables cold weather starting as low as -20°F (-29°C)
  • High efficiency motor enables operation with extension cords (recommended 12 gauge and less than 100 ft.)

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Campbell Hausfeld 15 Gallon Vertical Portable Performance Series Air Compressor provides a market-leading mix of performance and value. With a best-in-market 225 Max PSI, and delivering 4.0 CFM 90 PSI, you'll enjoy more usable air and longer air tool runtimes - up to 2X longer than comparable models. The oil-free, low maintenance pump enables reliable cold weather starting in temperatures as low as -20°F (-29°C). The vertical, wheeled design with 15-gallon tank is highly versatile and portable for both shop and jobsite use, taking up minimal floor space while providing ample air supply. A large, protective handle improves maneuverability around your workspace while shielding critical components. Built in the USA with global materials.

What's Included

    (1) compressor

Downloads

Product Manual

Features + Benefits

  • 225 Max PSI and 4.0 SCFM @ 90 PSI provides more usable air and longer air tool runtimes
  • Highly portable 15 gallon tank size for versatility in the shop and on jobsites
  • Large handle enables maneuverability and provides protection for critical components
  • Oil-free, low maintenance pump enables cold weather starting as low as -20°F (-29°C)
  • High efficiency motor enables operation with extension cords (recommended 12 gauge and less than 100 ft.)
  • Quick connect coupler for easy hose connection
  • 1.3 HP motor
  • Built in the USA with global materials for reliable performance

Key Specs

AttributeSpecification

item#

7463286

Brand

Campbell Hausfeld

Manufacturer's Warranty

1 year limited warranty

Ship Weight

79.0 LB

Horsepower

1.3 HP

Air Tank Size

15 Gal

Volts

120

CFM at 90 PSI

4

Max. PSI

225

Stage

1

Air Outlets (qty.)

1

Amps

15

Motor Phase

1
AttributeSpecification

Pump Drive

Direct

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

5.2

Noise Level

81 dB

Oil Required

No

Lubrication System

Oil-Free

Pressure Gauge

Yes

Electronic Drain Valve

No

Air Dryer

None

Drain Type

Manual

Product Weight

79.0000 lb

Dimensions L x W x H (in.)

19.0 x 19.0 x 46.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
