Cam Spray Deluxe Wall Mount Electric Pressure Washer — 2 GPM, 1500 PSI, 120V, Auto Start/Stop, Model# 1502WM/SSA

Item# 6700892
Cam Spray Deluxe Wall Mount Electric Pressure Washer — 2 GPM, 1500 PSI, 120V, Auto Start/Stop, Model# 1502WM/SSA

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Cam Spray Deluxe Wall Mount Electric Pressure Washer — 2 GPM, 1500 PSI, 120V, Auto Start/Stop, Model# 1502WM/SSA

Click or Tap image to Zoom

$3130.38

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Manufactured in the USA, Stainless steel frame, Ceramic plungers, stainless steel valves, unloader valve, temperature relief valve, auto start/stop system, industrial motor is thermal protected, low pressure chemical injection, 120V, single phase power

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

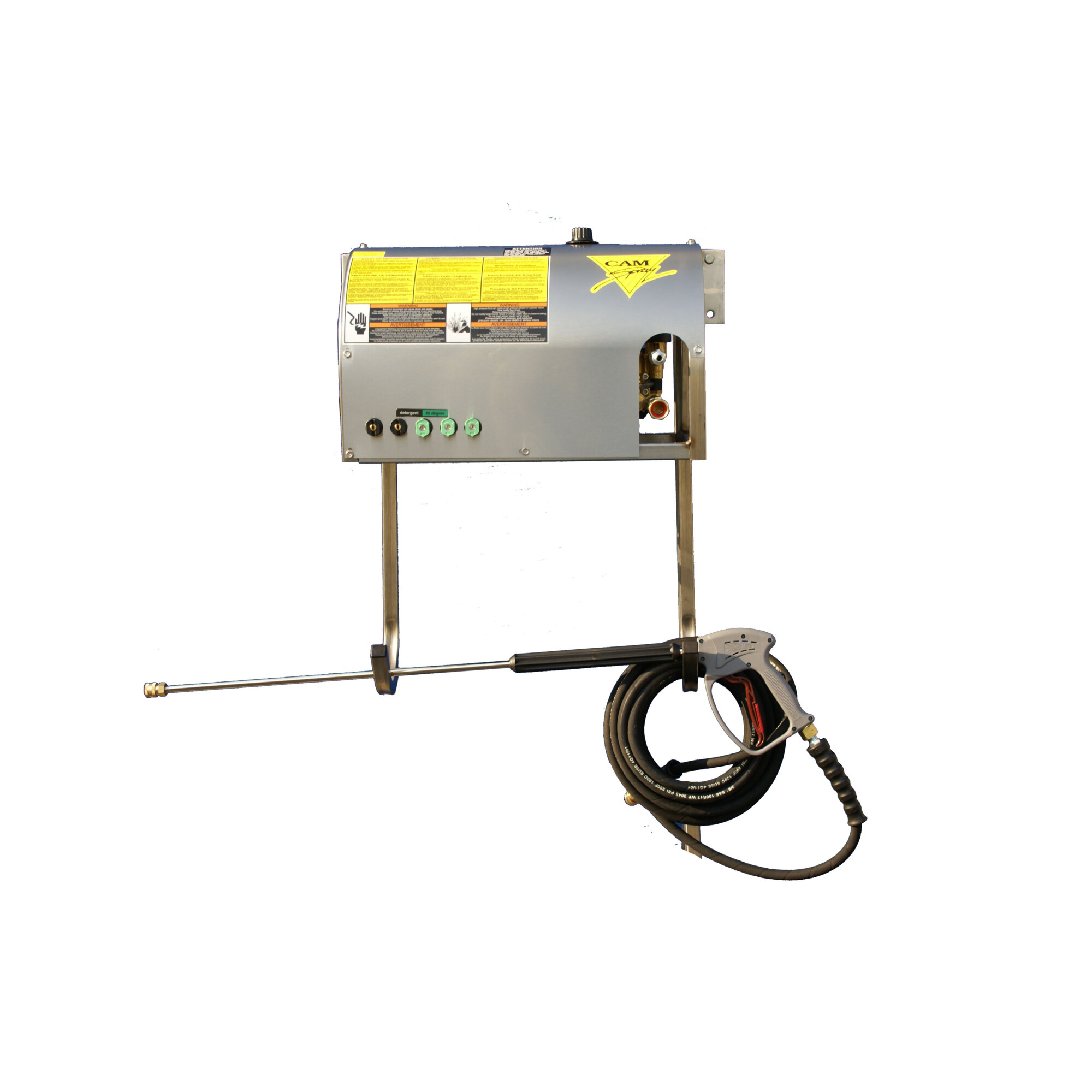

The 1502WM/SSA is a wall mount pressure washer built in a stainless-steel frame with a cover to protect the equipment. This model features a pump with ceramic plungers (3), and stainless-steel valves (6), unloader valve and a 140-degree temperature relief valve. This pump is also equipped with an auto start/stop system. When the power switch on the machine is the "on" position, the auto start/stop is activated. When the trigger gun is open, the motor starts, when the gun is closed, the motor stops. The 2.0 horsepower industrial motor is thermally protected and operates on 120 Volt/20amp single phase service. Included is a 50’ hose, trigger gun, 0,15, 25, 40 and a low-pressure chemical nozzle. The chemical injector is activated only with the use of the low-pressure nozzle. This provides low-pressure application of soap or finish protection. A mixing valve on the machine cover allows you to choose from 2 different choices of liquid concentrated solution, the knob on the cover will turn it on and control the ratio of soap to water.   A wall plate is included, designed to attach adequate anchors to a reinforced wall. The wall mount frame is built with hooks to hang the pressure washer on the wall bracket. The machine should be hooked to a hydrant with no less than 15’ of 3/4” flexible garden hose. This is required to be sure there is ample water supply to the pump and also will suppress any shock that would cause failure of the pump inlet seals when machine is bypassed.

What's Included

    (2) Pressure washer, hose, gun, wand, nozzles

Downloads

Additional Product Info

Features + Benefits

  • Manufactured in the USA, Stainless steel frame, Ceramic plungers, stainless steel valves, unloader valve, temperature relief valve, auto start/stop system, industrial motor is thermal protected, low pressure chemical injection, 120V, single phase power

Key Specs

AttributeSpecification

item#

6700892

Brand

Cam Spray

Manufacturer's Warranty

No limited warranty

Ship Weight

150.0 LB

Pressure

1,500 PSI

Flow

2 GPM

Volts

120

Drive Style

Direct

Dedicated Power Source Required

Yes

Fuel Type

Electric
AttributeSpecification

Steam Capable

No

Chemical Injector

Yes

Adjustable Pressure

Yes

Pump Oil Included

No

Low Oil Shutdown

No

Thermal Protector

Yes

Cart Included

No

Product Weight

118.0000 lb

Dimensions L x W x H (in.)

23.0 x 16.0 x 31.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

No limited warranty
