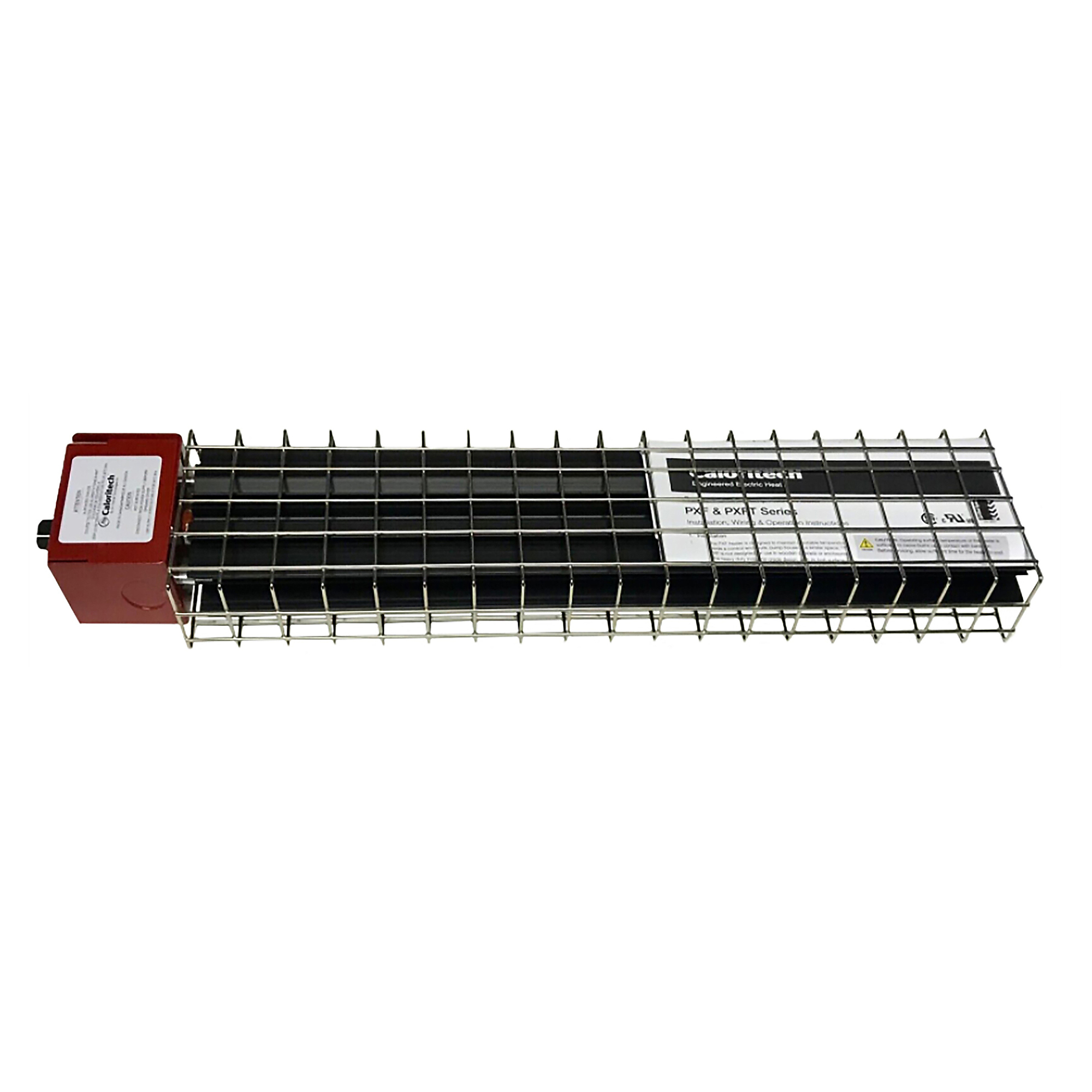

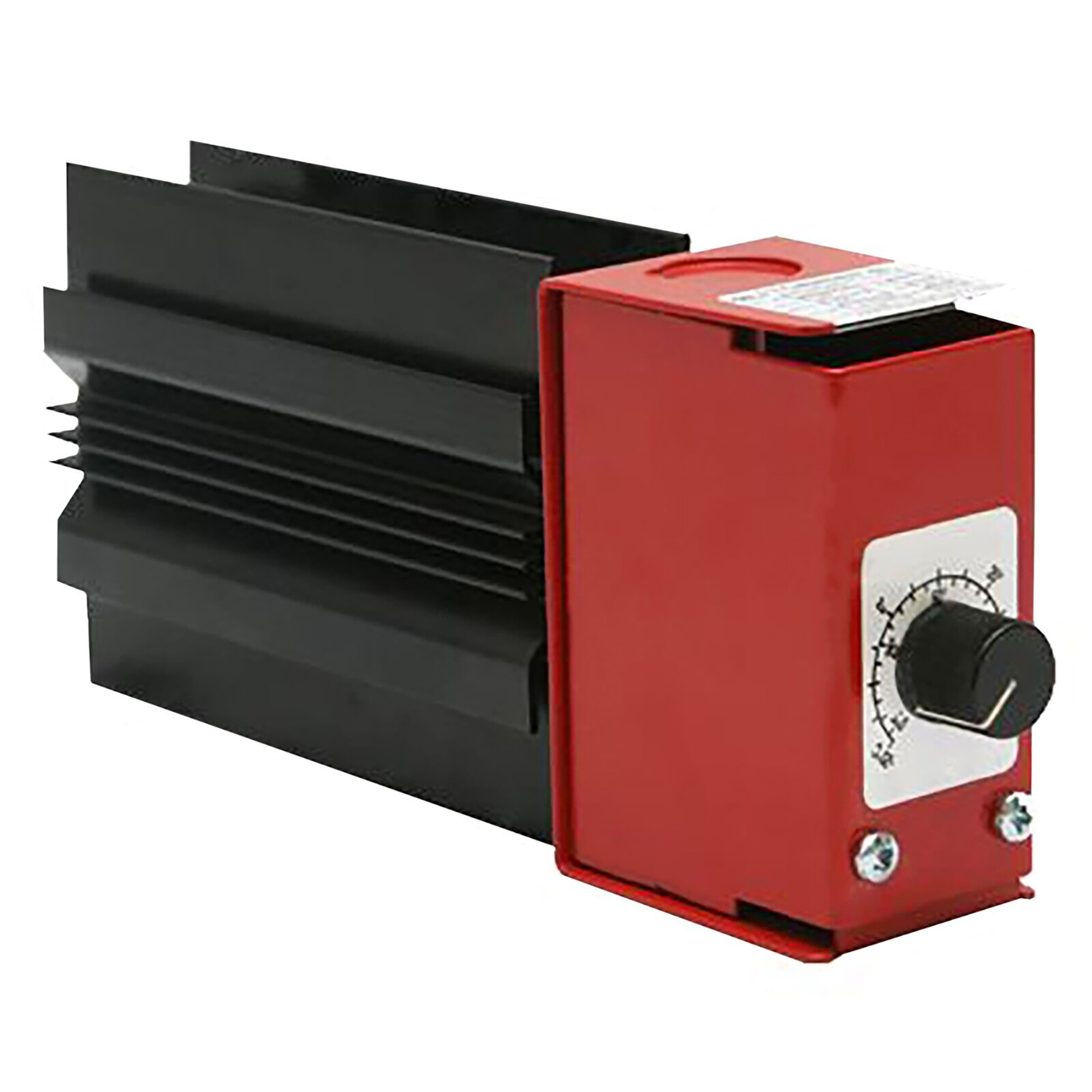

Caloritech, PXFT Series Pump House Heater c/w Tstat 120V 1O, Heat Type Convection, Heat Output 1024 Btu/hour, Model# PXFT30011

Item# 5738418
Caloritech, PXFT Series Pump House Heater c/w Tstat 120V 1O, Heat Type Convection, Heat Output 1024 Btu/hour, Model# PXFT30011

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Caloritech, PXFT Series Pump House Heater c/w Tstat 120V 1O, Heat Type Convection, Heat Output 1024 Btu/hour, Model# PXFT30011

Click or Tap image to Zoom

$339.15

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Caloritech™ PXFT heaters are designed to maintain a stable temperature inside control enclosures, pump houses or similar spaces.
  • The PXFT heater uses a high surface area aluminum heat emitter to eliminate the need for a fan while providing low radiation and high convection heating to the enclosure.
  • The standard units are not suitable for use outdoors, unprotected from the weather.

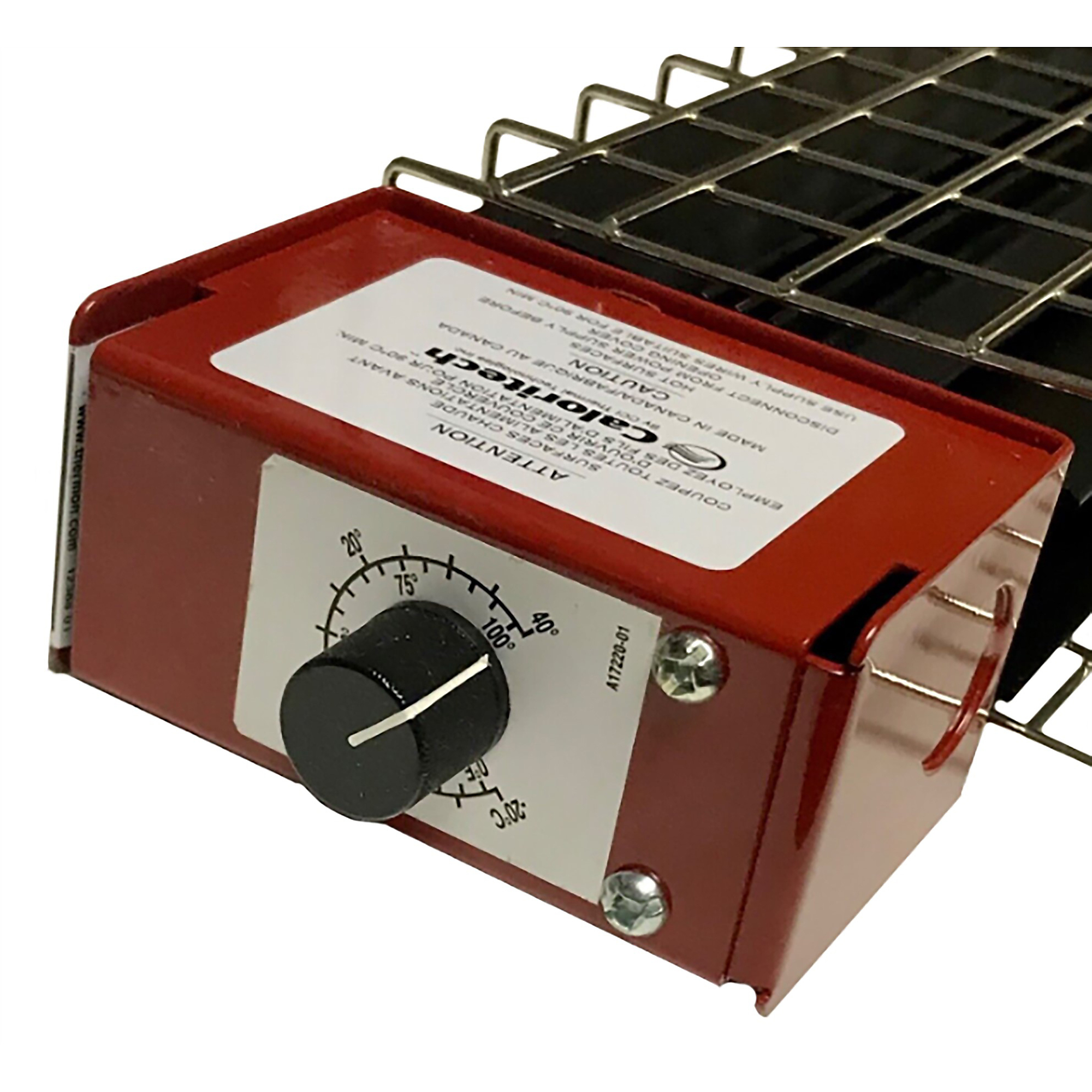

  • All heaters have a built-in thermostat. The heater is also available without a thermostat on special order.

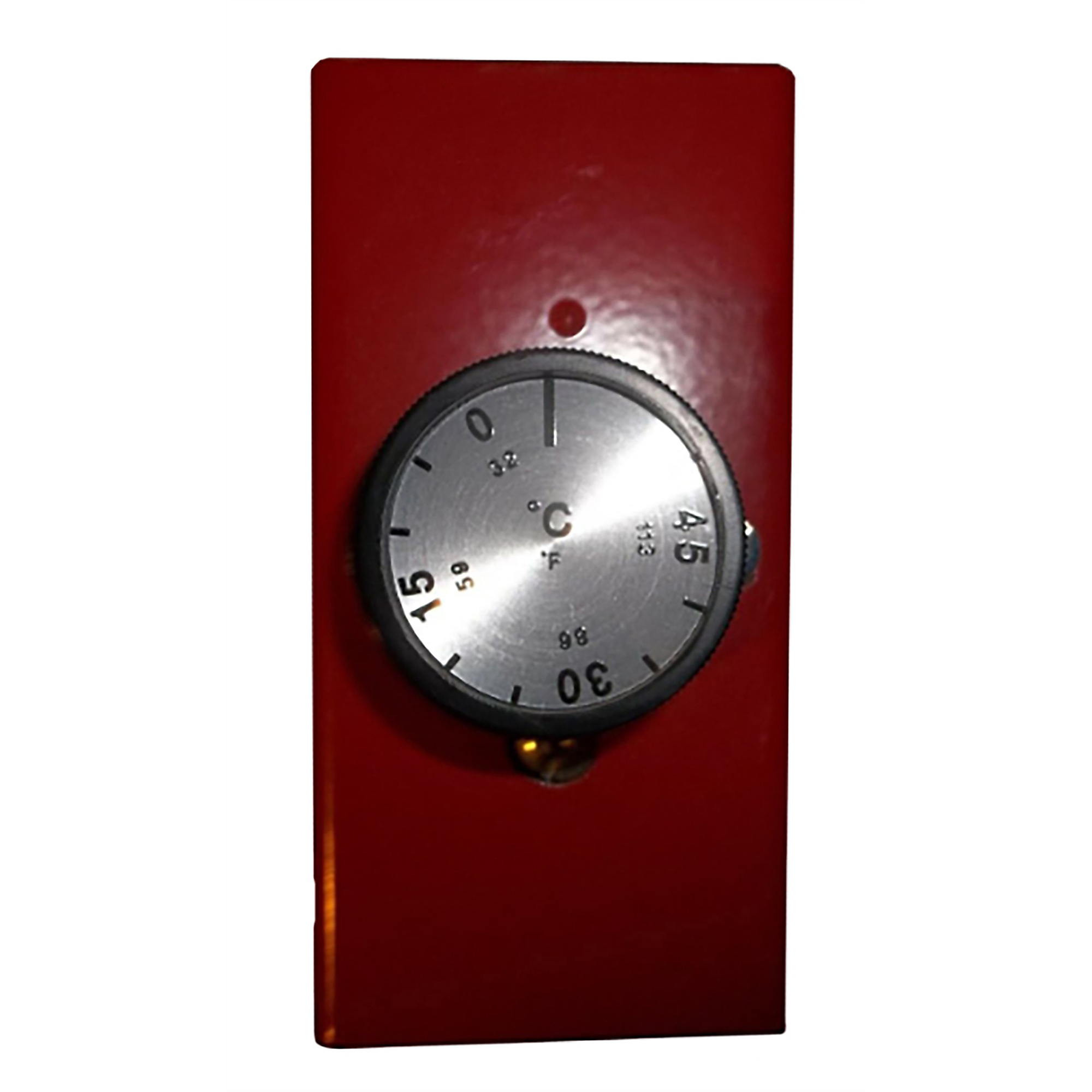

  • The thermostat rating is 25 A at 240V, Single Pole, Single Throw, adjustable from 30°F to 120°F (0°C to 50°C).

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Application - Caloritech PXFT heaters are designed to maintain a stable temperature inside control enclosures, pump houses or similar spaces. The standard units are not suitable for use outdoors, unprotected from the weather. All heaters have a built-in thermostat. The heater is also available without a thermostat on special order. Features - The PXFT heater uses a high surface area aluminum heat emitter to eliminate the need for a fan while providing low radiation and high convection heating to the enclosure. The thermostat rating is 25 A at 240V, Single Pole, Single Throw, adjustable from 30°F to 120°F (0°C to 50°C). A movable bracket allows the heater to be floor or wall mounted with the terminal box located on the left or right side, top or bottom. Wire guards are provided standard with the PXFT-300, PXFT-400 and PXFT-600-watt heaters, and are available as an option on the PXFT-050, PXFT-125, and PXFT-200-watt units. Moisture-resistant heaters (shown below) are available on special order. Selection - The wattage requirement is determined from a consideration of the surface area, insulation properties of the enclosure or space and the temperature difference between the ambient and the enclosure. For small enclosures (less than 100ft.2 (9.3 m2) surface area) conservative values for heat losses are as shown in Table 4 page C6. Installation - Caloritech PXFT heater is approved for horizontal or vertical mounting on the floor or lower wall of the enclosure. Heaters must be installed using the mounting bracket provided to ensure minimum spacing between the heater and the wall or floor. Try to maximize the spacing between the heater and temperature sensitive components. Surface temperatures of the 50 -watt and 125-watt units are about 212°F (100°C) and 338°F (170°C) respectively. The other units listed operate around 410°F (210°C). Panel Enclosure Heaters – Types PH and PXFT
  • Designed to prevent condensation and freezing in control panels, eliminating costly damage and down time.
  • PH heater is available in four wattages ranging from 125 to 800W and utilizes a fan to circulate air in the panel, reducing temperature stratification.
  • PXFT heater is a natural convection heater, available in wattages from 50 to 600W.
  • Both types have built in thermostat control.

    • What's Included

      (1) Caloritech™ PXFT Electric Control Panel and Pump House Heater c/w T'stat, 300W

    Features + Benefits

    • Caloritech™ PXFT heaters are designed to maintain a stable temperature inside control enclosures, pump houses or similar spaces.
    • The PXFT heater uses a high surface area aluminum heat emitter to eliminate the need for a fan while providing low radiation and high convection heating to the enclosure.
    • The standard units are not suitable for use outdoors, unprotected from the weather.
    • All heaters have a built-in thermostat. The heater is also available without a thermostat on special order.
    • The thermostat rating is 25 A at 240V, Single Pole, Single Throw, adjustable from 30°F to 120°F (0°C to 50°C).
    • A movable bracket allows the heater to be floor or wall mounted with the terminal box located on the left or right side, top or bottom.

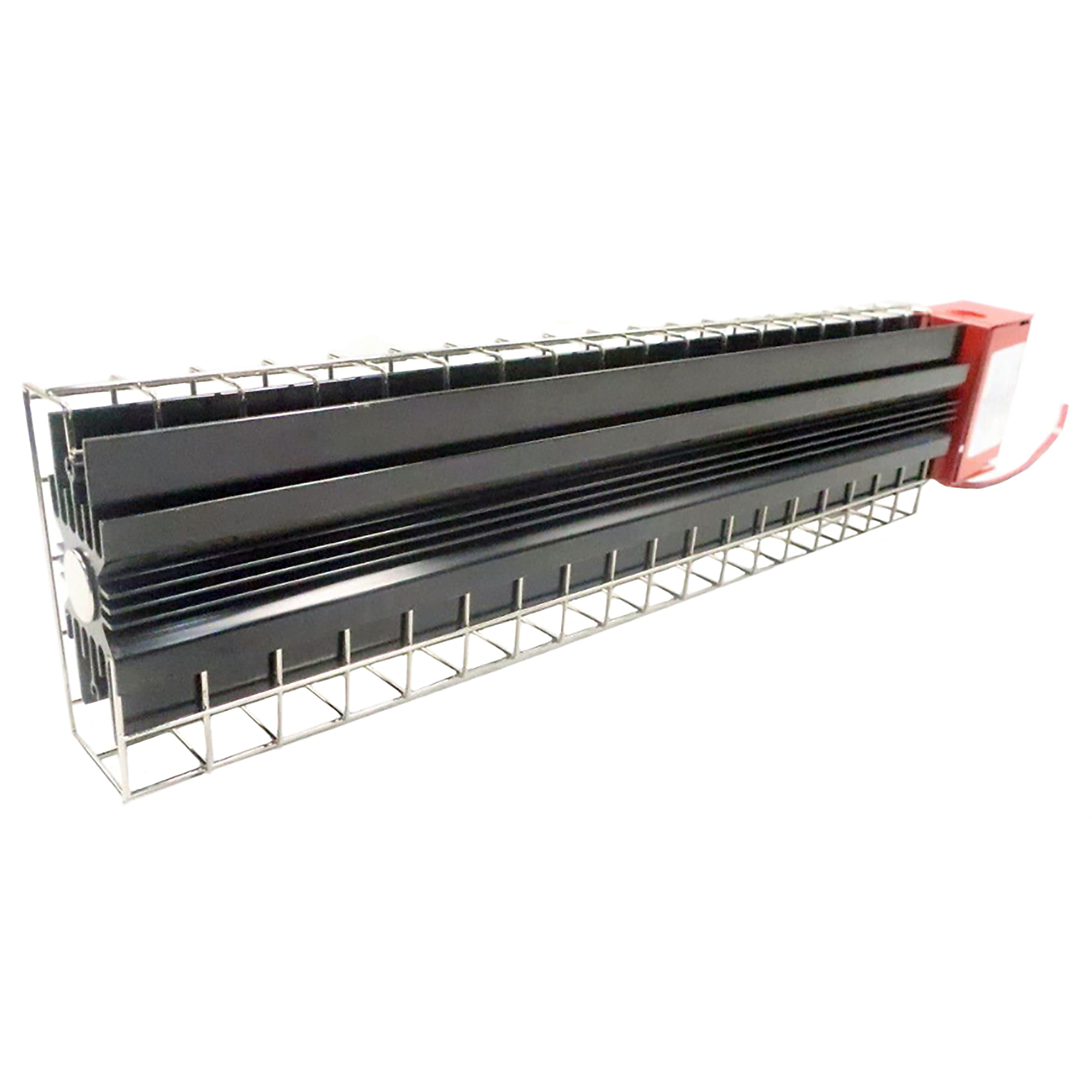

    • Wire guards are provided standard with the PXFT-300, PXFT-400 and PXFT-600-watt heaters, and are available as an option on the PXFT-050, PXFT-125, and PXFT-200-watt units.
    • Moisture-resistant heaters are available on special order.
    • Caloritech™ PXFT heater is approved for horizontal or vertical mounting on the floor or lower wall of the enclosure.
    • Heaters must be installed using the mounting bracket provided to ensure minimum spacing between the heater and the wall or floor. Try to maximize the spacing between the heater and temperature sensitive components.
    • Surface temperatures of the 50 -watt and 125-watt units are about 212°F (100°C) and 338°F (170°C) respectively. The other units listed operate around 410°F (210°C).
    • Designed to prevent condensation and freezing in control panels, eliminating costly damage and down time.
    • PH heater is available in four wattages ranging from 125 to 800W and utilizes a fan to circulate air in the panel, reducing temperature stratification.
    • PXFT heater is a natural convection heater, available in wattages from 50 to 600W.

    Key Specs

    AttributeSpecification

    item#

    		5738418

    Brand

    		Caloritech

    Manufacturer's Warranty

    		1 year limited warranty

    Ship Weight

    		8.0 LB

    Heat Type

    		Convection

    Heat Output

    		1,024 Btu/hour

    Hardwired

    		Yes

    Indoor-Outdoor Use

    		Indoor

    Volts

    		120

    Watts

    		300

    Amps

    		2.5
    AttributeSpecification

    Assembled Width

    		4.25 in

    Assembled Height

    		5.75 in

    Assembled Depth

    		15 in

    Needs Direct Venting

    		No

    Remote Included

    		No

    Regulator Included

    		No

    Tip-Over Safety Switch

    		No

    Blower Included

    		No

    Oscillating

    		No

    Product Weight

    		4.0000 lb

    Dimensions L x W x H (in.)

    		15.0 x 4.25 x 5.75 in
