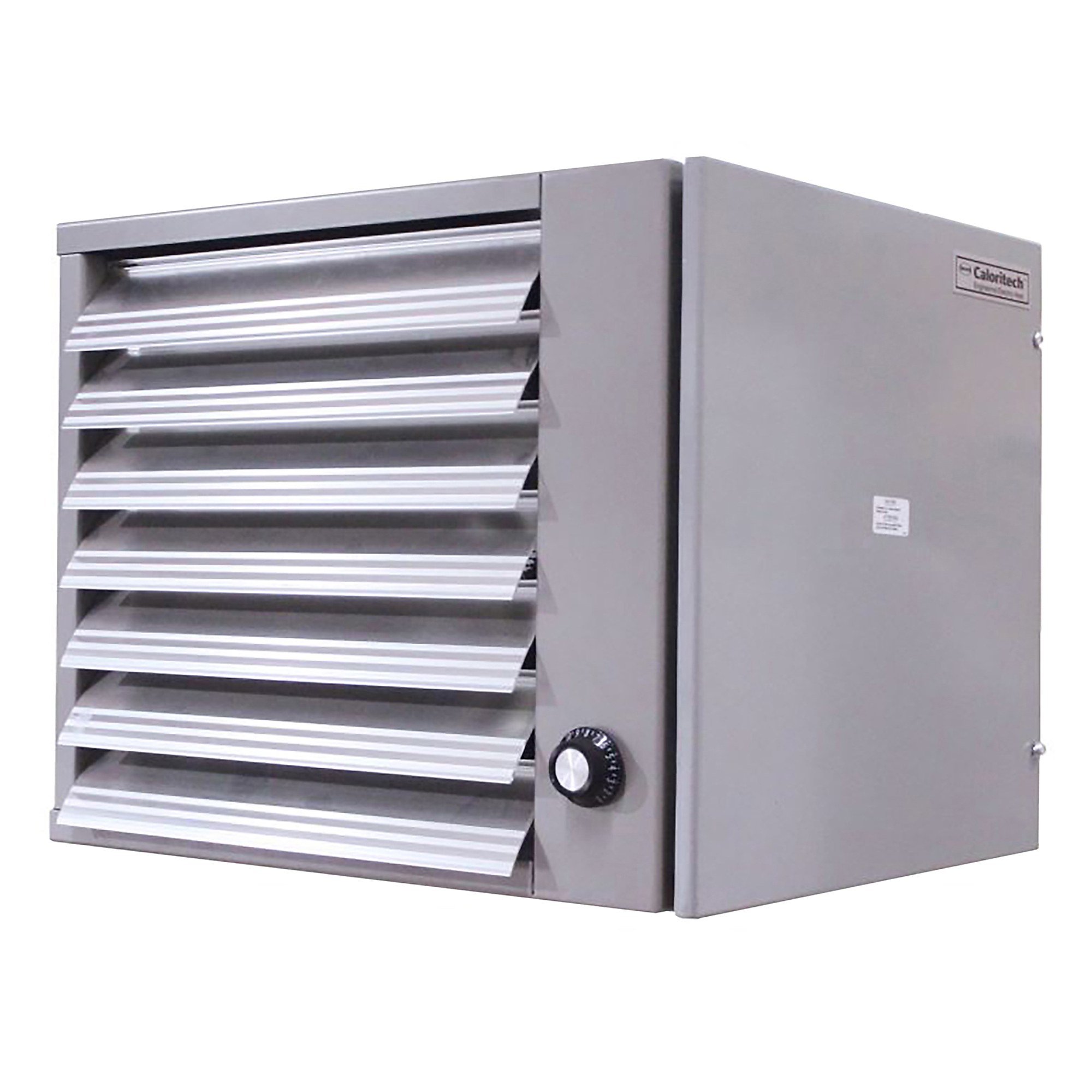

Caloritech™ GX Series Heavy Duty Forced Air Unit Heater c/w Contactor & T'stat, 600V 3Ø 40kW

Item# 7387498
New
Caloritech™ GX Series Heavy Duty Forced Air Unit Heater c/w Contactor & T'stat, 600V 3Ø 40kW

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Caloritech™ GX Series Heavy Duty Forced Air Unit Heater c/w Contactor & T'stat, 600V 3Ø 40kW

Click or Tap image to Zoom

$3829.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Specifically Designed for Application in Non-Hazardous Environments: – Mine shafts – Pulp and paper mills – Hoist houses – Welding shops – Maintenance shops – Sewage treatment plants – Chemical plants – Repair shops – Wash down areas – Weigh scale pits – Elevator shafts – High humidity areas – Crane cabs
  • CSA approved for horizontal and vertical air flow
  • Automatic reset high?limit
  • 15, 20, 25, 30, 40, 50 kW Heavy Duty Commercial/Industrial Space Heater Units Available
  • 40 and 50 kW units incorporate split loads (50%) for remotely controlled energy management systems

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

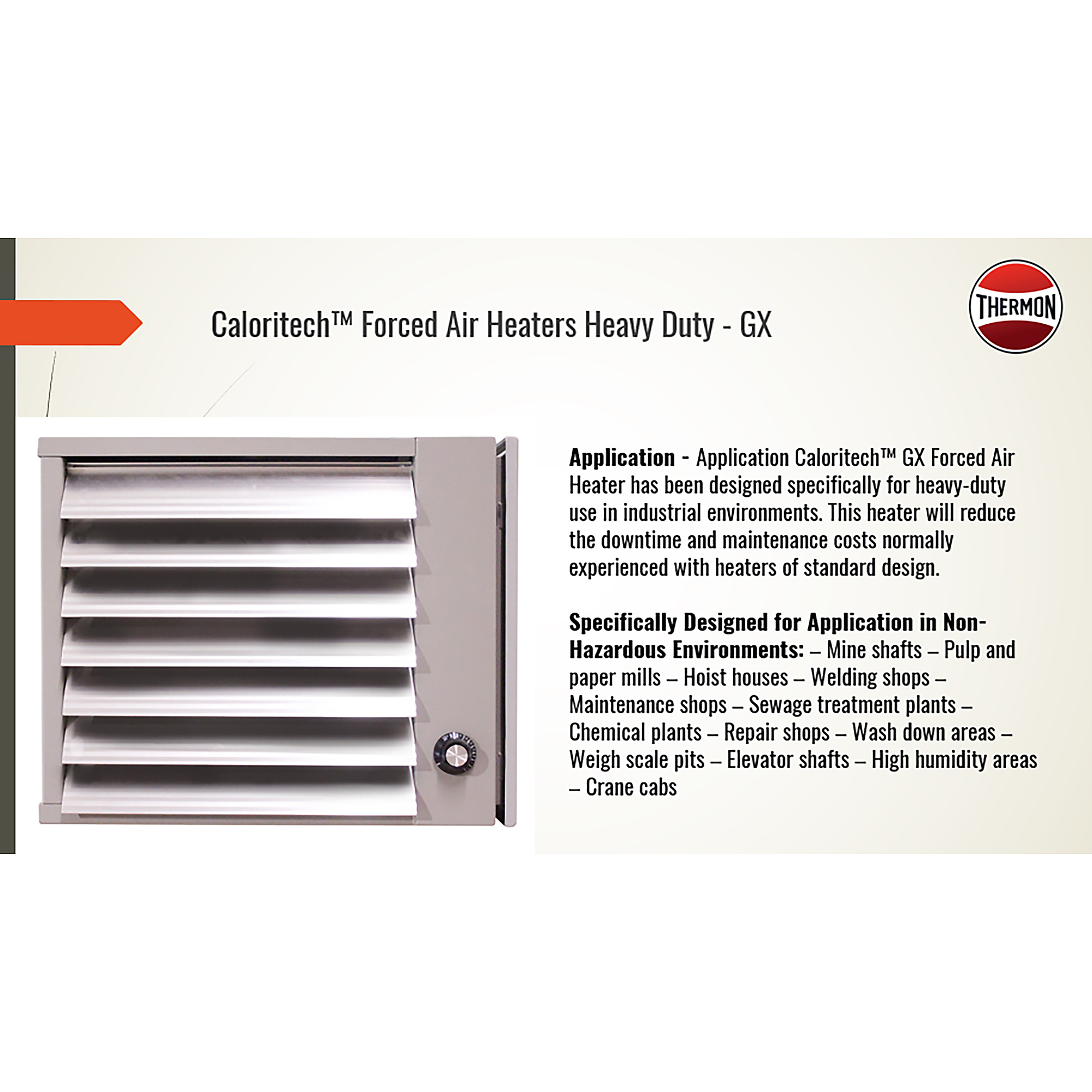

Caloritech™GX Series Heavy Duty Forced Air Unit Heaters are specifically engineered for heavy duty use in industrial environments, such as mine shafts, pulp paper mills, hoist houses, welding shops, maintenance shops, sewage treatment plants, chemical plants, weigh scale pits, elevator shafts, crane cabs and more. The heavy duty construction of this heater will reduce the downtime and maintenance costs associated with standard design heaters.

What's Included

    (1) Caloritech™ GX Series Heavy Duty Forced Air Unit Heater c/w Contactor & T'stat, 600V 3Ø 40kW

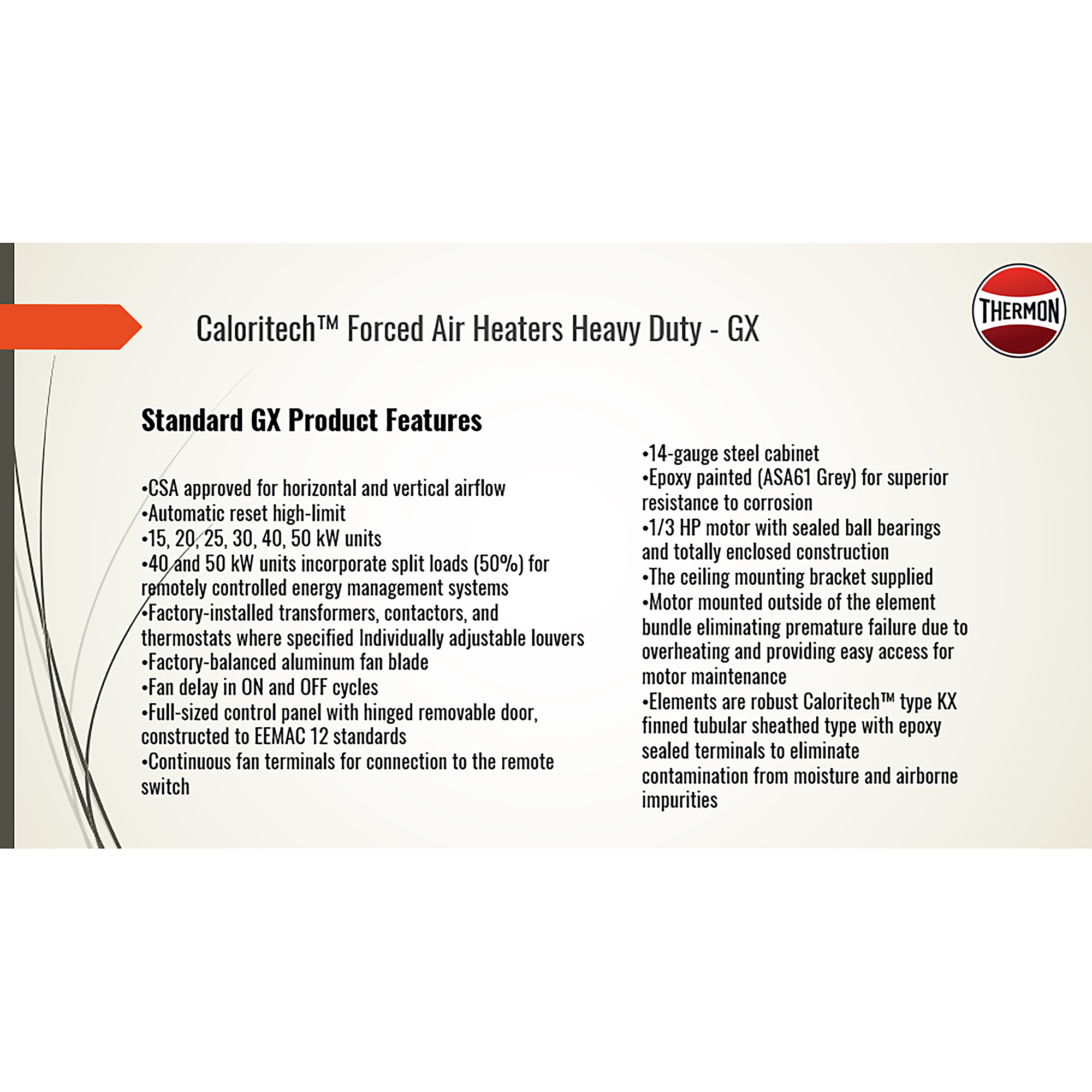

Features + Benefits

  • Specifically Designed for Application in Non-Hazardous Environments: – Mine shafts – Pulp and paper mills – Hoist houses – Welding shops – Maintenance shops – Sewage treatment plants – Chemical plants – Repair shops – Wash down areas – Weigh scale pits – Elevator shafts – High humidity areas – Crane cabs
  • CSA approved for horizontal and vertical air flow
  • Automatic reset high?limit
  • 15, 20, 25, 30, 40, 50 kW Heavy Duty Commercial/Industrial Space Heater Units Available
  • 40 and 50 kW units incorporate split loads (50%) for remotely controlled energy management systems
  • Factory?installed transformers, contactors, and thermostats where specified

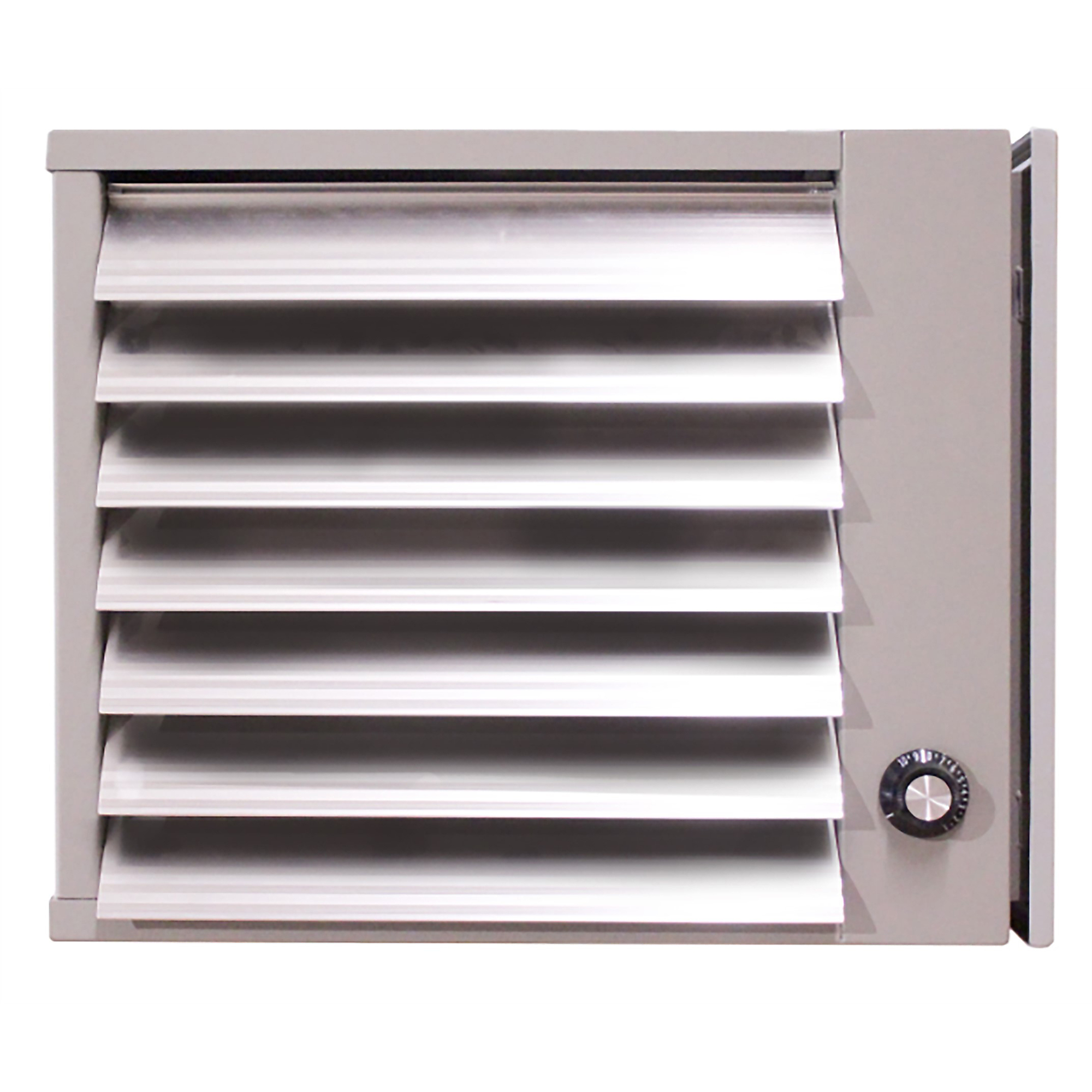

  • Individually adjustable louvres
  • Factory?balanced aluminum fan blade
  • Fan delay in ON and OFF cycles
  • Full sized control panel with hinged removable door, constructed to EEMAC 12 standards
  • Continuous fan terminals for connection to remote switch
  • 14-gauge steel cabinet
  • Epoxy painted (ASA61 Grey) for superior resistance to corrosion

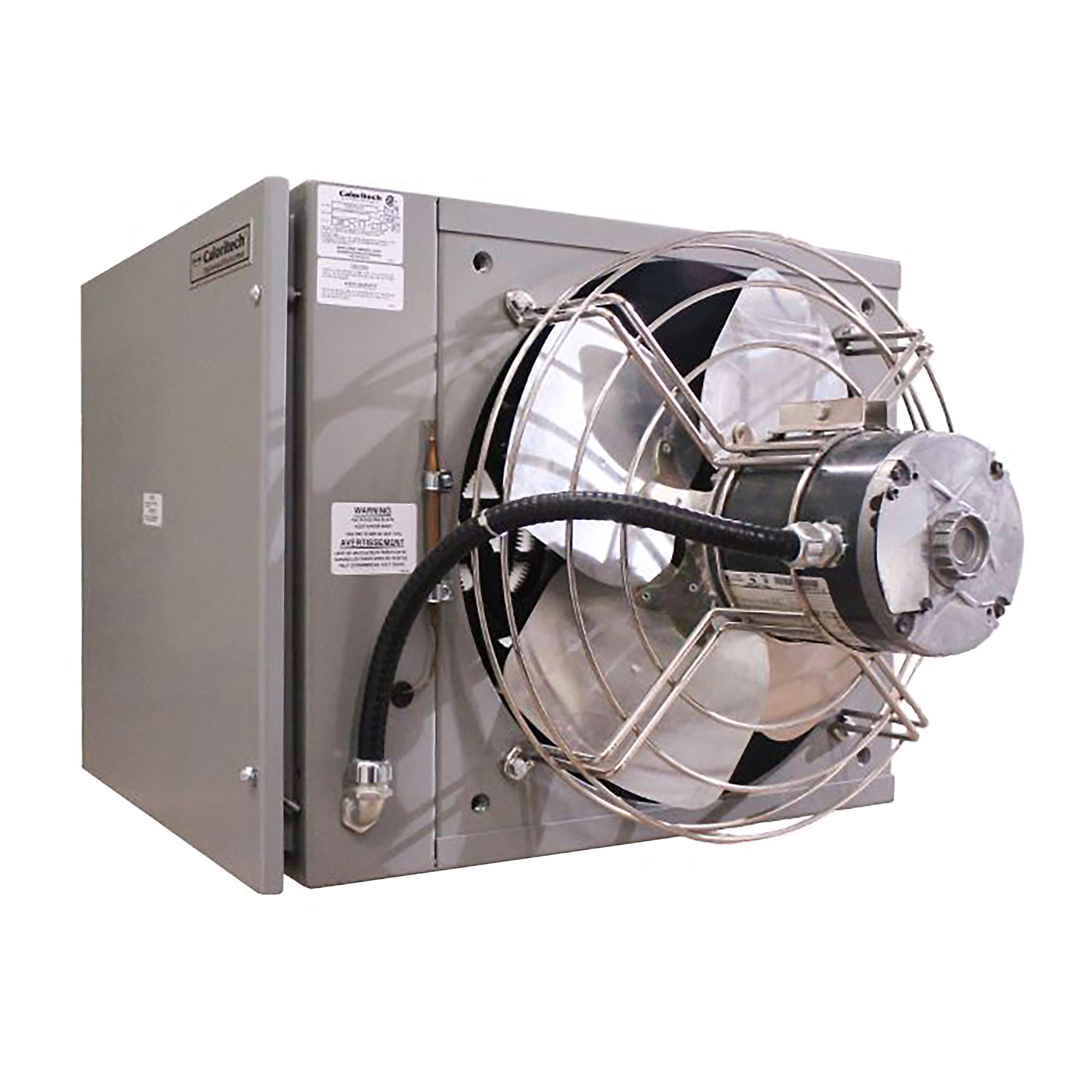

  • 1/3 HP motor with sealed ball bearings and totally enclosed construction
  • Ceiling mounting bracket supplied
  • Elements are robust Caloritech™ type KX finned tubular sheathed type with epoxy sealed terminals to eliminate contamination from moisture and airborne impurities

Key Specs

AttributeSpecification

item#

7387498

Brand

Caloritech

Manufacturer's Warranty

1 year limited warranty

Ship Weight

130.0 LB

Heat Type

Forced Air

Heat Output

136,500 Btu/hour

Phase

Three-phase

Indoor Outdoor Use

Indoor

Volts

600
AttributeSpecification

Watts

40,000

Amps

75.8

Air Flow

2,100 cfm

Hardwired

No

Thermostat Included

Yes

Mounting Hardware Included

No

Housing Material

Steel

Product Weight

130.0000 lb

Dimensions L x W x H (in.)

31.5 x 23.5 x 19.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
