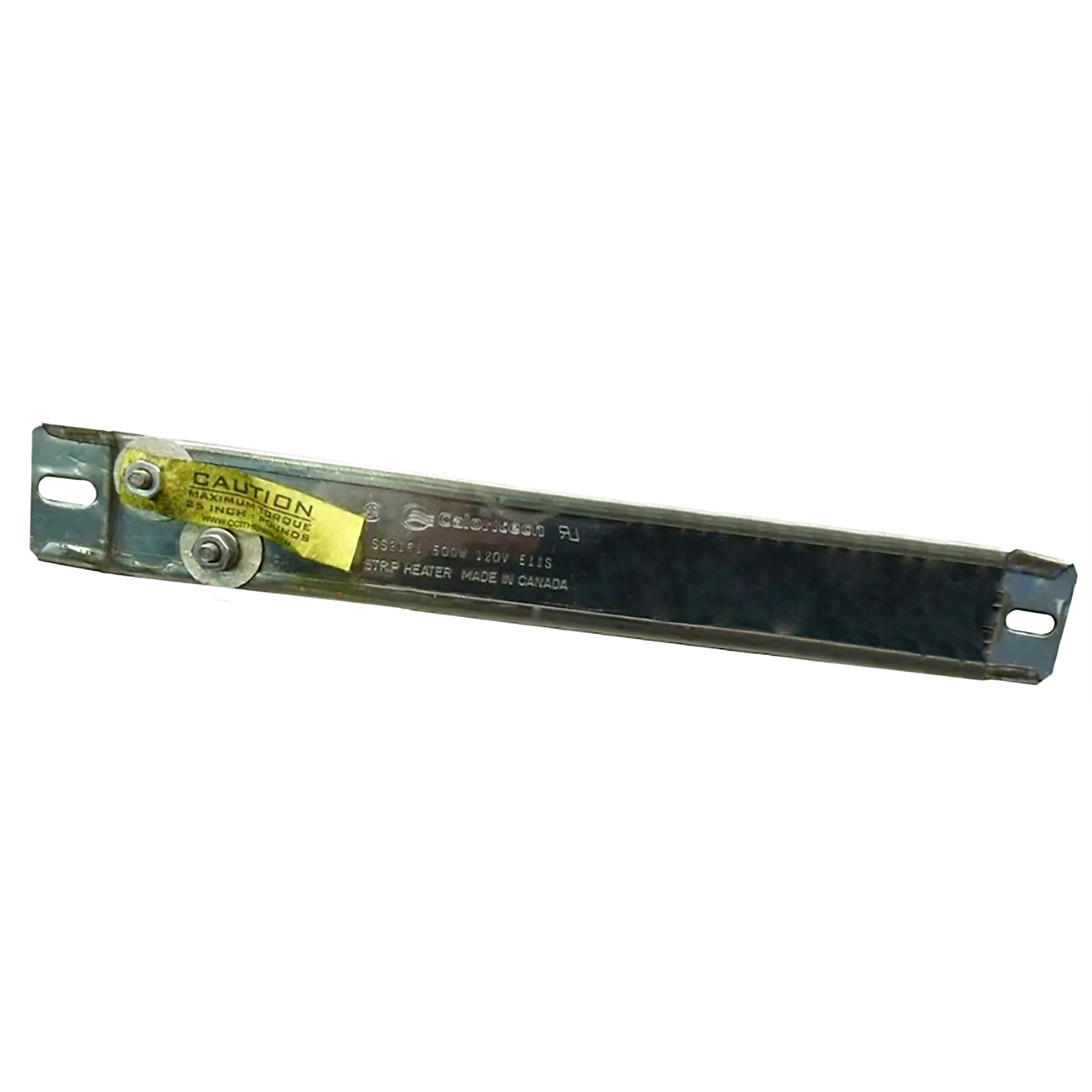

Caloritech, Component Heaters 17.75in. L 1000F, Model# SS1272

Item# 5736594
Caloritech, Component Heaters 17.75in. L 1000F, Model# SS1272

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Caloritech, Component Heaters 17.75in. L 1000F, Model# SS1272

Click or Tap image to Zoom

$51.85

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Heat Type: Electric Radiant Strip Heater, Component Heater
  • Model: Caloritech™ SS Series Radiant Strip Heater - Component Heater, Offset Terminals at One End
  • Safety Certifications: CSA, UL Safety Certified
  • Manufacturer's Warranty: 1 year limited warranty
  • Slotted Hole Length & Width: (5/8)" L x (9/32)" W

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Caloritech SS Series Strip Heaters Component Heaters are a versatile and economical heating source typically used across a wide range of applications, including surface heating (platens, dies, molds, tanks, piping); process air heating (drying cabinets, ovens, baking ovens, vacuum dehydrating ovens, moisture protection for motors); dropping resistors for line applications in railroads and load banks; winterizing (hoppers, conveyors, ducts, car heating, thawing); original equipment (air conditioning, laboratory equipment, food packaging, ovens, presses, drying equipment). SS Series High-Temperature stainless steel strip heaters have two offset bolt-type terminals at one end and can reach max temperatures as high as 1200°F (649°C). Caloritech SS Strip Heaters are an excellent industrial heating product that can be easily controlled by using a heating control panel, mechanical thermostat, or cost-effective bi-metal thermostats that can be installed on the surface of the heater. Mounting holes are useful to mount the heaters securely on the wall housing with a terminal extending from the sheath for easy electrical connections. Available Upon Request Special Order - Lead wires can be supplied through a special order to extend from one end of the strip heater which makes the installation more flexible as the temperature controller is easily adaptable to a specific configuration. The surface of our strip heaters can get quite hot, so we would need to know the operating temperature which is application dependent to select wire with a suitable temperature rating on the insulation jacket. Installation - Standard strip heaters listed are rated at 120V and 240V. All strip heaters can be used on voltages lower than listed for reduced wattage, and some designs can also be used on higher voltages – check the factory. Whenever the voltage to ground exceeds 300V, secondary insulators must be used. See Special Features on page A30.

What's Included

    (1) Caloritech™ SS Strip Heaters, Component Heaters, 240V, 500 Watts, 17.75" L

Features + Benefits

  • Heat Type: Electric Radiant Strip Heater, Component Heater
  • Model: Caloritech™ SS Series Radiant Strip Heater - Component Heater, Offset Terminals at One End
  • Safety Certifications: CSA, UL Safety Certified
  • Manufacturer's Warranty: 1 year limited warranty
  • Slotted Hole Length & Width: (5/8)" L x (9/32)" W
  • Mounting Type: Surface Mount
  • Construction Material: Aluminum Steel Sheath
  • Thermostat Type: Comes standard without an adjustable thermostat, however a Caloritech™ CPA or CPB control panel can be purchased separately for greater temperature control
  • Watt Density: 9.7 Watts in² / 1.5 Watts cm²
  • MAXIMUM PRODUCT TEMPERATURE (°F/°C): 1000°F (538°C)

Key Specs

AttributeSpecification

item#

5736594

Brand

Caloritech

Manufacturer's Warranty

1 year limited warranty

Ship Weight

12.0 LB

Length

17.75 in

Heat Output

1,706 Btu/hour
AttributeSpecification

Hardwired

Yes

Volts

240

Watts

500

Product Weight

9.0000 lb

Dimensions L x W x H (in.)

17.75 x 1.5 x 1.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
