California Air Tools Ultra-Quiet Portable Air Compressor, 2 HP, 15 Gallons, Model# 15020C

Item# 113569
"California Air Tools Ultra-Quiet Portable Air Compressor, 2 HP, 15 Gallons, Model# 15020C"
California Air Tools Ultra-Quiet Portable Air Compressor, 2 HP, 15 Gallons, Model# 15020C

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

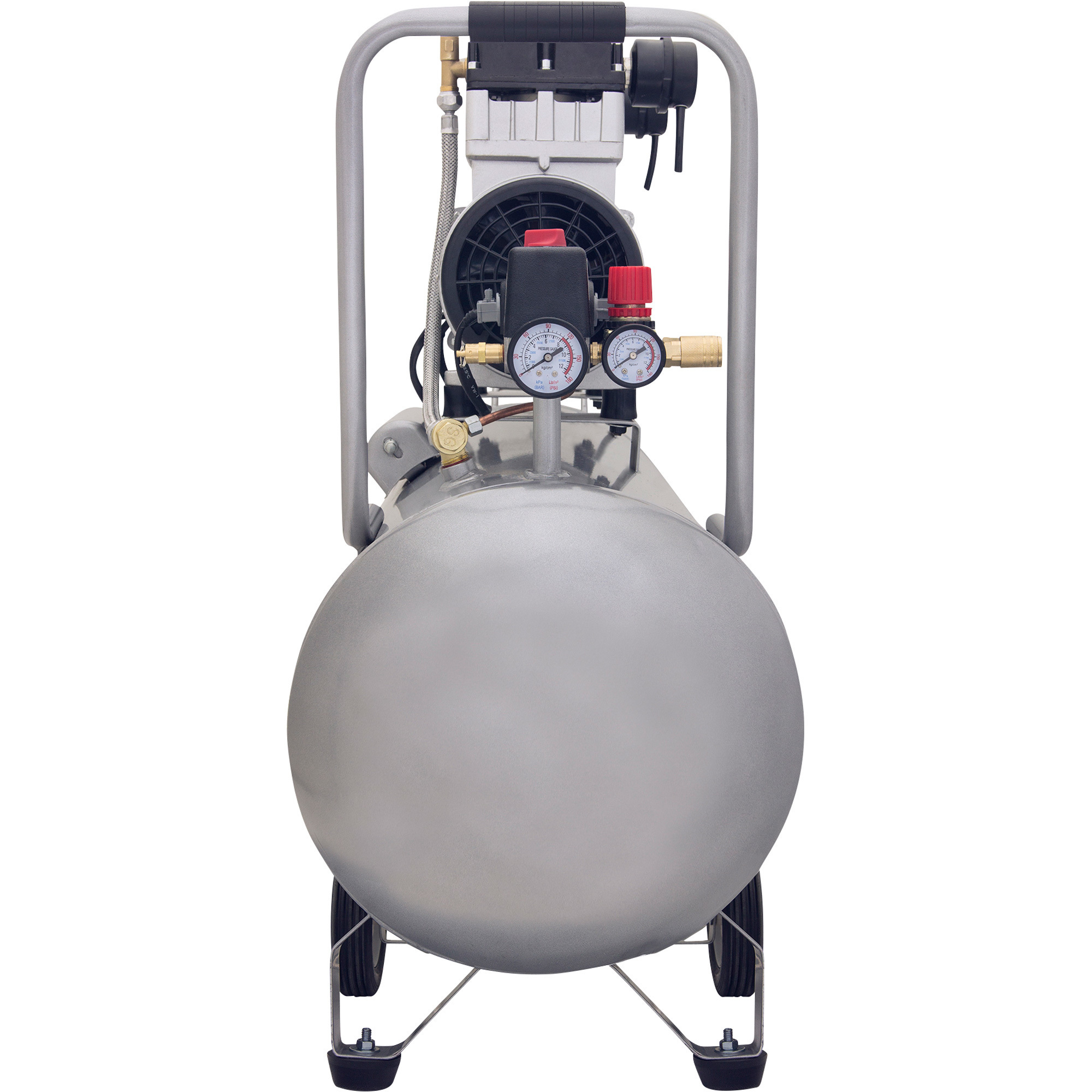

California Air Tools Ultra-Quiet Portable Air Compressor, 2 HP, 15 Gallons, Model# 15020C

Click or Tap image to Zoom

$410.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Oil-free pump for cleaner air and better tool operation
  • Two pressure control gauges
  • Industrial 1/4in. female quick connector
  • 120 PSI maximum pressure
  • Easy start valve uses fewer amps for easier startups in cold temperatures

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The CALIFORNIA AIR TOOLS 15020C Ultra Quiet Oil-Free 15-Gallon Air Compressor is designed to be one of the quietest 2.0 Hp air compressors in the industry having only 70 decibels of sound. The Powerful 2.0 HP (SP-9421) motor operates at only 1680 RPM creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.* The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-15020C Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 500 hours or less. The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump). The Easy Start Valve feature allows for a easier start up using less starting amps. The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures. The large 15 Gallon Steel Air Tank with wheel kit makes it very easy to move around the jobsite, shop or garage. Designed for the person looking for Power, Air Flow, Less Service and Maintenance with at Least 30% Less Noise!

What's Included

    (1) 15-gallon air tank (1) Wheel kit (2) Air filters

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Oil-free pump for cleaner air and better tool operation
  • Two pressure control gauges
  • Industrial 1/4in. female quick connector
  • 120 PSI maximum pressure
  • Easy start valve uses fewer amps for easier startups in cold temperatures
  • Pressure switch
  • Thermal overload protector reduces motor damage
  • Low amp draw uses only 14 Amps
  • 50-second recovery time from 90 PSI to 130 PSI
  • 70/30 duty cycle
  • Maximum continuous running: 30-60 min.
  • Cast aluminum cylinder with Teflon cylinder rings for less friction and wear
  • Stainless steel reed valves
  • Time to fill the tank from empty to full is 230 seconds
  • Dimensions: 28in.L x 17in.W x 31in.H
  • Weighs 90 lbs.
  • One-year limited warranty
  • UL certified

Key Specs

AttributeSpecification

item#

113569

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

98.0 LB

Horsepower

2 HP

Air Tank Size

15 Gal

Volts

110

CFM at 90 PSI

5.30

Max. PSI

130

Air Outlets (qty.)

1

Amps

15
AttributeSpecification

Working Pressure

90 PSI

Pump Life

3,000 hr

Pump Drive

Direct

CFM at 40 PSI

6.40

Noise Level

70 dB

Oil Required

No

Tank Fill Time

3.83 min

Drain Type

Manual

Tank Orientation

Horizontal

Product Weight

90.0000 lb

Dimensions L x W x H (in.)

28.0 x 17.0 x 31.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. amperage needed?

    1 answer

    1. This air compressor has a 14 amp rating.

      Helpful?

  2. How many hoses can be run off this compressor?

    1 answer

    1. The compressor will come with one 1/4" quick connect fitting to hook up a hose.

      Helpful?

  3. Can the 15020c be changed to work off 220VAC? Thanks

    1 answer

    1. The air compressor can only be run on 110/120 volt. It cannot be run on 220 volt.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
