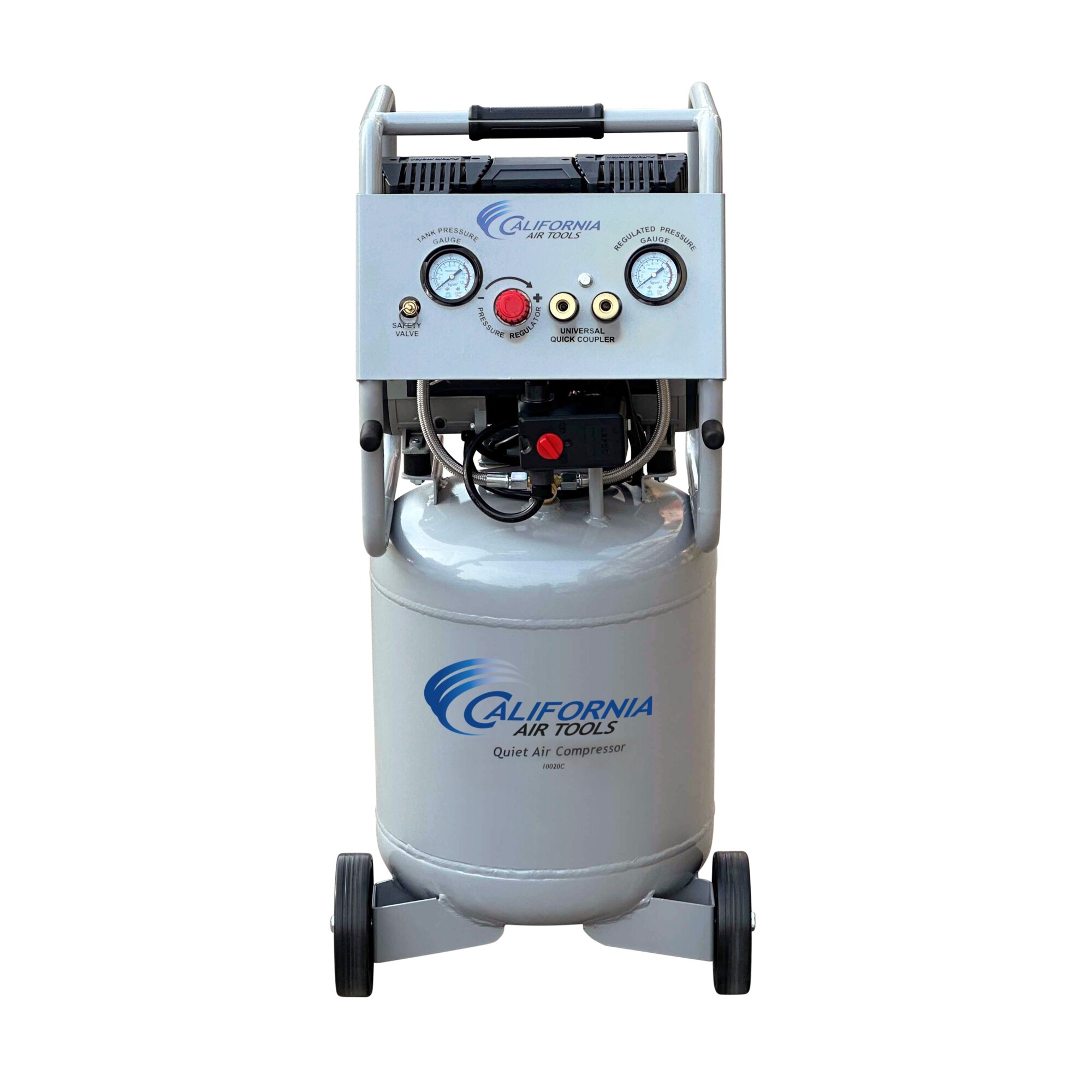

California Air Tools Ultra-Quiet Portable Air Compressor, 2 HP, 10 Gallons, Model# CAT-10020C

Item# 113570
"California Air Tools Ultra-Quiet Portable Air Compressor, 2 HP, 10 Gallons, Model# CAT-10020C"
California Air Tools Ultra-Quiet Portable Air Compressor, 2 HP, 10 Gallons, Model# CAT-10020C

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools Ultra-Quiet Portable Air Compressor, 2 HP, 10 Gallons, Model# CAT-10020C

Click or Tap image to Zoom

$399.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Oil-free pump for cleaner air and better tool operation
  • Two pressure control gauges
  • Two 1/4in.industrial female quick connectors
  • 125 PSI maximum pressure
  • Easy start valve uses fewer amps for easier startups in cold temperatures

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The California Air Tools Ultra-Quiet Portable Air Compressor is designed to be one of the quietest 2.0 HP air compressors in the industry with only 60dB of sound. The powerful 2.0 HP motor operates at only 1680 RPM, creating less noise and less wear. The increased duty cycle allows for longer continuous run times. The extra-large, oil-free dual piston pump system is engineered for high performance and durability, operating in a variety of temperatures and uneven terrains and is designed to have a life cycle of 3000+ hours before wear. The Easy Start Valve feature allows for a easier start up using less starting amps. The large 10-gallon tank is constructed of steel and comes with a wheel kit for easy transport around job sites, shop or garage.

What's Included

    (1) 10-gallon air tank (1) Wheel kit (2) Air filters

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Oil-free pump for cleaner air and better tool operation
  • Two pressure control gauges
  • Two 1/4in.industrial female quick connectors
  • 125 PSI maximum pressure
  • Easy start valve uses fewer amps for easier startups in cold temperatures
  • Pressure switch
  • Thermal overload protector reduces motor damage
  • Low amp draw uses only 14 Amps
  • 25-second recovery time from 95 PSI to 125 PSI
  • 70/30 duty cycle
  • Maximum continuous running: 30-60 min.
  • Cast aluminum cylinder with Teflon cylinder rings for less friction and wear
  • Stainless steel reed valves
  • 14-gauge, 25ft. cord
  • Time to fill the tank from empty to full is 230 seconds
  • Dimensions: 16in.L x 15.1in.W x 35.9in.H
  • Weighs 82.5 lbs.
  • One-year limited warranty
  • UL certified

Key Specs

AttributeSpecification

item#

113570

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

98.0 LB

Horsepower

2 HP

Air Tank Size

10 Gal

Volts

110

CFM at 90 PSI

5.30

Max. PSI

125

Air Outlets (qty.)

2

Amps

14
AttributeSpecification

Duty Cycle

70 %

Motor RPM

1,680

Pump Life

3,000 hr

Pump Material

Aluminum

CFM at 40 PSI

6.40

Noise Level

70 dB

Oil Required

No

Tank Fill Time

2 min

Tank Orientation

Vertical

Product Weight

82.5000 lb

Dimensions L x W x H (in.)

16.0 x 15.1 x 35.9 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Is the tank drain easy to access?

    1 answer

    1. Yes, the drain valve is located at the bottom of the air tank.

      Helpful?

  2. how many cfm @ 30 psi?

    1 answer

    1. The manufacturer only lists the compressor to be 5.30 CFM at 90 PSI and 6.40 CFM at 40 PSI.

      Helpful?

  3. What makes it ultra-quiet

    1 answer

    1. The compressor would have rubber pads and was designed with other sound-dampening techniques to make it super quiet.

      Helpful?

  4. Will this compressor work a HVLP spray gun

    1 answer

    1. The air compressor will put out 5.30 CFM at 90 PSI. You would need to check the CFM and PSI requirement of the HVLP spray gun you are using to see if it would work for it.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
