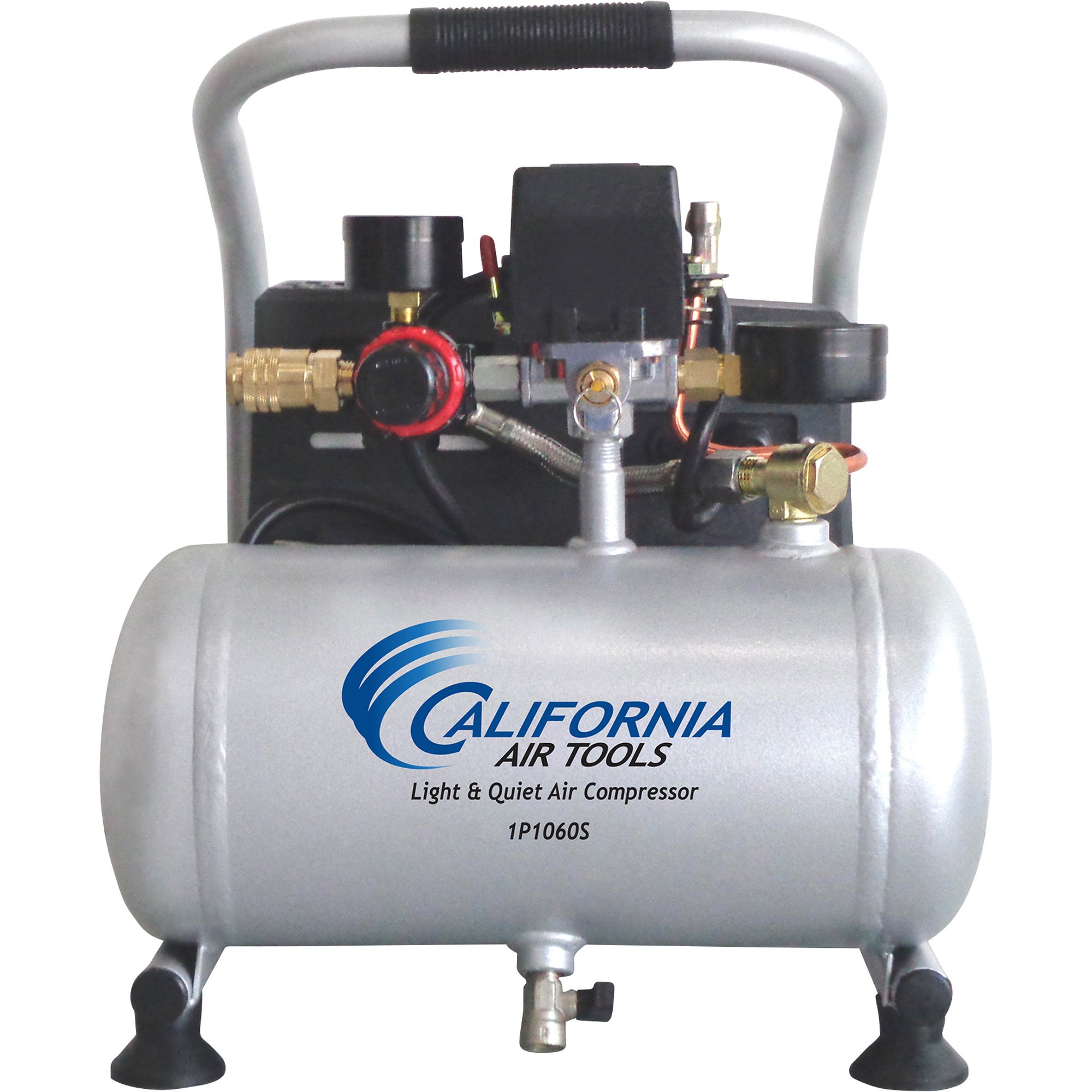

California Air Tools IP 1060S Ultra-Quiet Portable Air Compressor — 0.6 HP, 1 Gallon, Model# 1P1060S

Item# 113571
California Air Tools IP 1060S Ultra-Quiet Portable Air Compressor — 0.6 HP, 1 Gallon, Model# 1P1060S

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools IP 1060S Ultra-Quiet Portable Air Compressor — 0.6 HP, 1 Gallon, Model# 1P1060S

Click or Tap image to Zoom

  • Efficient 0.6 HP motor operates at only 1680 RPM for less noise and wear
  • Oil-free, single-piston pump for cleaner air and better tool operation
  • Two (2) pressure control gauges
  • Industrial 1/4in. female quick connector
  • Thermal overload protector allows less time to fill the tank

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The California Air Tools Ultra-Quiet Portable Air Compressor is designed to be one of the quietest 0.6 HP air compressors in the industry with only 56dB of sound. The powerful motor operates at only 1680 RPM, creating less noise, less heat and less wear. The oil-free, single-piston pump is designed to have a life cycle before wear of 3000 plus hours and is engineered for high performance and durability, operating in a variety of temperatures and uneven terrains. Great for the garage and perfect for cleaning and inflating tires, beds, toys and sport balls.

What's Included

  • (1) 6.0 HP, 8-gallon air compressor
  • (1) Air filter

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Efficient 0.6 HP motor operates at only 1680 RPM for less noise and wear
  • Oil-free, single-piston pump for cleaner air and better tool operation
  • Two (2) pressure control gauges
  • Industrial 1/4in. female quick connector
  • Thermal overload protector allows less time to fill the tank
  • External current protector
  • 120 PSI maximum pressure
  • Recovery time from 90 PSI to 120 PSI: 15 seconds
  • Max. continuous running: 30-60 min.
  • Low amp draw uses only 4.5 Amps
  • Produces 1.2 CFM at 90 PSI, allowing you to use staple guns, brad nail guns, finish nail guns, nail guns, air brushes and blow guns
  • Lightweight 1-gallon tank (weighs only 29 lbs.)
  • One-year limited warranty
  • ETL certified

Key Specs

AttributeSpecification

item#

113571

Brand

California Air Tools

Manufacturer's Warranty

1 year Limited Warranty

Ship Weight

34.0 LB

Horsepower

0.6 HP

Air Tank Size

1 Gal

Volts

110

CFM at 90 PSI

1.2

Max. PSI

120

Air Outlets (qty.)

1

Amps

4.5

Duty Cycle

70%
AttributeSpecification

Motor RPM

1,680

Working Pressure

90 PSI

Pump Life

3,000 hr

Pump Material

Aluminum

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

1.60

Noise Level

56 dB

Oil Required

No

Tank Fill Time

0.83 min

Product Weight

29 lb

Dimensions L x W x H (in.)

12.5 x 14.7 x 14.75 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year Limited Warranty
