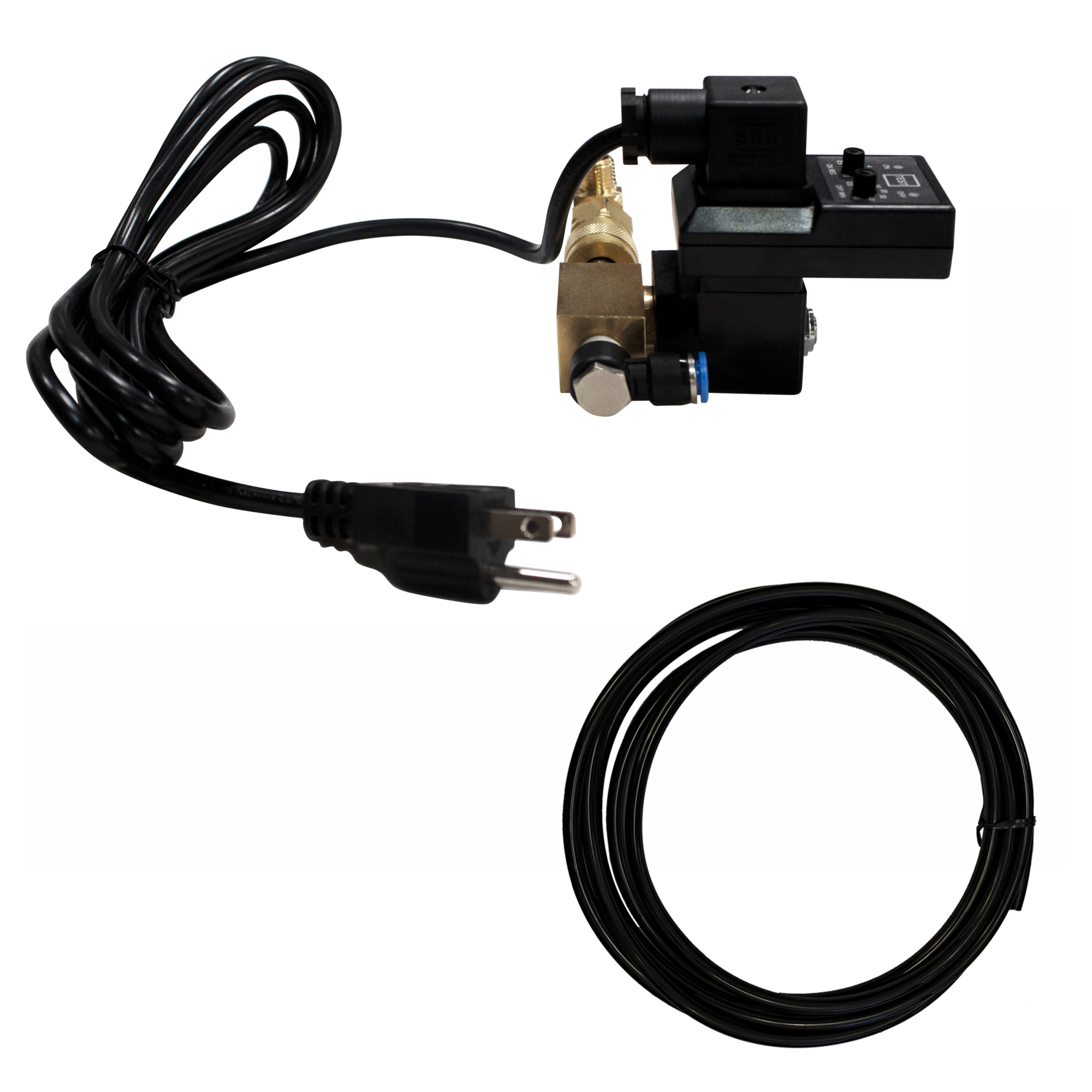

California Air Tools, EZ2321ADS Automatic Drain Short Extension Kit, Model# CAT-EZ2321ADS

Item# 6203693
California Air Tools, EZ2321ADS Automatic Drain Short Extension Kit, Model# CAT-EZ2321ADS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools, EZ2321ADS Automatic Drain Short Extension Kit, Model# CAT-EZ2321ADS

Click or Tap image to Zoom

$115.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

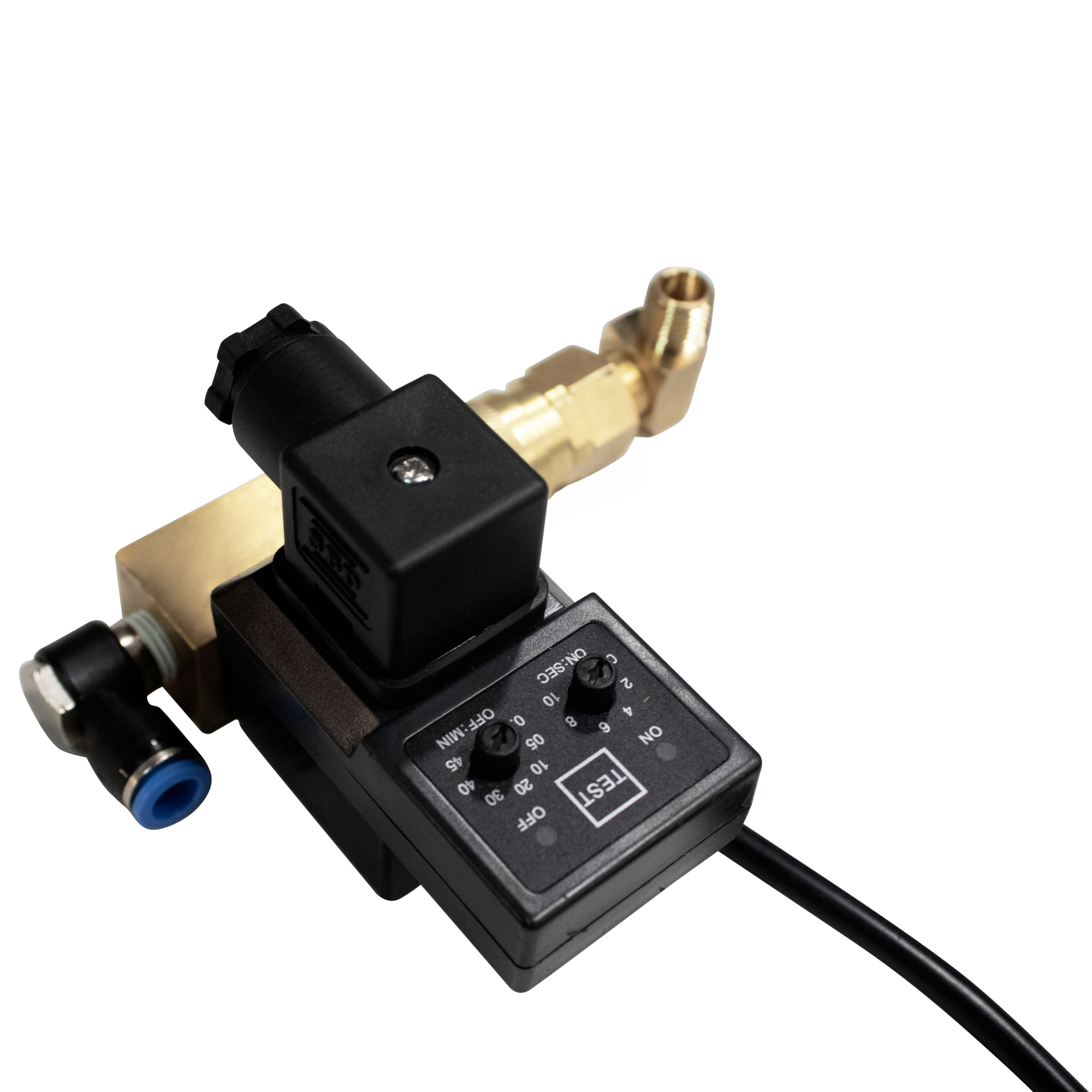

  • Timer Manual TEST switch
  • Valve Body- Forged brass
  • Bright lights for clearer indication of operating status.
  • In/Out Ports - 1/4" NPT Female
  • For use with 110 volt 60 hz electrical outlets

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

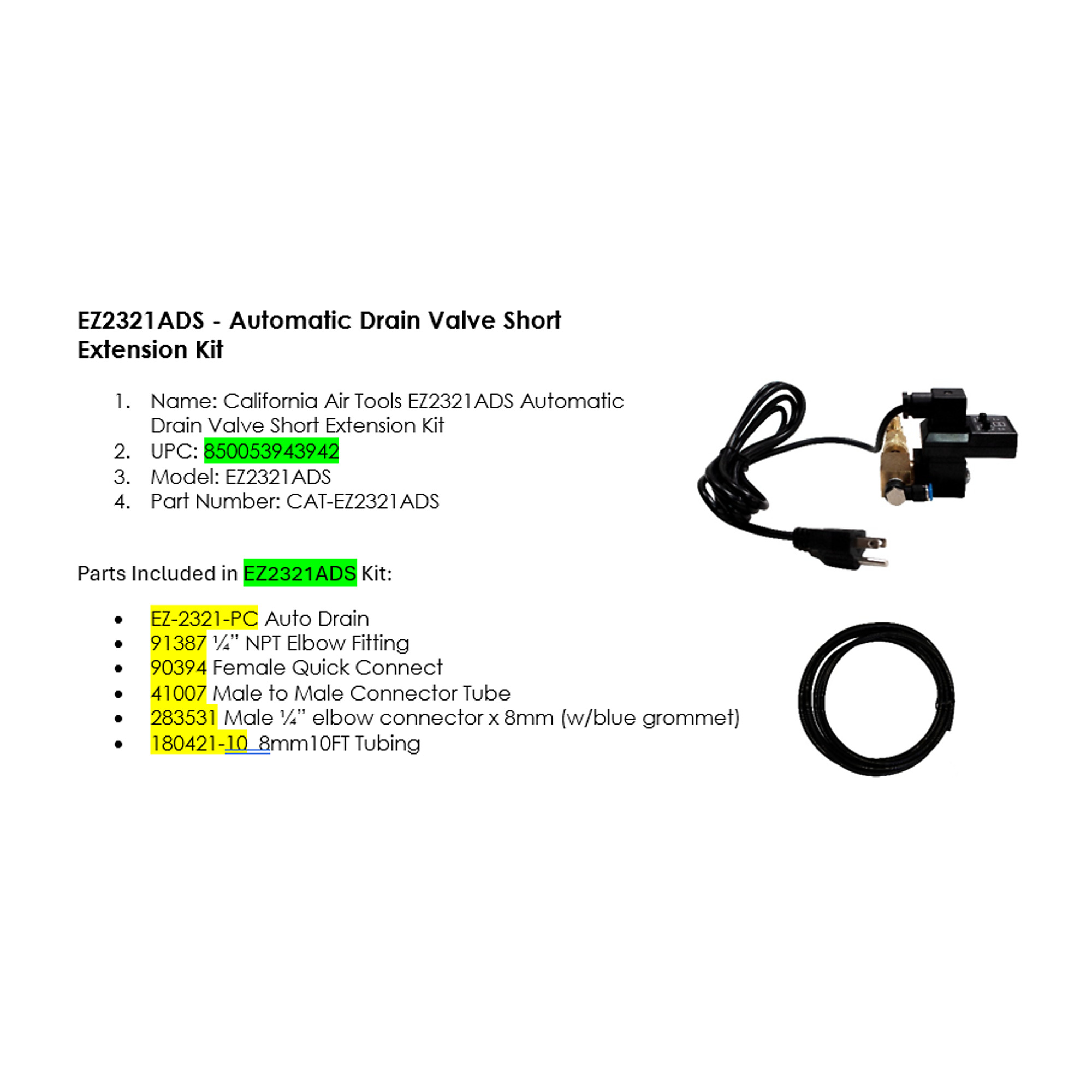

The California Air Tools EZ2321ADS Automatic Drain Valve Short Extension Kit (110v) has been designed to eliminate manually draining water and condensate from air compressor air tanks. Easily Installable. All adapters and connectors are included in kit. Ideal for extending the Auto Drain away from the bottom side of the tank, providing easier access and clearance with respect to floor surface. Automatic Drain Valve can be manually programmed to automatically drain the air compressor air tank to a set time and interval desired. Forge brass drain valve is durable and built for industrial use. Compatible with California Air Tools Air Compressors. EZ2321ADS Kit Includes: EZ-2321-PC Auto Drain, 1/4” NPT Elbow Fitting, Female Quick Connect, Male to Male Connector Tube, Short Male to Male Extension Tube, Male 1/4” elbow connector x 8mm (w/blue grommet) and 8mm 10ft. black PTFE tubing. Compatible with most California Air Tools 1 hp and 2 hp air compressors. Automatically draining the air compressor air tank offers many benefits: 1. No time required to drain the air tank. 2. Automatically removes the water from the air tank when desired. 3. Removes condensate water from the tank for better air compression in the air tank 4. Helps prevent steel air tanks from rusting. 5. Prolongs the life of the air tank. 6. Prevents water from traveling to the air compressor pump/motor. 7. Helps remove moisture from entering the air line. 8. Prevents water damage and wear of air tools.

What's Included

    (1) Automatic Drain Valve Short Kit

Features + Benefits

  • Timer Manual TEST switch
  • Valve Body- Forged brass
  • Bright lights for clearer indication of operating status.
  • In/Out Ports - 1/4" NPT Female
  • For use with 110 volt 60 hz electrical outlets
  • Product: 3.5" (D) x 4.5" (H) x 1.5" (W)   - 1.5 lbs
  • Max. Working Pressure - 230 PSI
  • 1 Year Limited Warranty

Key Specs

AttributeSpecification

item#

6203693

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty
AttributeSpecification

Ship Weight

2.0 LB

Product Weight

1.5000 lb

Dimensions L x W x H (in.)

3.5 x 1.5 x 4.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
