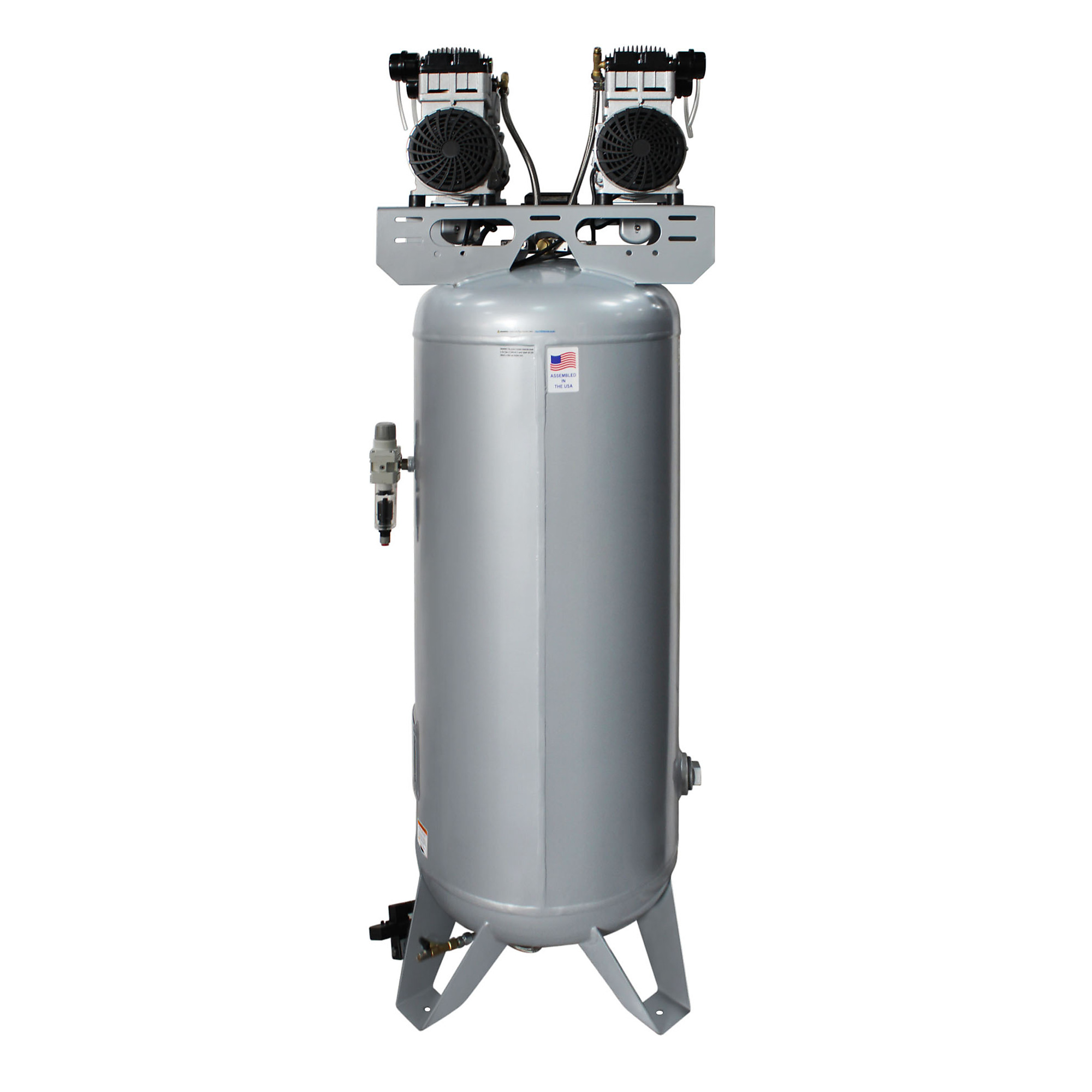

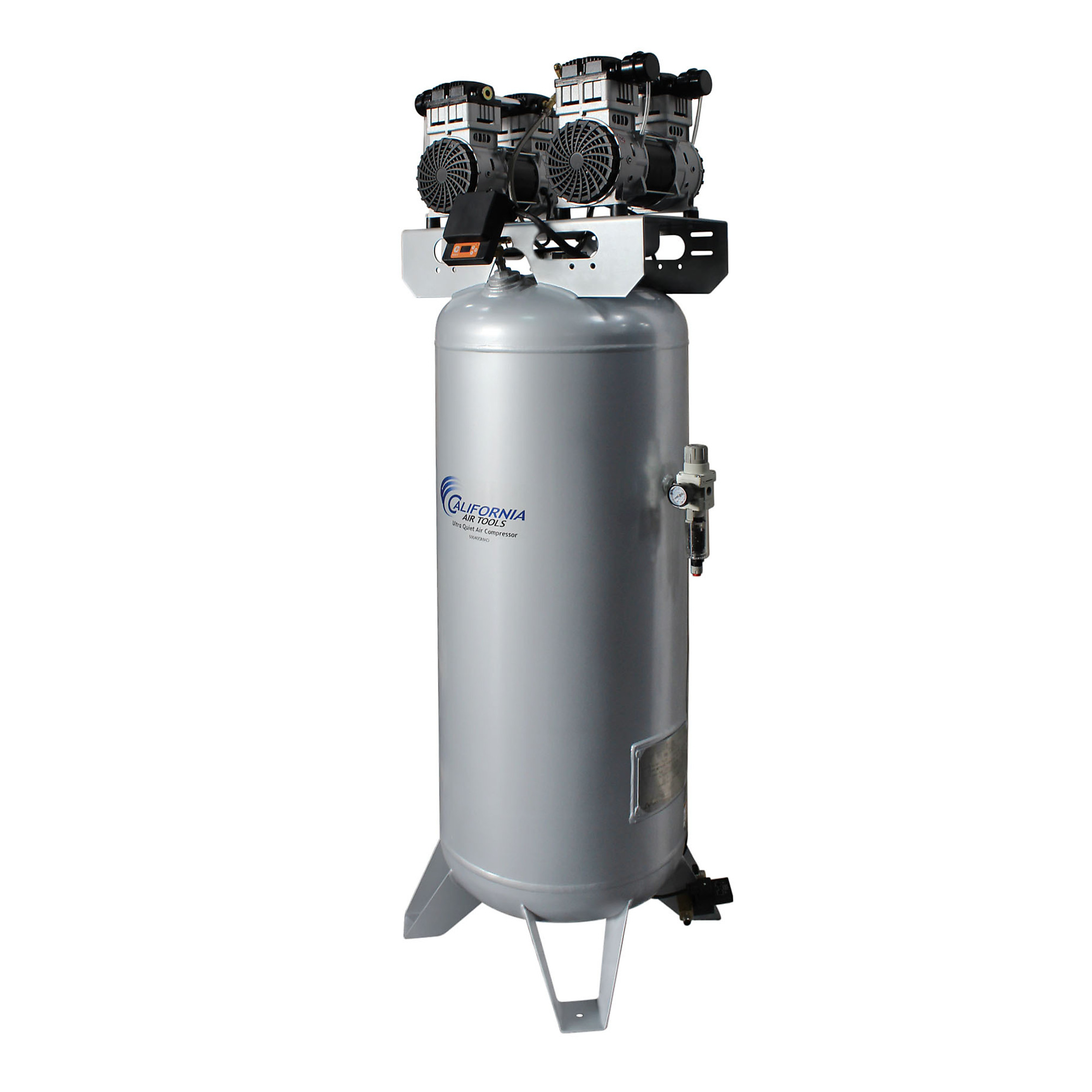

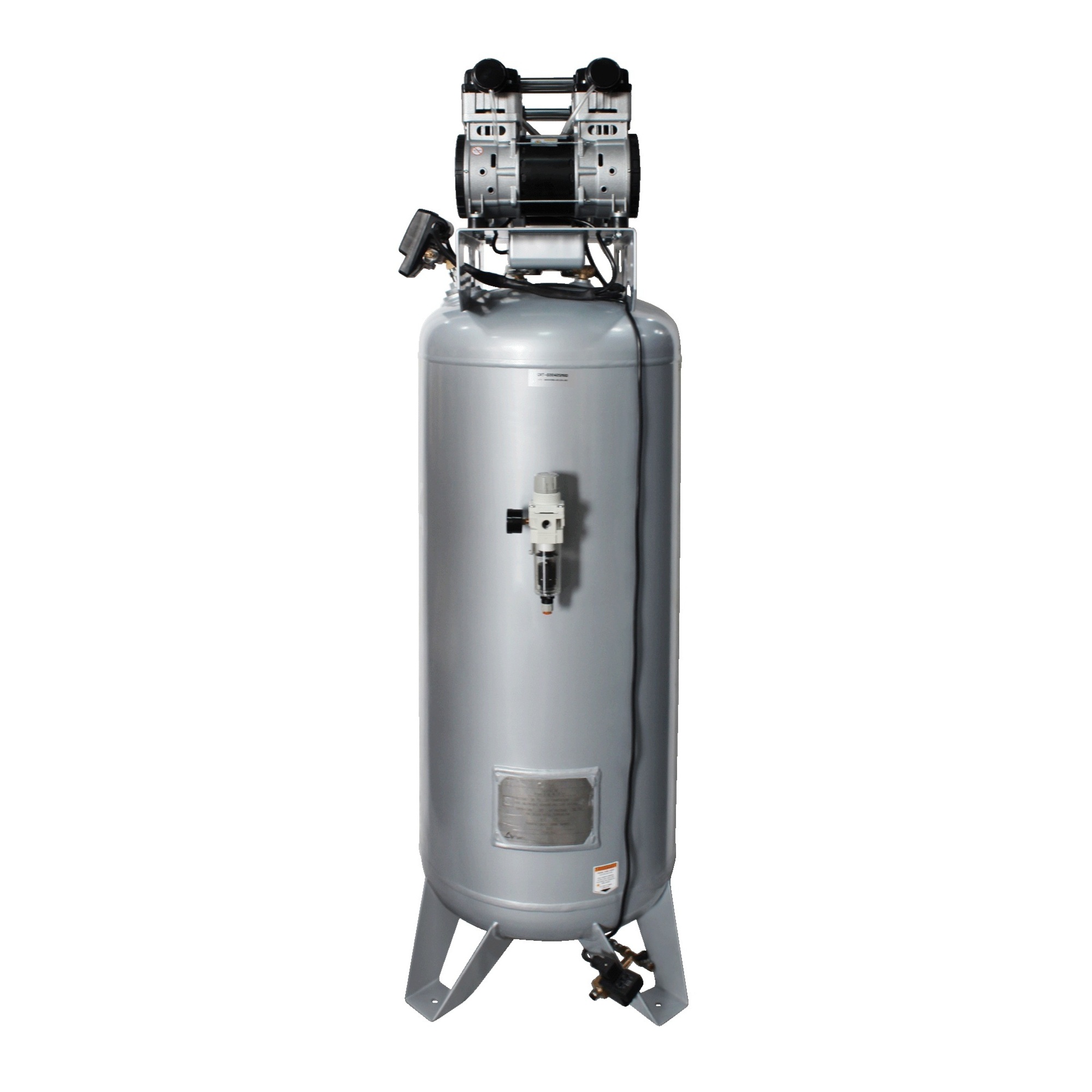

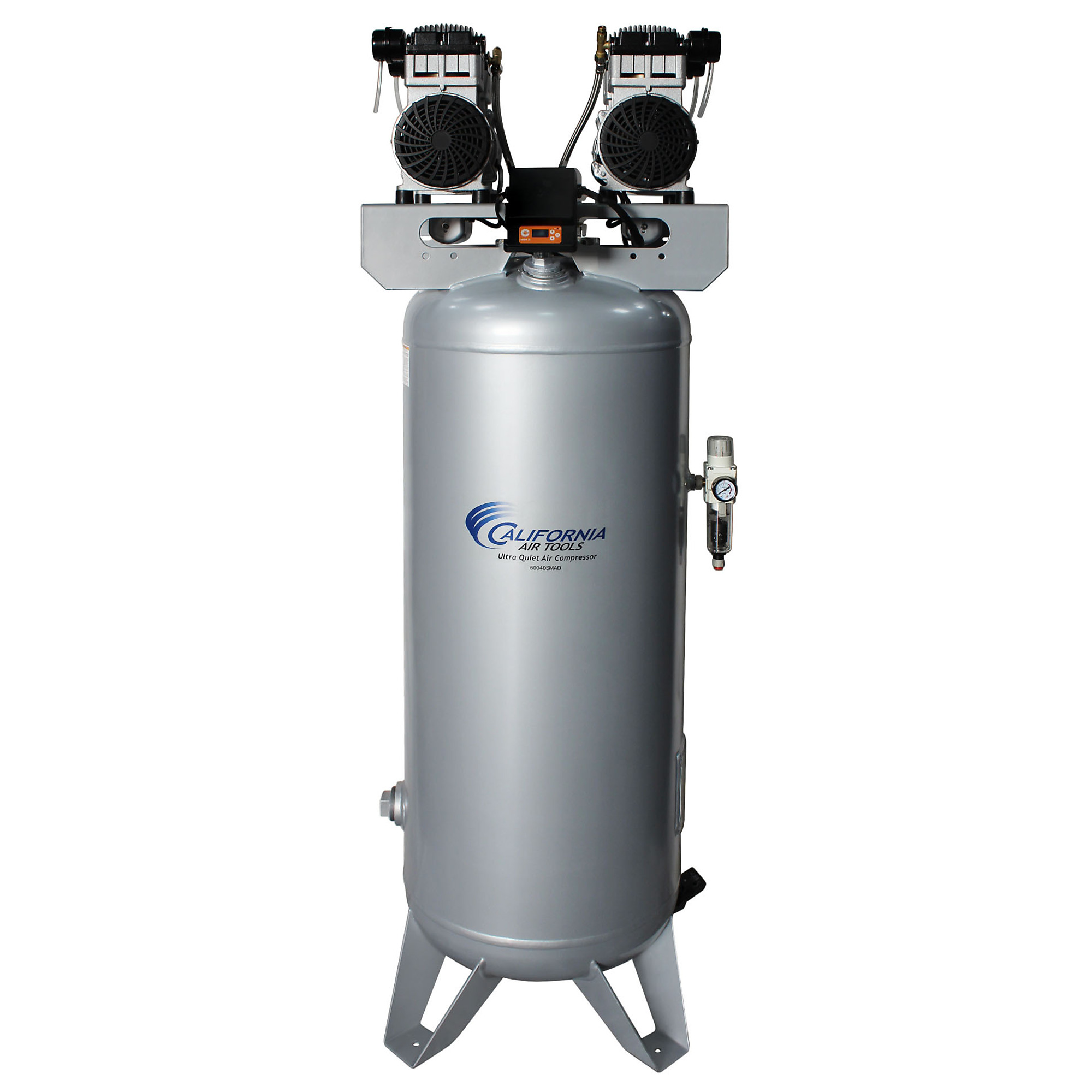

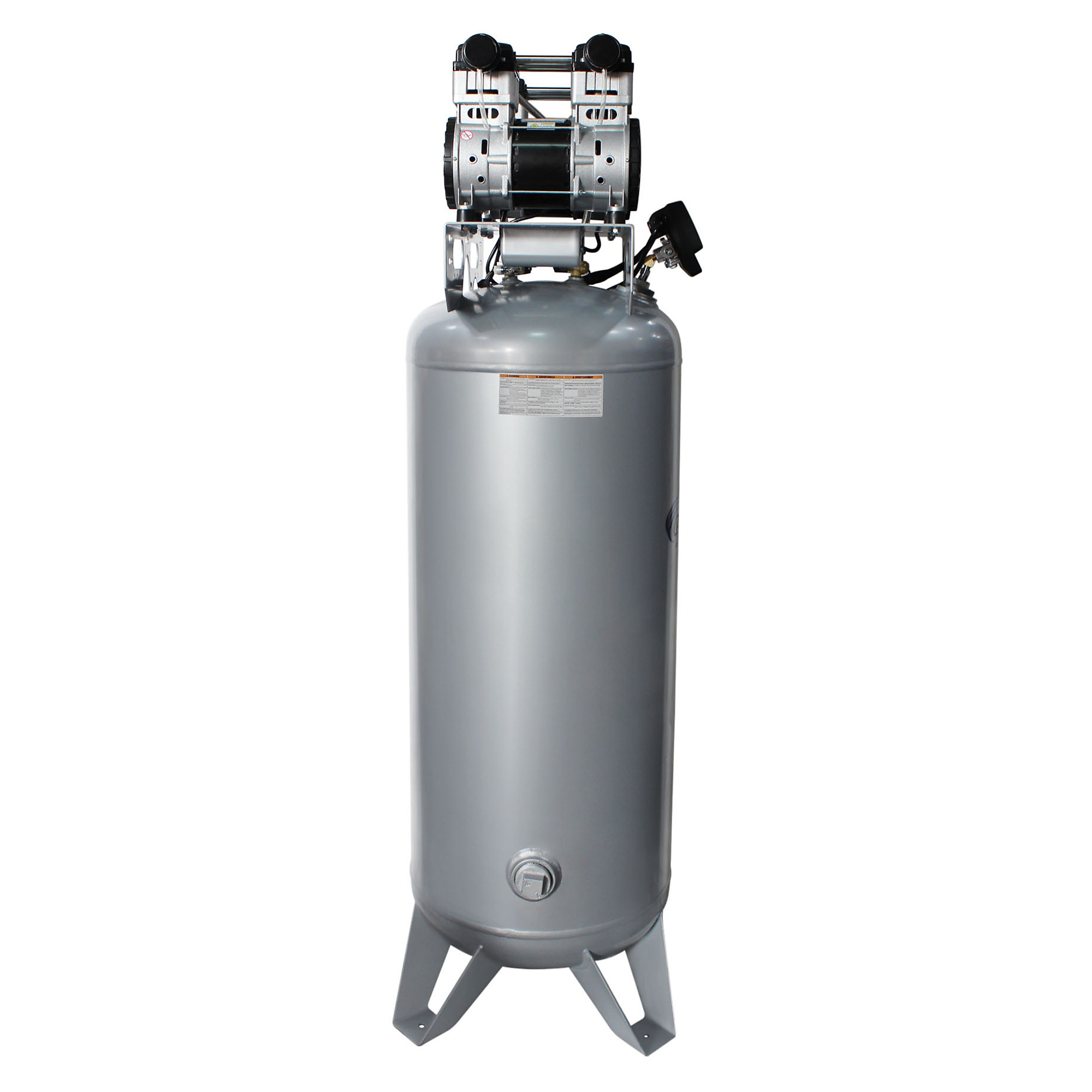

California Air Tools, CAT 60040SMAD 60Gal 4Hp AirCompressor, Horsepower 4 HP, Air Tank Size 60 Gal, Volts 220 Model# CAT-60040SMAD

Item# 6571040
California Air Tools, CAT 60040SMAD 60Gal 4Hp AirCompressor, Horsepower 4 HP, Air Tank Size 60 Gal, Volts 220 Model# CAT-60040SMAD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

California Air Tools, CAT 60040SMAD 60Gal 4Hp AirCompressor, Horsepower 4 HP, Air Tank Size 60 Gal, Volts 220 Model# CAT-60040SMAD

Click or Tap image to Zoom

$2250.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Ultra Quiet - Only 75 decibels
  • Oil-Free Pump – Cleaner air for better tool operation. Less maintenance and Costs.
  • One Regulated Pressure Gauges
  • 5 Micron Air Filter & Regulator with a 3/8" Port
  • Air Hose Port 3/8"

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The CALIFORNIA AIR TOOLS 60040SMAD Ultra Quiet 4.0 Hp Oil-Free 60 Gallon Air Compressor is designed to be one of the quietest 4.0 Hp air compressors in the industry having only 75 decibels of sound. The MDR2i OLED Smart Controller may be connected to mobile phones, tablets, notebooks, or computers. The controller can be used as an access point or can be connected to a Wi-Fi network. Compressor features and parameters may be entered and controlled comfortably along with remote monitoring. The Powerful Twin 2.0 HP (SP-9421-22060) motors operates at only 1680 RPM creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.* The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-60040SMAD Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours. The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump). EZ-1-2321 Auto Drain Valve (with manual drain valve) The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process. (Factory Pre-Set) Designed for the person looking for Power, Air Flow and Less Service with at Least 30% Less Noise! The large 60 Gallon Steel ASME Air Tank is just the right size for shop or garage.

What's Included

    (1) Owners Manual

Downloads

Product Manual

Features + Benefits

  • Ultra Quiet - Only 75 decibels
  • Oil-Free Pump – Cleaner air for better tool operation. Less maintenance and Costs.
  • One Regulated Pressure Gauges
  • 5 Micron Air Filter & Regulator with a 3/8" Port
  • Air Hose Port 3/8"
  • MDR2i OLED Smart pressure controller for remote monitoring and control
  • Thermal Overload Protector
  • Working Pressure 90-120 PSI (+/-5 PSI). Adjustable up to 105 PSI Kick-On; 130 PSI Kick-Off maximum.
  • 220 Volt / 60 Hertz / Single Phase - (No 208 Volts - if necessary, obtain 208 to 230 voltage booster). Acceptable Range: 215v - 240v.
  • Low Amp Draw - 14 Amps
  • Time to fill tank from empty to full - 6:30 Minutes
  • Recovery time from 95 PSI to 125 PSI - 2:00 Minutes
  • Duty Cycle - 70/30*
  • Less heat which dissipates more efficiently
  • 60 Gal. Steel ASME Air Tank
  • L (21") x W/D (28.5") x H (66")
  • 213 lbs
  • EZ-1-2301 Automatic Drain Valve (with manual drain valve) The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank.
  • Comes complete (4) Air Filters Plug Type: Nema 6-15P (fits Nema 6-15R or 6-20R receptacle) ASME Certified for Commercial Use 1 Year Limited Warranty Commercial Use: Refer to State & City Codes Assembled in USA with global components

Key Specs

AttributeSpecification

item#

6571040

Brand

California Air Tools

Manufacturer's Warranty

1 year limited warranty

Ship Weight

416.0 LB

Air Tank Size

60 Gal

Volts

220

CFM at 90 PSI

10.6

Tank Orientation

Vertical

Horsepower

4 HP

Max. PSI

120

Air Outlets (qty.)

1

Amps

14

Duty Cycle

70 %
AttributeSpecification

Engine Start Type

Electric

Pump Life

3,000 hr

Air Outlet Size

3/8 in. NPT

CFM at 40 PSI

12.8

CFM at Max. PSI

10.6

Noise Level

75 dB

Oil Required

No

Lubrication System

Oil-Free

Drain Type

Automatic

Engine Brand

OEM

Product Weight

328.0000 lb

Dimensions L x W x H (in.)

35.0 x 28.0 x 68.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
